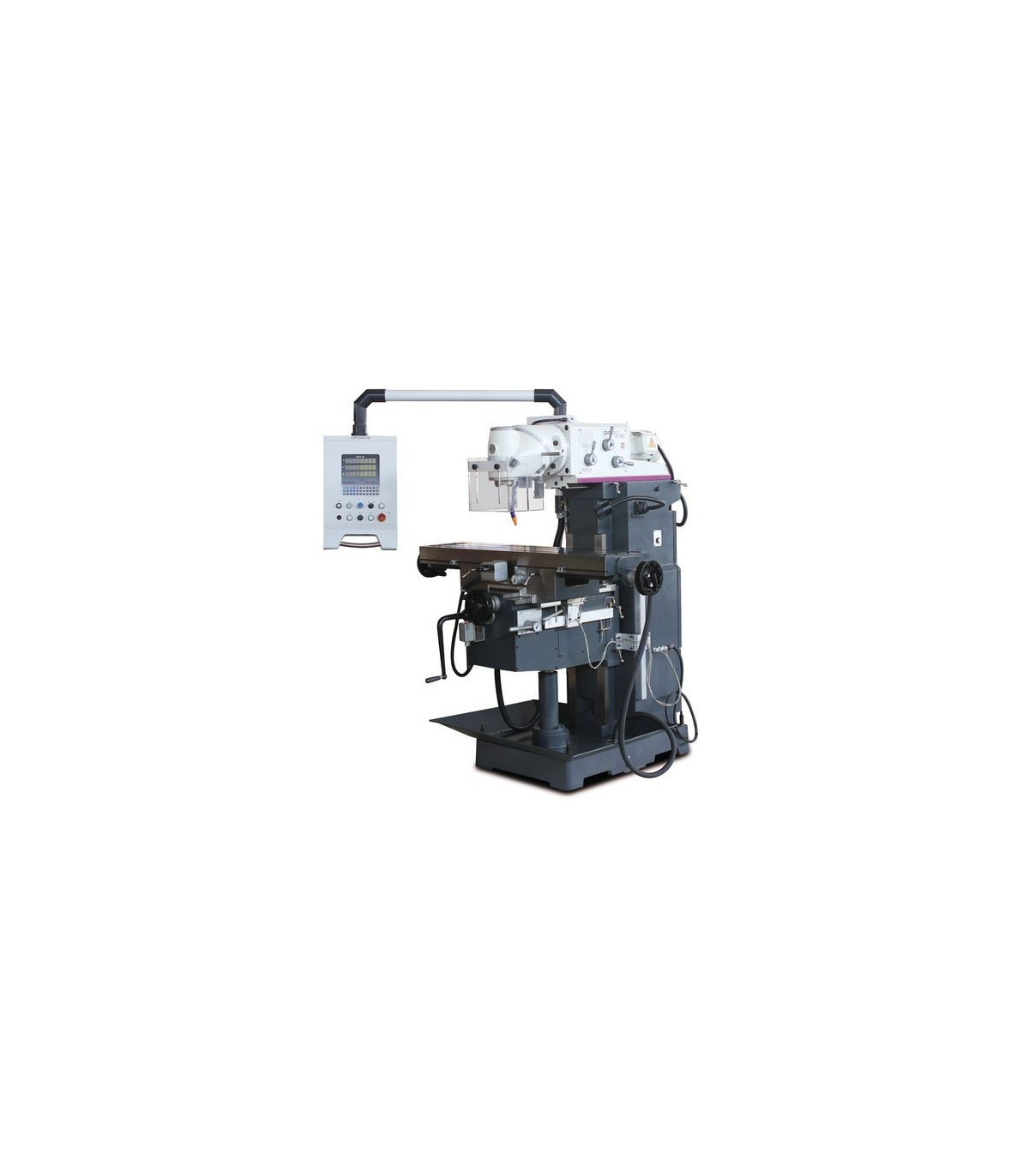

Universal milling machine for workshops MT 130 S OPTIMUM

Universal milling machine for workshops MT 130 S OPTIMUM. The MT 130 S universal milling machine from OPTIMUM offers a versatile range of applications with a robust Meehanite cast iron design. Its smooth operation and adjustable guides ensure precision. With adjustable feed, solid table, and user protection, it is ideal for workshops.

FEATURES

• Versatile range of applications
• Robust machine design
• Heavy and solid design made of high-quality Meehanite cast iron
• Smooth operation thanks to ground spur gears that rotate in an oil bath.
• All guides are hardened and can be adjusted using wedge strips.
• Stable flat guides on the Y and Z axes
• Central lubrication
• Large decoupled handwheels with scale
• LED machine lamp
• Cooling device
• Simple handling of switching elements
• Table feed on the X, Y, and Z axes
• Adjustable feed system in fixed steps via servomotor
• Solid and generously sized cross table, with precise surface finish with adjustable wedge bars and adjustable end stops
• Vertical and horizontal milling position
• Height-adjustable protective screen with micro switch to prevent the projection of chips and parts, for maximum user protection.

TECHNICAL SPECIFICATIONS

Dimensions and weights

• Approximate length: 1760 millimeters
• Approximate width/depth: 1550 millimeters
• Approximate height: 1700 millimeters
• Approximate weight: 1450 kilograms

Drilling/milling head

• Head tilt range of the milling-drilling machine: 90°
• Head rotation range of the mill: 360°

Drilling/milling output

• Maximum milling head size: 100 millimeters
• Maximum spindle cutter size: 20 millimeters

Electrical data

• Drive motor output: 3 kW
• Total nominal value: 6 kW
• Supply voltage: 400 volts
• Network frequency: 50 Hz

Rapid movement speed

• X axis: 1335 mm/min
• Y axis: 1335 mm/min
• Z axis: 1000 mm/min

Feed speed

• X axis: 30 – 830 mm/min
• Y axis: 30 – 830 mm/min
• Z axis: 23 – 625 mm/min

Horizontal milling table

• Table length: 1270 millimeters
• Table width: 300 millimeters
• Minimum clearance of vertical spindle - milling table: 100 millimeters
• Maximum clearance between vertical spindle and milling table: 500 millimeters
• T-slot size: 14 millimeters
• Number of T-slots: 3
• Spacing of T-slots: 80 millimeters
• Maximum load capacity: 200 kilograms

Axes

• Manual X axis: 720 millimeters
• Manual Y axis: 300 millimeters
• Manual Z axis: 400 millimeters
• Automatic X axis: 650 millimeters
• Automatic Y axis: 220 millimeters
• Automatic Z axis: 320 millimeters

Vertical spindle

• Reach from to: 150 – 550 millimeters
• Spindle chuck: ISO 40 DIN 2080
• Speed range: 45 – 1660 min¯¹
• Number of gears: 11 steps
• VPE: 1

COMPONENTS/PACKAGING

Unit: pcs.

Packaging unit: 1

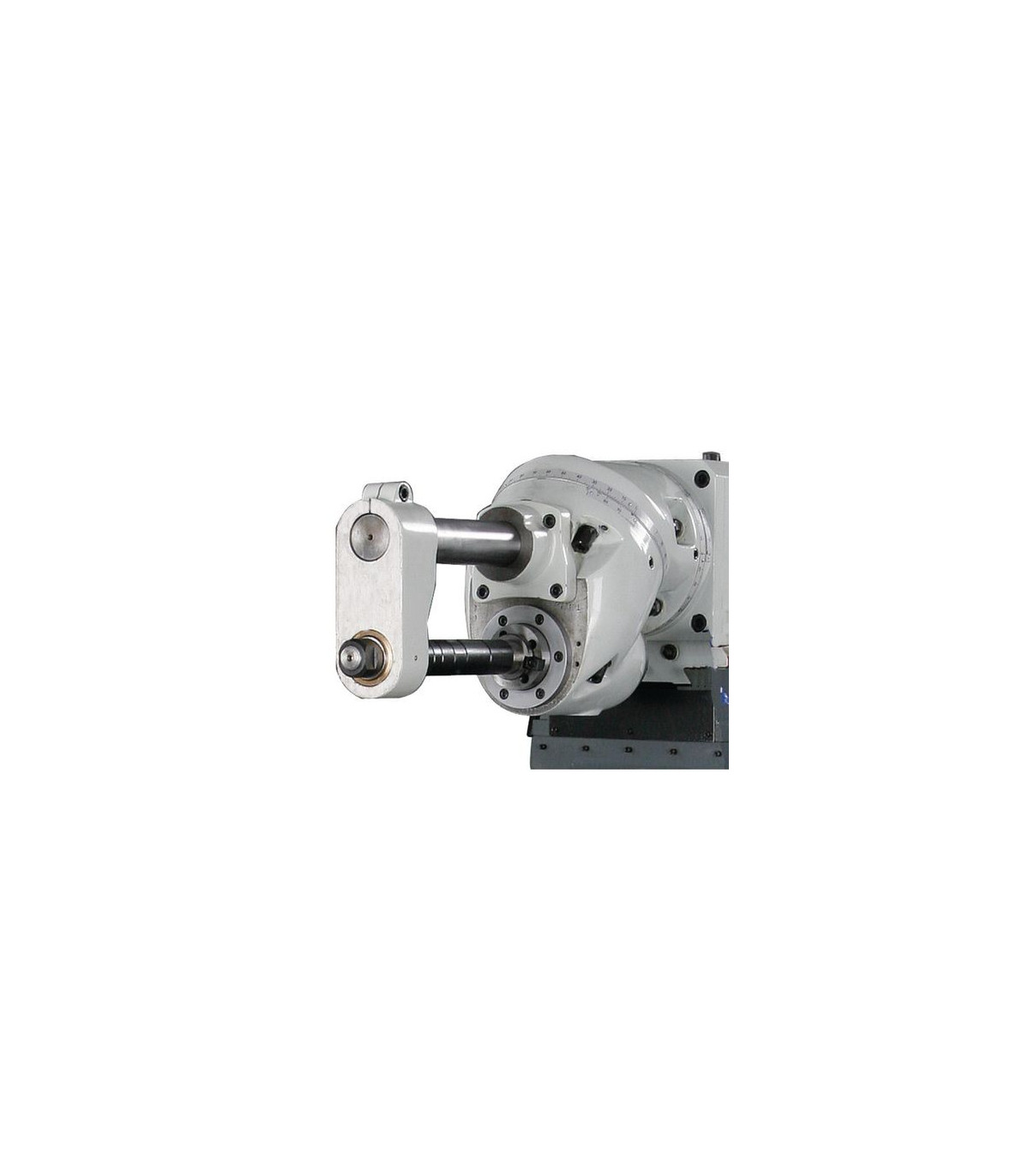

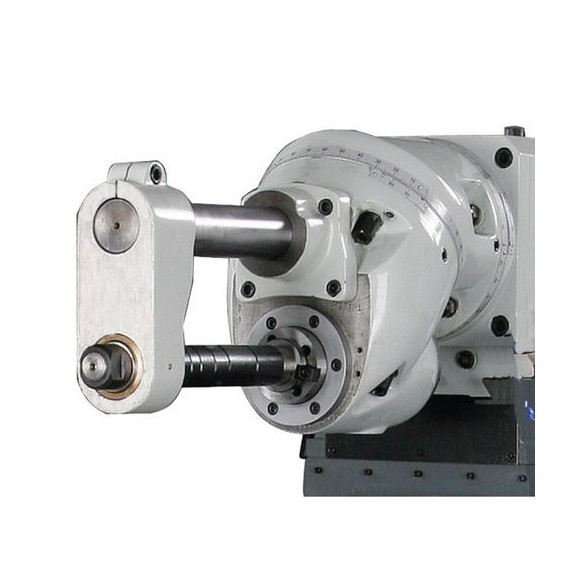

• Conical shank with counter bearing for horizontal milling Ø 27 mm
• Milling arbor Ø 27 mm
• Operating tool

EQUIPMENT

Digital position indicator DPA 31 Plus

FOR WHAT TYPE OF WORK IS IT SUITABLE

The MT 130 S OPTIMUM universal milling machine is suitable for:

• Mechanical engineering
• Mold manufacturing
• Prototyping
• Industrial maintenance
• Craft and small production
• Educational sector

VIDEOS

CERTIFICATION

The ISO 40 and DIN 2080 standards refer to a measurement system for clamping cones, specifically the ISO 40 cone, which is commonly used in machine tools for tool fixation.
