Horizontal-vertical indexing table with 3 jaws for OPTIMUM milling machines.

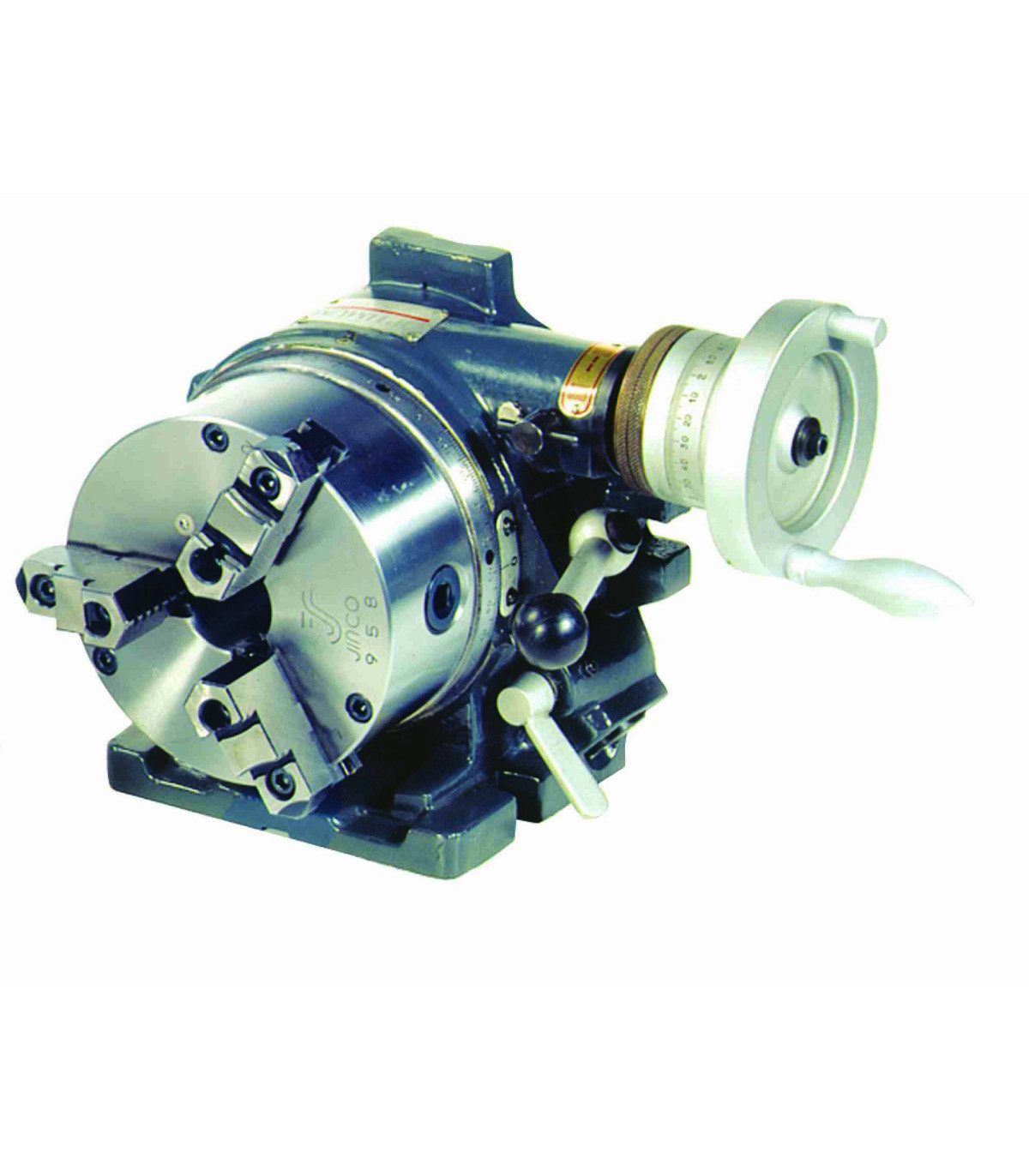

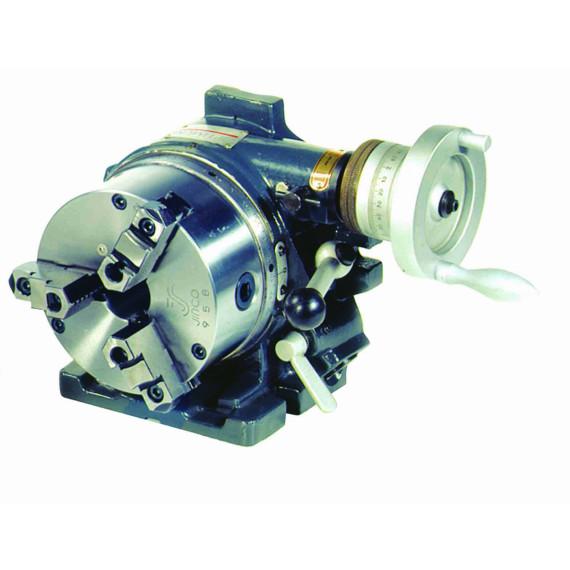

Dividing plate with 3 jaws RTU 165 for OPTIMUM milling machines. The dividing plate with 3 jaws RTU 165 for OPTIMUM milling machines features precision bearings and stability under stress. It offers 24 tilt positions, a diameter of 165 mm, and horizontal and vertical clamping. Ideal for machining, precision manufacturing, automotive, aerospace, and engineering, it includes indexing discs and allows for efficient production of parts. Its robust design ensures optimal performance in various applications.

FEATURES

• Precision tapered roller bearings
• Stability even under high stress
• 24 positions (15° tilt)
• Large spindle hole for holding longer workpieces
• Three-jaw chuck
• Direct parts through boards for faster mass production of parts
• Includes clamping disc with 3 slots.

RTU 165

• 24 divisions with direct piece disc and angular degree parts with a 360-degree angle scale - no slot, three-jaw chuck mounting, with optional indirect partial disc rotary divisions in a possible large number
• Grade parts with a 360° scale with crank and vernier

TECHNICAL SPECIFICATIONS

Clamping surface diameter 165 millimeters

Closed height 221 millimeters

Maximum height 130 millimeters

Passage 36 millimeters

Direct indexing disc division 24

Indirect indexing disc division 2, 3, 4, 6, 8, 12

Direct indexer indexing accuracy 45 "

Clamping options Horizontal and vertical

VPE 1

Dimensions and weights

Approximate length 235 millimeters

Approximate width/depth 250 millimeters

Approximate weight. 48 kilograms

COMPONENTS/PACKAGING

Unit: pcs.

Packaging unit: 1

• 3-jaw chuck (mounted)

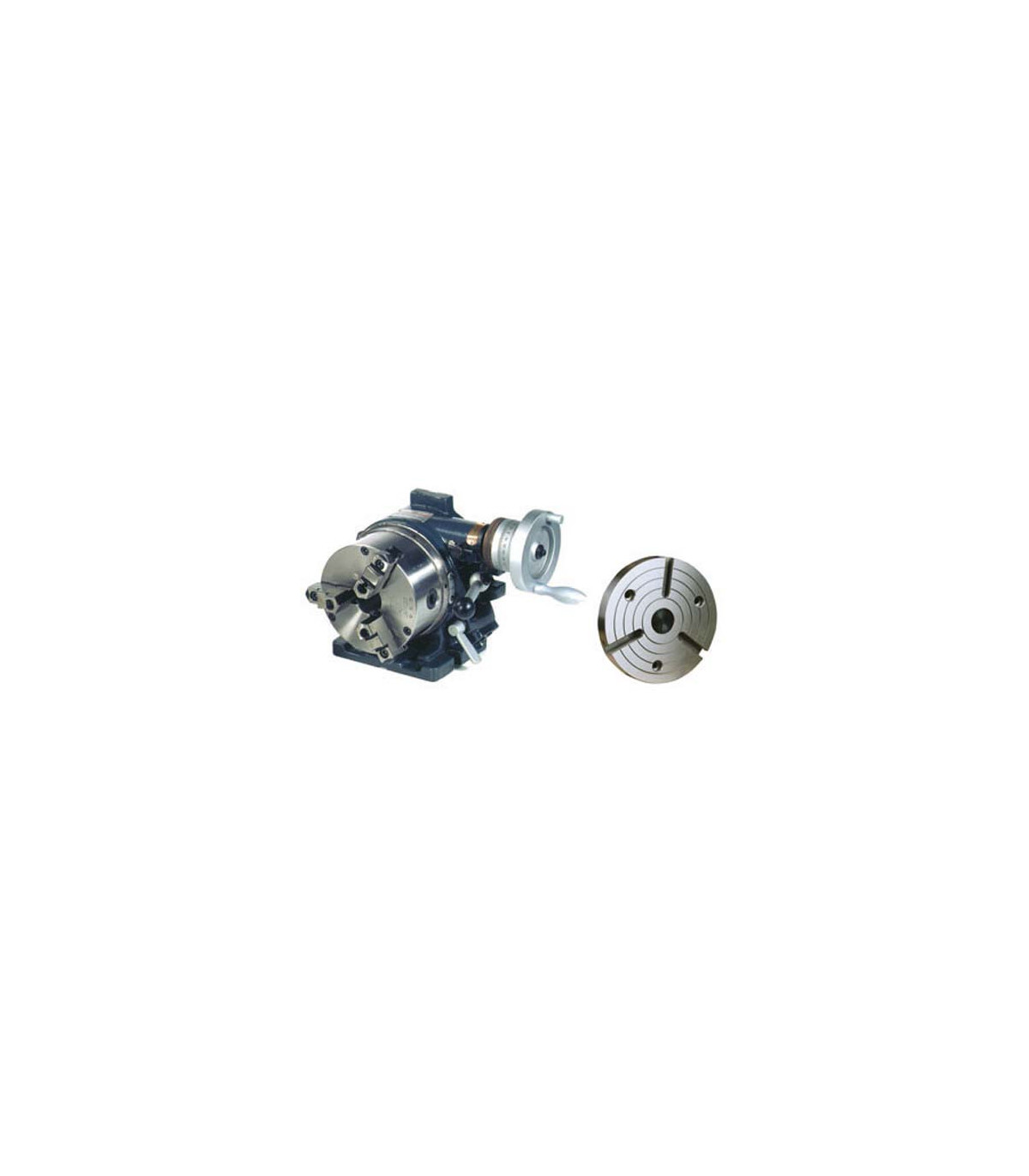

• 203 mm clamping disc with 3 slots
• Main indexing disc (24x division, mounted)
• 6 indexing discs
• Handles for handwheel

FOR WHAT TYPE OF WORK IS IT SUITABLE

The dividing plate with 3 jaws RTU 165 for OPTIMUM milling machines is suitable for:

• Machining
• Precision manufacturing
• Automotive
• Aerospace
• Engineering
