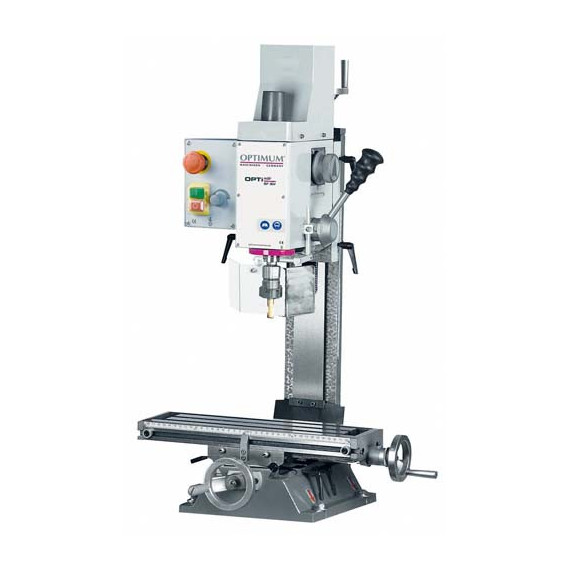

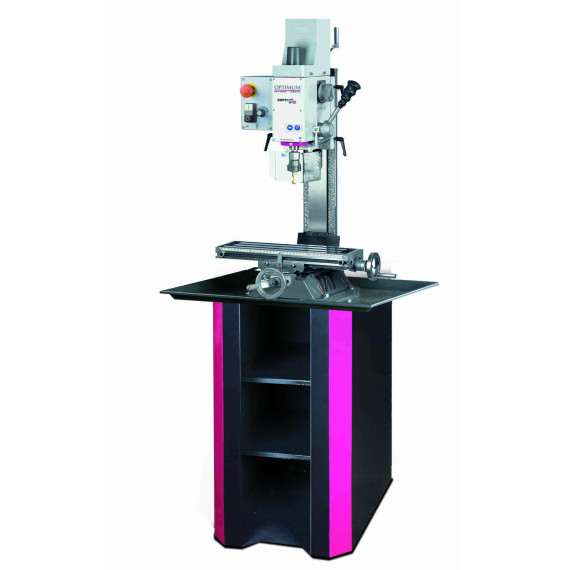

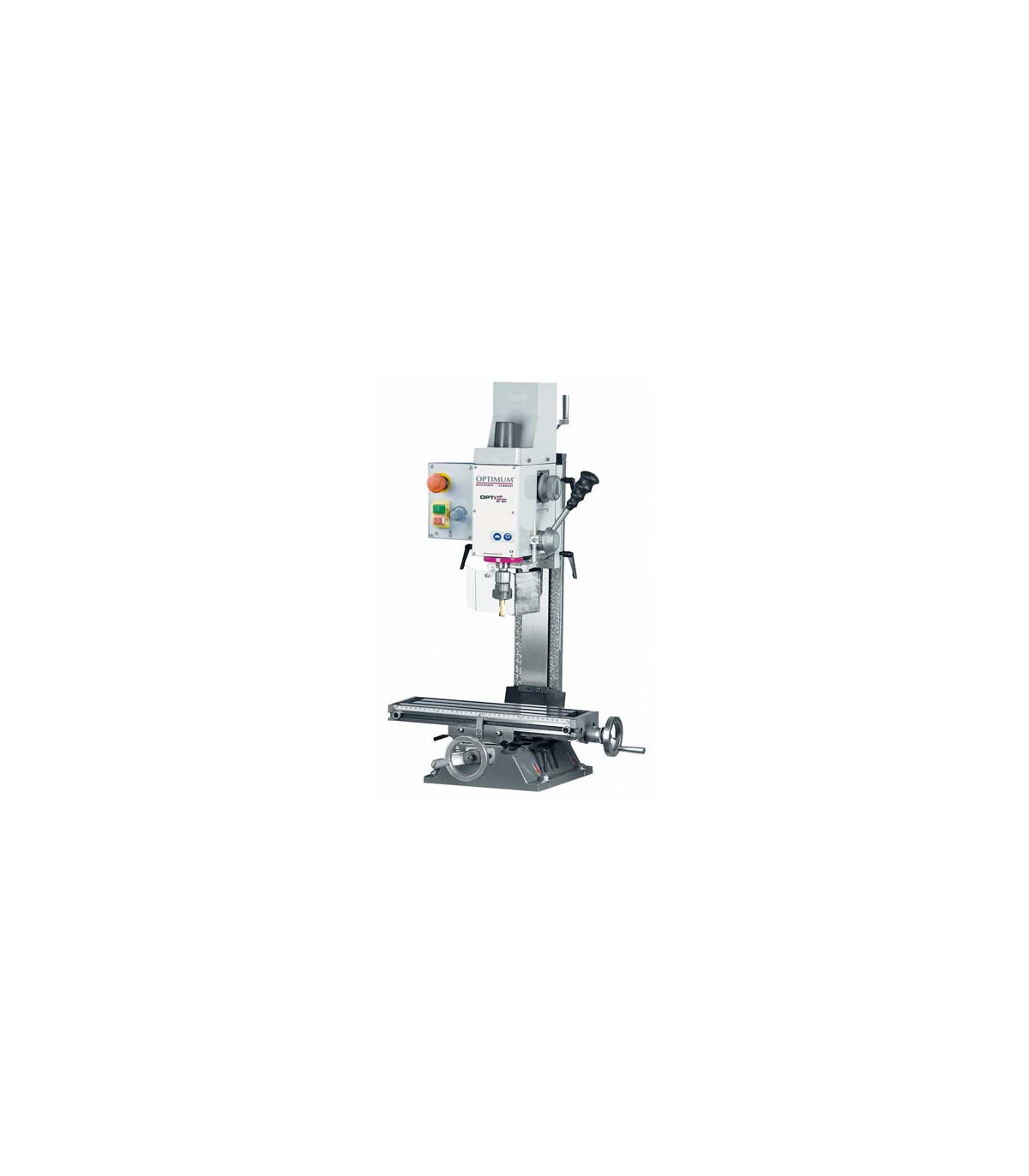

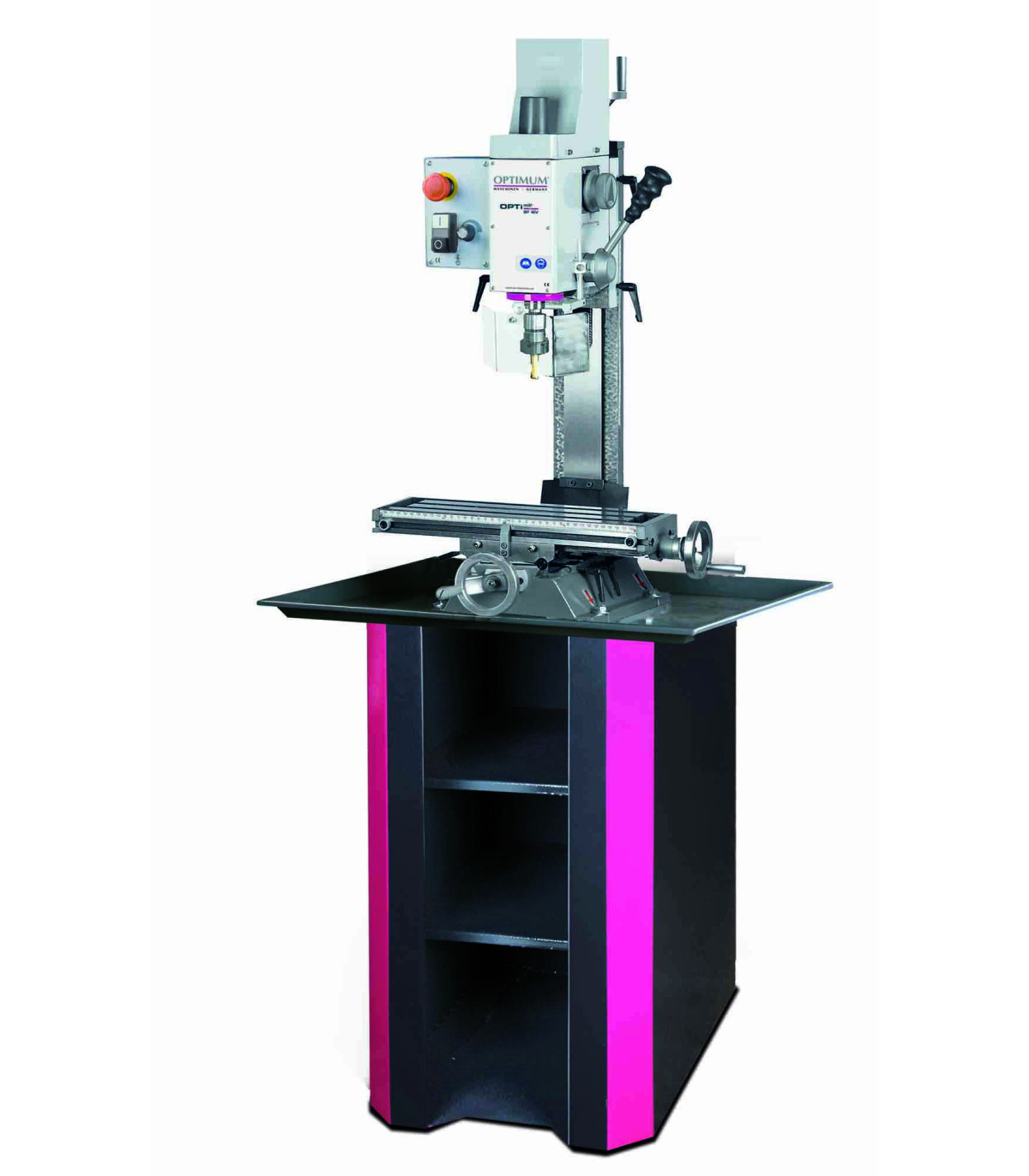

Milling machine with variable speed BF 16 Vario OPTIMUM

BF 16 Vario OPTIMUM milling machine with variable speed. The BF 16 Vario OPTIMUM milling machine offers versatility in applications, with a tiltable head at ± 90°, variable speed from 100 to 3,000 min-1, and a safe and stable design. With features such as MK 2 tool holder and adjustable protective screen, it is ideal for precise work. Its movable column and solid table ensure clean and effective milling. With compact dimensions and a weight of 62 kg, it is perfect for workshops looking for quality and performance.

FEATURES

• Versatile application possibilities
• Two-stage transmission ratio
• MK 2 tool holder
• Safety electronics in 24-volt version
• EMC class C1 filter
• The drilling and milling head can be tilted ± 90° on both sides, allowing for angular drilling and milling as needed.
• Large protective screen with adjustable height and micro switch
• Precise delivery through positionable scale rings on all handwheels
• Simple and clear operating unit with on/off switch, potentiometer, and emergency stop impact switch
• Infinitely variable speed from 100 to 3,000 min-1
• High concentricity measured by tapered roller bearing better than 0.015 mm in the hollow shaft
• Stable column with dovetail guide using adjustable wedge bars in all 3 axes
• Adjustable and regulable play in the feed spindle.
• Lateral movable column for extended applications
• Solid cross table with T-slots and coolant channel, as well as adjustable end stops
• Integrated longitudinal scale in the cross table
• All travels can be read on scales.
• Clean milling pattern through individually held guides

TECHNICAL SPECIFICATIONS

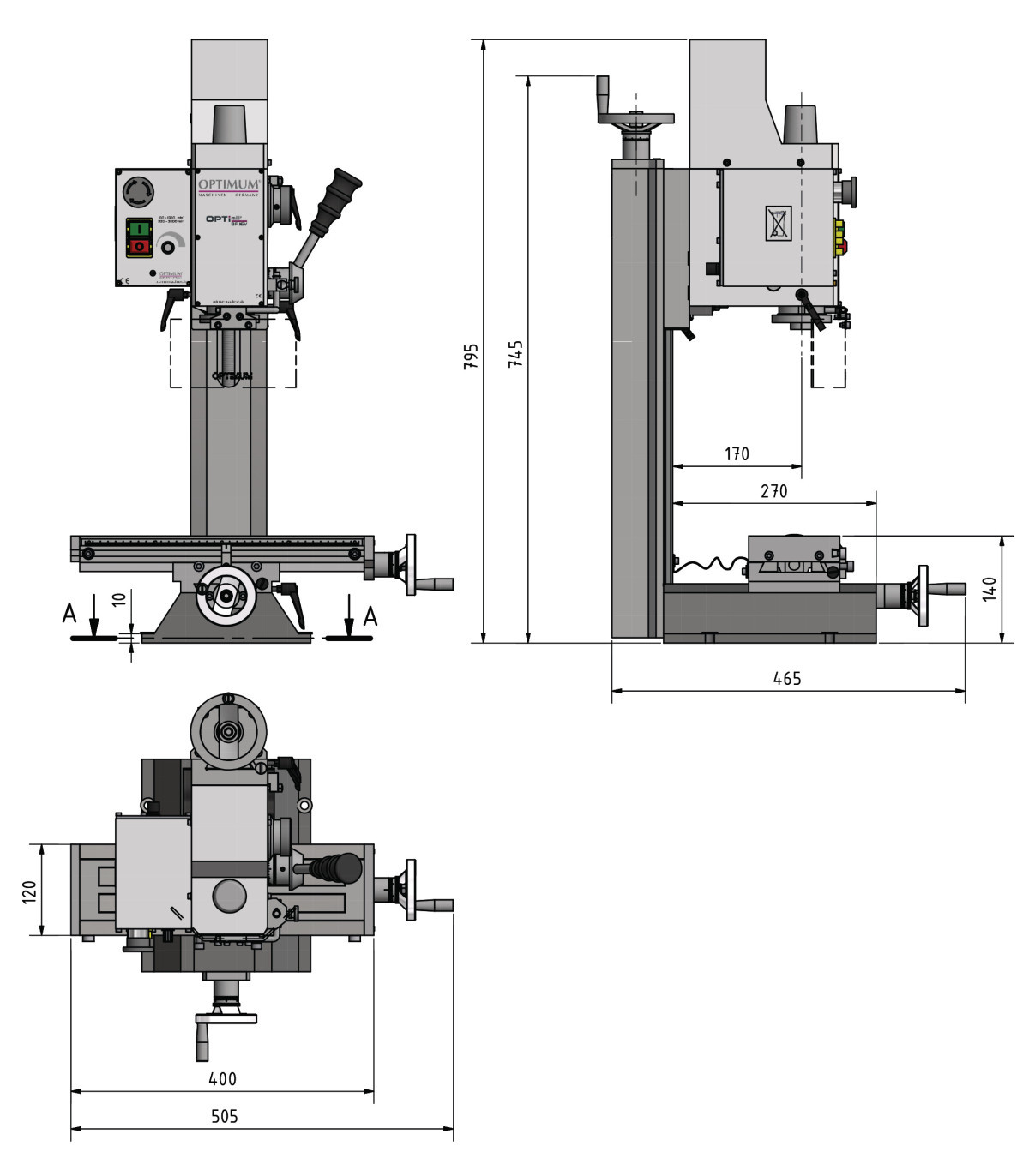

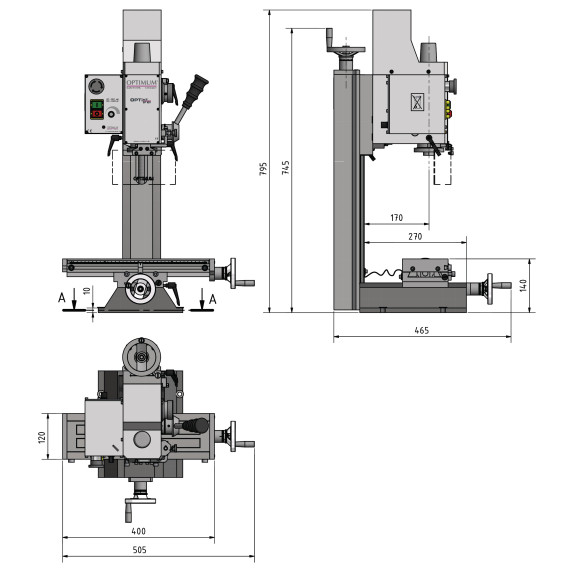

Dimensions and weights

• Approximate length 505 millimeters
• Approximate width/depth 465 millimeters
• Approximate height 795 millimeters
• Approximate weight. 62 kilograms

Drilling/milling output

• Maximum milling head size 52 millimeters
• Maximum spindle cutter size 20 millimeters
• High-performance steel for drilling (S235JR) 16 millimeters
• High-performance steel for continuous drilling (S235JR) 12 millimeters

Electrical data

• Power supply voltage 230 V
• Network frequency 50 Hz

Horizontal milling table

• Table length 400 millimeters
• Table width 120 millimeters
• Minimum clearance of vertical spindle - milling table 0 millimeters
• Maximum clearance between vertical spindle and milling table 275 millimeters
• T-slot size 10 millimeters
• Number of T-slots 3
• Spacing of T-slots 35 millimeters

Standards and certifications

Standard DIN EN 55011

EMC level C1

Axes

• X-axis manual 220 millimeters
• Y-axis manual 160 millimeters
• Z-axis manual 210 millimeters

Vertical spindle

• Reach 170 millimeters
• Spindle chuck MT 2 / M10
• Speed range 100 – 3000 min¯¹
• Number of gears 2
• Speed control electronically adjustable
• Clamping bar M 10
• Normal operation of vertical spindle 0.5 kW
• Milling head with rotation range in the Z-X plane ± 90°
• Pencil stroke 50 millimeters
• VPE 1

COMPONENTS/PACKAGING

Unit: pcs.

Packaging unit: 1

• MK 2 / B16 taper chuck
• M 10 pull rod
• Operating tool

FOR WHAT TYPE OF WORK IS IT SUITABLE

The BF 16 Vario OPTIMUM milling machine is suitable for:

• Metal machining
• Component manufacturing
• Prototyping
• Industrial maintenance
• Craftsmanship and modeling
