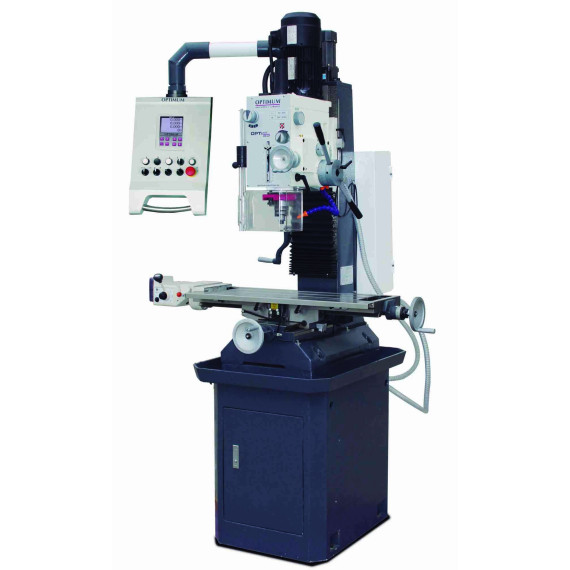

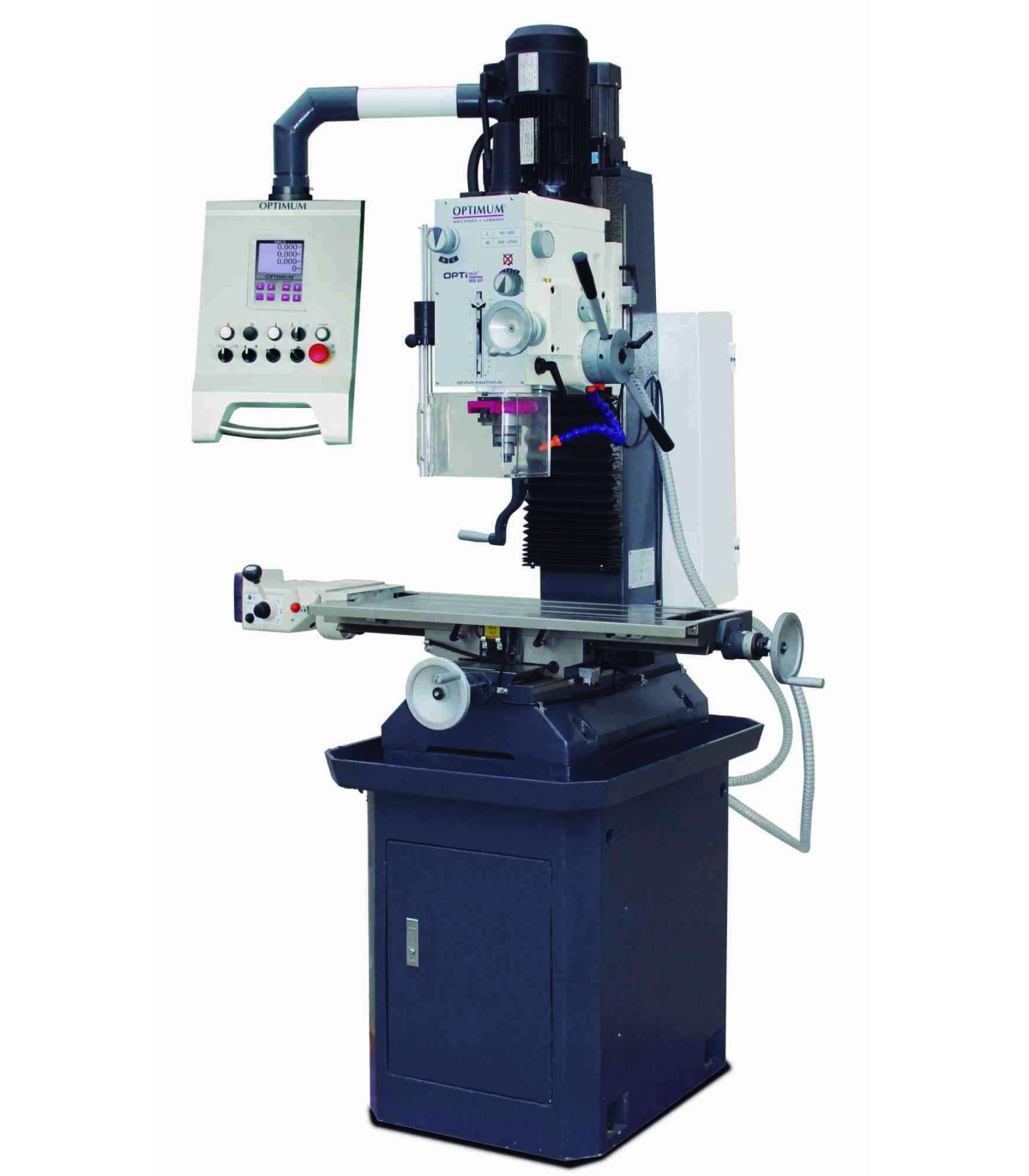

MB 4P OPTIMUM universal tabletop milling machine

MB 4P OPTIMUM tabletop universal milling machine. The MB 4P OPTIMUM universal milling machine stands out for its solid casting and smooth operation. It features bidirectional rotation, automatic feed, a swiveling head, and a speed range of 95 to 3200 rpm.

FEATURES

• Solid and heavy cast design
• Smooth operation thanks to ground gears that rotate in an oil bath.
• Right/left rotation
• Automatic quill feed with manual fine feed
• Motorized positioning of the Z axis
• Motorized table feed of the X axis
• Cooling device
• Machine lamp
• The gear head can be rotated ± 45
• Solid dovetail guide of the column, hand-scraped for maximum stability and precision
• Large protective screen, height adjustable and with a micro switch.
• Drilling depth stop
• Digital position indicator DRO 5
• Drilling/tapping function
• Large and solid cross table, with precise surface finish with T-slots and adjustable keyways
• Solid cast iron machine base with chip duct
• High-quality industrial two-stage electric motor
• Wide speed range of 95 to 3200 rpm thanks to 12 switchable speeds

TECHNICAL SPECIFICATIONS

Cooling lubricant system

• Power of the coolant pump(s) 100 watts

Dimensions and weights

• Approximate length 1600 millimeters
• Approximate width/depth 930 millimeters
• Approximate height 2110 millimeters
• Approximate weight 495 kilograms

Drilling/milling output

• Maximum milling head size 63 millimeters
• Maximum spindle cutter size 28 millimeters
• High-performance steel for drilling (S235JR) 32 millimeters
• High-performance steel for continuous drilling (S235JR) 28 millimeters

Electrical data

• Drive motor output 1.1 / 1.5 kW
• Supply voltage 400 volts
• Network frequency 50 Hz

Horizontal milling table

• Table length 800 millimeters
• Table width 240 millimeters
• Maximum clearance between the vertical spindle and the milling table 420 millimeters
• T-slot size 14 millimeters
• Number of T-slots 3
• Spacing of T-slots 80 millimeters

Standards and certifications

• Standard DIN EN 55011

Axes

• X axis manual 560 millimeters
• Y axis manual 195 millimeters
• Z axis manual 350 millimeters
• X axis automatic 480 millimeters

Vertical spindle

• Reach 258 millimeters
• Spindle chuck MT 4
• Speed range 95 – 3200 min¯¹
• Number of gears 2 x 6
• Clamping bar M 16
• Milling head with rotation range in the Z-X plane ± 45°
• Quill diameter 75 millimeters
• Quill stroke 120 millimeters
• VPE 1

COMPONENTS/PACKAGING

Unit: pcs.

Packaging unit: 1

• Infrastructure
• Morse cone MK 3
• Adapter MK 3 - MK 4
• Pull rod M 16
• Operating tool

EQUIPMENT

Digital position indicator DRO 5

FOR WHAT TYPE OF WORK IS IT SUITABLE

The MB 4P OPTIMUM tabletop universal milling machine is suitable for:

• Metal machining industry
• Precision parts manufacturing
• Prototype workshops
• Production of industrial components
• Custom parts fabrication
• Machining of steel and other materials
• Projects requiring high concentricity and precision

CERTIFICATION

- DIN EN 55011: The DIN EN 55011 standard refers to the limits and measurement methods of electromagnetic interference emissions from industrial, scientific, and medical equipment. This standard establishes criteria to ensure that devices do not generate interference that could affect other electronic equipment and also defines the permitted levels of electromagnetic radiation. It is essential to ensure compliance in the design and use of equipment operating in environments where electromagnetic compatibility is crucial.

- EMC Level C2: The EMC Level C2 refers to an electromagnetic compatibility (EMC) standard that applies to electrical and electronic equipment and systems. Specifically, Level C2 indicates requirements for interference emissions and immunity to electromagnetic disturbances in industrial environments. Devices that comply with this level are designed to operate without causing significant interference to other equipment and to withstand external disturbances, which is crucial in environments where various electronic devices coexist.
