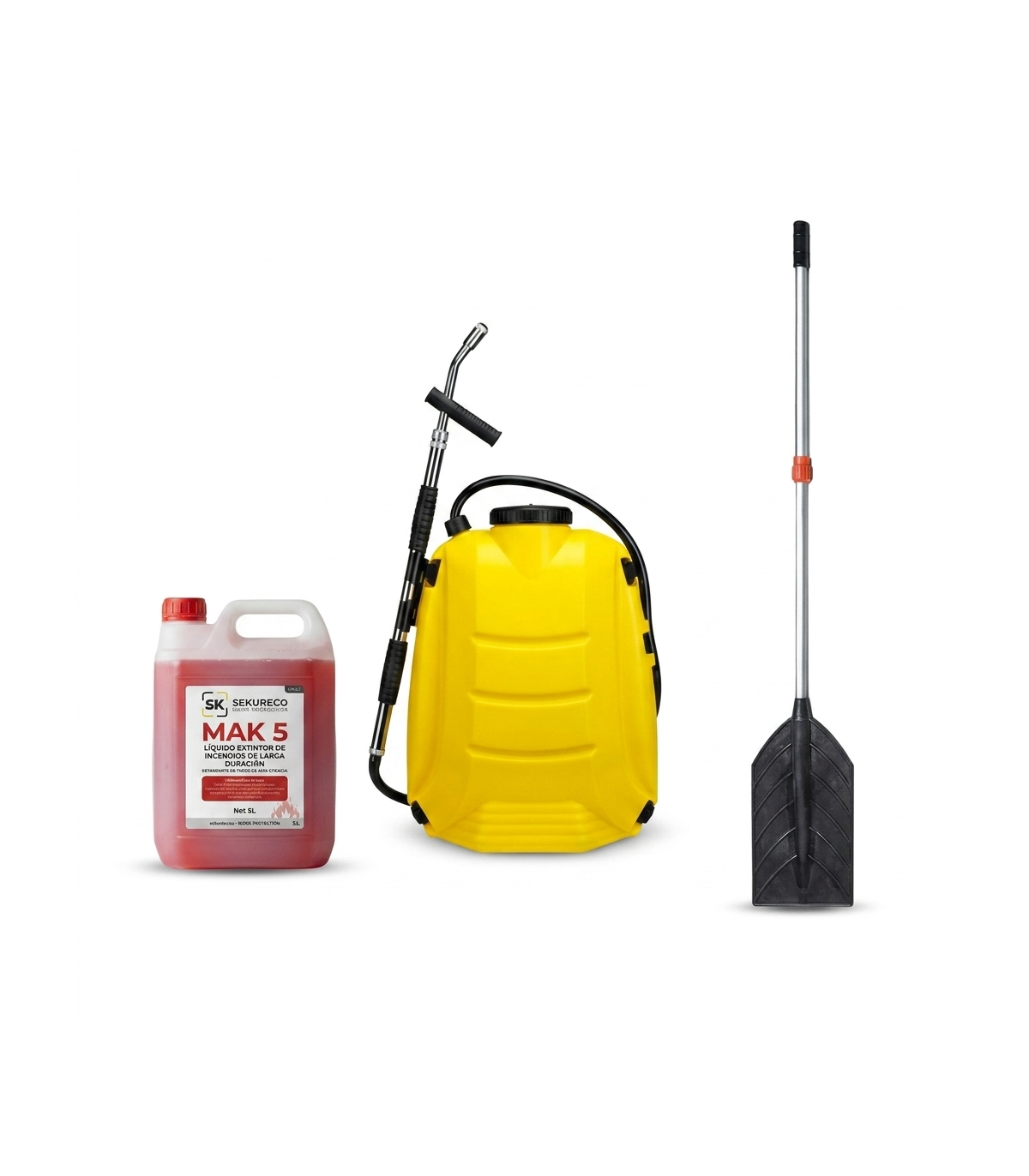

Pack of Telescopic Forest Beaters, Forest Backpack Sprayer and MAK5 Long-Term Forest Fire Retardant

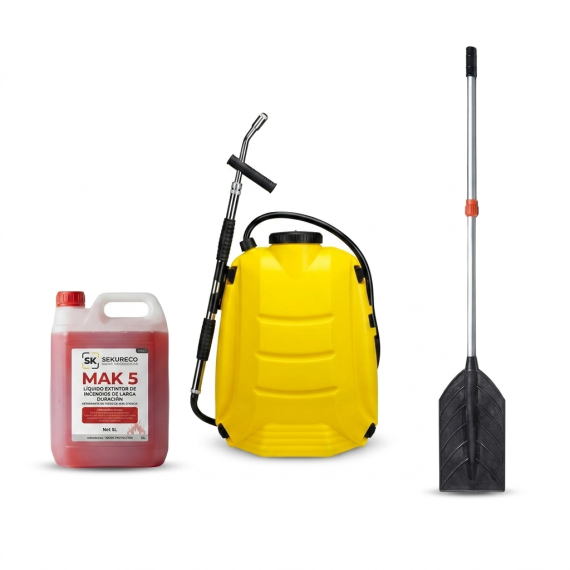

PACK OF PRODUCTS COMPOSED OF

• 1 Telescopic Forest Beater rubber grip aluminium handle extensible telescopic fire extinguishing FFB02
• 1 Forest Backpack Sprayer 17.5 litres Approved MATABI
• 1 MAK5 Long-Term Forest Fire Retardant | Professional Concentrate for Extinguishing and Defence Lines

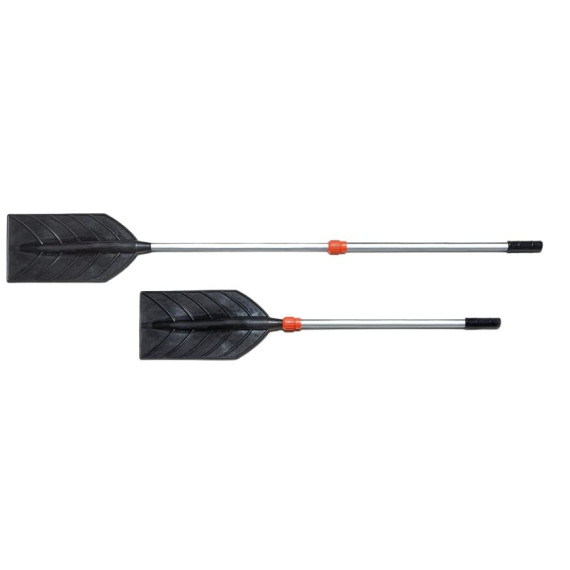

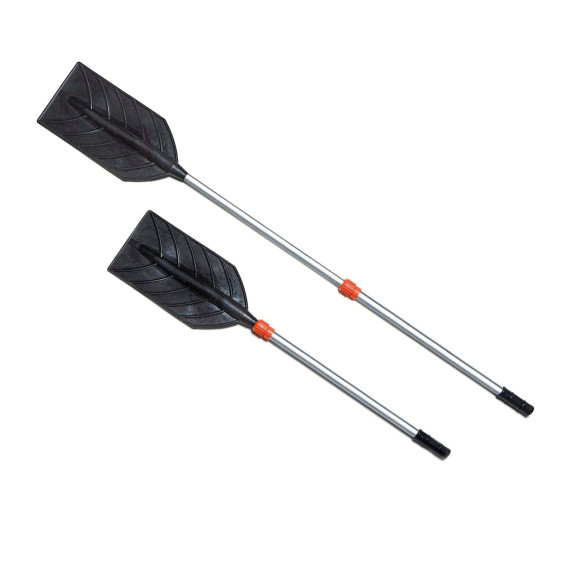

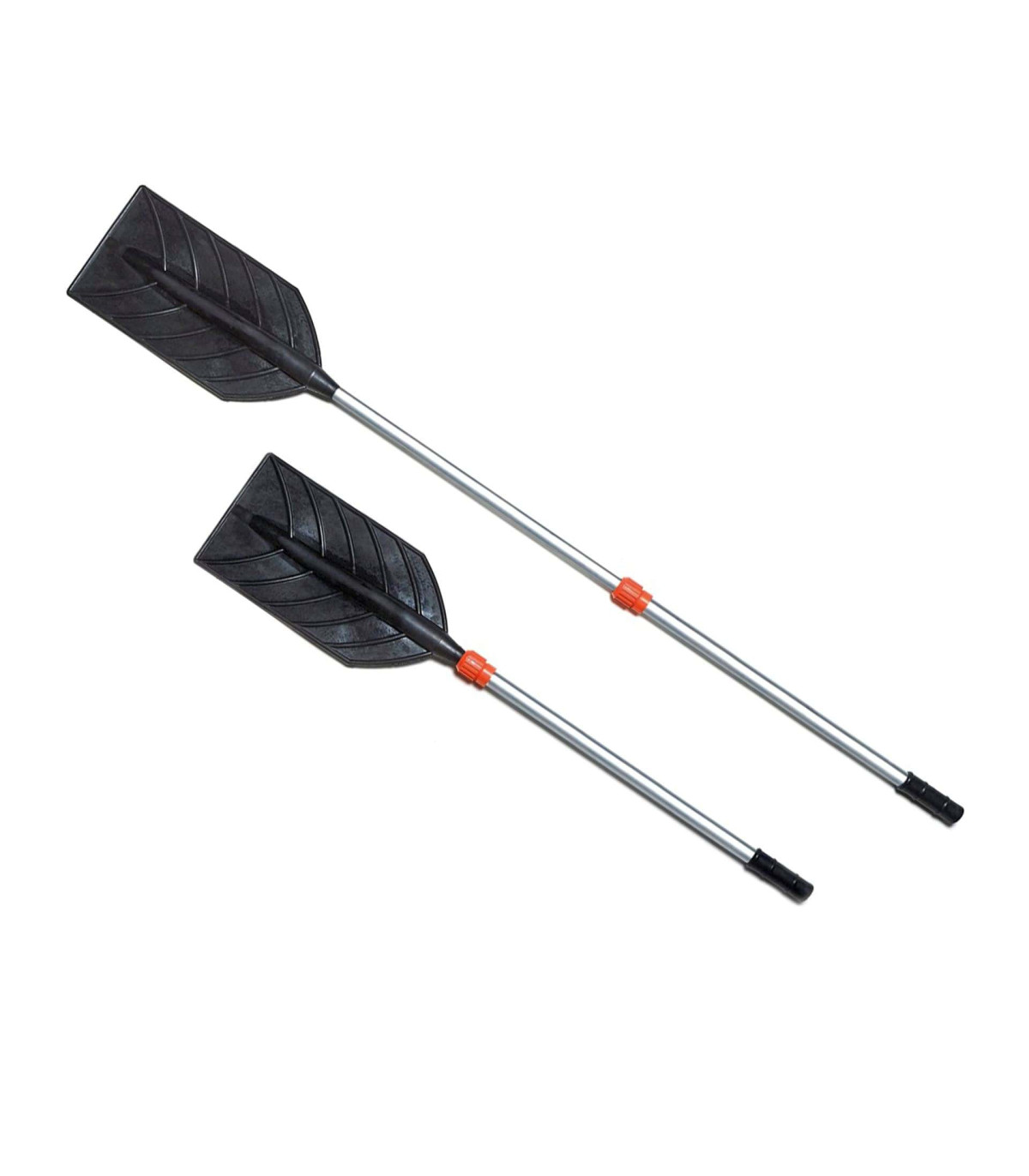

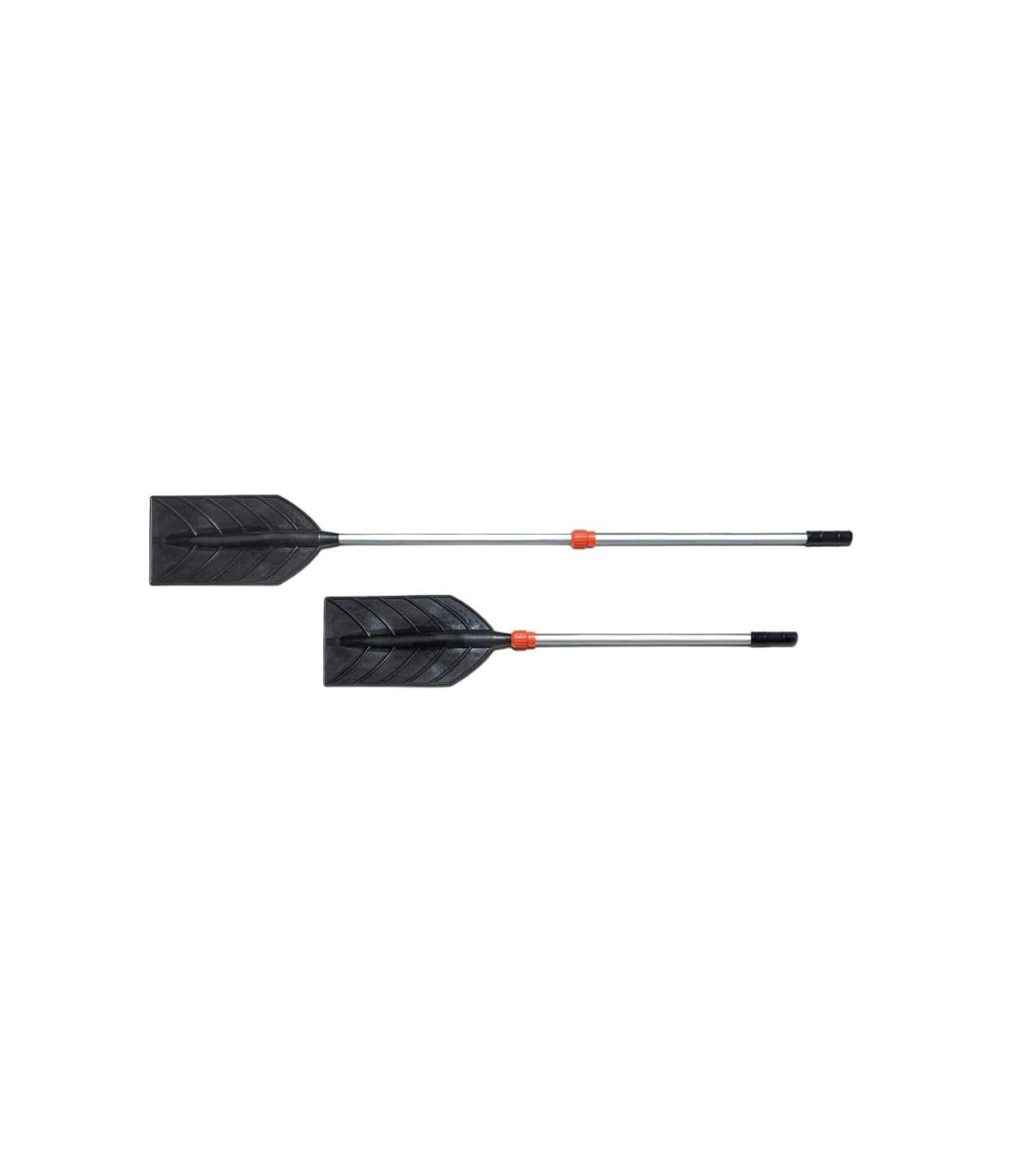

WHAT IS A TELESCOPIC FOREST BEATER?

A forest beater is a tool used to combat forest fires, particularly in their initial stages. It consists of a rubber paddle attached to a long handle, usually made of aluminium, which is used to strike and smother flames, depriving them of oxygen. It can also be used to move vegetation and create firebreaks.

The beater is a tool designed to extinguish fire through smothering (air displacement), which consists of a metal handle or shaft, ending in a self-extinguishing rubber paddle or beater. Fire extinguisher with telescopic duralloy handle, does not rust.

The assembly of the handle with the beater or paddle is perfectly adhered through a vulcanisation process, making the beater a single immovable unit, without the need for rivets, screws or any other fastening element.

HOW TO USE THE BEATER?

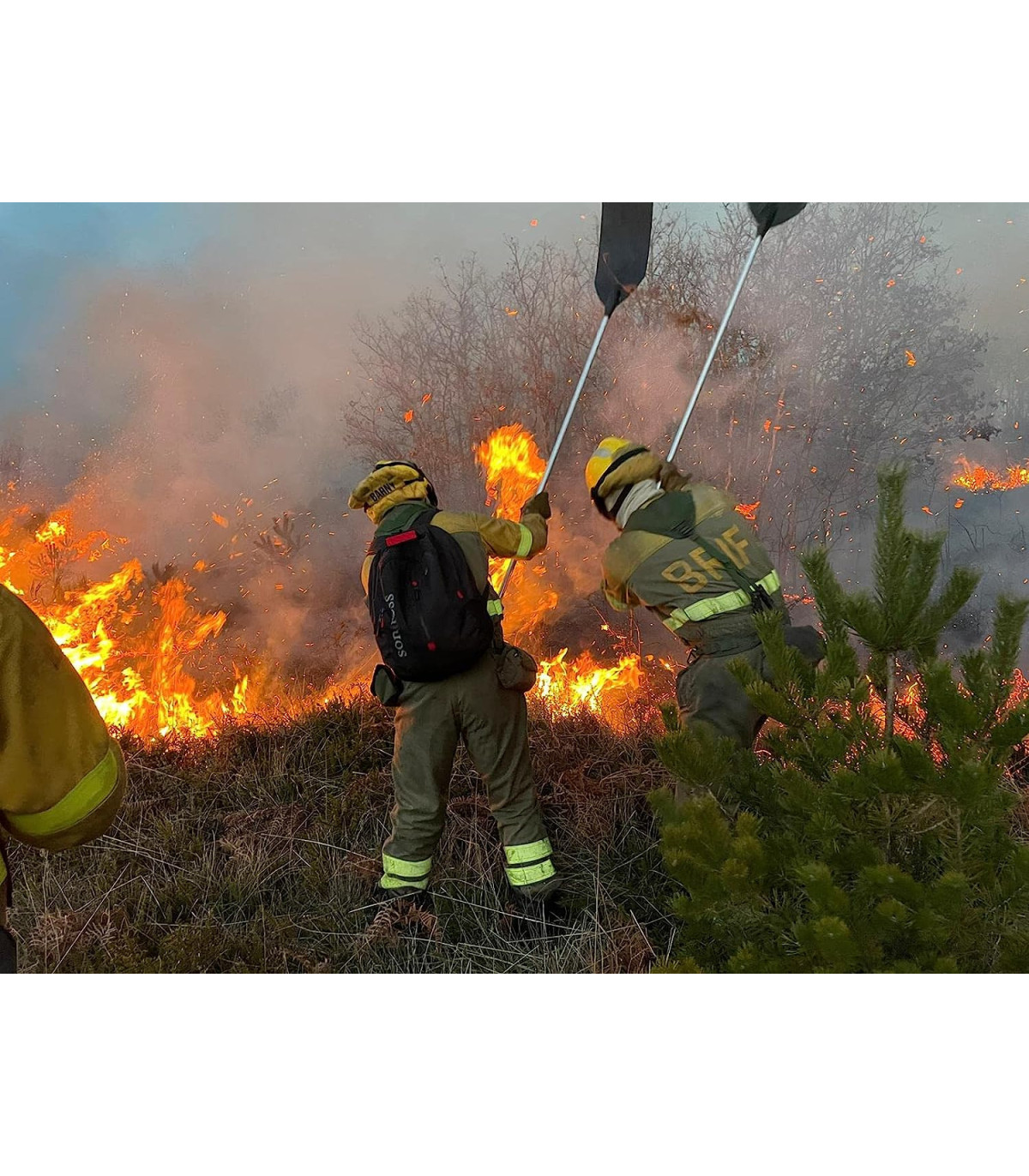

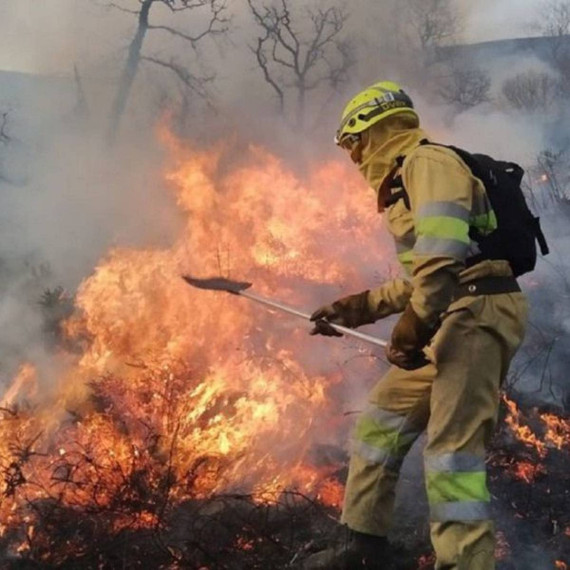

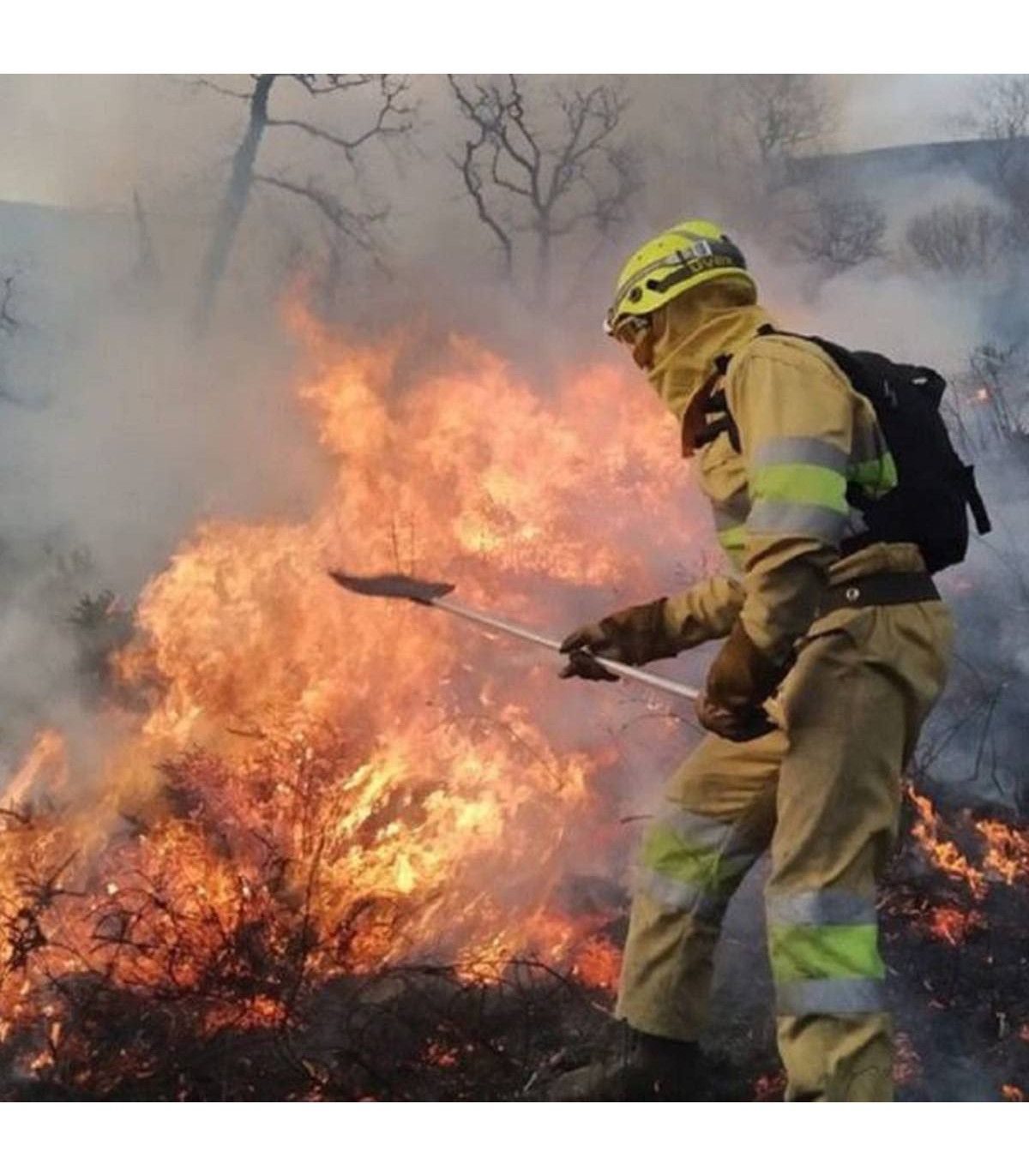

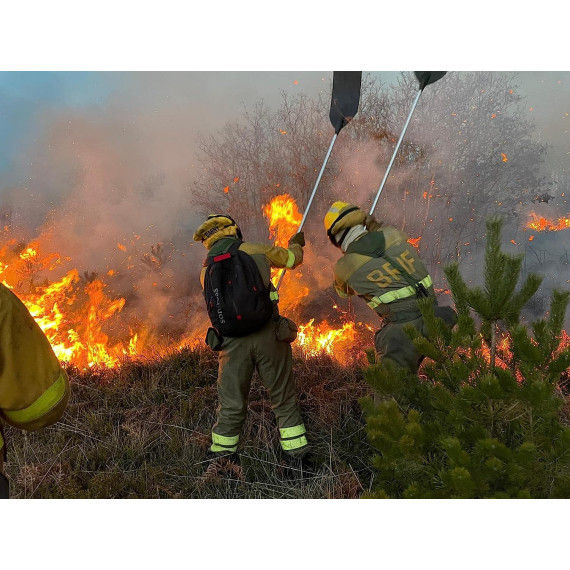

The beater is employed through a technique of direct attack on flames, whose objective is to smother the fire by eliminating the oxygen that feeds it. For correct use, it must be struck firmly at the base of the flames, pressing the paddle against the fire site for approximately 2 seconds. It is then withdrawn in the direction of the already burnt area and the movement is repeated in a rhythmic and controlled manner, progressively covering the fire line.

BACKPACK SPRAYER

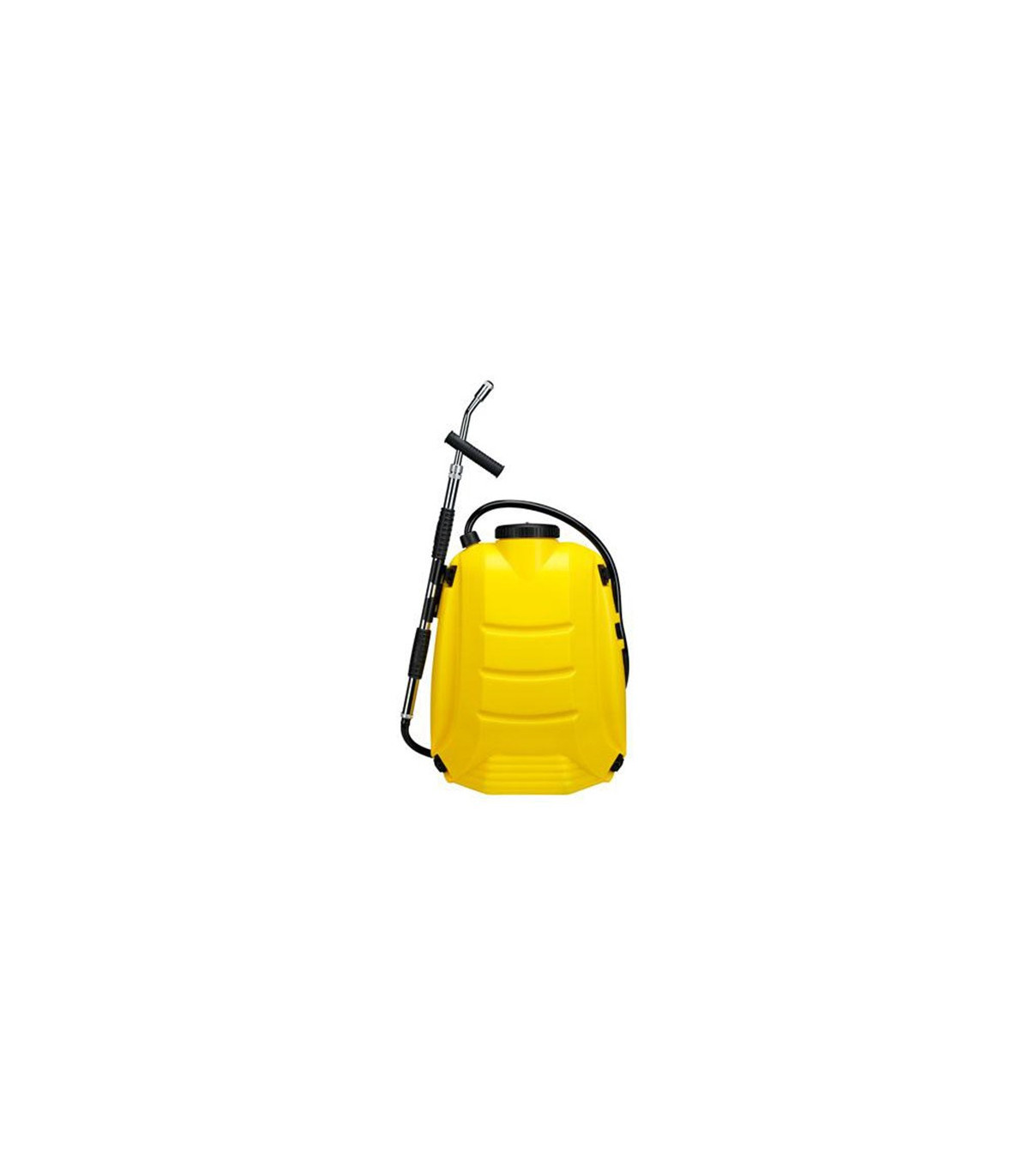

Water backpack sprayer for first intervention in incipient fires and support work in forestry tasks. Allows water to be applied in jet or spray form with indicative ranges of up to 7 m (vertical), 12 m (horizontal) and 4 m (spray), with translucent yellow tank and lumbar support for more stable carrying.

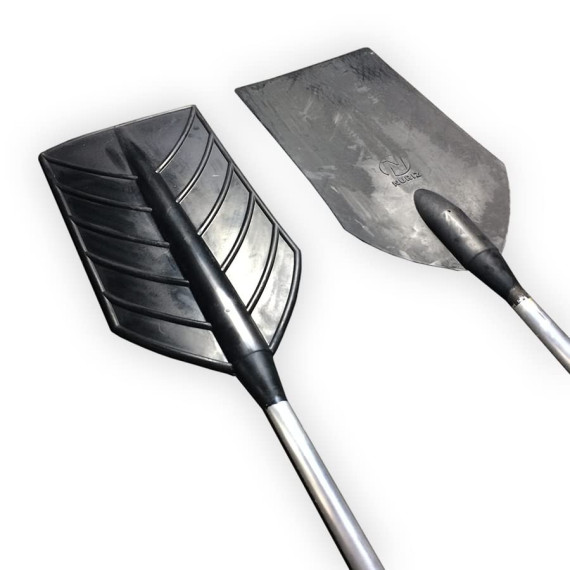

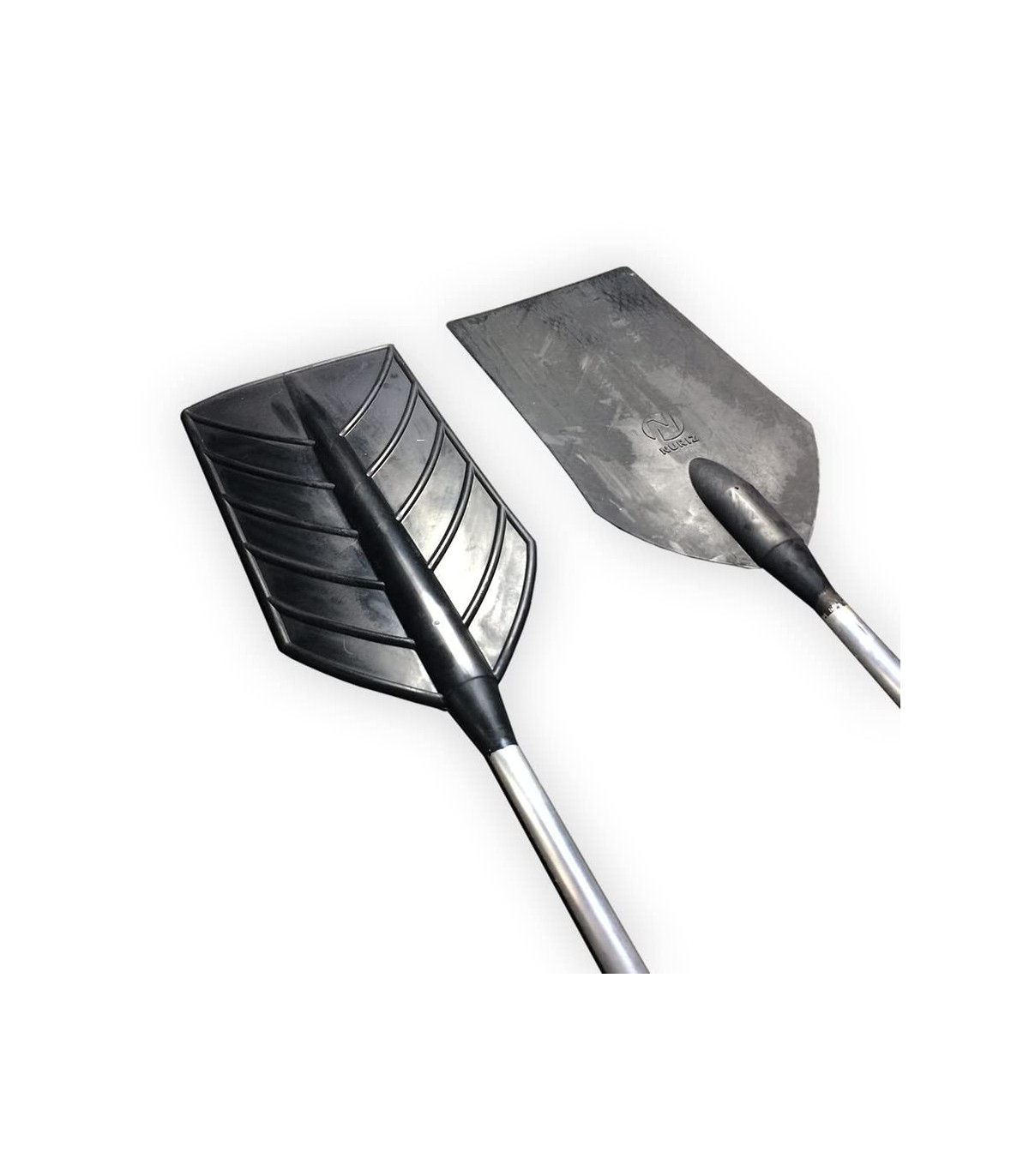

CHARACTERISTICS Ribbed Beater (Paddle):

• Made of fire self-extinguishing synthetic rubber, 6 mm thick.
• The entire beater is reinforced with fabric for greater tear resistance. Critical areas have double reinforcement.
• One of the faces is branched to extend service life.
• Greater rigidity
• Thicker outer edges
• Steel inner reinforcement

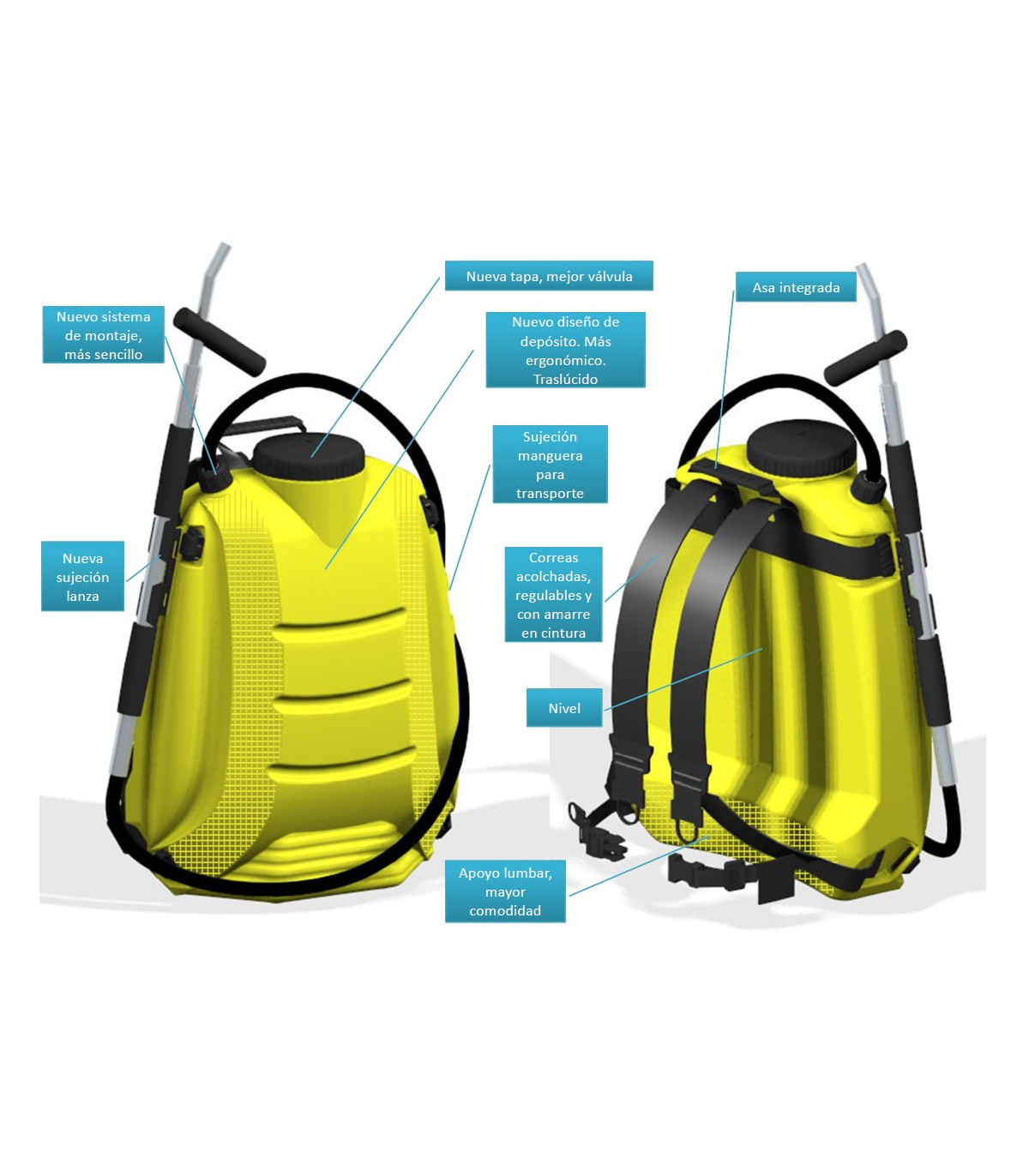

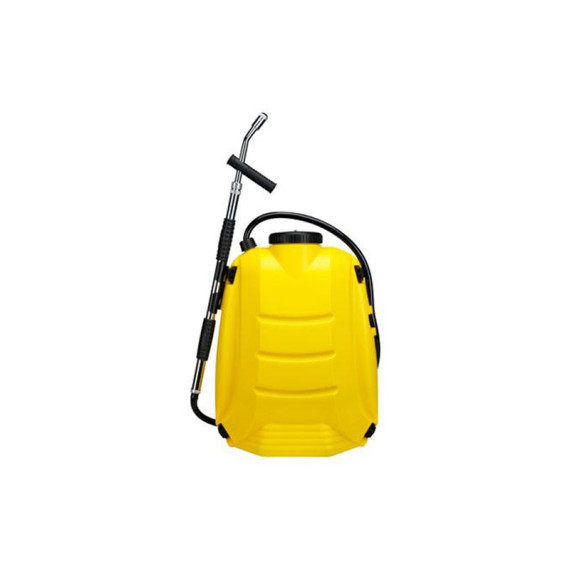

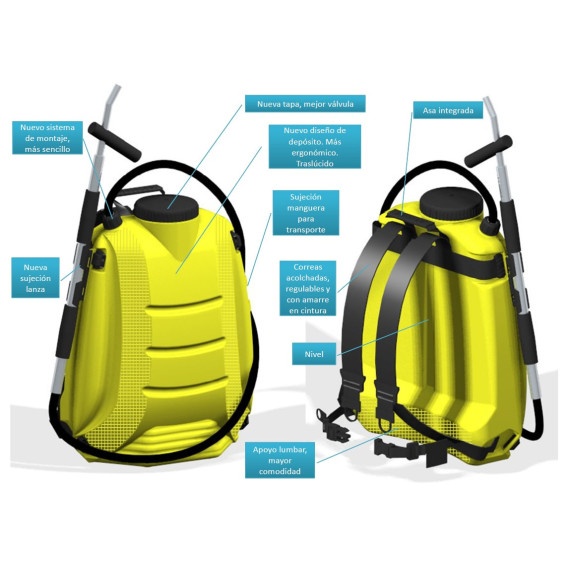

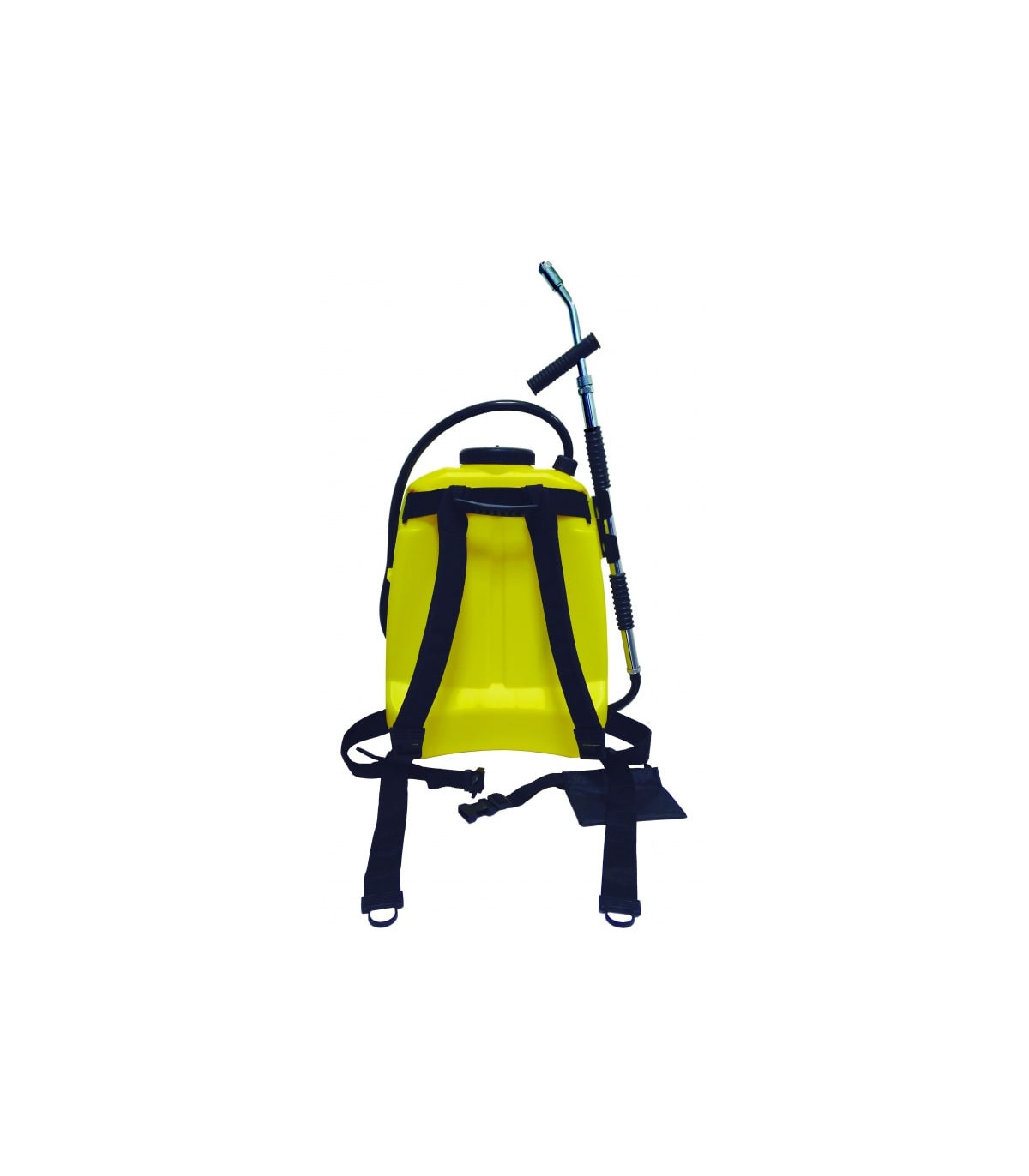

BACKPACK CHARACTERISTICS

• Total capacity of 17.5 L for back-mounted water transport
• Chromed brass lance with double-effect hydronette system
• Adjustable conical brass nozzle (jet/spray)
• Jet range: 7 m vertical and 12 m horizontal
• Spray range: 4 m horizontal
• 1.75 m PVC hose
• Translucent tank with level indicator and wide filler cap

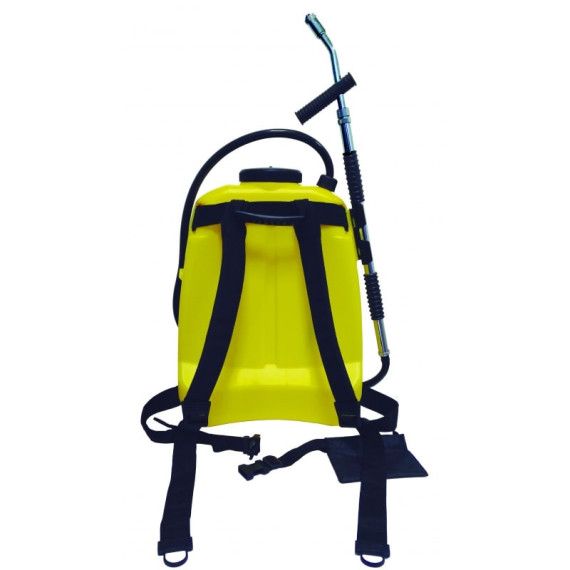

• Padded and adjustable shoulder straps with waist strap and lumbar support
• Packaging dimensions: 22x43.5x59.5
• Taric Code: 84244100

BEATER BENEFITS

The assembly of the handle with the beater or paddle is perfectly adhered through a vulcanisation process, making the beater a single immovable unit, without the need for rivets, screws or any other fastening element.

BENEFITS of Forest Backpack Sprayer 17.5 litres Approved MATABI

Facilitates rapid attack on incipient fires and support to control work (defence lines, firebreaks or controlled burns) by being able to alternate between jet and spray with a double-effect lance. The harness with lumbar support and waist belt help to distribute the load during walking movements, and the translucent tank allows you to check the water level at a glance.

BEATER APPLICATIONS

Essential for extinguishing fires at their start.

The beater is a tool designed to extinguish fire through smothering (air displacement), which consists of a metal handle or shaft, ending in a self-extinguishing rubber paddle or beater.

USES AND APPLICATIONS: WHAT THE BACKPACK IS APPROPRIATE FOR

Suitable for forestry and rural work where back-mounted water equipment is needed: maintenance crews and squads, prevention in woodland and scrub, support for firebreaks and perimeters, surveillance of incipient fires and monitoring of hotspots in finishing tasks. It also fits agricultural properties or installations in natural surroundings as punctual water extinguishing support.

BEATER TECHNICAL DATA

• Extensible forest beater:
  • Width: 250 mm
  • Height: 500 mm
  • Thickness: 6 mm
• Complete unit deployed: approximately 1,950 mm
• Complete unit retracted: 1,280 mm
• Weight: 1.8 kg

Extensible fire extinguisher paddle handle:

• Duralloy tube.
• Does not rust
• Smooth finish
• Outer diameter: 30 mm
• Inner diameter: 25 mm
• Exceptional resistance to breakage
• Recovery when bent
• Taric Code: 4016.99

Grip:

• Ergonomic, made of rubber, for more comfortable handling

Complies with ORDEN FYM/510/2013, of 25 June, which regulates the use of fire and establishes preventive measures for combating forest fires in Castile and León.

Essential for extinguishing fires at their start.

BACKPACK TECHNICAL DATA

• Useful capacity: 17 L
• Total capacity: 17.5 L

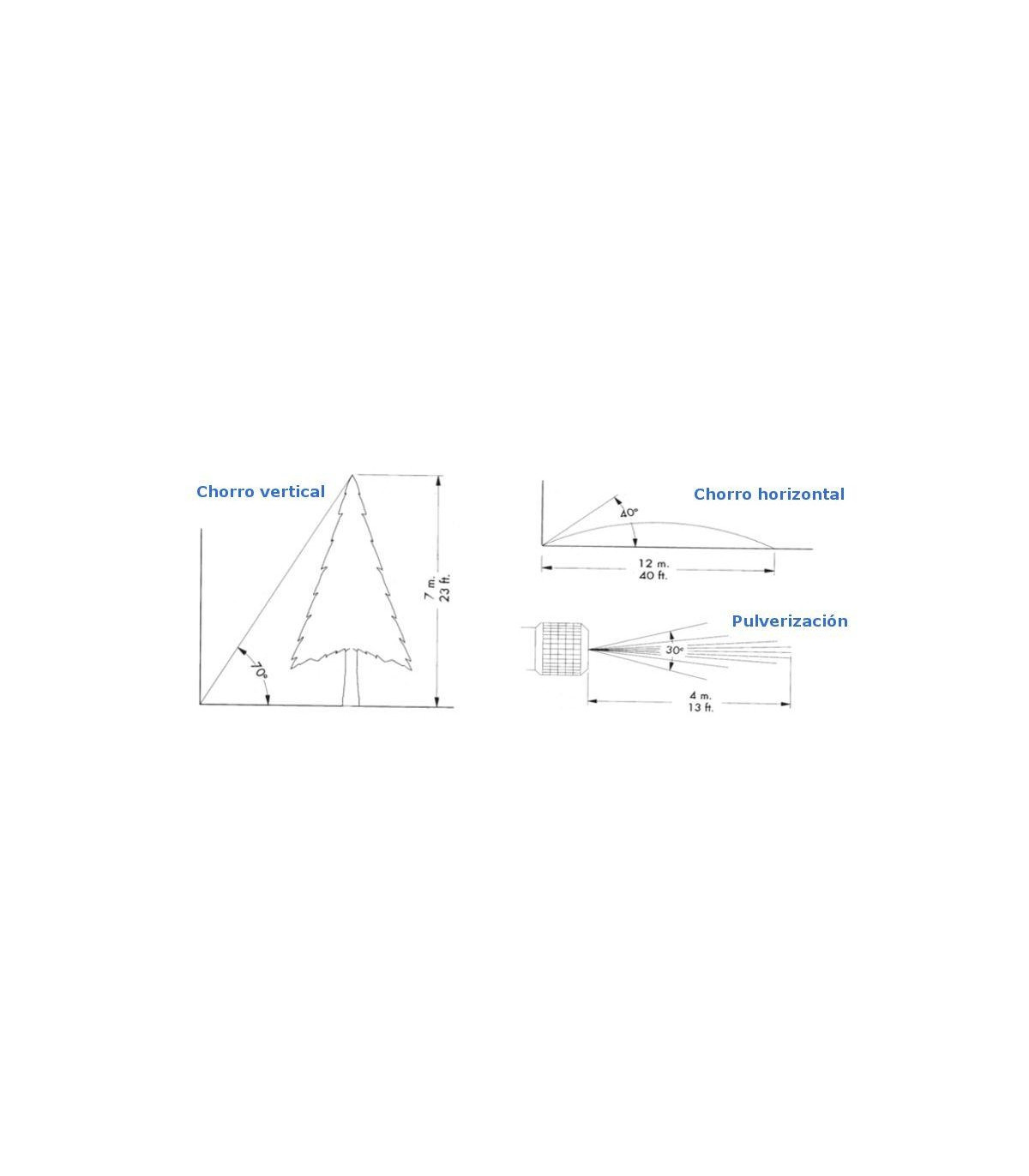

• Vertical jet range: 7 m
• Horizontal jet range: 12 m
• Horizontal spray range: 4 m
• Hose: 1.75 m (PVC)
• Nozzle: Adjustable conical brass
• Lance: Chromed brass, double-effect (hydronette)
• Net weight: 3.35 kg
• Gross weight: 3.84 kg
• Tank: Translucent with level indicator and wide filler cap
• Colour: Yellow

***************************************

In every workplace and facility, emergency tools must exist that can be used in the event it is necessary to extinguish a fire, especially in those work activities where there is a risk that a fire could occur due to the type of machinery or materials used. There are various fire prevention devices on the market and others prepared to deal with fire when necessary, one of them being the telescopic beater FFB02.

The telescopic beater FFB02 is a tool that has been designed to extinguish fire using the smothering technique, that is, air displacement. This tool is composed of a metal handle that ends in a self-extinguishing rubber paddle or beater, which makes it an element highly recommended to have in any facility where work is carried out with substances or elements that may be flammable or that may give rise to the appearance of a fire.

The assembly of the handle with the beater or paddle remains perfectly adhered thanks to a vulcanisation process, making the telescopic beater FFB02 a single unit in which no additional fastening element such as screws or rivets is needed.

This particular model, which has a rubber grip to provide much more comfortable handling by the user, has a beater with dimensions of 250 mm wide x 500 mm high and 6 mm thick, with a total length of the complete unit deployed of approximately 1,950 mm. When retracted, its length is 1,280 mm and the total weight is 1.8 kilograms.

The handle, for its part, has an outer diameter of 30 mm and an inner diameter of 25 mm, being manufactured in a duralloy tube, stainless, with a smooth finish and properties of recovery when bent and exceptional resistance to breakage.

The ribbed beater or paddle of this telescopic beater FFB02 is made of fire self-extinguishing synthetic rubber with a thickness of 6 mm. The entire beater is reinforced with fabric to provide greater tear resistance, with double reinforcement in critical areas. It offers great rigidity, the outer edges are thicker and have steel inner reinforcement. We are manufacturers of beaters in association with Cauchos Nuriz.

FREQUENTLY ASKED QUESTIONS ABOUT Forest Backpack Sprayer 17.5 litres Approved MATABI

Can you alternate between jet and spray during use?

Yes. It incorporates an adjustable nozzle that allows you to adjust the type of output to work in jet or spray mode depending on the situation and application distance.

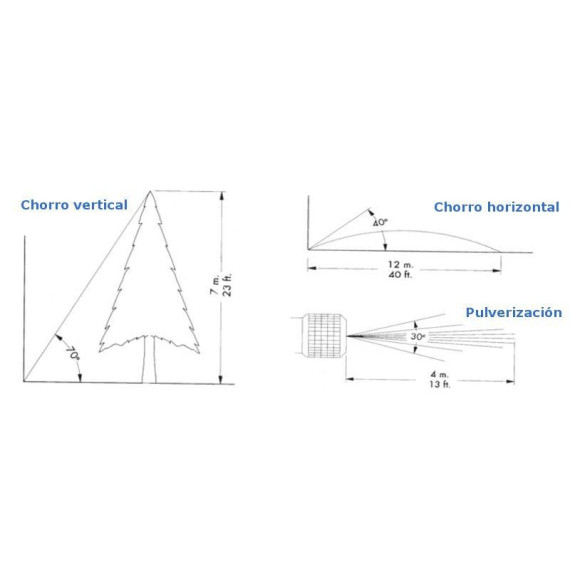

What is the actual water range?

As a reference, the jet can reach up to 7 m vertically and 12 m horizontally. In spray mode, the horizontal range is up to 4 m. In practice it may vary depending on pumping and wind conditions.

What improvement does it provide for carrying it during walking movements?

The padded strap system, waist adjustment and lumbar support help stabilise the backpack and distribute the load, which is useful when you have to walk with the equipment loaded in uneven terrain.

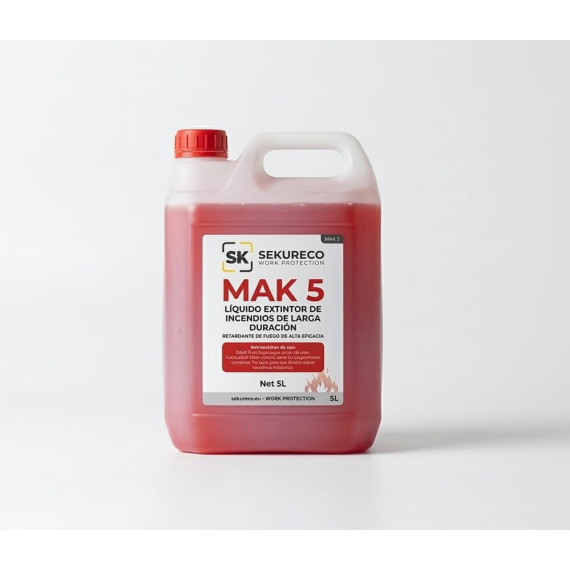

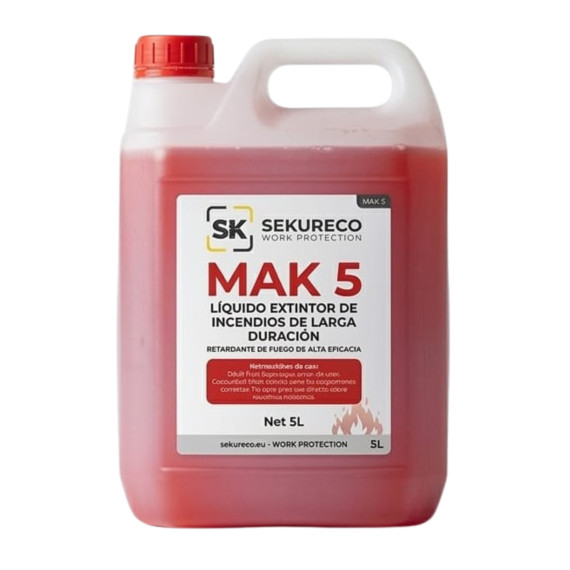

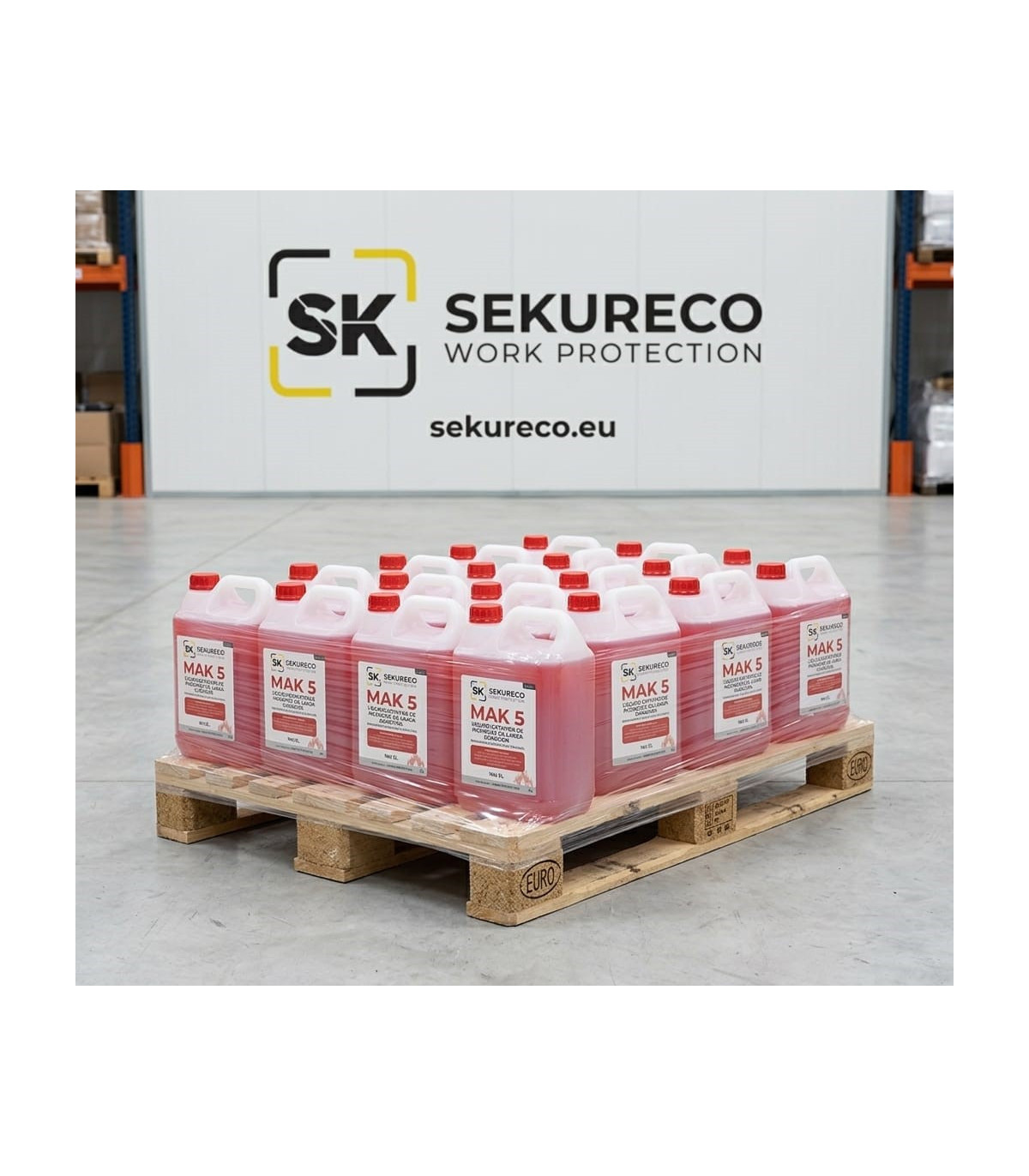

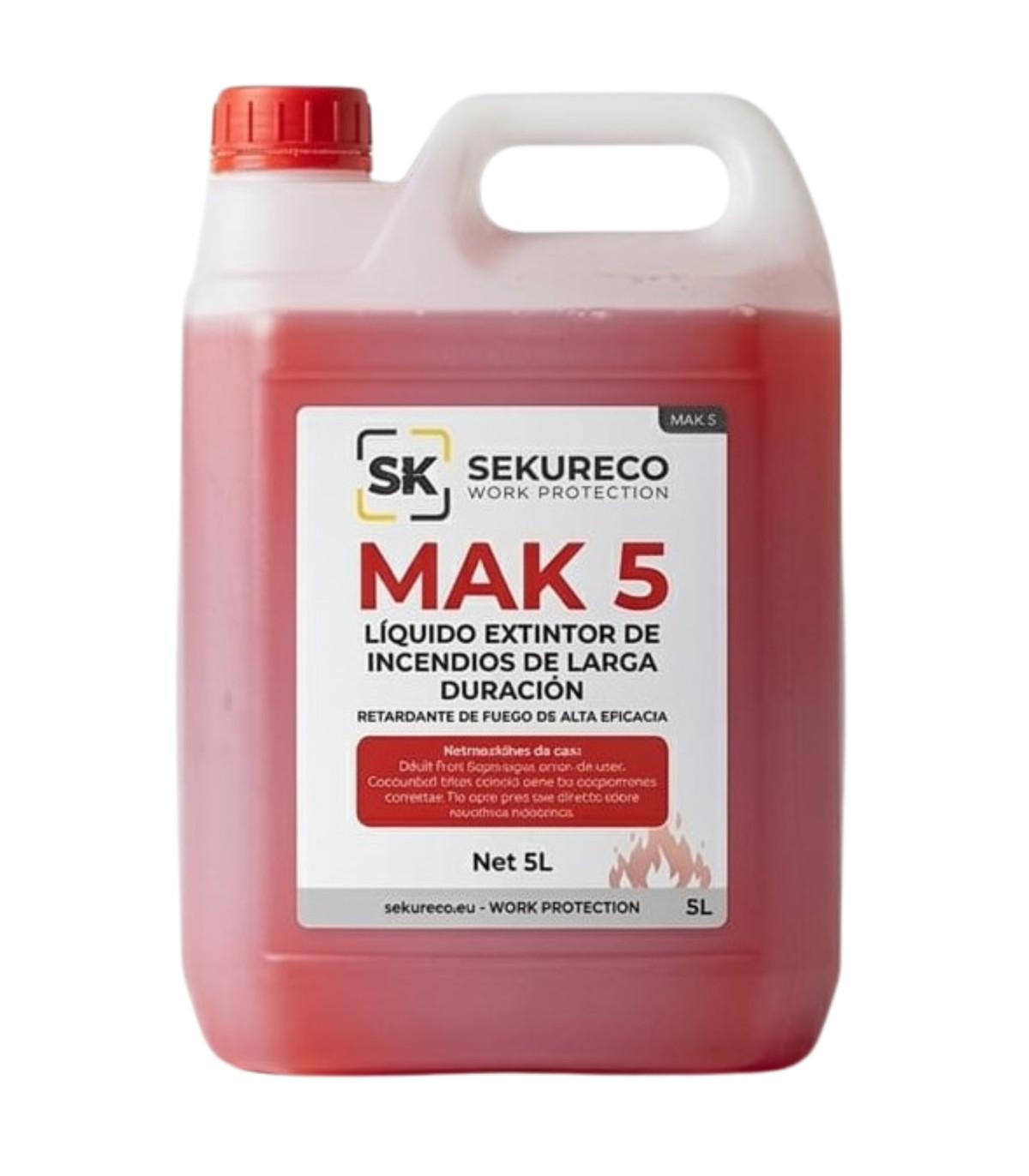

WHAT IS FOREST FIRE RETARDANT?

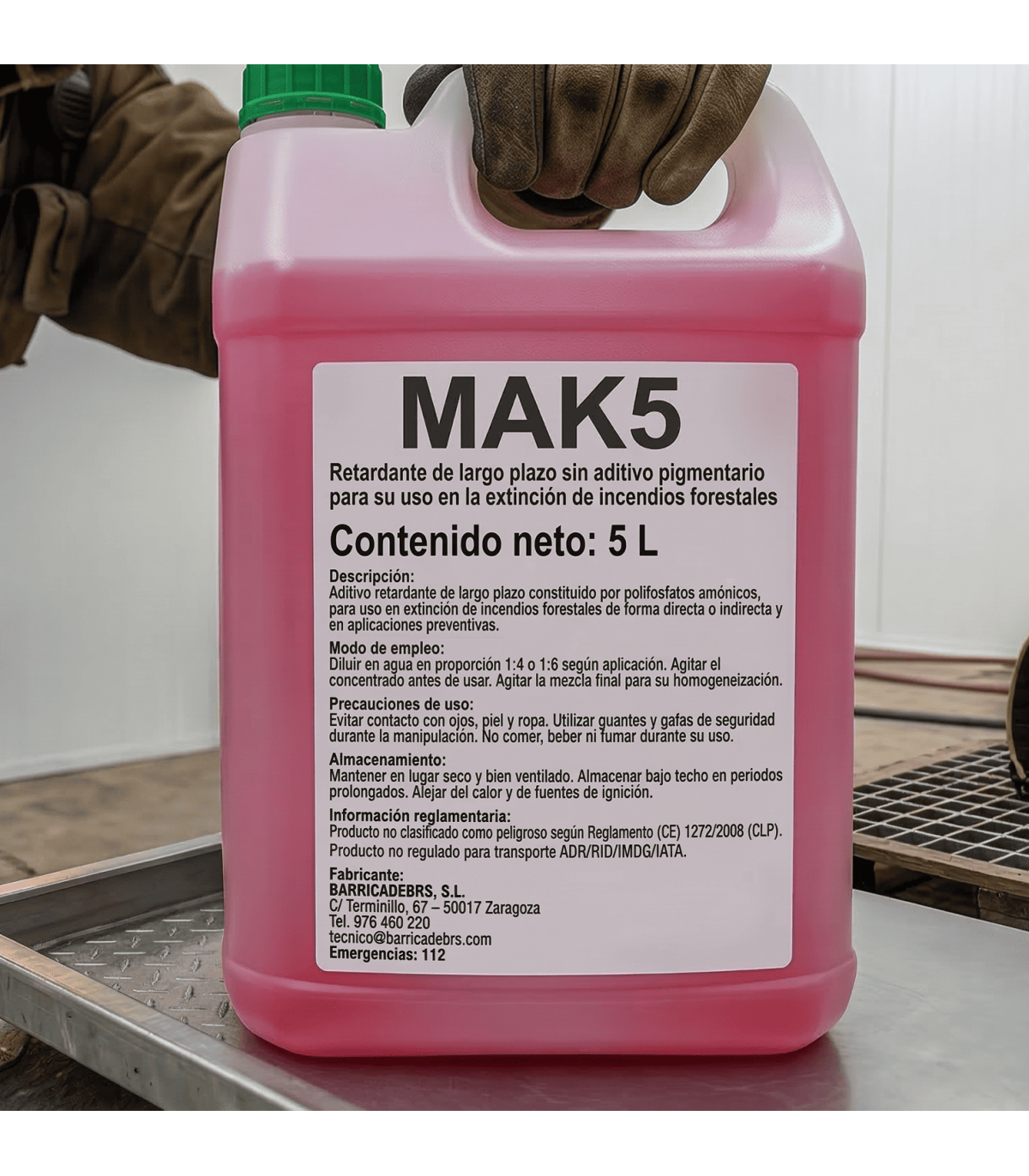

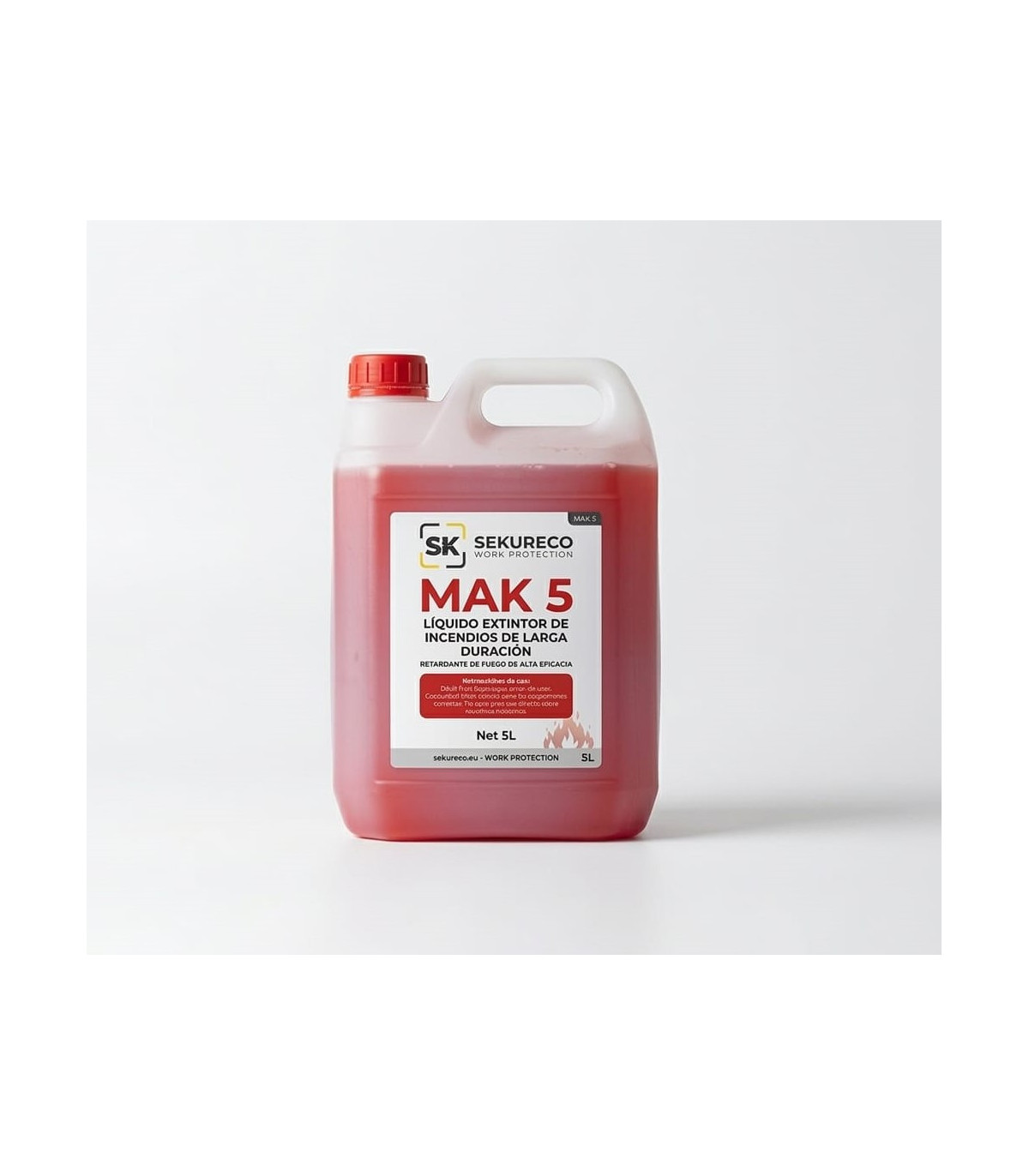

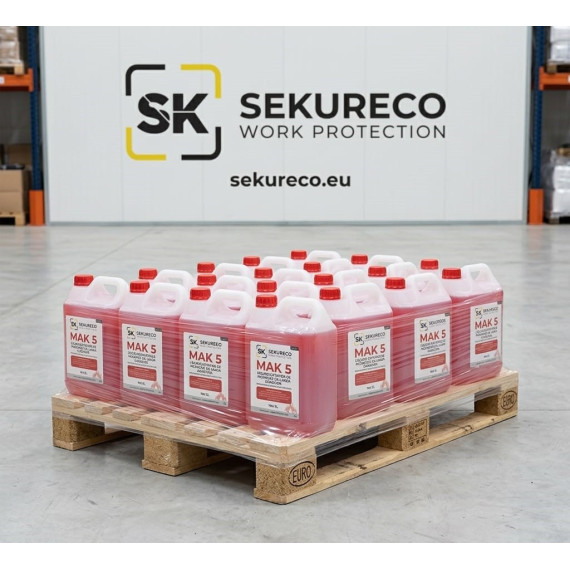

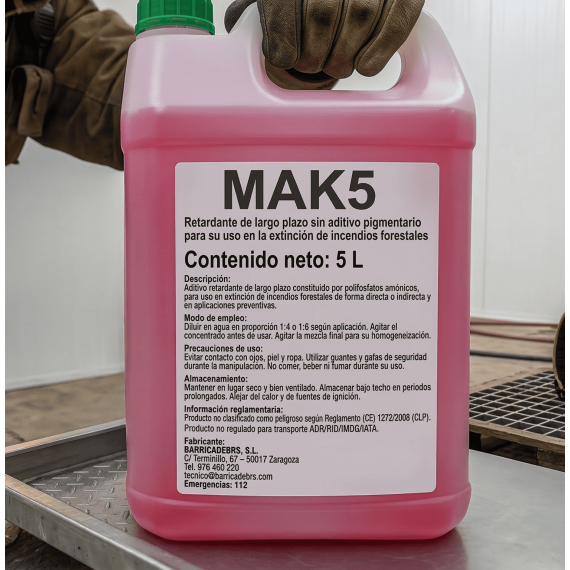

The MAK5 is a long-term forest fire retardant designed to improve the effectiveness of fire suppression and control operations in forest, natural and industrial environments at risk of fire. MAK5 must be diluted in water at a mixing ratio of 1:4 or 1:6 (1 litre of concentrate to 4 or 6 litres of water).

HOW DOES A LONG-TERM RETARDANT WORK?

Its formulation based on ammonium polyphosphates allows it to act directly on vegetable fuel, reducing its flammability and slowing fire propagation. When applied to vegetation or surfaces susceptible to combustion, the product generates a retarding barrier that hinders the advance of flames, facilitating containment and suppression work.

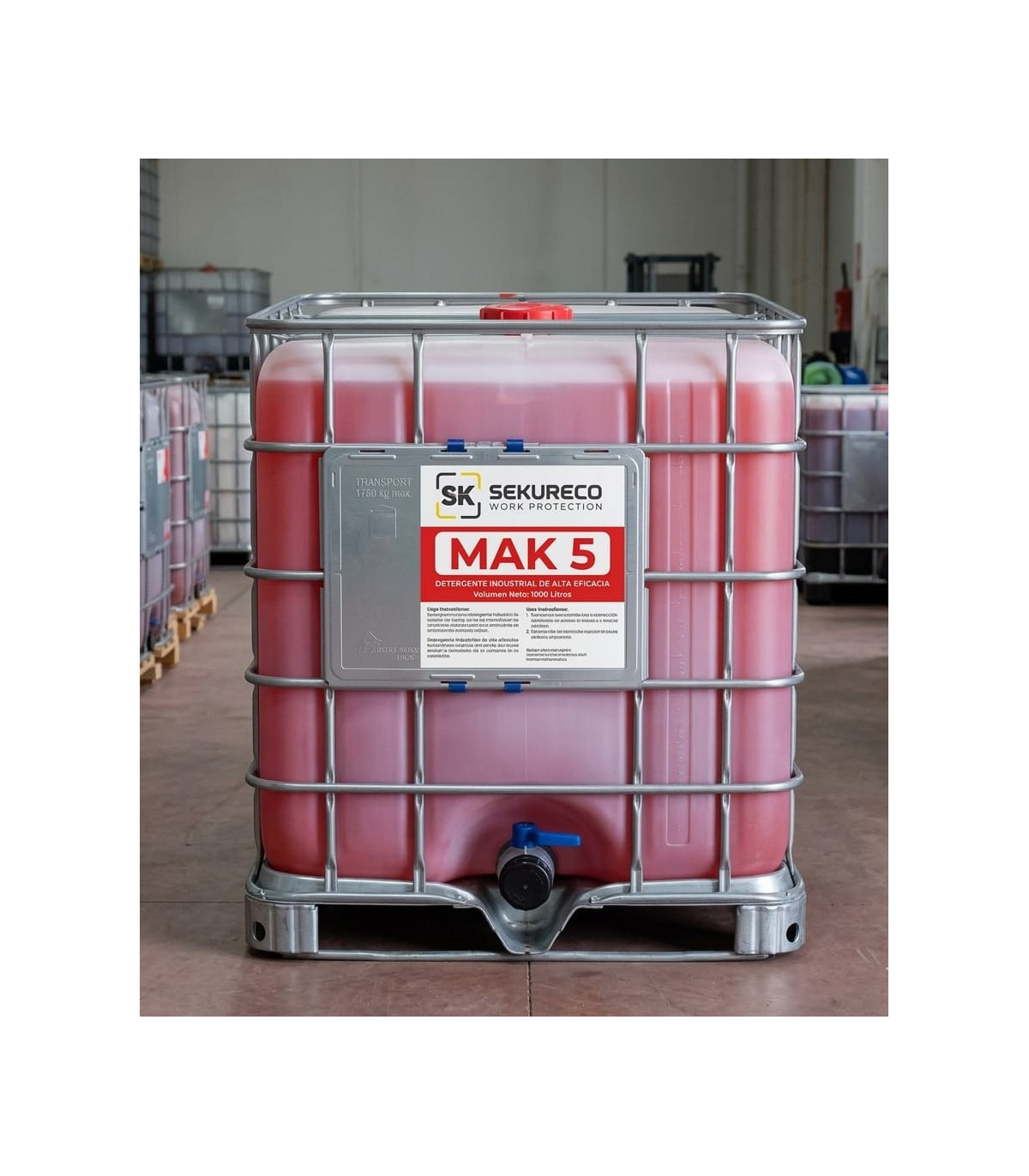

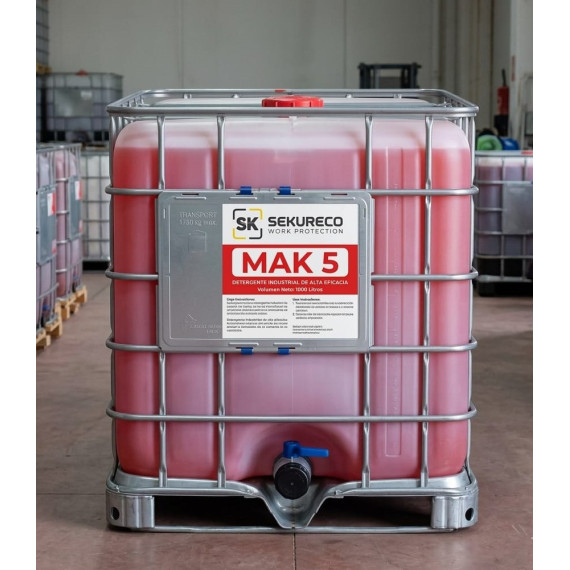

The MAK5 retardant is presented in liquid concentrate format, which allows mixing with water before application. Depending on fire conditions or preventive use, the product can be diluted in approximate proportions of 1:4 to 1:6 with water, maintaining high effectiveness in reducing combustion.

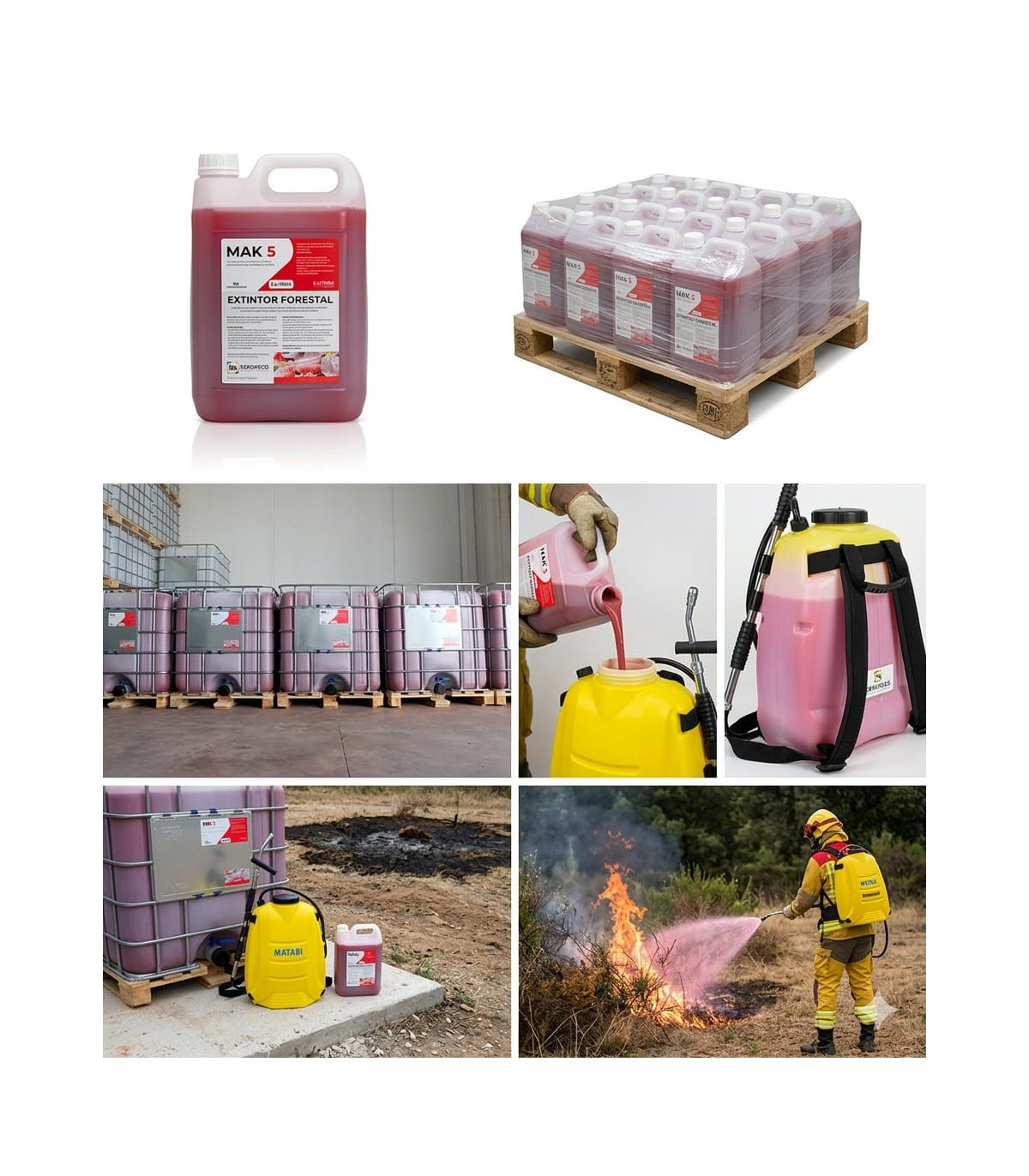

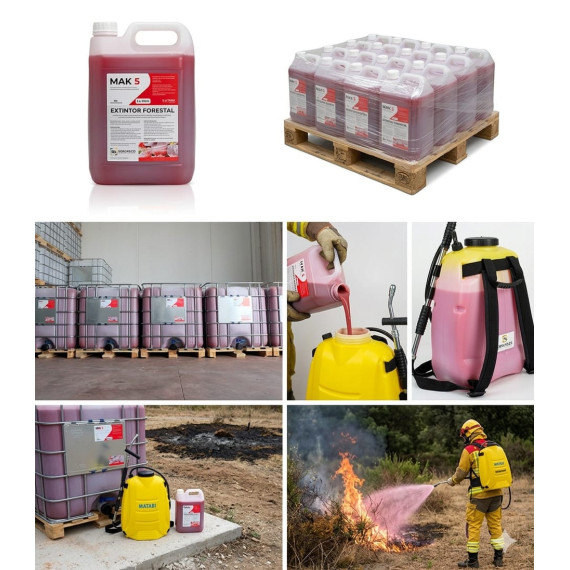

Once prepared, it can be applied through various intervention systems:

• Forest water tender trucks
• Tanks or pumping equipment
• Ground-based intervention crews
• Fire suppression helicopters or aircraft

Thanks to its ability to impregnate vegetable fuel and provide wide coverage, the retardant allows you to optimise the performance of water used in suppression operations, reducing evaporation losses and increasing the effectiveness of each discharge.

APPLICATIONS OF MAK5 RETARDANT IN FOREST FIRES

The MAK5 is particularly useful in situations such as:

• Containment of forest fires
• Creation of retarding defence lines
• Preventive protection of forest areas, infrastructure or sensitive areas
• Support in indirect attack operations
• Protection of industrial areas or critical infrastructure in forest environments

Furthermore, the product does not incorporate pigments in its formulation, which avoids ground discolouration after application and facilitates its use in certain operational interventions.

BENEFITS OF MAK5 RETARDANT

• Long-term retardant for forest fires
• Formulation based on ammonium polyphosphates
• Reduces flammability of vegetable fuel
• Improves water effectiveness in fire suppression
• Allows creation of defence lines against fires
• Application via ground crews and aerial means
• Product in concentrate format for dilution in water
• Designed for professional use in fire suppression

Product excluded from promotions.
