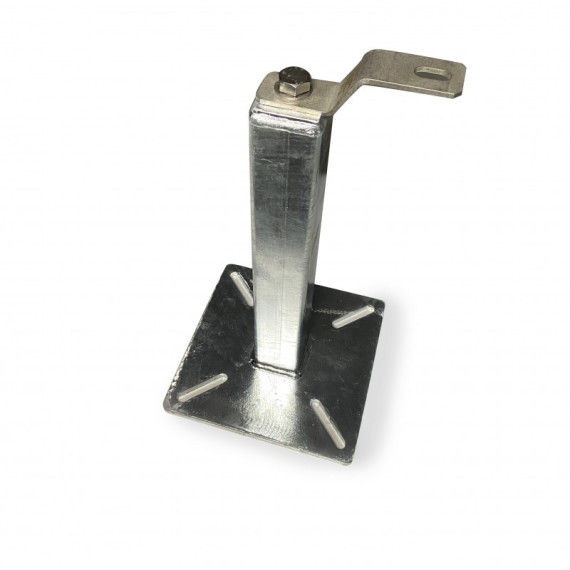

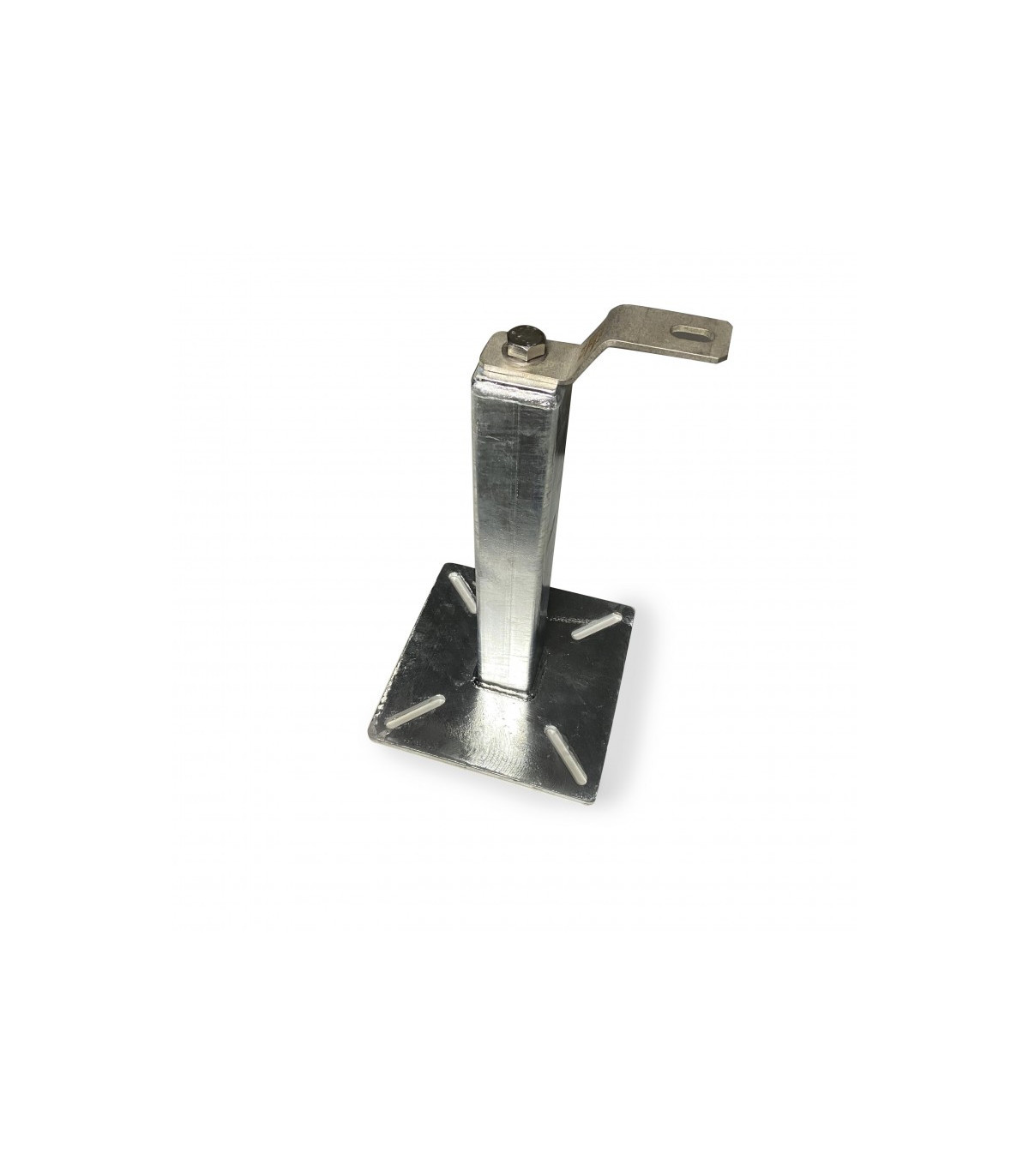

Anchor with base and stainless steel post SAFETOP

Anchor with base and stainless steel post SAFETOP. The anchor with base and stainless steel post SAFETOP is a robust and versatile solution designed for its installation against various structures. It features a post 400 mm high and a base 39 mm, made of 304 stainless steel and galvanized steel, ensuring resistance to corrosion and durability.

Its threaded end facilitates the connection of anchoring devices, while the fastening element allows securing the ends of the fall protection device to the structure. This anchor can be installed by welding or bolting, thanks to its central drill that allows the use of screws, mechanical or chemical anchors depending on the type of support, complying with the UNE EN 795 Class C standard to ensure safety in height work applications.

FEATURES

• Post for installation against structure and with fastening element.
• Thanks to its threaded end, it allows the installation of an anchoring device.
• Contains a fastening element that allows securing the ends of the fall protection device to the supported structure.
• Welded or bolted installation, for which it is constructed with a central drill that allows its fixation using screws, mechanical or chemical anchors depending on the nature of the support.
• With a post height of 400 mm and a base height of 39 mm
• Made of 304 stainless steel and galvanized steel
• Complies with the UNE EN 795 Class C standard

BENEFITS

Welded or bolted installation, for which it is constructed with a central drill that allows its fixation using screws, mechanical or chemical anchors depending on the nature of the support.

APPLICATIONS

The Anchor with base and stainless steel post SAFETOP is designed for installation against structure:

• Safety fences
• Traffic signs
• Lightweight structures
• Sports installations

TECHNICAL DATA

• MATERIALS: Stainless steel.
• STANDARDS: EN 795 Personal protective equipment against falls. Anchoring devices.

NORMS

- EN795 Class C: The EN 795 standard establishes safety requirements for anchoring devices used in fall protection systems. Class C focuses on temporary anchors, which are mobile or removable systems and must also be capable of withstanding the forces generated by a fall.
