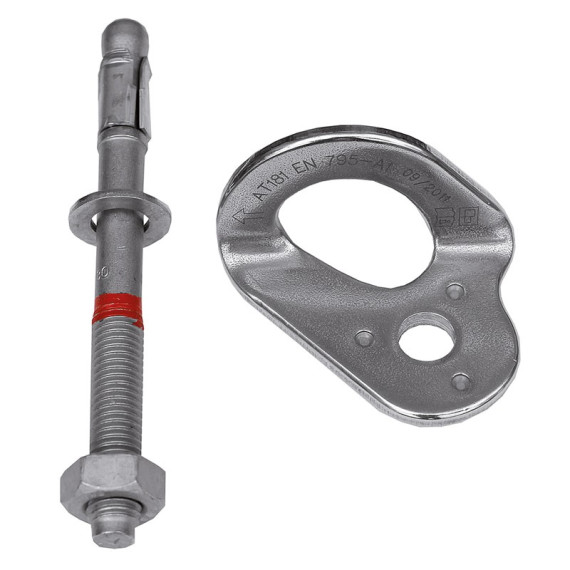

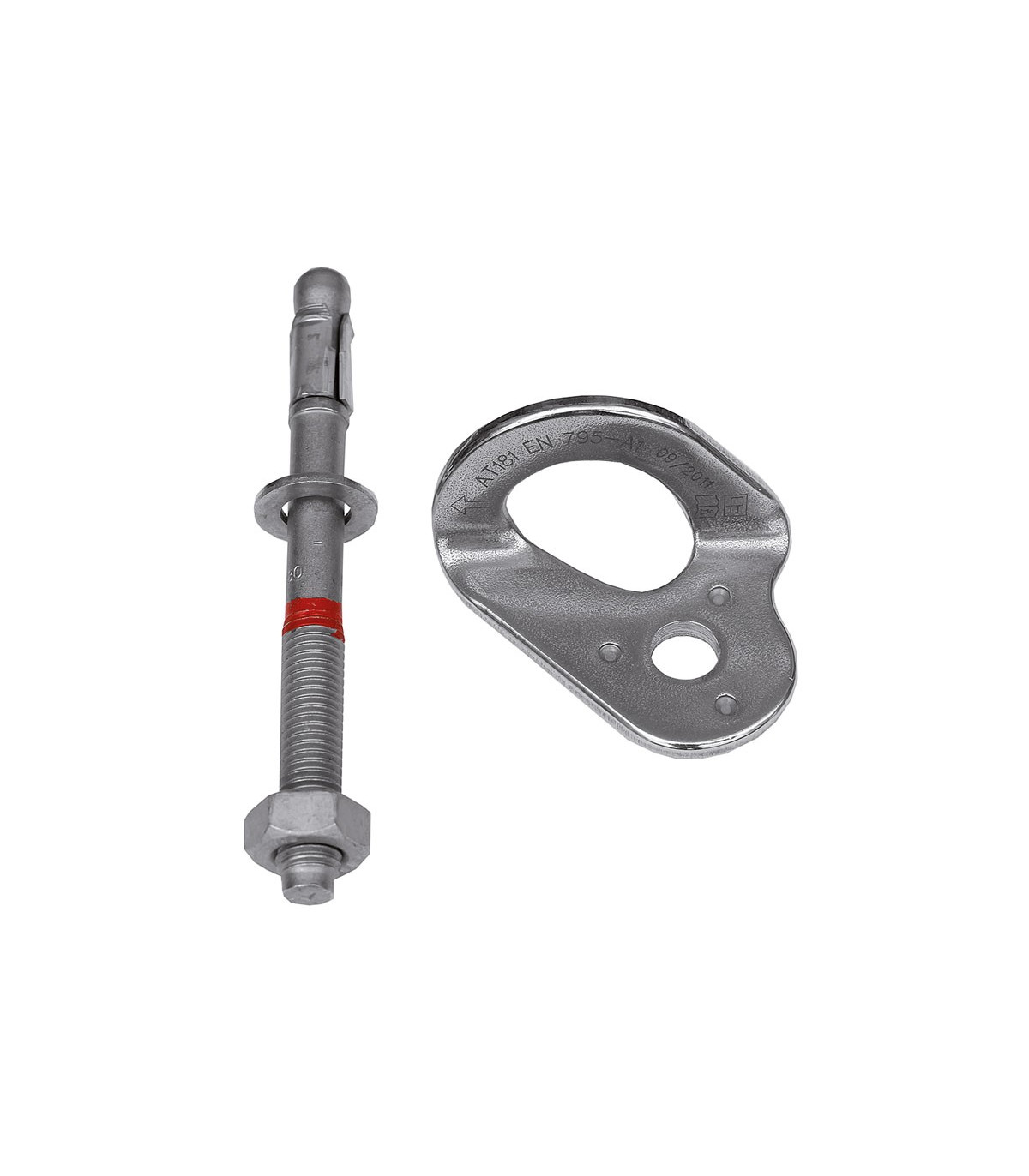

SAFETOP anchor point for concrete and parabolics

Permanent anchor point for vertical or horizontal use on concrete with expansion anchor, with a thread diameter of M12. Made of stainless steel.

FEATURES

• Distance to edge: 90 mm. Static resistance: 10 kN
• Thread diameter: M12 (12.5 mm)
• Material: Stainless steel ANSI 316
• Resistance: 10 kN. ** Screw included.

TECHNICAL DATA

MATERIALS

Stainless steel ANSI 316

APPLICATIONS

Designed as an anchor to permanently fix to a structure in vertical and horizontal positions. For use with M12 screws (included).

CERTIFICATION

EN 795 Class A (Structural anchors permanently fixed to a structure)

PACKAGING

1 unit

LIFETIME

Inspections: the equipment must be inspected every 12 months by an authorized person or by the manufacturer. Inspections should be recorded in the inspection sheet attached to the PPE along with the instruction manual.
