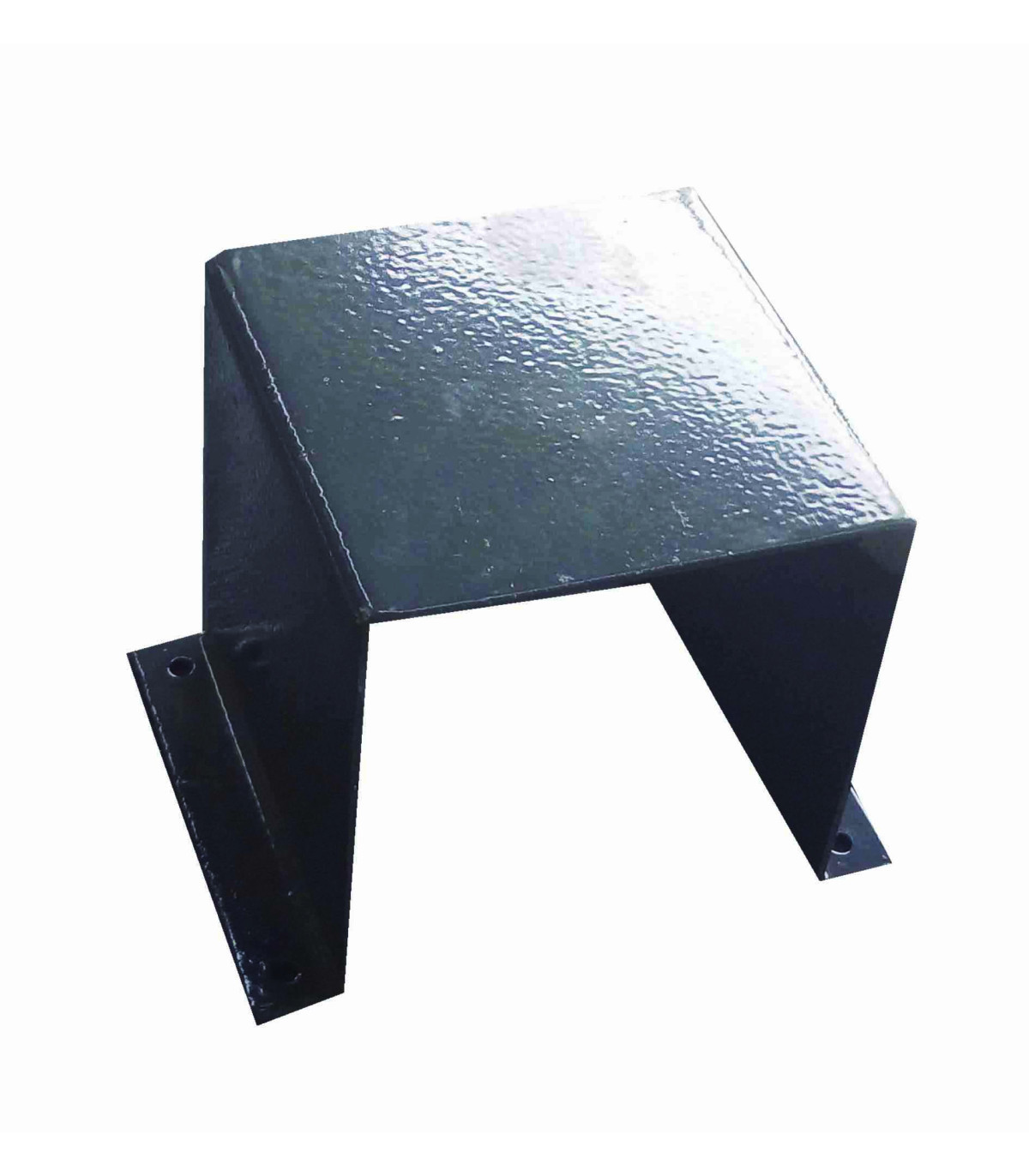

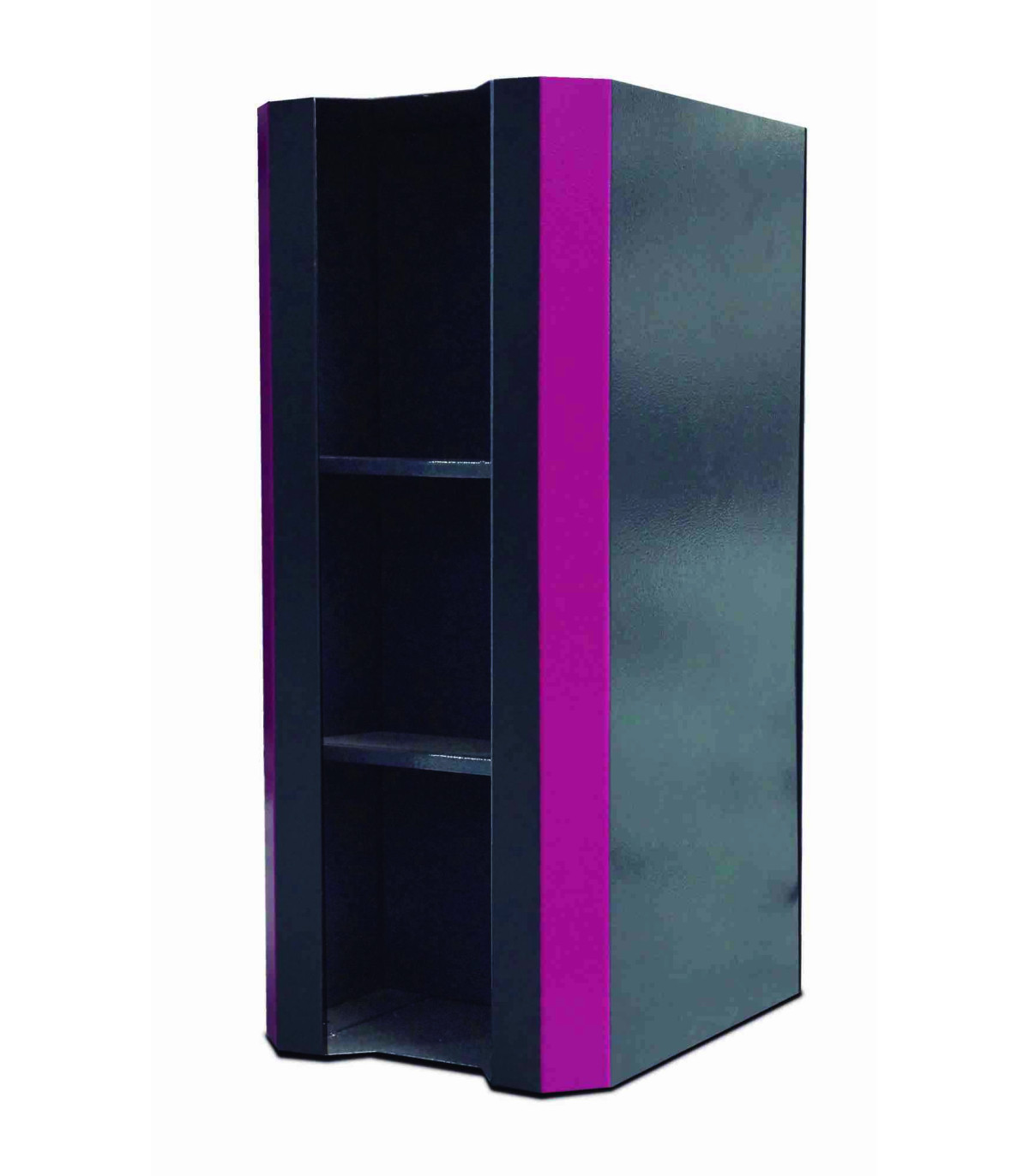

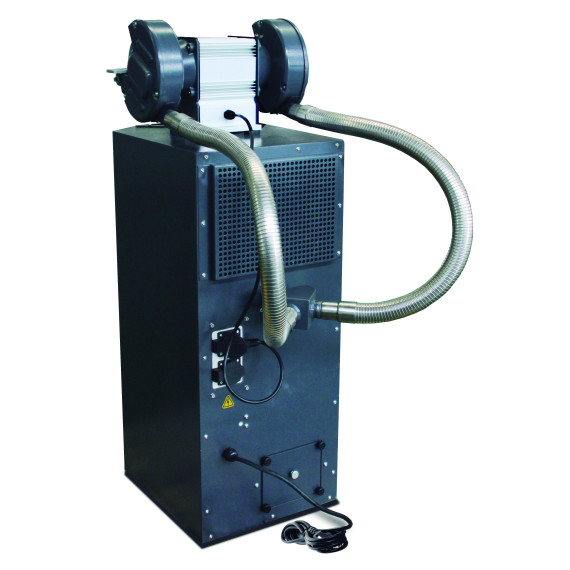

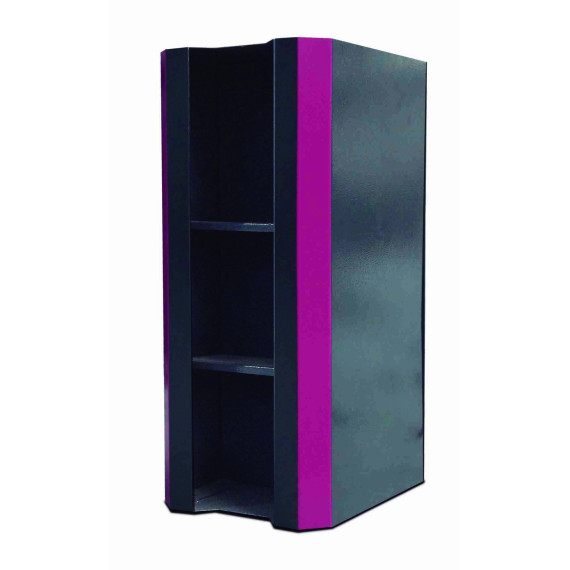

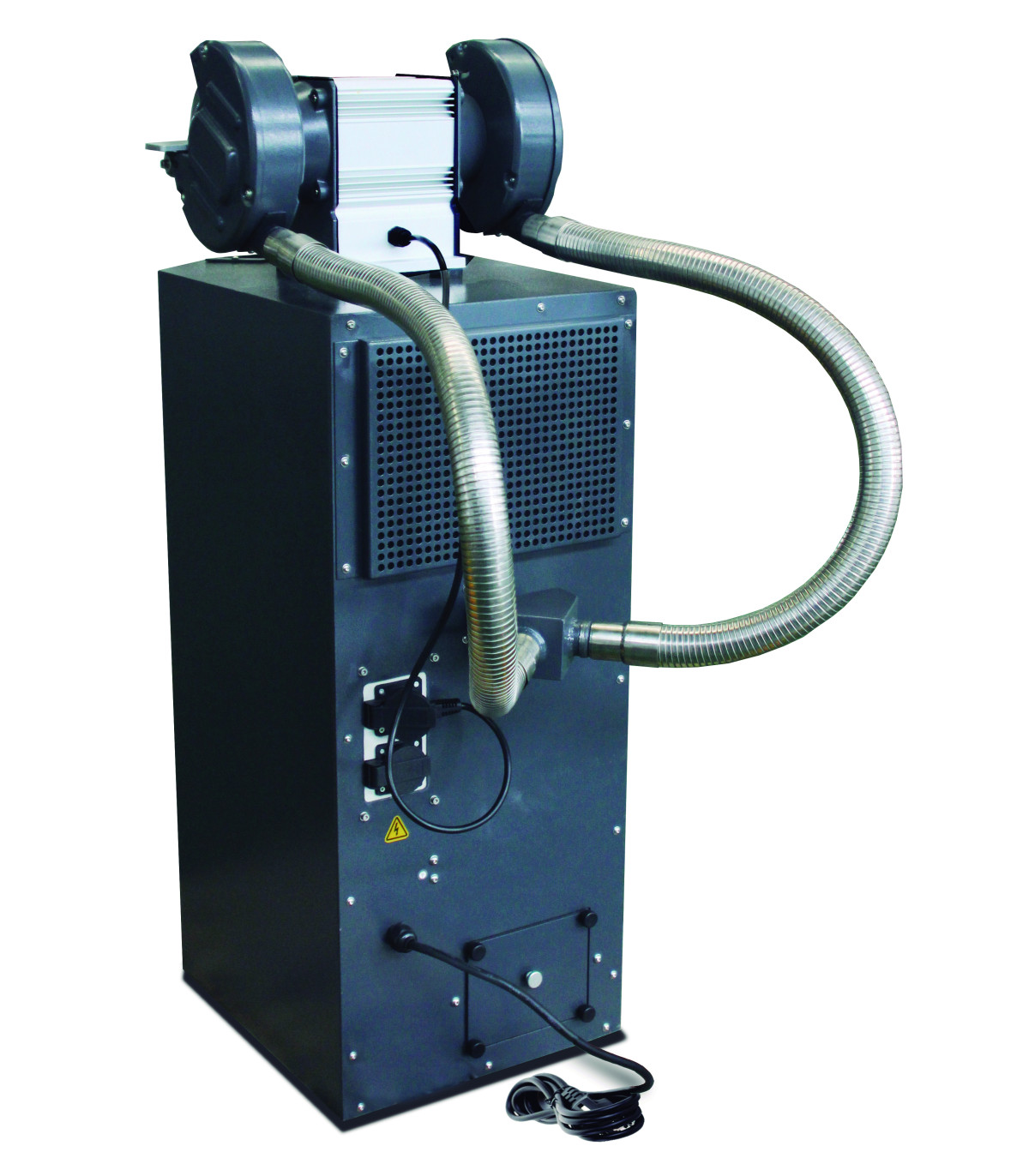

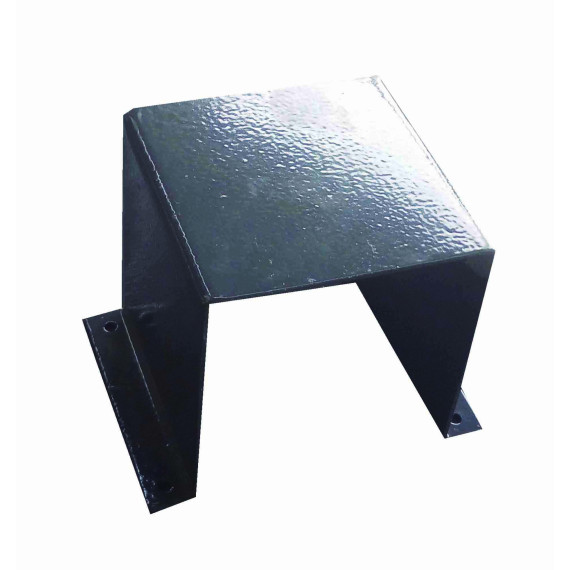

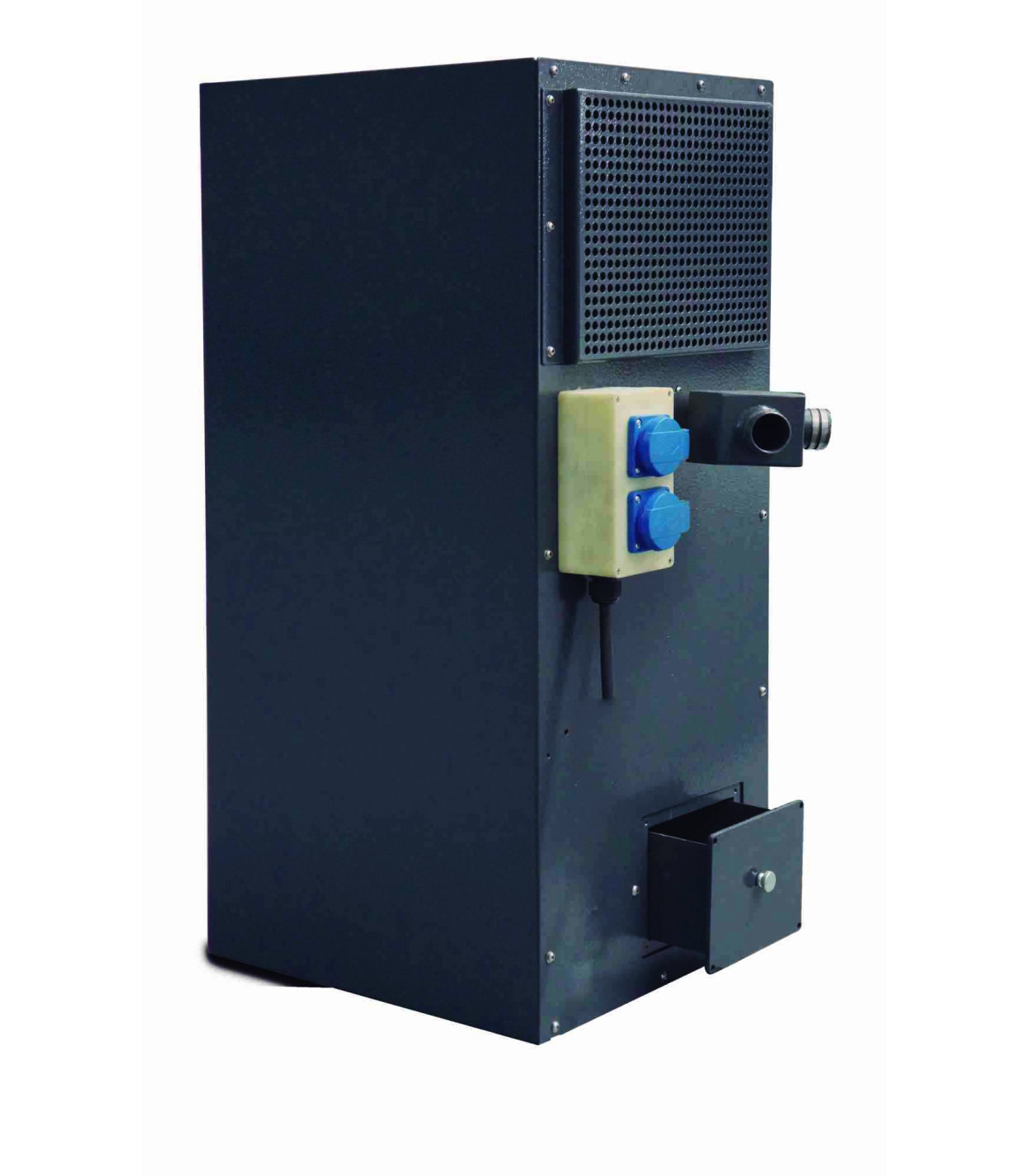

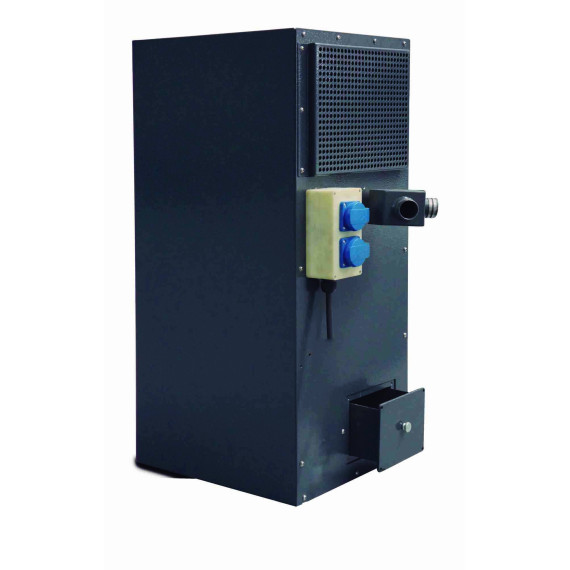

Bank with suction system for GU and GUS OPTIMUM

Bench with suction system for GU and GUS OPTIMUM. Bench with suction system for GU and GUS OPTIMUM, stable and soundproof, activates extraction automatically. Ideal for metallurgy, industrial design, and DIY.

FEATURES

• Stable substructure
• Integrated cyclonic extraction in the substructure, requiring less space
• For GU and GU-S machines
• Soundproof
• LED lamp holder 3-500
• No drilling - must be drilled individually

Automatic ignition

• When activating the double grinder, the extraction system is automatically activated with a delay of 2 to 3 seconds. There is no need to additionally activate the suction unit.
• The extraction system continues to operate for 2-3 seconds after turning off the double grinder.
• Residual dust is extracted after turning off the machine in accordance with the Hazardous Substances Ordinance.

TECHNICAL SPECIFICATIONS

Dimensions and weights

• Length approx. 550 millimeters
• Width/depth approx. 340 millimeters
• Height approx. 890 millimeters
• Approximate weight. 42 kilograms

Unit output

• Main motor 1.3 kW

Electrical data

• Supply voltage 230 V
• Network frequency 50 Hz

Standards and certifications

• EMC class C2
• Standard DIN EN 55011
• VPE 1

WHAT TYPE OF WORK IS IT SUITABLE FOR

The bench with suction system for GU and GUS OPTIMUM is suitable for:

• Metallurgy
• Industrial Design
• Maintenance
• DIY

CERTIFICATION

- DIN EN 55011: The DIN EN 55011 regulation refers to the limits and measurement methods for the emission of electromagnetic interference from industrial, scientific, and medical equipment. This standard establishes criteria to ensure that devices do not generate interference that could affect other electronic equipment and also defines the permitted levels of electromagnetic radiation. It is essential to ensure compliance in the design and use of equipment operating in environments where electromagnetic compatibility is crucial.

ABOUT OPTIMUM

OPTIMUM metalworking machines are characterized by high quality standards. In addition to our own manufacturing operations, OPTIMUM relies on manufacturers that meet our requirements.
