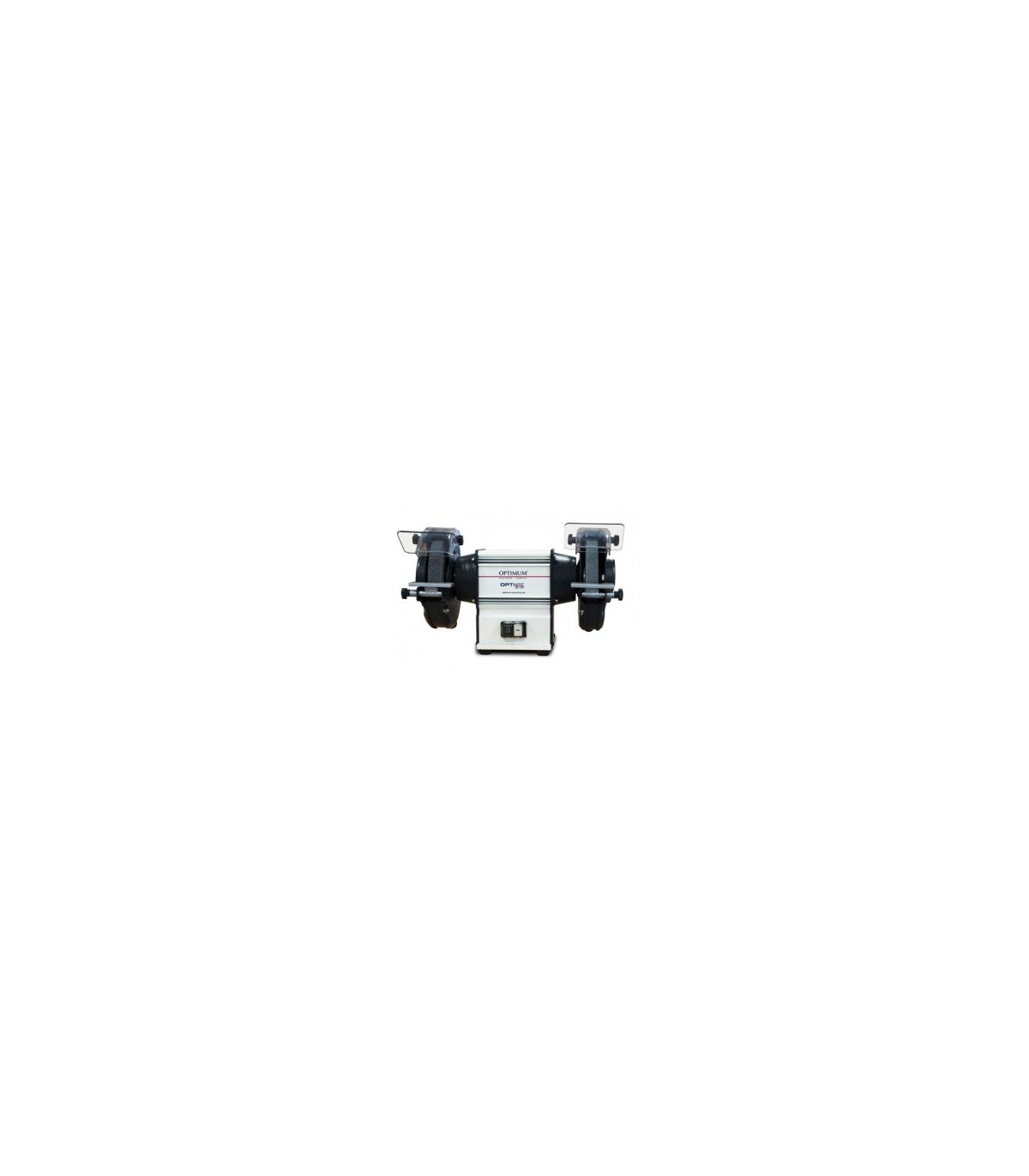

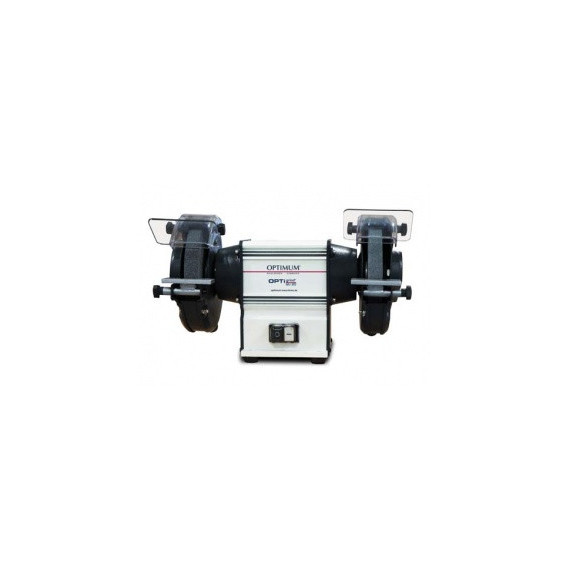

Bench grinder for crafts GU 18 OPTIMUM

Bench grinder for crafts GU 18 OPTIMUM. The GU 18 OPTIMUM bench grinder offers a durable industrial design and maintenance-free motor. With an aluminum housing and spark protection, it ensures smooth operation. Its rubber feet reduce vibrations, while its K36/K80 wheels allow for precise grinding. With dimensions of 389x235x280 mm and a weight of 14 kg, it features a 0.45 kW motor at 230 V. Ideal for metallurgy, maintenance, crafts, and manufacturing.

FEATURES

• Heavy-duty industrial design with a maintenance-free motor.
• Extruded aluminum housing
• Long service life and smooth operation thanks to the balanced rotor with quality ball bearings.
• The spark protection on each grinding wheel reduces flying sparks.
• Shatterproof viewing windows
• Rubber feet that dampen vibrations
• Coarse and fine grinding wheels (K36/K80) included

TECHNICAL SPECIFICATIONS

Dimensions and weights

• Approximate length: 389 millimeters
• Approximate width/depth: 235 millimeters
• Approximate height: 280 millimeters
• Approximate weight: 14 kilograms

Electrical data

• Drive motor output: 0.45 kW
• Supply voltage: 230 V
• Network frequency: 50 Hz

Abrasive wheel(s)

• Outer diameter: 175 millimeters
• Width: 25 millimeters
• Hole diameter: 32 millimeters
• Speed: 2850 min¯¹

Sanding accessory

• Nominal width of the extraction duct: 34 millimeters
• VPE: 1

COMPONENTS/PACKAGING

Unit: pcs.

Packaging unit: 1

• Coarse normal corundum grinding wheel K36
• Fine normal corundum grinding wheel K80

FOR WHAT TYPE OF WORK IT IS SUITABLE

The GU 18 OPTIMUM bench grinder is suitable for:

• Metallurgy
• Maintenance and repair
• Crafts
• Manufacturing
