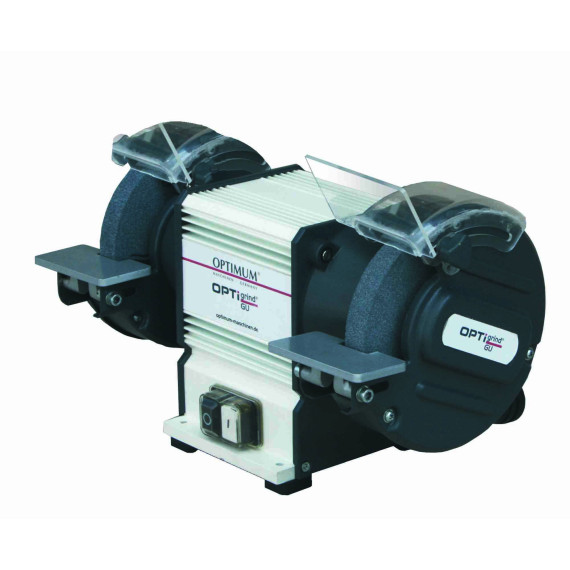

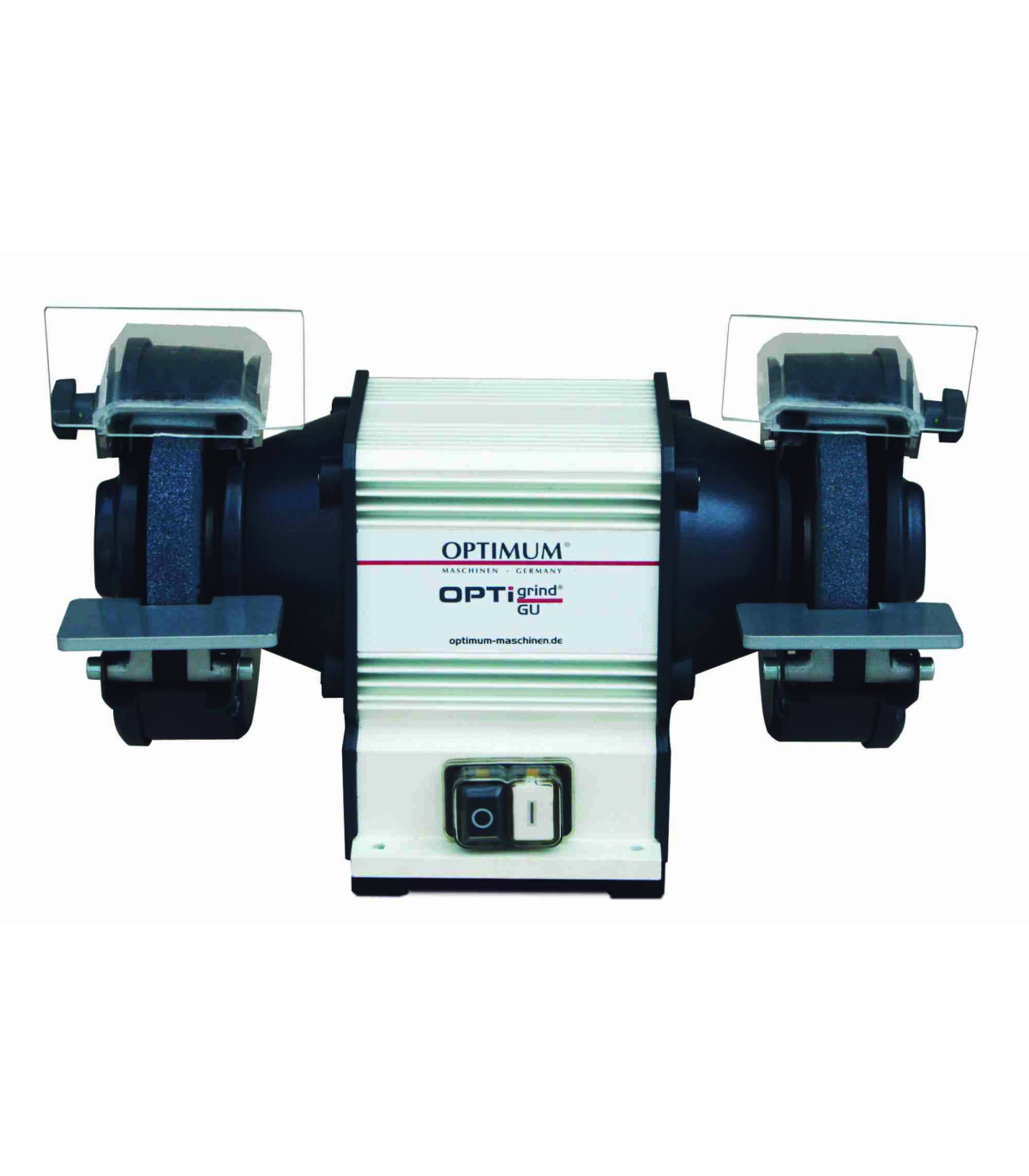

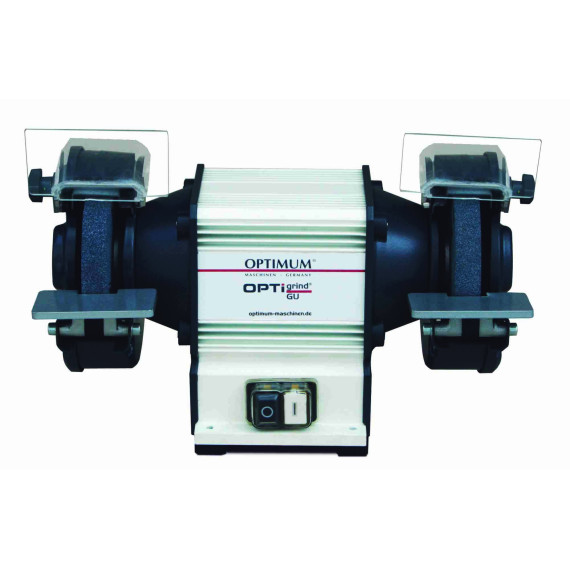

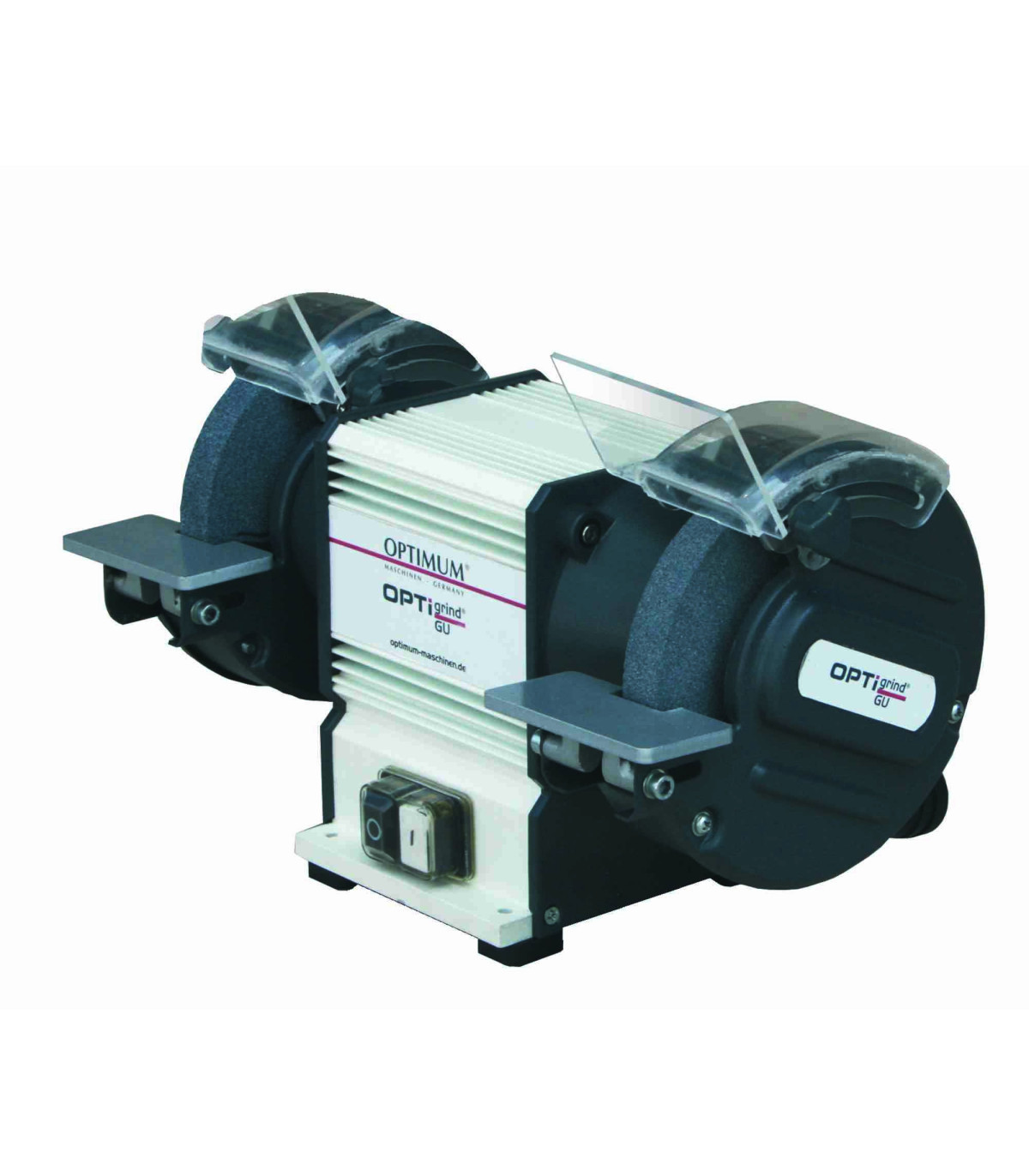

Bench grinder GU 15 OPTIMUM

GU 15 OPTIMUM bench grinder. The GU 15 OPTIMUM bench grinder stands out for its durable industrial design and maintenance-free motor. It features an aluminum housing, spark protection, unbreakable sight glasses, and rubber feet that reduce vibrations. With K36/K80 grinding wheels, it offers smooth operation. Its dimensions are 389x205x265 mm and it weighs 11 kg, with a 0.45 kW motor at 230 V and 50 Hz. Ideal for precise and prolonged work.

FEATURES

• Heavy-duty and durable industrial design with a maintenance-free motor.
• Extruded aluminum housing
• Long service life and smooth operation thanks to the balanced rotor with quality ball bearings.
• The spark protection on each grinding wheel reduces flying sparks.
• Unbreakable sight glasses
• Rubber feet that dampen vibrations
• Coarse and fine grinding wheels (K36/K80) included

TECHNICAL SPECIFICATIONS

Dimensions and weights

• Approximate length: 389 millimeters
• Approximate width/depth: 205 millimeters
• Approximate height: 265 millimeters
• Approximate weight: 11 kilograms

Electrical data

• Drive motor output: 0.45 kW
• Supply voltage: 230 V
• Network frequency: 50 Hz

Abrasive wheel(s)

• Outer diameter: 150 millimeters
• Width: 20 millimeters
• Hole drill: 16 millimeters
• Speed: 2850 min¯¹

Sanding accessory

• Nominal width of extraction duct: 34 millimeters
• VPE: 1

COMPONENTS/PACKAGING

Unit: pcs.

Packaging unit: 1

Coarse normal corundum abrasive wheel K36

Fine normal corundum abrasive wheel K80

WHAT TYPE OF WORK IS IT SUITABLE FOR

The GU 15 OPTIMUM bench grinder is suitable for:

• Metallurgy
• Maintenance and repair
• Craftsmanship
• Manufacturing
