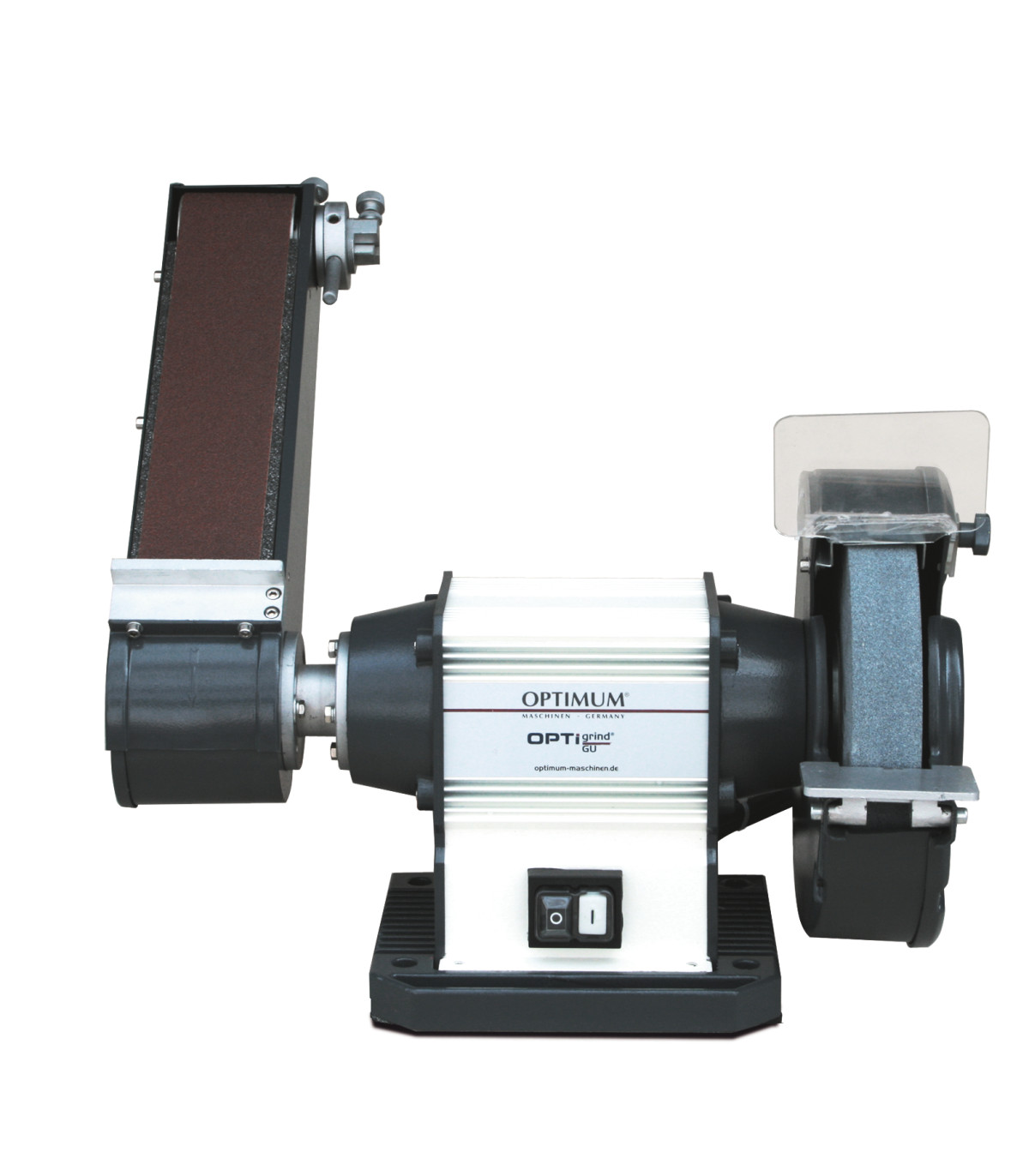

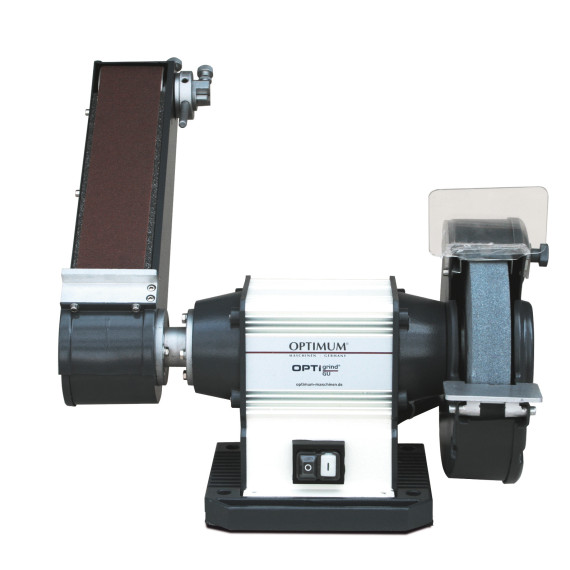

Universal belt grinder GU 20S OPTIMUM

Universal belt grinder GU 20S OPTIMUM. The universal belt grinder GU 20S OPTIMUM is robust and durable, with a maintenance-free motor. Its industrial design includes an aluminum housing and large flanges for high concentricity. It comes with a sanding attachment that reduces friction and heat, allowing for easy belt adjustment. With dimensions of 501x261x459 mm and a weight of 20.7 kg, its 0.6 kW motor operates at 230 V. Ideal for metallurgy, maintenance, craftsmanship, and manufacturing, it offers versatility in work.

FEATURES

• Robust and stable universal grinders with abrasive belt and grinding wheel for a wide range of materials
• Heavy-duty and durable industrial design with a maintenance-free motor.
• Extruded aluminum housing
• Large and heavy mounting flanges for high disk concentricity
• Sanding attachment with graphite coating; prevents friction and heat.
• The stop allows for quick and easy sanding of workpieces
• Belt adjustment without tools: adjustable with a handle screw only
• Universal corundum abrasive disc and sanding belt included in the standard supply.

TECHNICAL SPECIFICATIONS

Dimensions and weights

• Approximate length 501 millimeters
• Approximate width/depth 261 millimeters
• Approximate height 459 millimeters
• Approximate weight. 20.7 kilograms

Electrical data

• Drive motor output 0.6 kW
• Power supply voltage 230 V
• Network frequency 50 Hz

Abrasive wheel(s)

• Outer diameter 200 millimeters
• Width 30 millimeters
• Hole drill 32 millimeters
• Speed 2850 min¯¹

Sanding attachment

• Sanding belt length 762 millimeters
• Sanding belt width 75 millimeters
• Polishing attachment rotation range 90°
• Nominal width of extraction duct 32 millimeters
• Grinding support length 180 millimeters
• Grinding support width 87 millimeters
• VPE 1

COMPONENTS/PACKAGING

Unit: pcs.

Packaging unit: 1

• Normal fine corundum abrasive wheel K80
• Normal fine corundum sanding belt K80

FOR WHAT TYPE OF WORK IS IT SUITABLE

The universal belt grinder GU 20S OPTIMUM is suitable for:

• Metallurgy
• Maintenance and repair
• Craftsmanship
• Manufacturing
