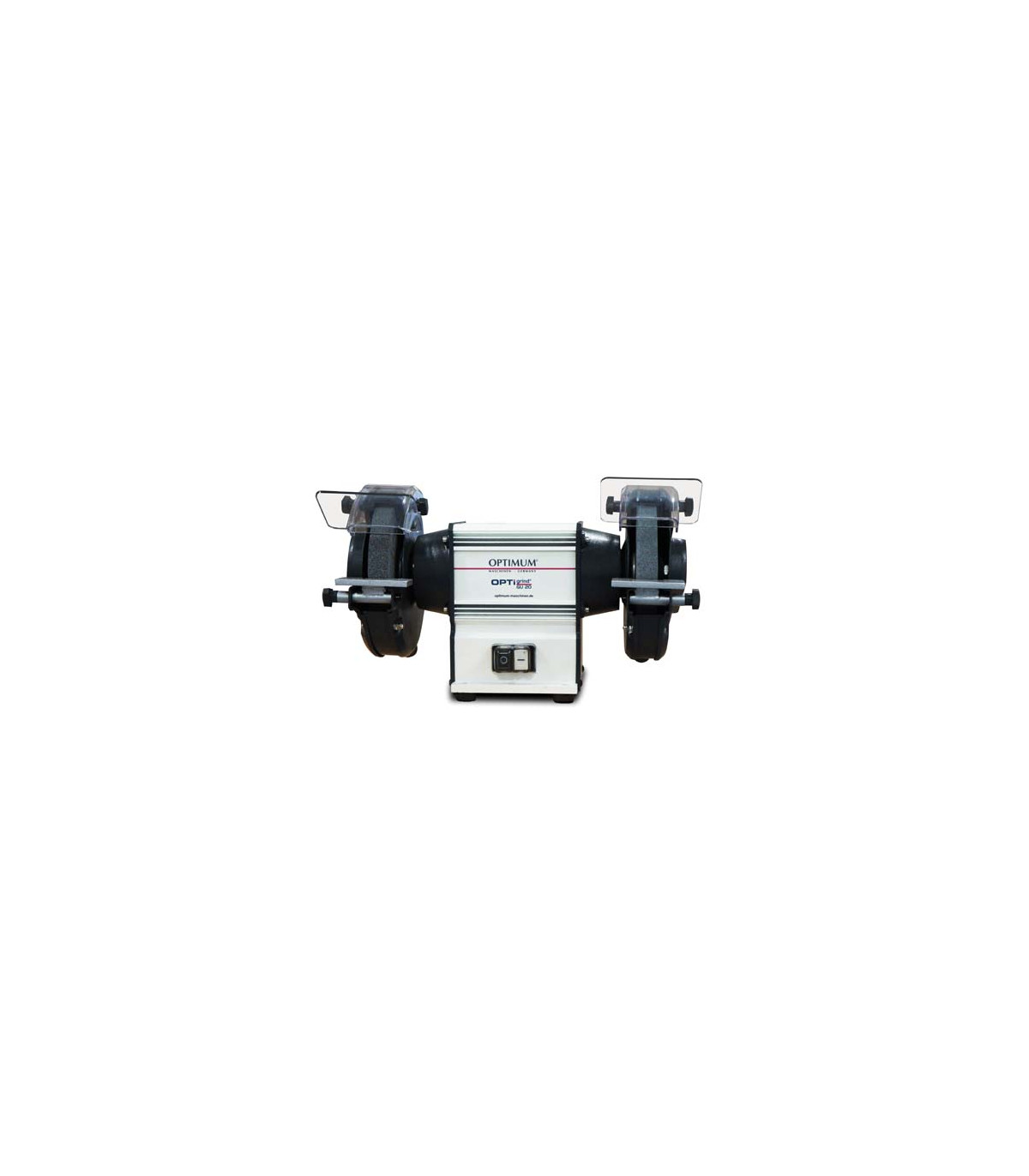

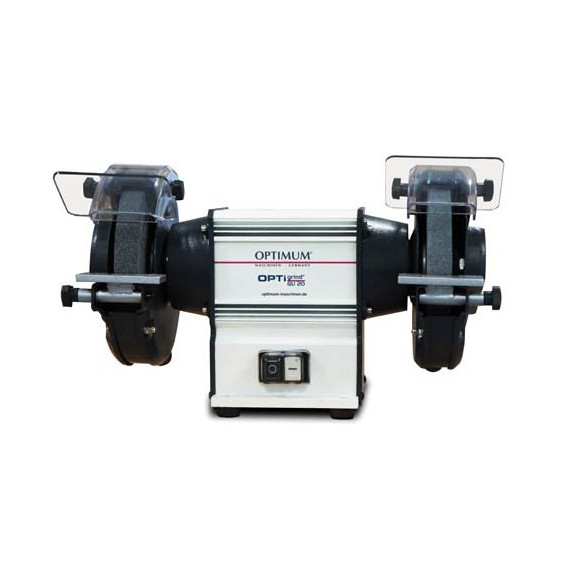

Industrial bench grinder GU 20 OPTIMUM

Industrial bench grinder GU 20 OPTIMUM. The industrial bench grinder GU 20 OPTIMUM features a robust and durable design, with a maintenance-free motor. Its aluminum housing and spark protection ensure safe operation. Equipped with K36/K80 grinding wheels, it allows for precise grinding. With dimensions of 495x260x330 mm and a weight of 19 kg, its 0.6 kW motor operates at 230-400 V. Ideal for metallurgy, maintenance, craftsmanship, and manufacturing, it is a versatile tool for demanding jobs.

FEATURES

• Heavy-duty industrial design with a maintenance-free motor.
• Extruded aluminum housing
• Long service life and smooth operation thanks to the balanced rotor with quality ball bearings.
• The spark protection on each grinding wheel reduces flying sparks.
• Shatterproof viewing windows
• Rubber feet that dampen vibrations
• Coarse and fine grinding wheels (K36/K80) included

TECHNICAL SPECIFICATIONS

Dimensions and weights

• Approximate length: 495 millimeters
• Approximate width/depth: 260 millimeters
• Approximate height: 330 millimeters
• Approximate weight: 19 kilograms

Electrical data

• Drive motor output: 0.6 kW
• Power supply voltage: 230 V - 400 V
• Network frequency: 50 Hz

Abrasive wheel(s)

• Outer diameter: 200 millimeters
• Width: 30 millimeters
• Hole diameter: 32 millimeters
• Speed: 2850 min¯¹

Sanding accessory

• Nominal width of the extraction duct: 34 millimeters
• VPE: 1

COMPONENTS/PACKAGING

Unit: pcs.

Packaging unit: 1

• Coarse normal corundum grinding wheel K36
• Fine normal corundum grinding wheel K80

WHAT TYPE OF WORK IS IT SUITABLE FOR

The industrial bench grinder GU 20 OPTIMUM is suitable for:

• Metallurgy
• Maintenance and repair
• Craftsmanship
• Manufacturing

CERTIFICATION

Quality Management System of the Stürmer Group certified according to ISO 9001:2015

ISO 9001 is a globally recognized standard for quality management. It helps organizations of all sizes and sectors improve their performance, meet customer expectations, and demonstrate their commitment to quality.

Its evaluation basis includes:

Customer requirement orientation

Compliance with standards and guidelines

Knowledge management

Clearly defined process flows

Corporate responsibility

Sustainability, development, and innovation

Risk management
