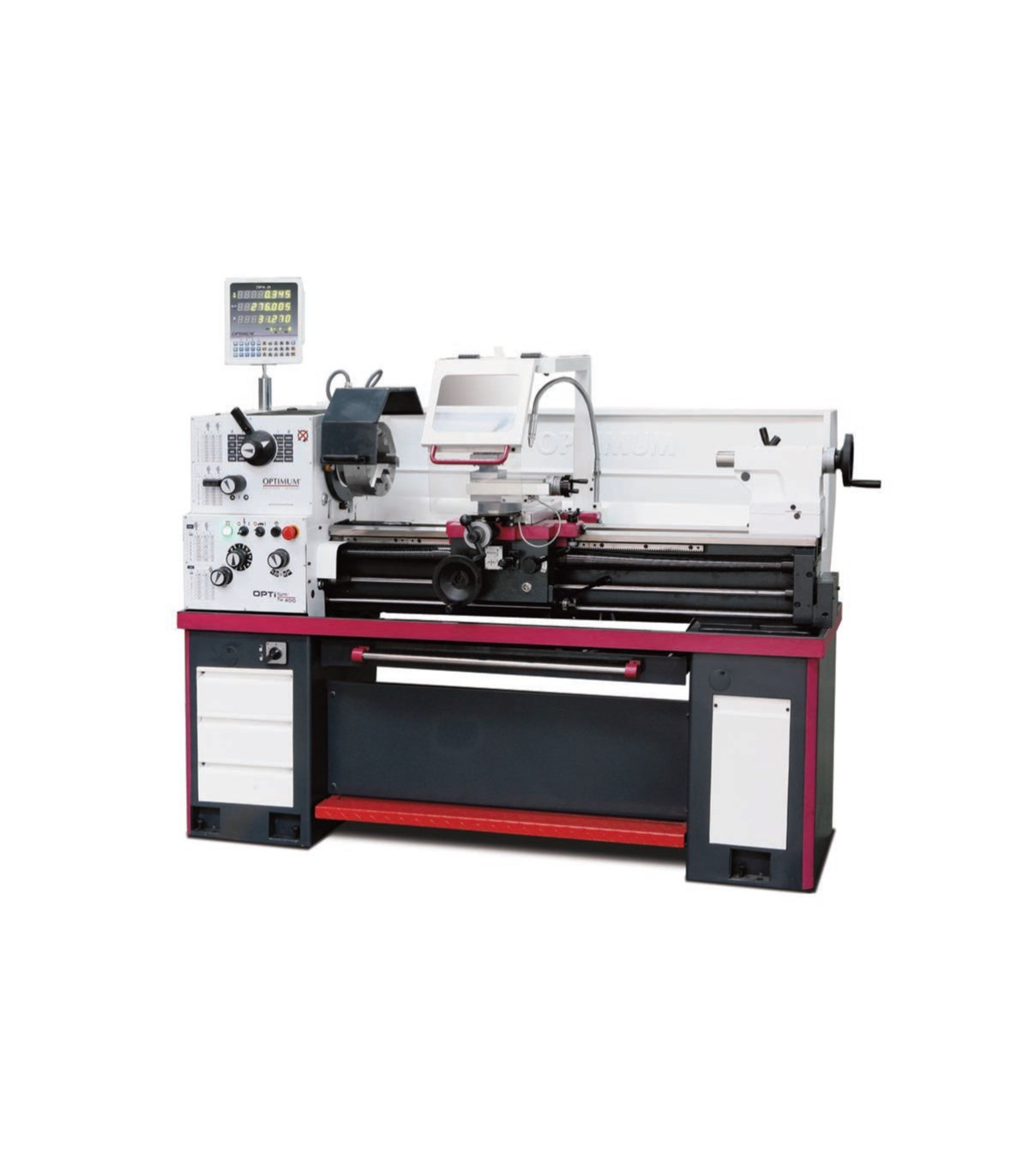

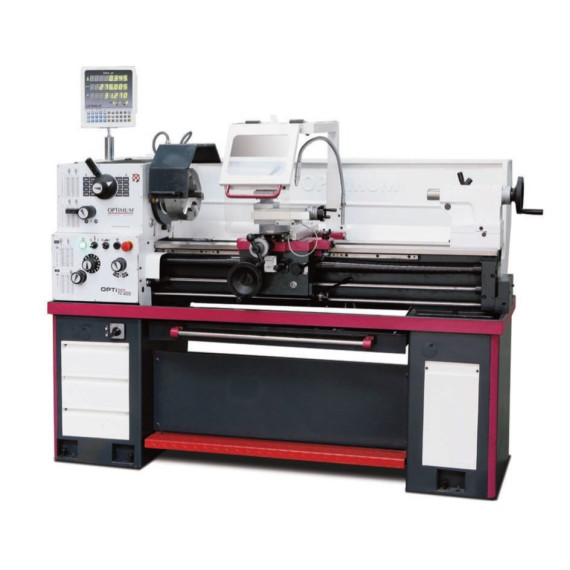

Bench lathe TH 4010 OPTIMUM. The TH 4010 OPTIMUM bench lathe features a hardened Z-axis guide, concentricity better than 0.015 mm, and a 24 V DC electrical system. Its spindle operates in an oil bath, ensuring precision. With quick adjustments and safety handwheels, it allows for right/left rotation. Its dimensions are 1920x740x1222 mm and it weighs 735 kg. It includes safety electronics and a cooling device, ideal for demanding and safe work in the workshop.

FEATURES

• Hardened and ground Z-axis guide
• Precision machined slide
• Guaranteed concentricity of the spindle tip better than 0.015 mm
• Camlock spindle holder DIN ISO 702-2 No. 5
• 24 volt DC electrical system
• All guides can be adjusted using wedge strips.
• Switchable right/left rotation on the bed slide
• Two-channel safety electronics
• Switch with life cycle calculation, tested according to EN ISO 13849 standard
• Smooth-running, hardened, and ground gears
• The main spindle operates in an oil bath.
• Quick, simple, and tool-free adjustment using a clamping lever
• Hardened and ground gears and shafts, operating in an oil bath in precision bearings.
• Handwheels with adjustable fine scale 0.04 / 0.02 mm
• Safety handwheels with push function on the X and Z axes
• Adjustment range of the upper slide ± 90
• Strongly grooved prism bed, induction hardened and precisely ground from gray cast iron
• Removable chip tray with guide rails
• Lockable main switch
• Emergency stop device with foot operation
• Machine base with three panels (no compartments)
• Cooling device
• LED machine lamp in the chip guard

TH 4010 / TH 4010D / TH 4010D:

• Motor protection switch

TH 4010V:

• Speed display
• Speed monitoring according to the Machinery Directive
• Two gear stages
• Quick-change steel support 3-E
• Steel support 20 x 100 type D for square chisels

TECHNICAL SPECIFICATIONS

Dimensions and weights

• Approximate length: 1920 millimeters
• Approximate width/depth: 740 millimeters
• Approximate height: 1222 millimeters
• Approximate weight: 735 kilograms

Electrical data

• Drive motor output: 1.5 kW
• Power supply voltage: 400 volts
• Network frequency: 50 Hz

Feed

• Longitudinal feed range: 0.043 – 0.653 mm/rev
• Number of longitudinal feeds: 48
• Flat feed range: 0.015 – 0.206 mm/rev
• Number of flat feeds: 48

Threads

• Metric pitch: 0.4 – 7 mm/rev
• Number of metric threads: 42
• Imperial range: 70 – 4 Gg/1"
• Number of imperial threads: 42

Speed range

• Number of speeds: 16
• Speed range: 45 – 1800 min¯¹

Spindle

• Spindle chuck: Camlock DIN ISO 702-2 No. 5
• Spindle hole diameter/rod passage diameter: 52 millimeters
• Maximum tool holder height: 20 millimeters
• Spindle taper: MT 6

Tailstock

• Throw: MK 3
• Quill stroke: 130 millimeters
• Quill diameter: 45 millimeters

Tool holding

• Tool holder chuck size: 16 millimeters

Axis

• Upper slide travel: 100 millimeters
• Cross slide travel: 195 millimeters
• Carriage travel: 750 millimeters

Working areas

• Maximum height: 205 millimeters
• Maximum width: 1000 millimeters
• Turning diameter over the bed of the machine: 410 millimeters
• Swing diameter over the cross slide: 255 millimeters
• Bed width: 206 millimeters
• VPE: 1

COMPONENTS/PACKAGING

Unit: pcs.

Packaging unit: 1

• Fixed bevel step Ø 5 - 85 mm
• Movable bevel step Ø 5 - 65 mm
• LED light for machine
• Reducer sleeve MK 6 / MK 3
• Fixed centering points MK 3
• Fixed centering point MK 3, alloyed
• Gear change set
• Initial filling of the machine with quality oil
• Operational tool

TH 4010 / TH 4010D

• Quadruple steel support of 16 mm

TH 4010V

• Quick-change steel support 3-E
• Steel support 20 x 100 type D for square chisels

FOR WHAT TYPE OF WORK IS IT SUITABLE

The TH 4010 OPTIMUM bench lathe is suitable for:

• Machining parts
• Prototyping
• DIY
• Education
• Craft industry

CERTIFICATION

- EN ISO 13849: The EN ISO 13849 standard focuses on the safety of control systems related to machines, establishing requirements for the design and evaluation of these systems to ensure safe operation and minimize risks of failures that could cause injuries or damage. It defines performance levels (PL) that must be achieved according to the risk, considering the probability and consequences of failures, and covers aspects such as redundancy and system diagnostics to ensure reliability in the workplace.

- DIN ISO 702-2 No. 5: The DIN ISO 702-2 No. 5 standard deals with the classification and labeling of chemical products, ensuring that information about hazards and safety measures is clear and understandable for users.
