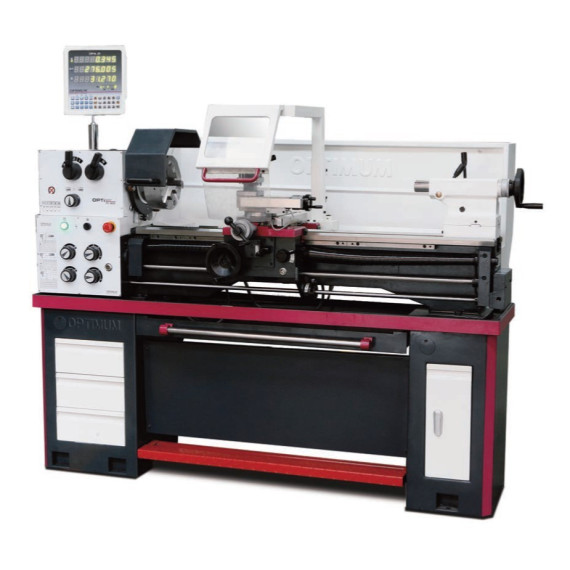

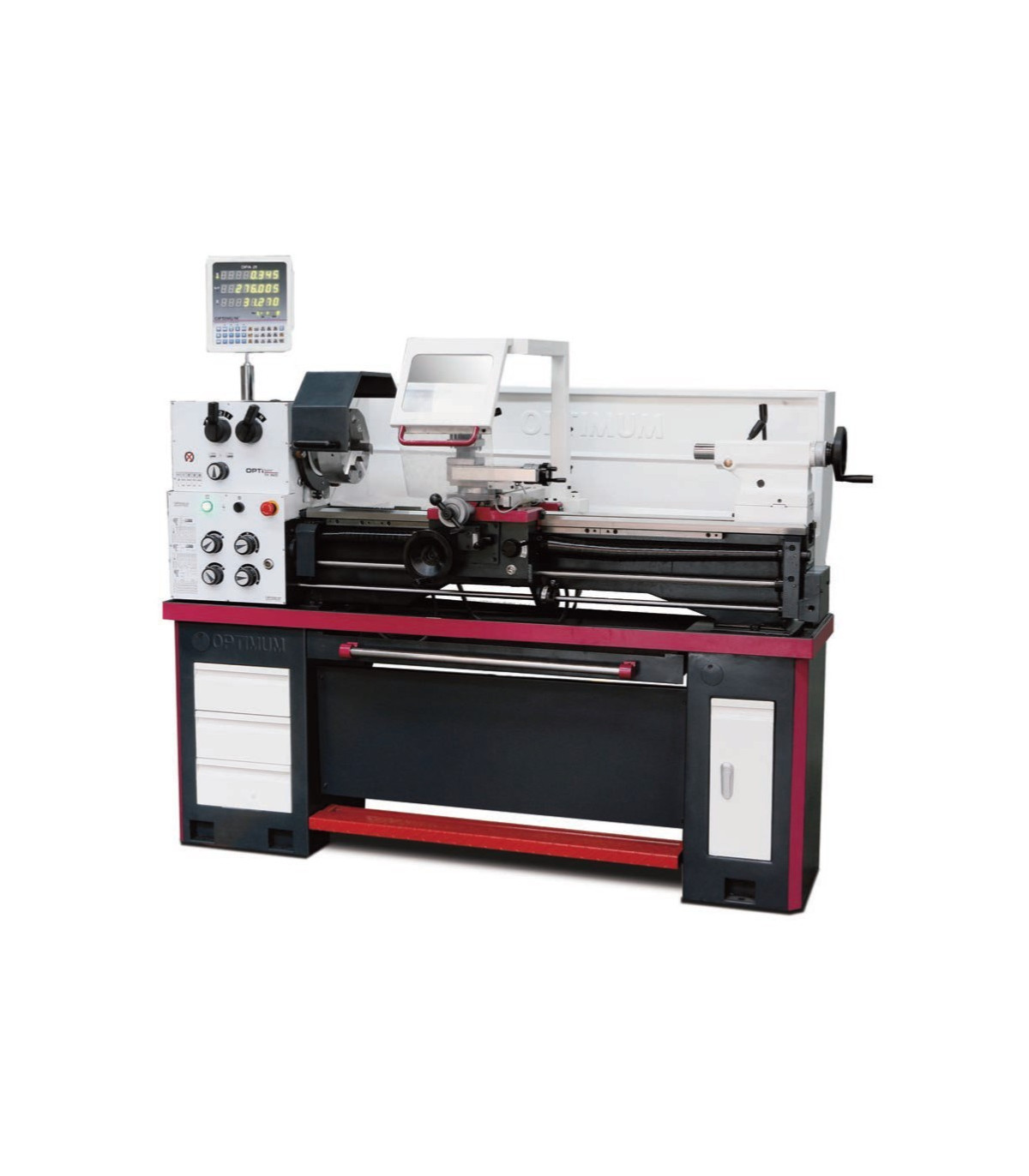

Fully equipped precision lathe TH 3610D OPTIMUM

Fully equipped precision lathe TH 3610D OPTIMUM. The TH 3610D OPTIMUM precision lathe features a hardened Z-axis guide, concentricity better than 0.015 mm, and decoupled handwheels. Its two-channel safety electronics ensure safe operation. With a heavily grooved prism bed and oil bath spindle, it allows for quick adjustments without tools. Its dimensions are 1930x725x1620 mm and it weighs 572 kg, with a 1.5 kW motor at 400 V, ideal for precise and reliable work.

FEATURES

• Hardened and ground Z-axis guide
• Precision machined slide
• Guaranteed spindle tip concentricity better than 0.015 mm
• Camlock spindle holder DIN ISO 702-2 No. 5
• Decoupled handwheels tested according to EN 23125
• Feed screw cover
• All guides can be adjusted using gibs.
• Switchable right/left rotation on the bed slide
• Two-channel safety electronics
• Switch with lifecycle calculation, tested according to EN ISO 13849
• Soft-running, hardened and ground gears
• The main spindle operates in an oil bath.
• Quick, simple, and tool-free adjustment via clamping lever
• Handwheels with adjustable fine scale 0.04 / 0.02 mm
• Decoupled handwheels tested according to EN 23125
• Safety handwheels with decoupling function on the X and Z axes
• Heavily grooved prism bed, induction hardened and precisely ground
• Machine base with tool compartments on both sides
• Motor protection switch, lockable main switch
• Quadruple steel support
• Emergency stop device with foot control
• Integrated LED machine light in chip guard

TECHNICAL SPECIFICATIONS

Dimensions and weights

• Approximate length: 1930 millimeters
• Approximate width/depth: 725 millimeters
• Approximate height: 1620 millimeters
• Approximate weight: 572 kilograms

Electrical data

• Drive motor output: 1.5 kW
• Supply voltage: 400 volts
• Network frequency: 50 Hz

Feed

• Longitudinal feed range: 0.052 – 1.392 mm/rev
• Number of longitudinal feeds: 32
• Flat feed range: 0.014 – 0.38 mm/rev
• Number of flat feeds: 32

Threads

• Metric pitch: 0.4 – 7 mm/rev
• Number of metric threads: 26
• Imperial pitch: 56 – 4 Gg/1"
• Number of imperial threads: 34

Speed range

• Number of gears: 8
• Speed range: 70 – 2000 min¯¹

Spindle

• Spindle chuck: Camlock DIN ISO 702-2 No. 5
• Spindle hole diameter/rod passage diameter: 52 millimeters
• Maximum tool holder height: 16 millimeters
• Spindle taper: MT 6

Tailstock

• Throw: MK 3
• Quill stroke: 120 millimeters
• Quill diameter: 42 millimeters

Axis

• Upper slide travel: 100 millimeters
• Cross slide travel: 170 millimeters
• Travel carriage saddle: 840 millimeters

Working areas

• Maximum height: 180 millimeters
• Maximum width: 980 millimeters
• Turning diameter over the bed: 356 millimeters
• Swing diameter over the cross slide: 225 millimeters
• Turning length in the bed bridge: 160 millimeters
• Bed width: 187 millimeters
• VPE: 1

COMPONENTS/PACKAGING

Unit: pcs.

Packaging unit: 1

• Fixed bevel step Ø max. 100 mm
• Movable bevel step Ø max. 95 mm
• LED light for machine
• Reducer sleeve MK 6 / MK 3
• Two fixed centering points MK 3
• Quadruple tool holder
• Gear change set
• Initial filling of the machine with quality oil
• Operational tool

EQUIPMENT

Digital position indicator DPA 31 Plus

FOR WHAT TYPE OF WORK IS IT SUITABLE

The fully equipped precision lathe TH 3610D OPTIMUM is suitable for:

• Machining parts
• Prototyping
• DIY
• Education
• Craft industry

CERTIFICATION

- EN ISO 13849: The EN ISO 13849 standard focuses on the safety of control systems related to machinery, establishing requirements for the design and evaluation of these systems to ensure safe operation and minimize failure risks that could cause injury or damage. It defines performance levels (PL) that must be achieved based on risk, considering the probability and consequences of failures, and covers aspects such as redundancy and system diagnostics to ensure reliability in the workplace.
