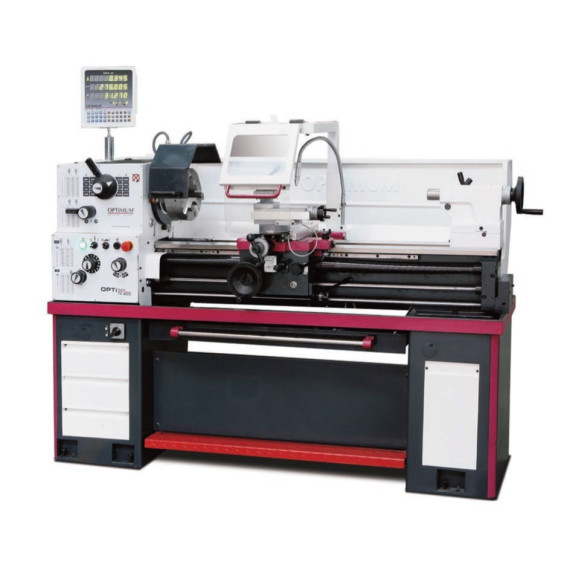

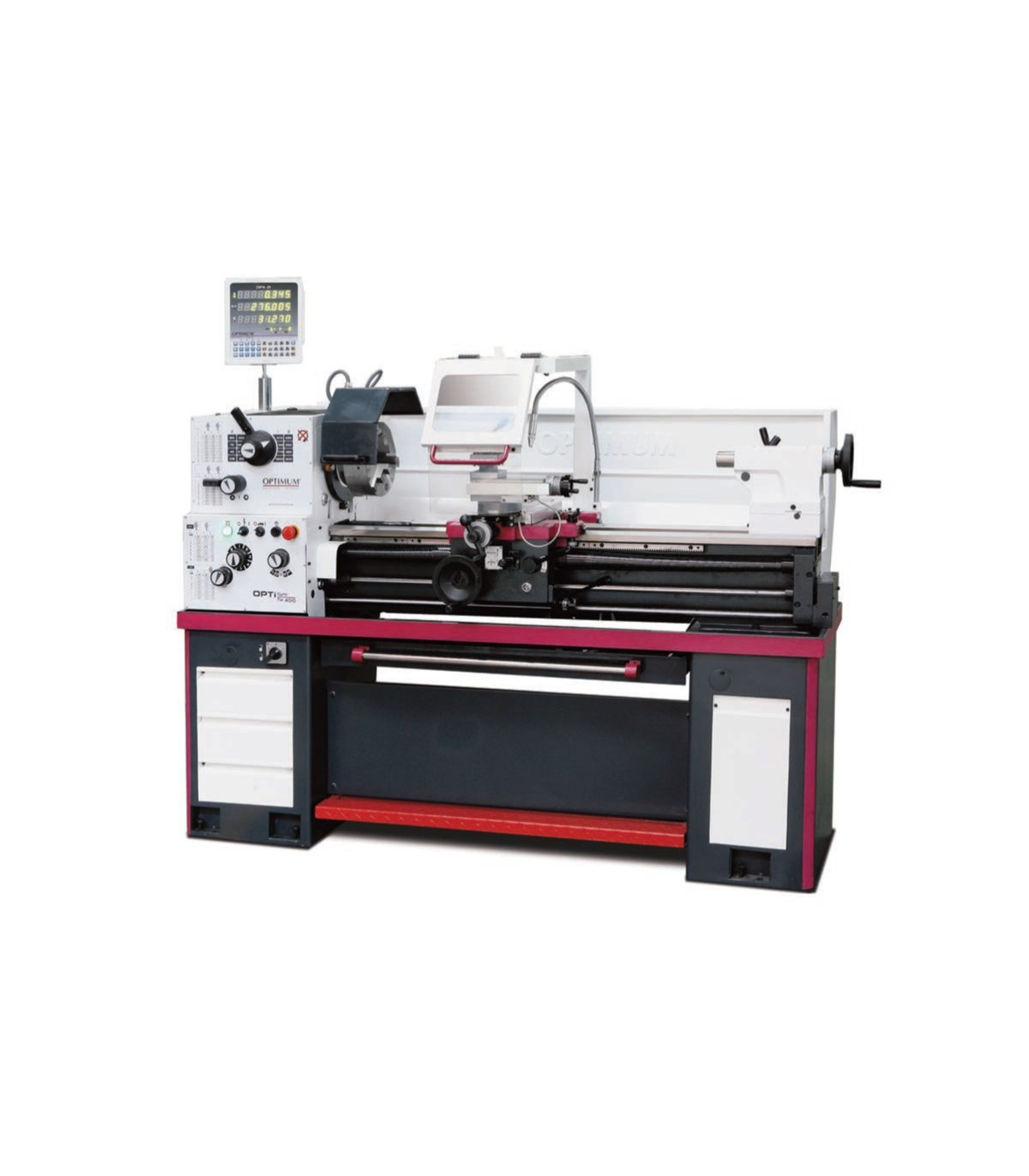

Bench lathe for professional work TH 4010D OPTIMUM

Bench lathe for professional work TH 4010D OPTIMUM. The TH 4010D OPTIMUM bench lathe is ideal for professional work, with a hardened Z-axis guide and concentricity better than 0.015 mm. Its spindle operates in an oil bath and features quick adjustments. It has a 24 V DC electrical system, safety electronics, and handwheels with adjustable fine scales. With dimensions of 1920x740x1555 mm and a weight of 737 kg, it is perfect for demanding tasks in the workshop, ensuring precision and safety.

FEATURES

• Hardened and ground Z-axis guide
• Precision machined slide
• Guaranteed concentricity of the spindle tip better than 0.015 mm
• Camlock spindle holder DIN ISO 702-2 No. 5
• 24 volt DC electrical system
• All guides can be adjusted using wedge strips.
• Switchable right/left rotation on the bed slide
• Two-channel safety electronics
• Switch with lifecycle calculation, tested according to EN ISO 13849 standard
• Smooth-running, hardened, and ground gears
• The main spindle operates in an oil bath.
• Quick, simple, and tool-free adjustment via clamping lever
• Hardened and ground gears and shafts, operating in an oil bath in precision bearings.
• Handwheels with adjustable fine scale 0.04 / 0.02 mm
• Safety handwheels with push function on the X and Z axes
• Adjustment range of the upper slide ± 90
• Heavily grooved prism bed, induction hardened and precisely ground from gray cast iron
• Removable chip tray with guide rails
• Lockable main switch
• Emergency stop device with foot operation
• Machine base with three panels (no compartments)
• Cooling device
• LED machine lamp in the chip protection

TH 4010 / TH 4010D / TH 4010D:

• Motor protection switch

TH 4010V:

• Speed display
• Speed monitoring according to the Machinery Directive
• Two stages of gears
• Quick-change steel support 3-E
• Steel support 20 x 100 type D for square chisels

TECHNICAL SPECIFICATIONS

Dimensions and weights

• Approximate length: 1920 millimeters
• Approximate width/depth: 740 millimeters
• Approximate height: 1555 millimeters
• Approximate weight: 737 kilograms

Electrical data

• Drive motor output: 2.4 kW
• Power supply voltage: 400 volts
• Network frequency: 50 Hz

Feed

• Longitudinal feed range: 0.043 – 0.653 mm/rev
• Number of longitudinal feeds: 48
• Flat feed range: 0.015 – 0.206 mm/rev
• Number of flat feeds: 48

Threads

• Metric pitch: 0.4 – 7 mm/rev
• Number of metric threads: 42
• Imperial range: 70 – 4 Gg/1"
• Number of imperial threads: 42

Speed range

• Number of speeds: 16
• Speed range: 45 – 1800 min¯¹

Spindle

• Spindle chuck: Camlock DIN ISO 702-2 No. 5
• Spindle hole diameter/rod passage diameter: 52 millimeters
• Maximum tool holder height: 16 millimeters
• Spindle taper: MT 6

Tailstock

• Throw: MK 3
• Quill stroke: 130 millimeters
• Quill diameter: 45 millimeters

Tool holding

• Tool holder chuck size: 16 millimeters

Axes

• X-axis travel: 100 millimeters
• Y-axis: 195 millimeters
• Upper slide travel: 100 millimeters
• Cross carriage travel: 195 millimeters

Working areas

• Maximum height: 205 millimeters
• Maximum width: 1000 millimeters
• Turning diameter over the machine bed: 410 millimeters
• Swing diameter over the planning carriage: 255 millimeters
• Bed width: 206 millimeters
• VPE: 1

COMPONENTS/PACKAGING

Unit: pcs.

Packaging unit: 1

• Fixed bevel step Ø 5 - 85 mm
• Mobile bevel step Ø 5 - 65 mm
• LED light for machine
• Reducer sleeve MK 6 / MK 3
• Fixed centering points MK 3
• Fixed centering point MK 3, alloyed
• Gear change set
• Initial filling of the machine with quality oil
• Operating tool

TH 4010 / TH 4010D

• Quadruple steel support of 16 mm

TH 4010V

• Quick-change steel support 3-E
• Steel support 20 x 100 type D for square chisels

EQUIPMENT

Digital position indicator DPA 31 Plus

FOR WHAT TYPE OF WORK IS IT SUITABLE

The TH 4010D OPTIMUM bench lathe is suitable for:

• Machining parts
• Prototyping
• DIY
• Education
• Craft industry

CERTIFICATION

- EN ISO 13849: The EN ISO 13849 standard focuses on the safety of control systems related to machines, establishing requirements for the design and evaluation of these systems to ensure safe operation and minimize failure risks that could cause injury or damage. It defines performance levels (PL) that must be achieved according to risk, considering the probability and consequences of failures, and covers aspects such as redundancy and system diagnostics to ensure reliability in the workplace.

- DIN ISO 702-2 No. 5: The DIN ISO 702-2 No. 5 standard deals with the classification and labeling of chemical products, ensuring that information about hazards and safety measures is clear and understandable for users.
