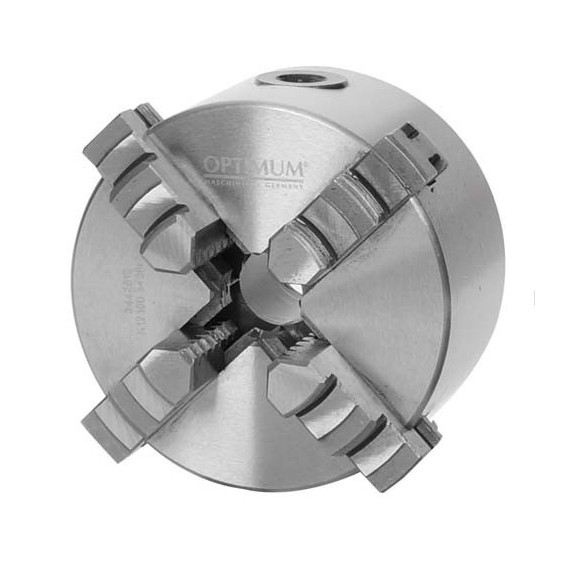

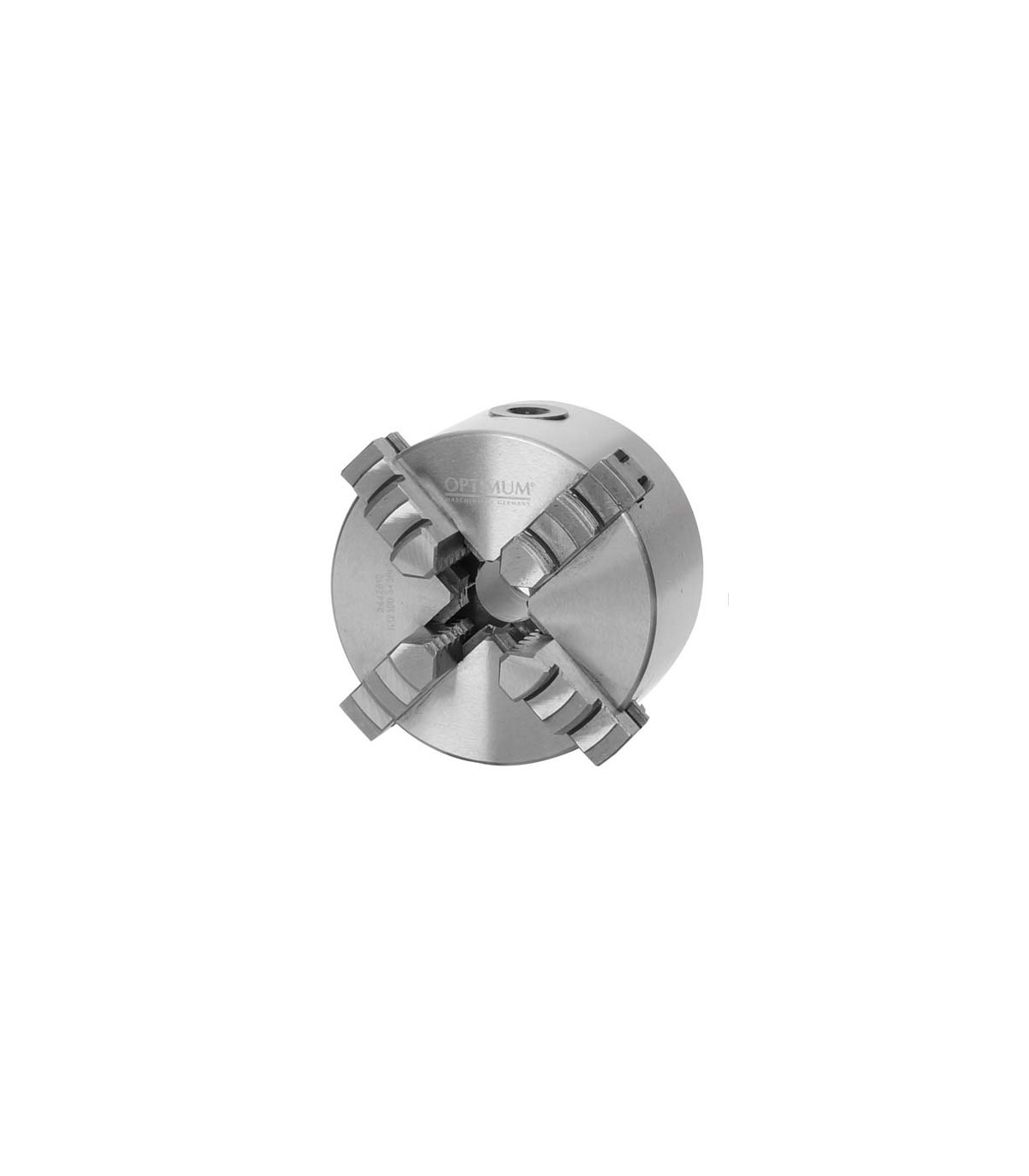

4-claw Camlock OPTIMUM plate

4-Jaw Camlock OPTIMUM Chuck. The 160 mm 4-Jaw Camlock OPTIMUM Chuck is perfect for machining and turning. Weighing 8.8 kg and with a speed of 2150 min⁻¹, it includes a key.

FEATURES

• Cast iron lathe chuck
• Direct Camlock DIN 55029 mounting

TECHNICAL SPECIFICATIONS

Chuck

• Camlock No. 4

Dimensions and weights

• D (Chuck) 160 millimeters
• D 160 millimeters
• D3 40 millimeters
• H 95 millimeters
• H1 71 millimeters
• Primitive circle 82.6 millimeters
• Approximate weight. 8.8 kilograms

Speed

• Rotational speed 2150 min¯¹
• VPE 1

COMPONENTS/PACKAGING

Unit: pcs.

Packaging unit: 1

Single-piece hard chuck key, external grip

FOR WHAT TYPE OF WORK IS IT SUITABLE

The 4-Jaw Camlock OPTIMUM Chuck is suitable for:

• Machining
• Metallurgy
• Turning
• Milling
• Part manufacturing
• Prototyping
• DIY
• Manufacturing industry

CERTIFICATION

- DIN 55029: The DIN 55029 standard refers to "Cutting tools for machining: cutting tools with steel support." This standard establishes the requirements and specifications for cutting tools used in machining processes, ensuring they meet quality and precision standards. It includes details on dimensions, materials, and technical characteristics necessary to guarantee optimal performance in industrial applications.
