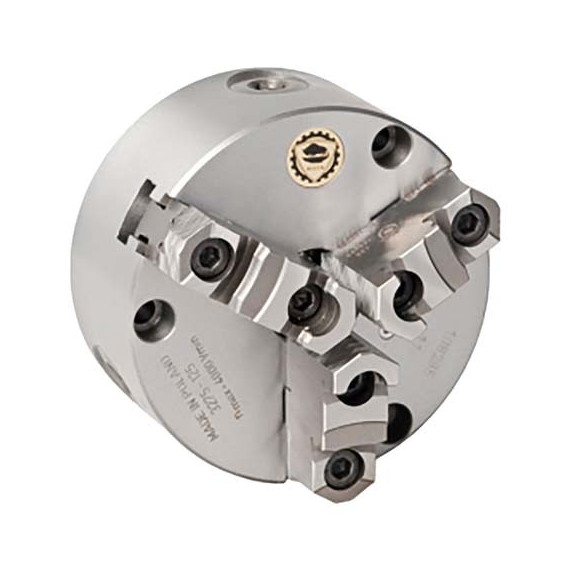

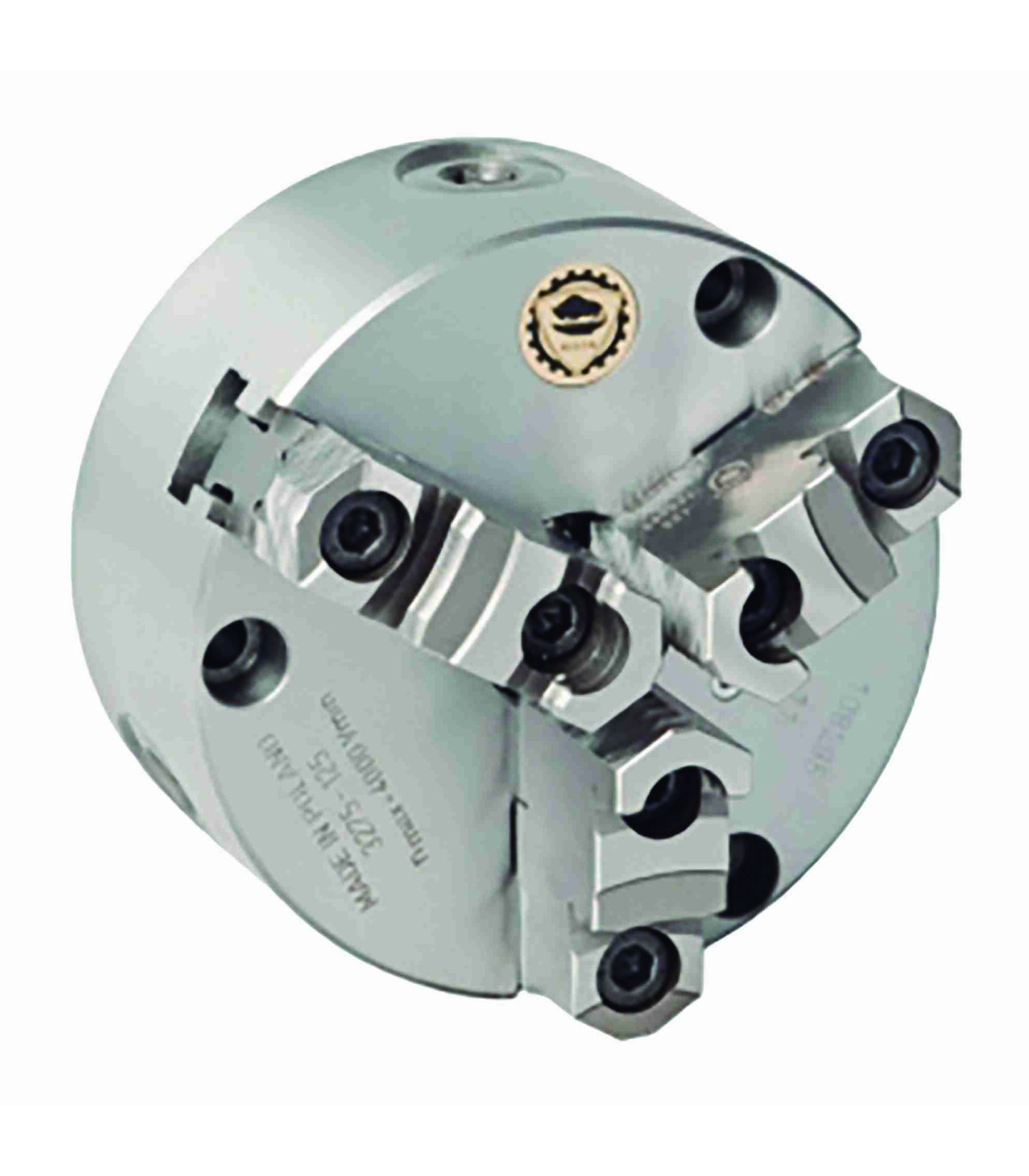

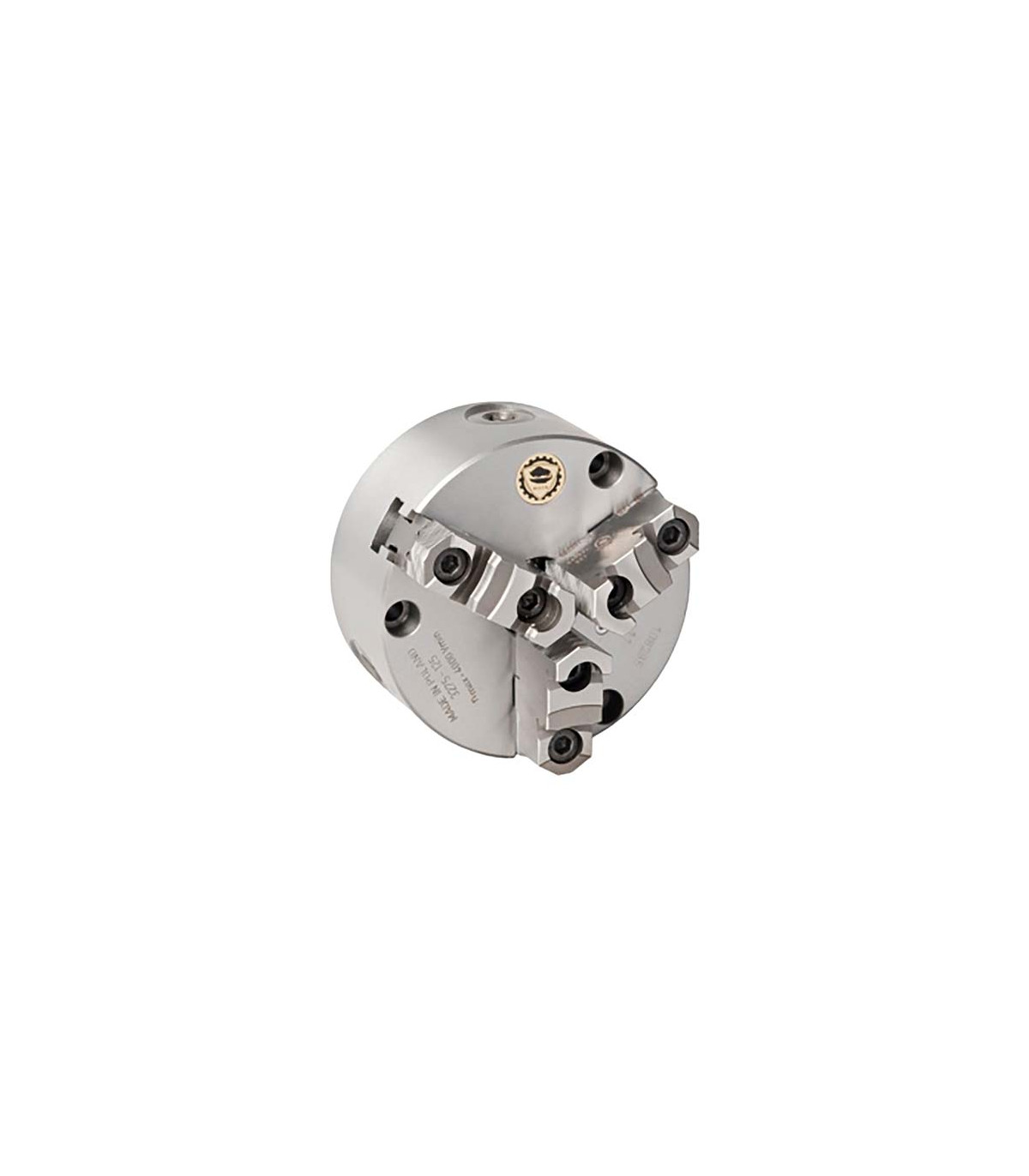

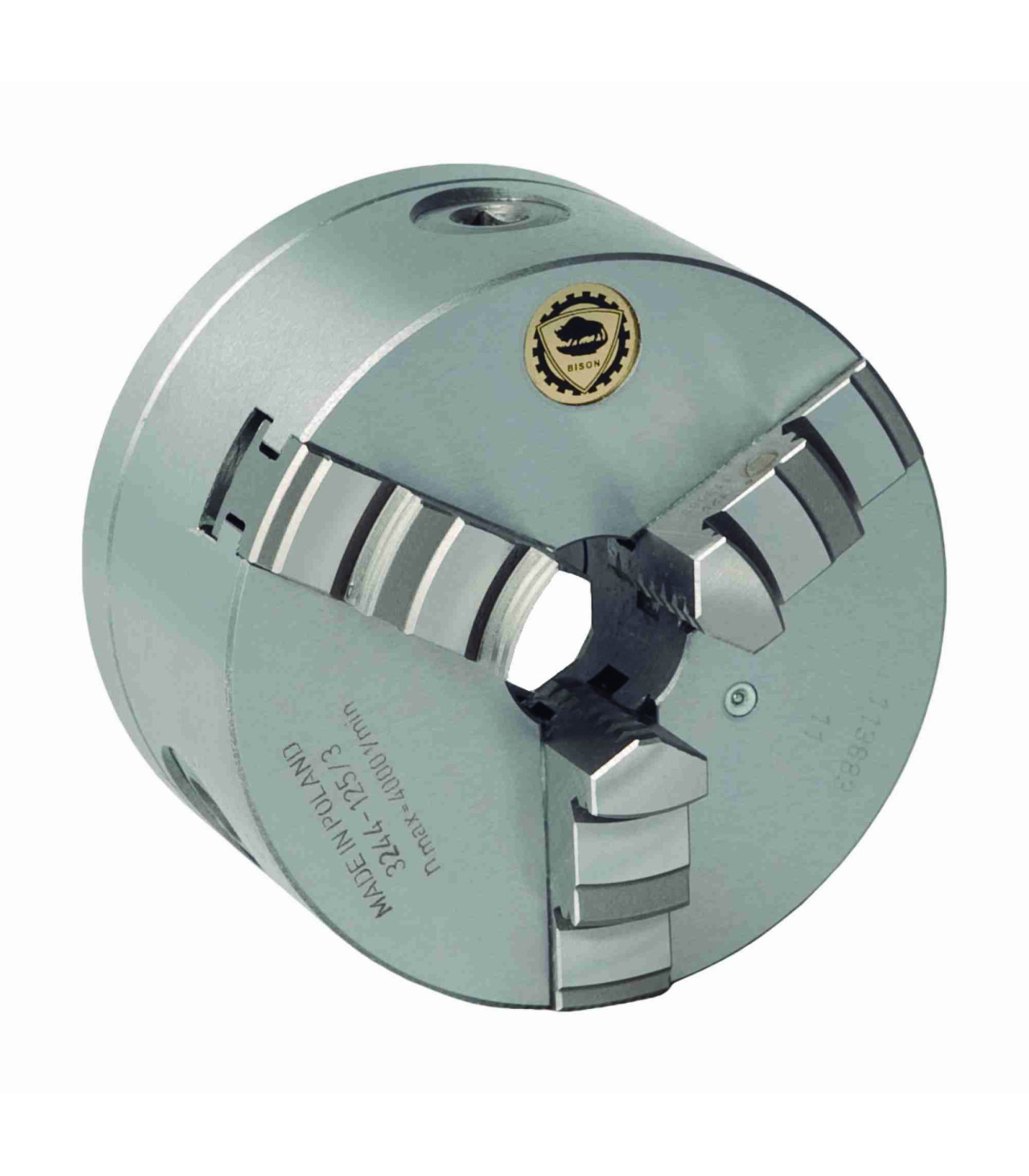

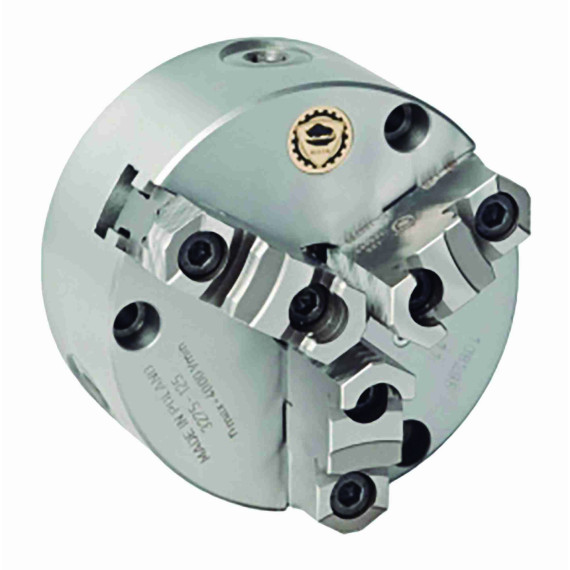

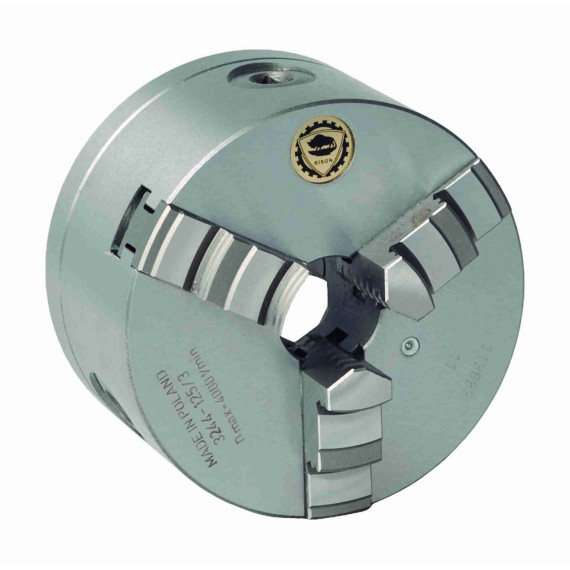

3-jaw chuck DIN 6350 OPTIMUM

3-jaw chuck DIN 6350 OPTIMUM. The 3-jaw chuck DIN 6350 OPTIMUM with a diameter of 125 mm is ideal for mechanics and turning. Weighing 4 kg, with a speed of 4000 min⁻¹ and concentricity of 0.03 mm.

FEATURES

• Cast iron, Ø 125 mm DIN 6350
• Hard jaws, one-piece, with external and internal clamping
• Chuck key
• Concentricity: 0.03 mm

TECHNICAL SPECIFICATIONS

Dimensions and weights

• D (Chuck) 125 millimeters
• B 56 millimeters
• B1 60.8 millimeters
• do 4 millimeters
• D 95 millimeters
• mi 32 millimeters
• F 108 millimeters
• GRAMO 3 x M8
• Yo 20 millimeters
• Yo 40 millimeters
• Approximate weight. 4 kilos

Speed

• Rotational speed 4000 min¯¹
• VPE 1

COMPONENTS/PACKAGING

Unit: pcs.

Packaging unit: 1

• Chuck key
• One-piece hard internal chuck jaws
• One-piece hard external chuck jaws

FOR WHAT TYPE OF WORK IS IT SUITABLE

The 3-jaw chuck DIN 6350 OPTIMUM is suitable for:

• Mechanics
• Metallurgy
• Turning
• Milling
• Part manufacturing
• Prototyping
• DIY
• Manufacturing industry

CERTIFICATION

- DIN 55029: The DIN 55029 standard refers to "Cutting tools for machining: cutting tools with a steel support." This standard establishes the requirements and specifications for cutting tools used in machining processes, ensuring they meet quality and precision standards. It includes details about dimensions, materials, and technical characteristics necessary to ensure optimal performance in industrial applications.

- DIN 6350: The DIN 6350 standard refers to "Steel connectors for transmission chains." This standard specifies the dimensions and characteristics of the connectors used in chains, which are essential for the proper functioning of transmission systems in machinery. It includes details about the design, materials, and tolerances that these connectors must meet to ensure their durability and efficiency in industrial applications.
