4-claw plate of 125 mm OPTIMUM

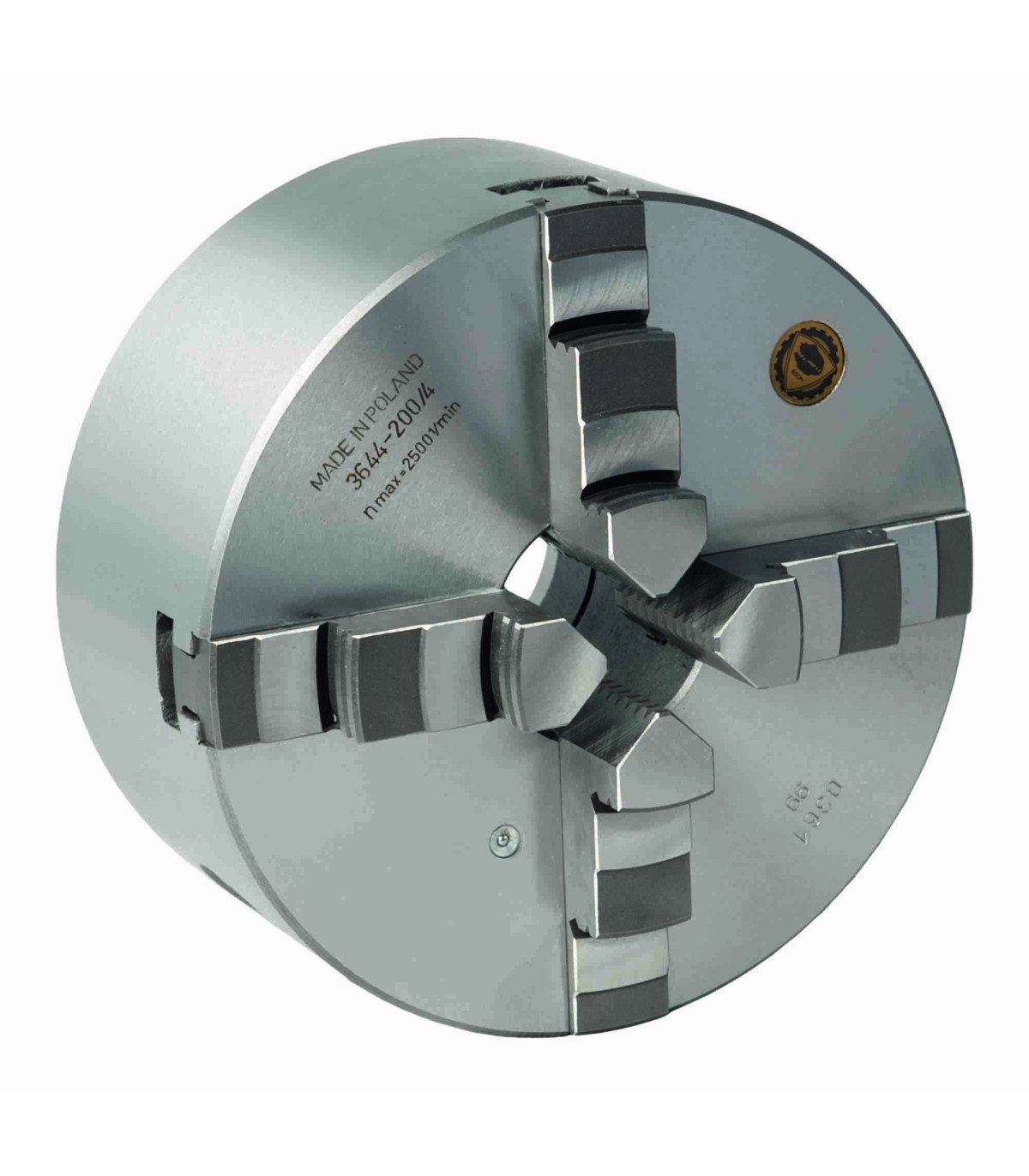

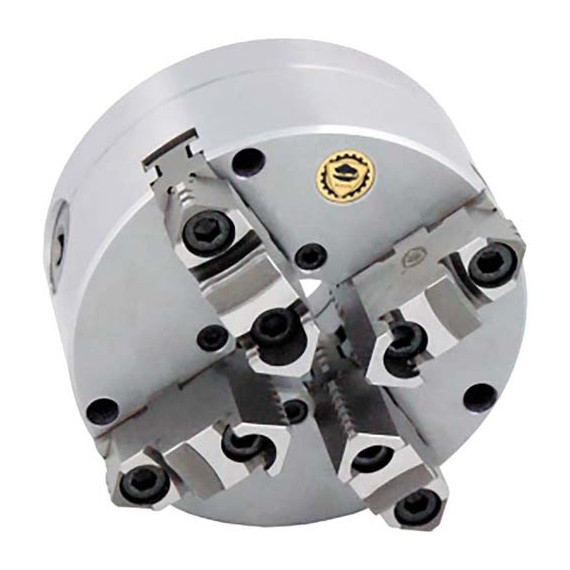

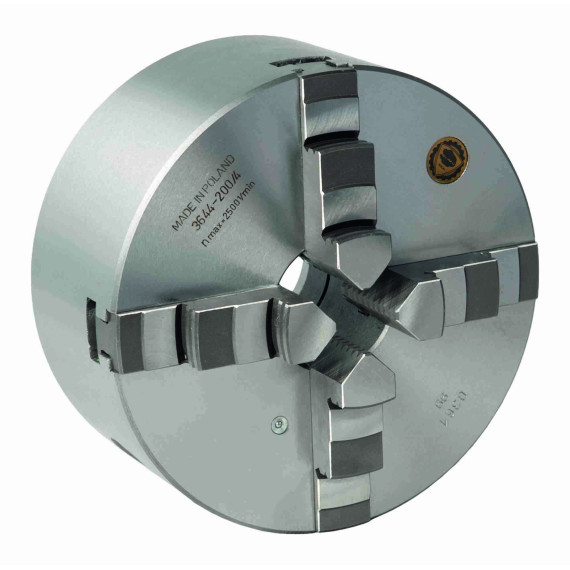

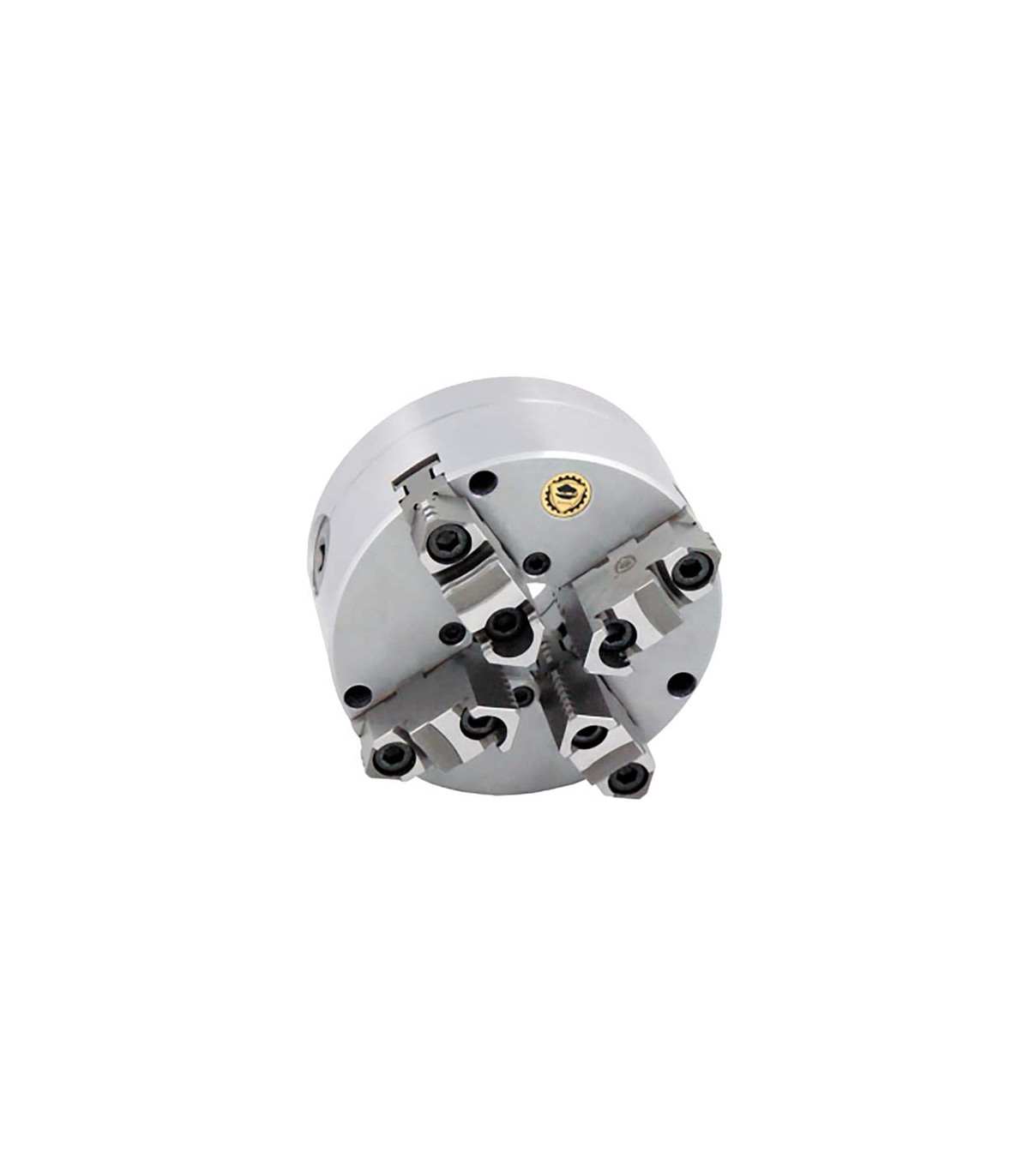

125 mm OPTIMUM 4-Jaw Chuck. The 125 mm OPTIMUM 4-jaw chuck, made of cast iron, is ideal for mechanics and turning. With a weight of 5 kg and a speed of 4000 min⁻¹, it offers high concentricity.

FEATURES

• High-quality cast iron lathe chuck body.
• All jaws are induction hardened and ground.
• Direct mounting DIN 55029
• Uniform clamping forces
• High concentricity (more precise than DIN 6386)
• Made in the EU

TECHNICAL SPECIFICATIONS

Dimensions and weights

• D (Chuck) 125 millimeters
• B 56 millimeters
• B1 60.8 millimeters
• do 4 millimeters
• D H7 95 mm
• mi 32 millimeters
• F 108 millimeters
• GRAMO 3 x M8
• Yo 20 millimeters
• Yo 40 millimeters
• Approximate weight. 5 kilograms

Speed

• Rotational speed 4000 min¯¹
• VPE 1

COMPONENTS/PACKAGING

Unit: pcs.

Packaging unit: 1

• Chuck key
• Hard one-piece internal chuck jaws
• Hard one-piece external chuck jaws

FOR WHAT TYPE OF WORK IS IT SUITABLE

The 125 mm OPTIMUM 4-jaw chuck is suitable for:

• Mechanics
• Metallurgy
• Turning
• Milling
• Part manufacturing
• Prototyping
• DIY
• Manufacturing industry

CERTIFICATION

- DIN 55029: The DIN 55029 standard refers to "Cutting tools for machining: cutting tools with steel support." This standard establishes the requirements and specifications for cutting tools used in machining processes, ensuring they meet quality and precision standards. It includes details about dimensions, materials, and technical characteristics necessary to guarantee optimal performance in industrial applications.

- DIN 6386: The DIN 6386 standard refers to "Fastening elements: hexagon head screws with full thread." This standard establishes the technical specifications, dimensions, and characteristics of hexagon head screws that have threads along their entire length. It is commonly used in mechanical and construction applications, ensuring compatibility and proper performance in bolted joints.
