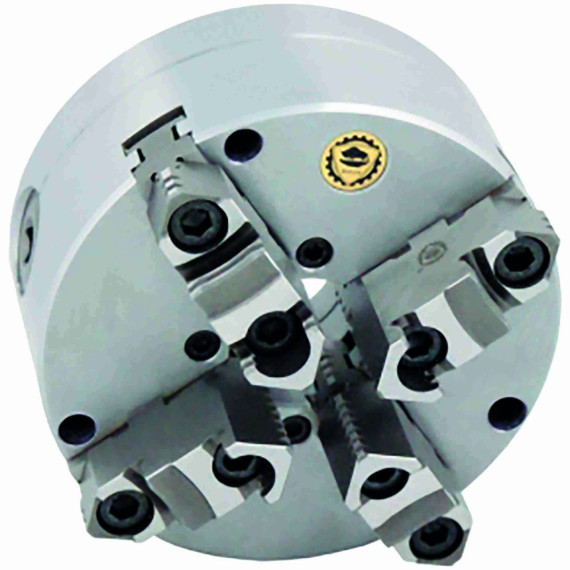

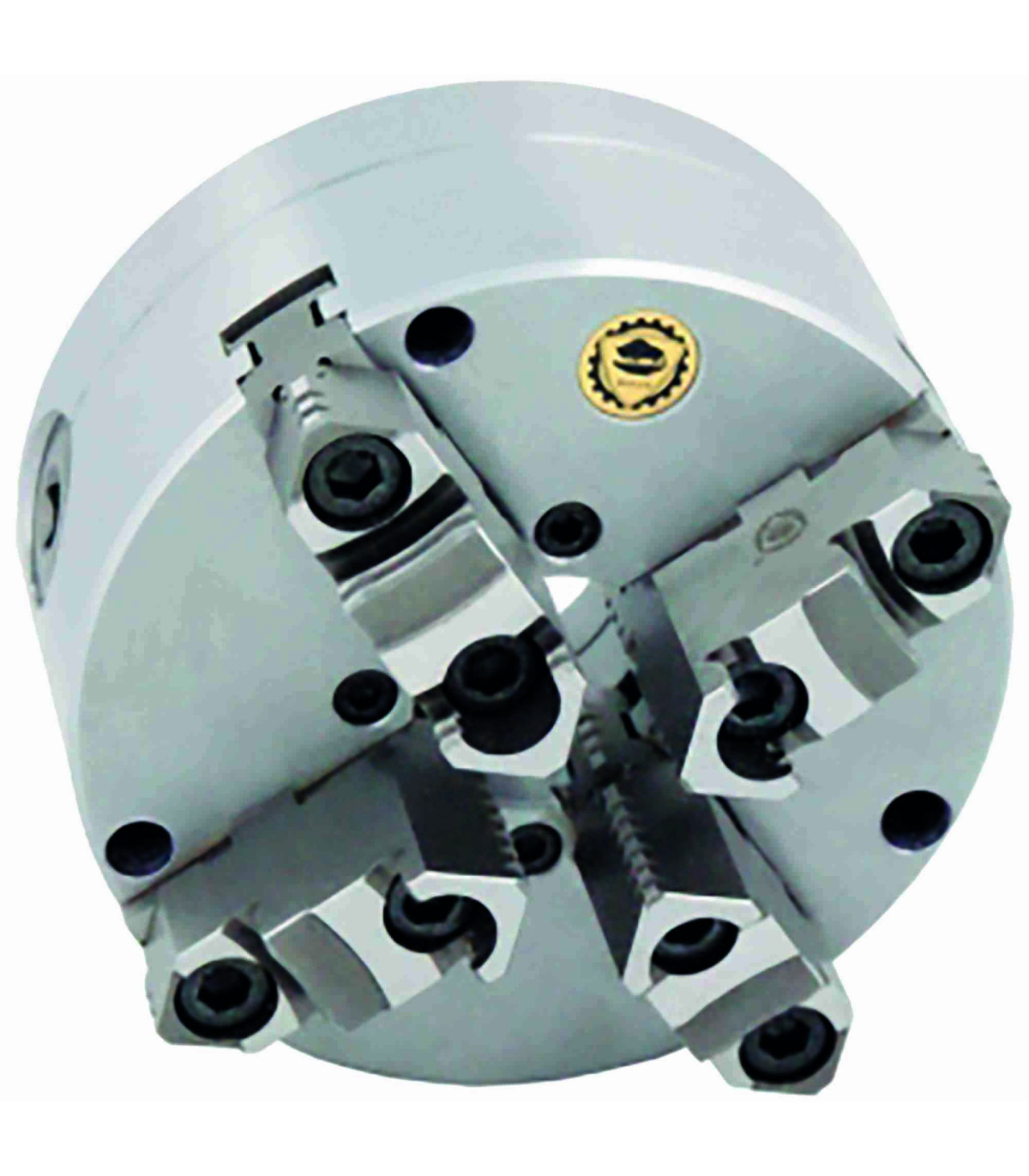

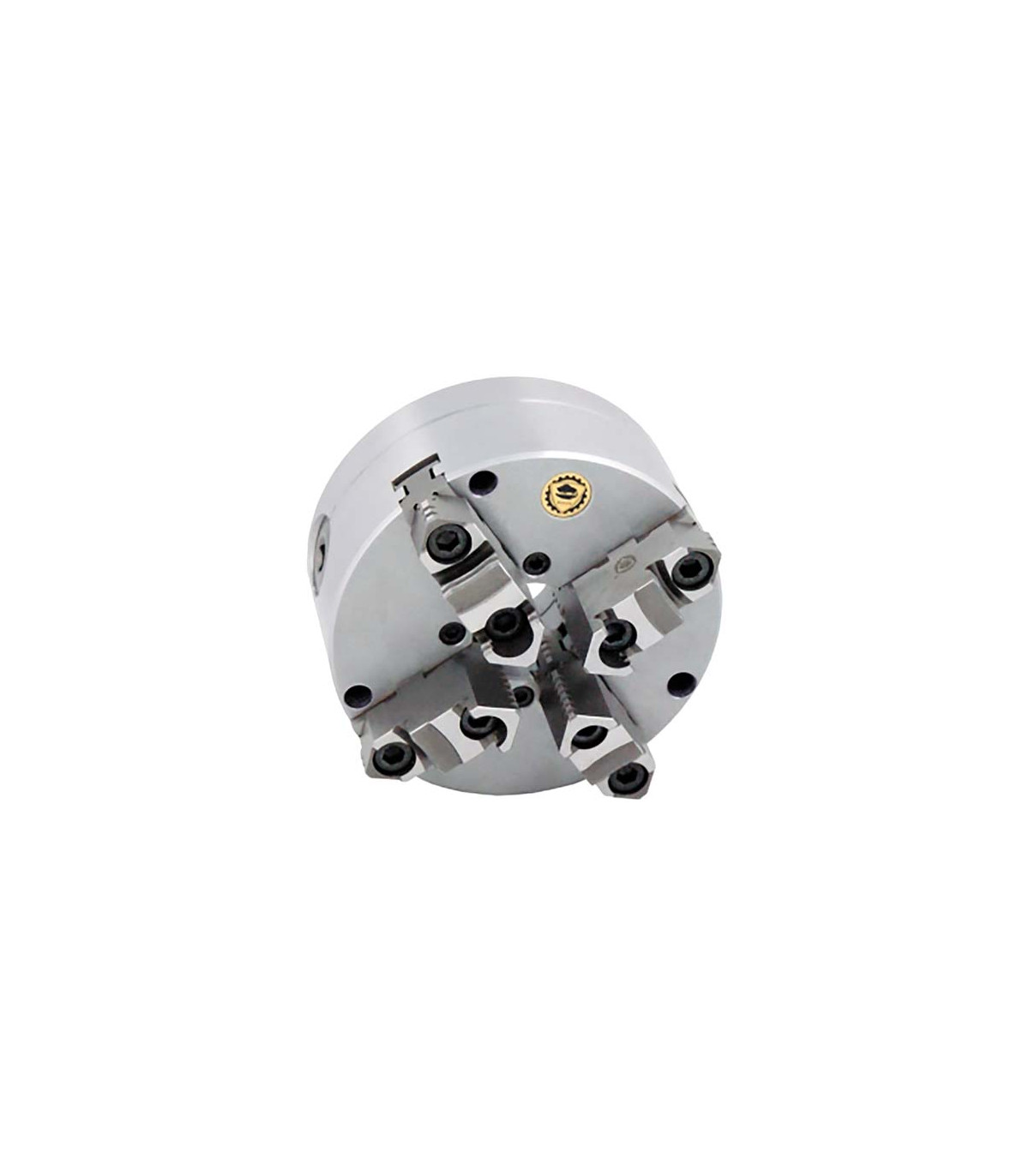

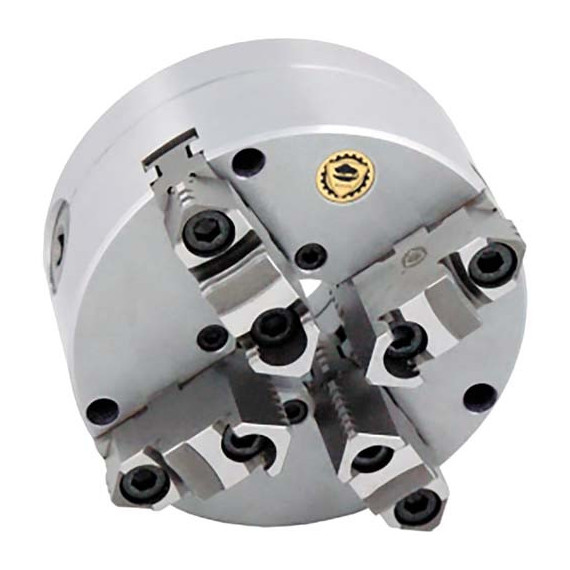

4-claw Camlock plate in various sizes OPTIMUM

4-jaw Camlock chuck in various OPTIMUM sizes. The OPTIMUM 4-jaw Camlock chuck, 160 mm and 9 kg, is perfect for turning and milling. Made of cast iron, with high concentricity and a speed of 3600 min⁻¹.

FEATURES

• Lathe chuck body made of high-quality cast iron.
• All tops are induction hardened and ground.
• Direct Camlock mounting DIN 55029
• High concentricity (more precise than DIN 6386)
• Made in the EU

TECHNICAL SPECIFICATIONS

Chuck

• Camlock No. 4

Dimensions and weights

• D (Chuck) 160 millimeters
• D 160 millimeters
• D3 42 millimeters
• H 124.5 millimeters
• H1 81.5 millimeters
• Primitive circle 82.6 millimeters
• Approximate weight. 9 kilograms

Speed

• Rotational speed 3600 min¯¹
• VPE 1

COMPONENTS/PACKAGING

Unit: pcs.

Packaging unit: 1

• Chuck key
• Hard single-piece internal chuck jaws
• Hard single-piece external chuck jaws

WHAT TYPE OF WORK IS IT SUITABLE FOR

The OPTIMUM 4-jaw Camlock chuck in various sizes is suitable for:

• Mechanics
• Metallurgy
• Turning
• Milling
• Parts manufacturing
• Prototyping
• DIY
• Manufacturing industry

CERTIFICATION

- DIN 55029: The DIN 55029 standard refers to "Cutting tools for machining: cutting tools with a steel holder." This standard establishes the requirements and specifications for cutting tools used in machining processes, ensuring they meet quality and precision standards. It includes details on dimensions, materials, and technical characteristics necessary to guarantee optimal performance in industrial applications.

- DIN 6386: The DIN 6386 standard refers to "Fasteners: hexagon head screws with full thread." This standard establishes the technical specifications, dimensions, and characteristics of hexagon head screws that have threads along their entire length. It is commonly used in mechanical and construction applications, ensuring compatibility and proper performance in bolted joints.
