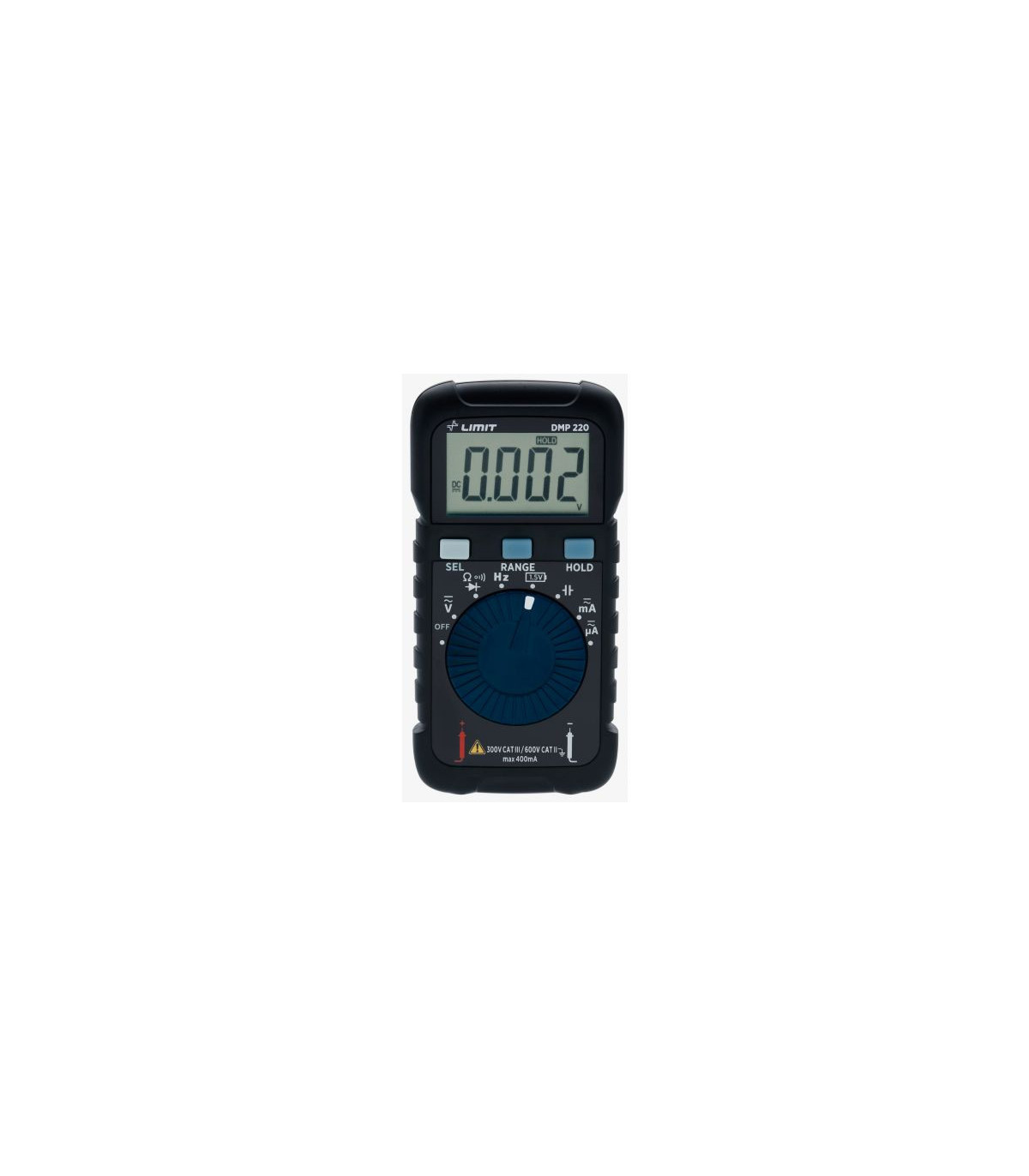

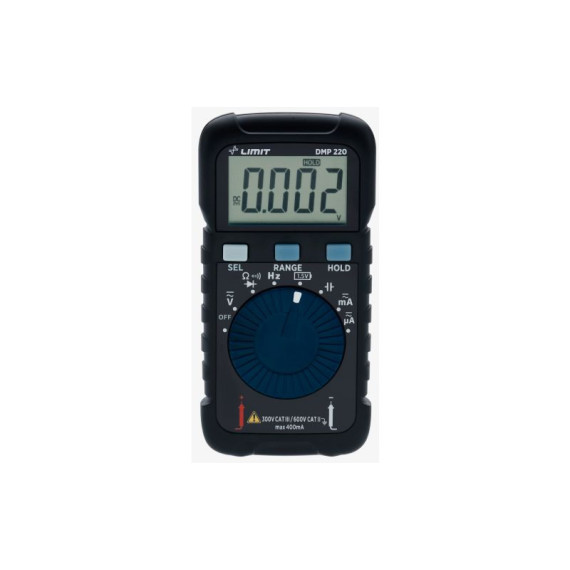

Pocket Multimeter DMP 220 LIMIT

The Pocket Multimeter DMP 220 by Limit, code 198650202, is a highly versatile and reliable measuring instrument that will become the ally of electronics and electrical professionals when carrying out various measurements throughout their working day. It stands out for its compact design, which allows it to be carried in a pocket, and its versatility.

This Pocket Multimeter offers a digital display that shows measurement values with large digits for easy reading and to reduce the risk of errors. If you are looking for a practical multimeter that guarantees precision in its measurements, then this is your choice.

Its functions include:

• Automatic range
• DC/AC voltage, resistance, frequency and capacitance measurement
• Diode test
• Continuity with buzzer
• Data hold
• Relative mode
• Battery capacity indicator and automatic shutdown on inactivity
• Max 3999 display with 13 mm digits
• AC safety isolation II 600 V.

Included as standard: Battery, test leads and cover.

CHARACTERISTICS

• Battery: 1 x 3 V (CR2032)
• Capacitance: 50 µf - 100 µF
• Capacitance resolution: 0.1 nF
• Dimensions: 100 x 50 x 12 mm
• Frequency: 5 Hz - 100 MHz
• Frequency resolution: 0.01 Hz
• Net weight: 75 g
• Resistance: 400 Ω - 40 MΩ
• AC voltage: 4 V - 600 V
• AC voltage resolution: 14 V - 1 mV, 400 V - 100 mV
• DC voltage: 4 V - 600 V
• DC voltage resolution: 4 V - 1 mV, 400 V - 100 mV
