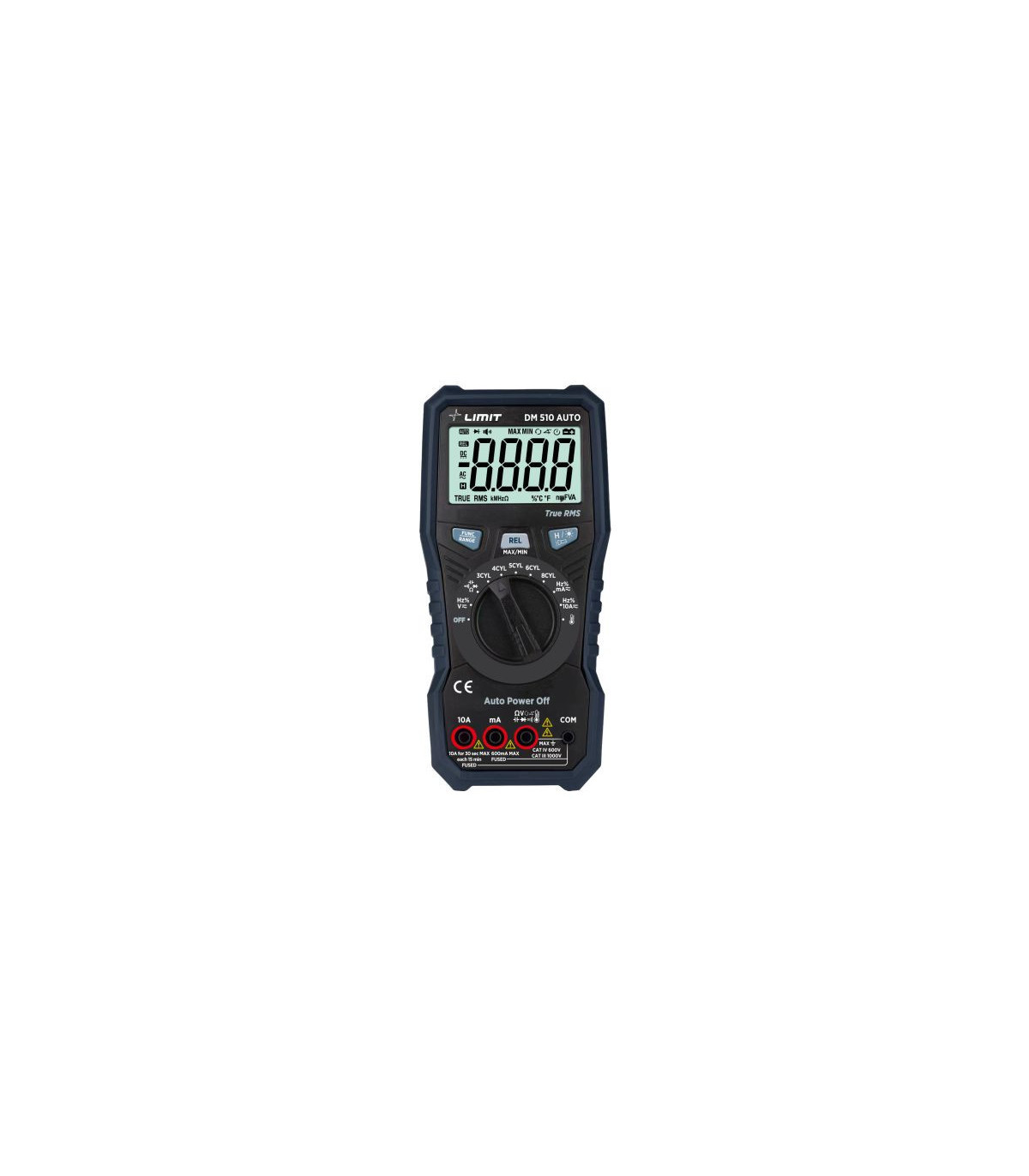

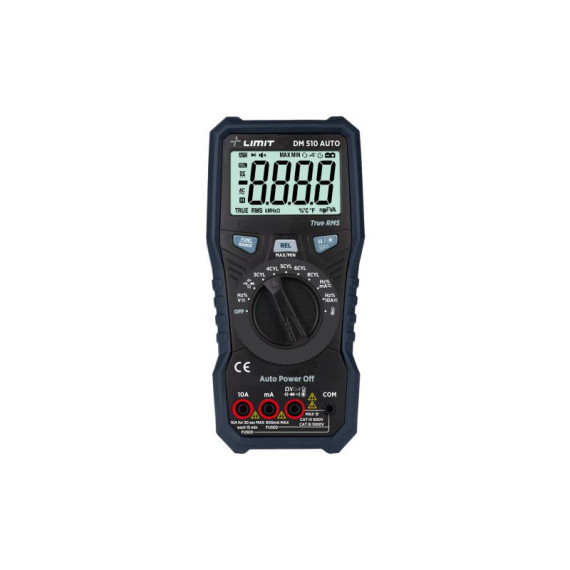

Automotive Multimeter 510 Auto Limit

The Limit 510 Auto Automotive Multimeter by Limit, code 289450009, is a measuring instrument that is powerful, robust, highly versatile and reliable, which will become the ideal ally of electronics, electrical and mechanical professionals working with cars, boats and different types of motors when carrying out measurements throughout their working day.

Its functions include:

• Measurement of DC/AC voltage, DC current, resistance, capacitance
• Dwell
• Frequency
• Temperature °C/°F
• Engine tuning tachometer
• Diode test
• Continuity test with buzzer

Features:

• Large backlit LCD display with 25 mm digits, showing the measurement value, the test lead entry and the selected function.
• Scale length 1999
• Low battery warning
• Data retention capability, Min, Max and relative measurement
• Rubber cover that will protect it against impacts and fold-out rear stand so you can have your hands free when measuring
• Auto power-off
• Insulation category CAT III 1000 V and CAT IV 600 V.

Note: Includes test leads, contact clamp and batteries.

FEATURES

• Battery: 1.5 V AA × 2
• DC Current (DCA): 60 mA - 10 A
• DC Current resolution: 0.01 mA
• Dimensions: 187 × 88 × 54 mm
• Net weight: 364 g
• Resistance: 600 Ω - 60 MΩ
• Resistance resolution: 0.1 Ω
• Tachometer resolution: 10 r/min
• Temperature: -20 - +1,000 °C
• Temperature resolution: 1 °C
• AC Voltage: 6 V - 750 V
• AC Voltage resolution: 1 mV
• DC Voltage: 600 mV - 1000 V
• DC Voltage resolution: 0.1 mV
