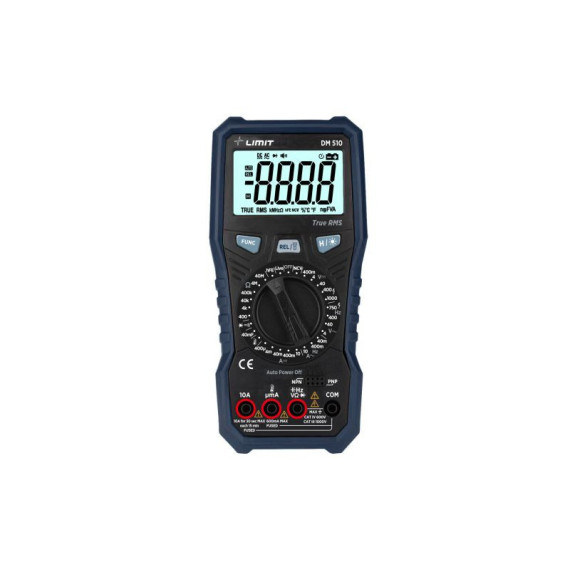

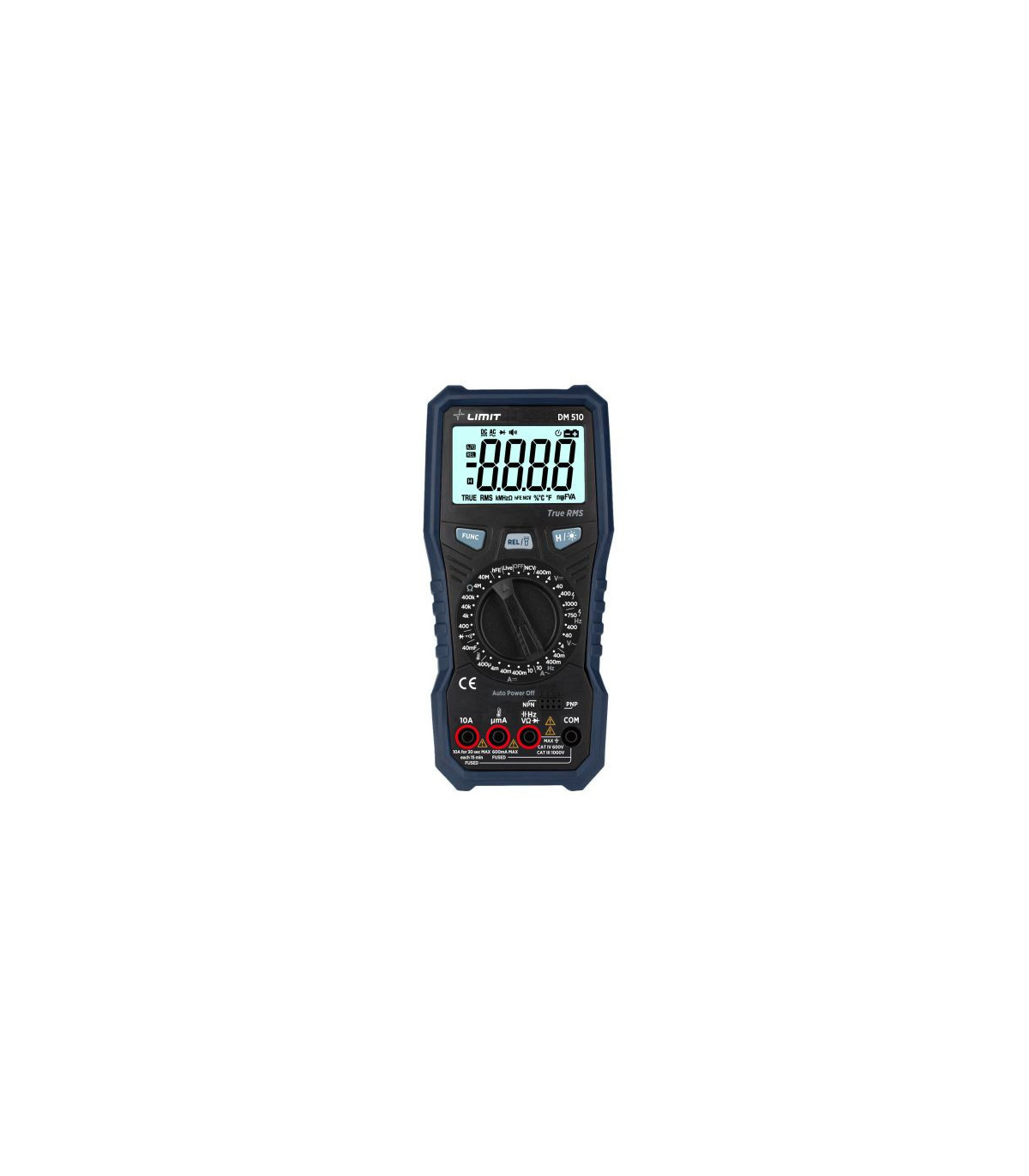

LIMIT DM 510 Digital Multimeter

The LIMIT DM 510 digital multimeter by Limit, code 289500001, is a measuring instrument that is powerful, robust, highly versatile and reliable, making it the ideal companion for electronics and electrical professionals when performing different measurements throughout their day.

Its functions include:

• Measures AC/DC voltage/current, resistance, continuity, capacitance, frequency, temperature °C/°F and can be used to test transistors and diodes, etc.
• Torch
• Data hold
• Battery capacity indicator and automatic shutdown on inactivity
• Phase detection and non-contact voltage detection (CV).

The LIMIT DM 510 digital multimeter features an ergonomic design, making it easy for the user to grip and operate the buttons and selector dial that control the different functions. The backlit LCD display shows measurement values with 25 mm digits so they are easy to read and reduce the chances of errors. If you are looking for a practical multimeter that guarantees accuracy in your measurements, with Insulation class AC III 1000 V and AC IV 600 V, then this is your best choice.

Supplied with: Rubber protective case and folding stand.

FEATURES

• Battery: 2 x AA (1.5 V)
• Capacitance: 9,999 nF - 40 mF
• Capacitance resolution: 0.001 nF - 0.01 mF
• AC current (ACA): 40 mA - 10 A
• AC current (ACA) resolution: 0.01 mA - 0.01 A
• DC current (DCA): 400 µA - 10 A
• DC current resolution: 0.1 µA - 0.01 A
• Dimensions: 187 x 88 x 54 mm
• Frequency: 9,999 Hz - 5 kHz
• Frequency resolution: 0.001 Hz - 0.001 kHz
• Net weight: 347 g
• Resistance: 400 Ω - 40 MΩ
• Resistance resolution: 0.1 Ω - 0.01 MΩ
• Temperature: -40 °C - +1000 °C
• Temperature resolution: 1 °C
• AC voltage: 4 V - 750 V
• AC voltage resolution: 1 mV - 1 V
• DC voltage: 400 mV - 1000 V
• DC voltage resolution: 0.1 mV - 1 V
