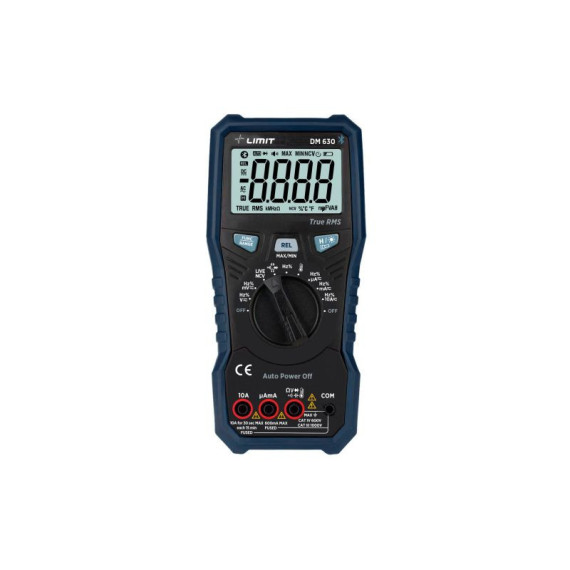

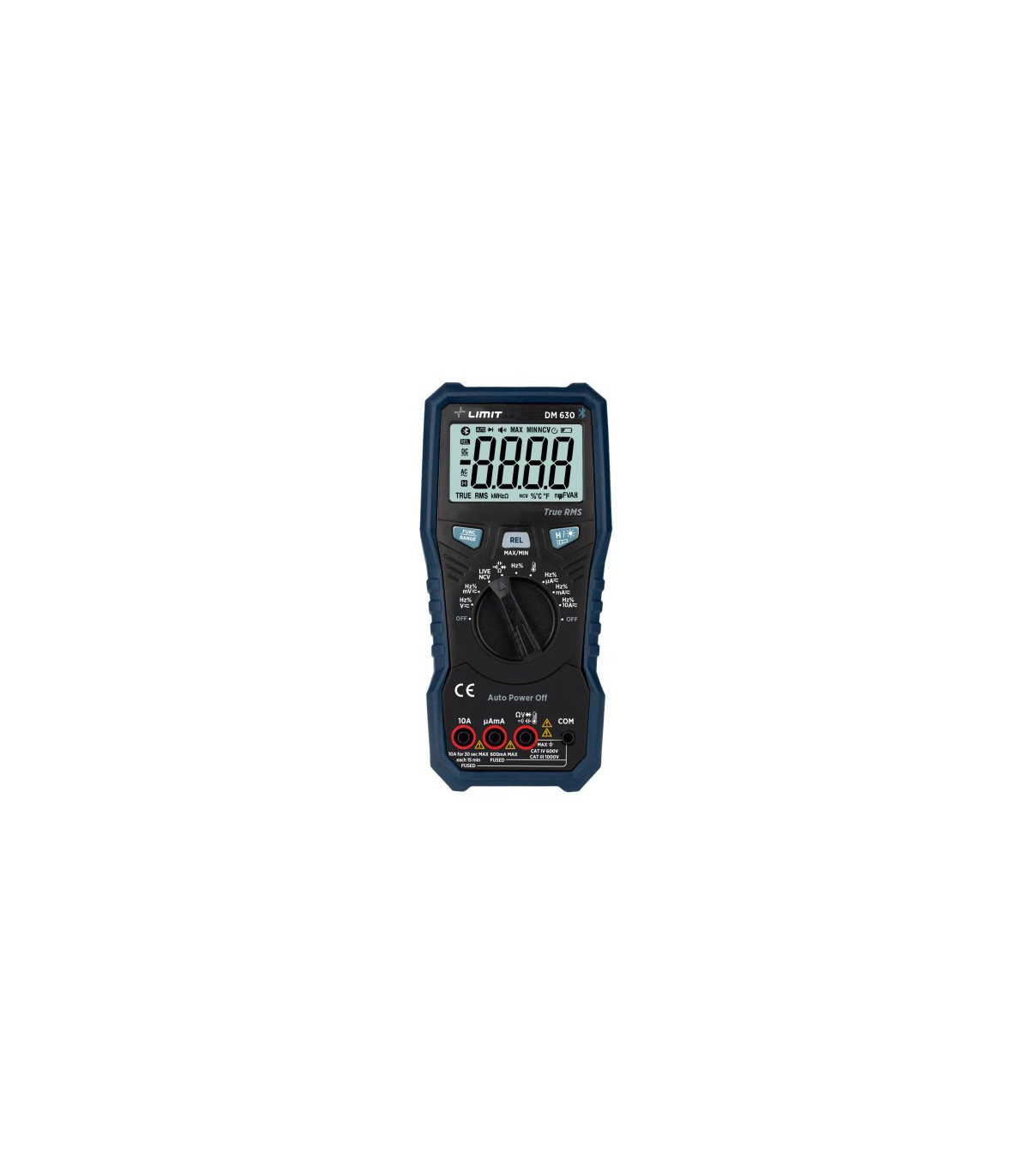

Digital Multimeter DM 630 Limit

The Limit DM 630 digital multimeter by Limit, code 289420002, is a measuring instrument that is powerful, robust, highly versatile and reliable, becoming the ally of professionals in electronics and electrical work when carrying out different measurements throughout their working day. Its functions include:

• Measures DC/AC voltage, AC/DC, resistance, capacitance, frequency/diode and temperature.
• Continuity test with buzzer.
• Data hold function.
• Display backlight.
• Low battery warning.
• Automatic and manual measurement range adjustment.
• Analogue bar graph for fast or unstable signals.
• True RMS for both voltage and current when measuring non-linear signals.
• Bluetooth for data transfer.
• K-K type thermocouple.
• Adapter for temperature measurement and battery testing.

The Limit DM 630 digital multimeter has an ergonomic design, facilitating grip by the operator and operation of the buttons and selector knob that controls the different functions. The digital display shows measurement values with large digits, making them easy to read and reducing the likelihood of errors. If you are looking for a practical multimeter that guarantees precision in your measurements, then this is the best option.

FEATURES

• Battery: 4 x AAA (1.5 V)
• Capacitance: 60 nF - 60 mF
• Capacitance resolution: 0.01 nF
• AC Current (ACA): 600 µA - 10 A
• AC Current (ACA) resolution: 0.1 µA
• DC Current (DCA): 600 µA - 10 A
• DC Current resolution: 0.1 µA
• Dimensions: 187 x 88 x 54 mm
• Frequency: 10 Hz - 10 MHz
• Frequency resolution: 0.01 Hz - 0.01 MHz
• Net weight: 347 g
• Resistance: 600 Ω - 60 MΩ
• Resistance resolution: 0.1 Ω
• Temperature: -40 - +1000 °C
• Temperature resolution: 1 ºC / 1 ºF
• AC Voltage: 60 mV - 1,000 V
• AC Voltage resolution: 0.01 mV
• DC Voltage: 60 mV - 1,000 V
• DC Voltage resolution: 0.01 mV
