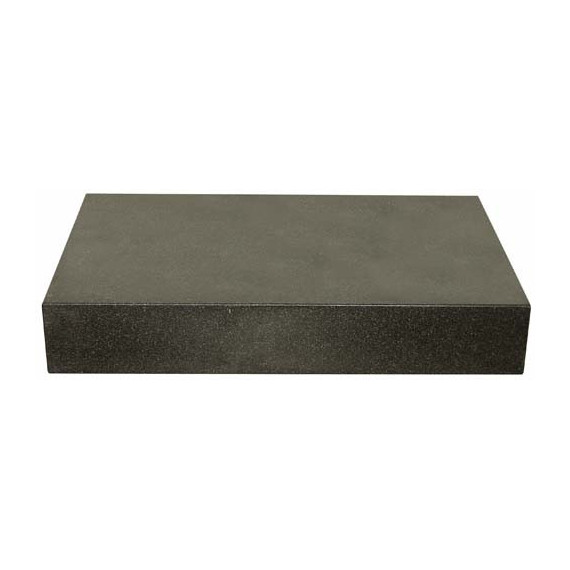

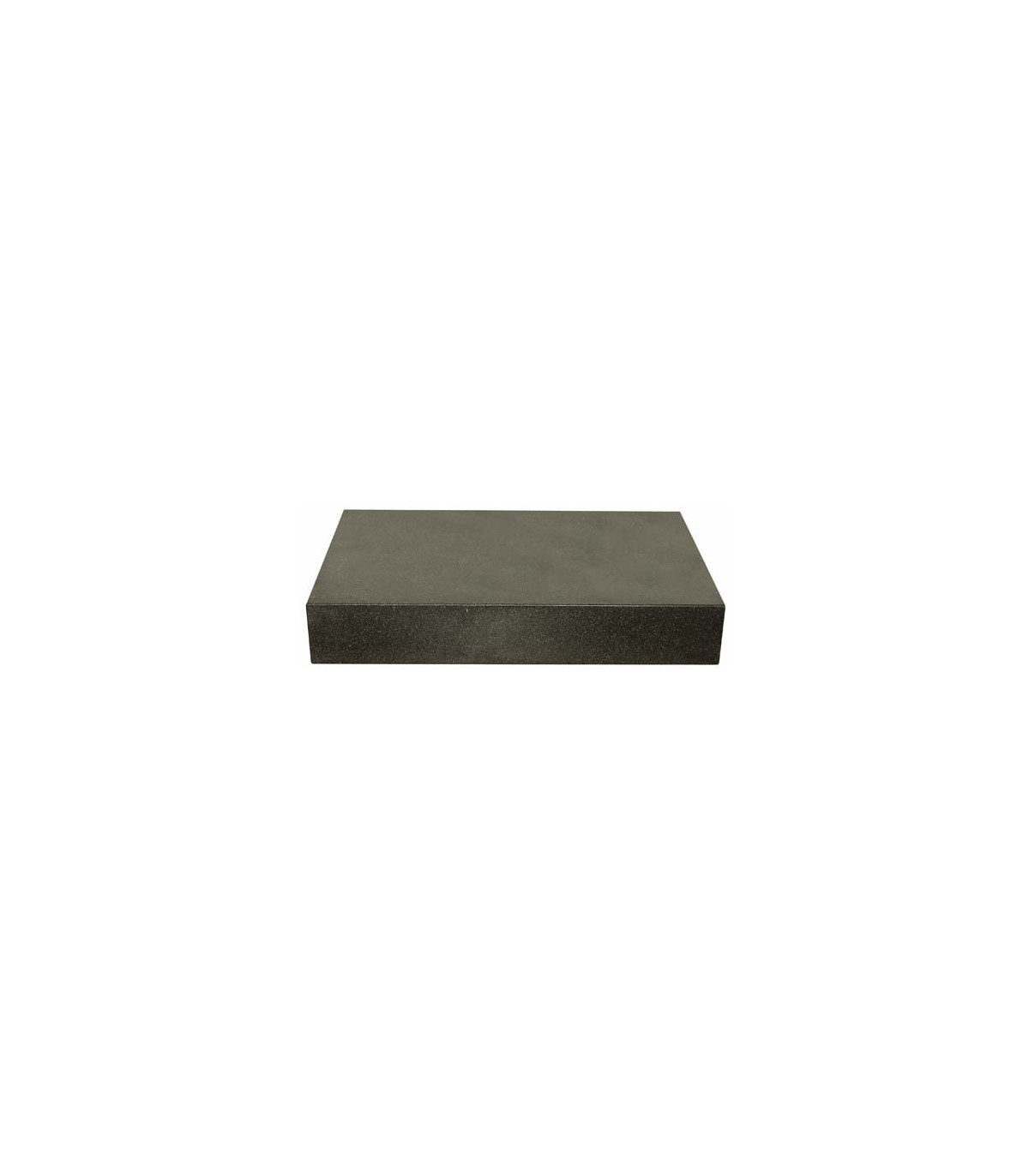

Surface plates Thickness 100 mm OPTIMUM

Surface plates Thickness of 100 mm OPTIMUM made of granite. This plate has excellent pressure resistance of 250-260 N/mm2. It is manufactured according to the standards of the DIN 876/0 norm. The material gives this plate great thermal and dynamic stability. It has a Length of 630 mm and a width of 400 mm. It is corrosion-resistant.

FEATURES

Dimensions L x W x H: 630 x 400 x 100 mm

Acceptance 7 μ

granite

Thermally and dynamically stable

Compression resistance 250 - 260 N / mm2

DIN 876/0

corrosion-free

STANDARD/ REGULATION

DIN 876: This standard applies to surface plates made of natural hard rock, which are used as a plane or reference surface in dimensional metrology, particularly in tests of shape or position deviations.

SAFETY INSTRUCTIONS

General safety instructions

All electrical connections must be made by a licensed electrician.

Machines should only be operated with safety devices in operation.

Allow only trained personnel to operate the machine.

Maintenance and repair work should only be carried out by qualified personnel.

Never work under the influence of illnesses that affect concentration, medications, drugs, or alcohol.

Before performing maintenance or repair work, the machine must always be disconnected from the power supply.

Wear fitted clothing and remove all objects that could get caught in the machine.

Use original spare parts and accessories.

Keep body parts away from moving parts of the machine.

In case of malfunction or specific anomalies, operation must be stopped immediately until the cause is clarified and the error is corrected.

Avoid overloading the machine. Always work within the allowed power range (technical data).

Always ensure that no one is in the danger areas of the machine.

Before using the machine, ensure that the safety devices are functioning correctly according to the standards.

Read the instruction manual and familiarize yourself with the safety devices.

Keep the work area clean and organized to minimize sources of danger.

Do not make any modifications to the machine.

FOR WHAT TYPE OF WORK IS IT SUITABLE

The Surface plates Thickness 100 mm OPTIMUM are suitable for:

• Metalworking industry
• Automotive industry
• Aerospace industry
• Mold and die industry
• Industrial maintenance
