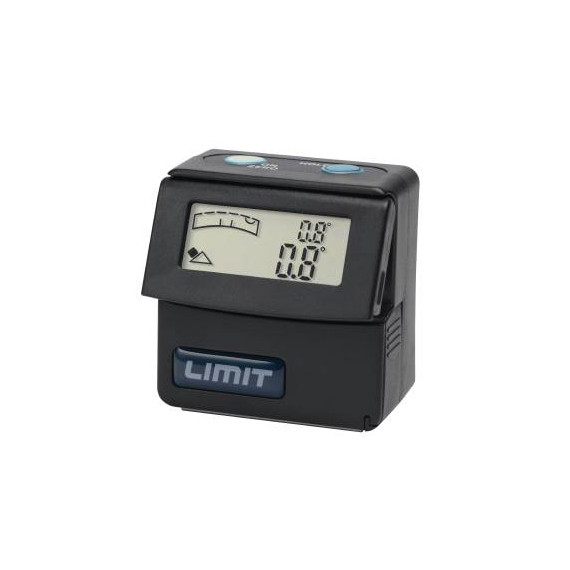

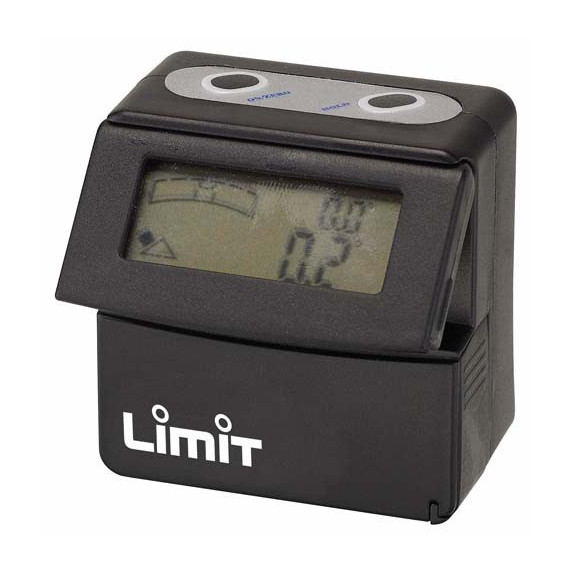

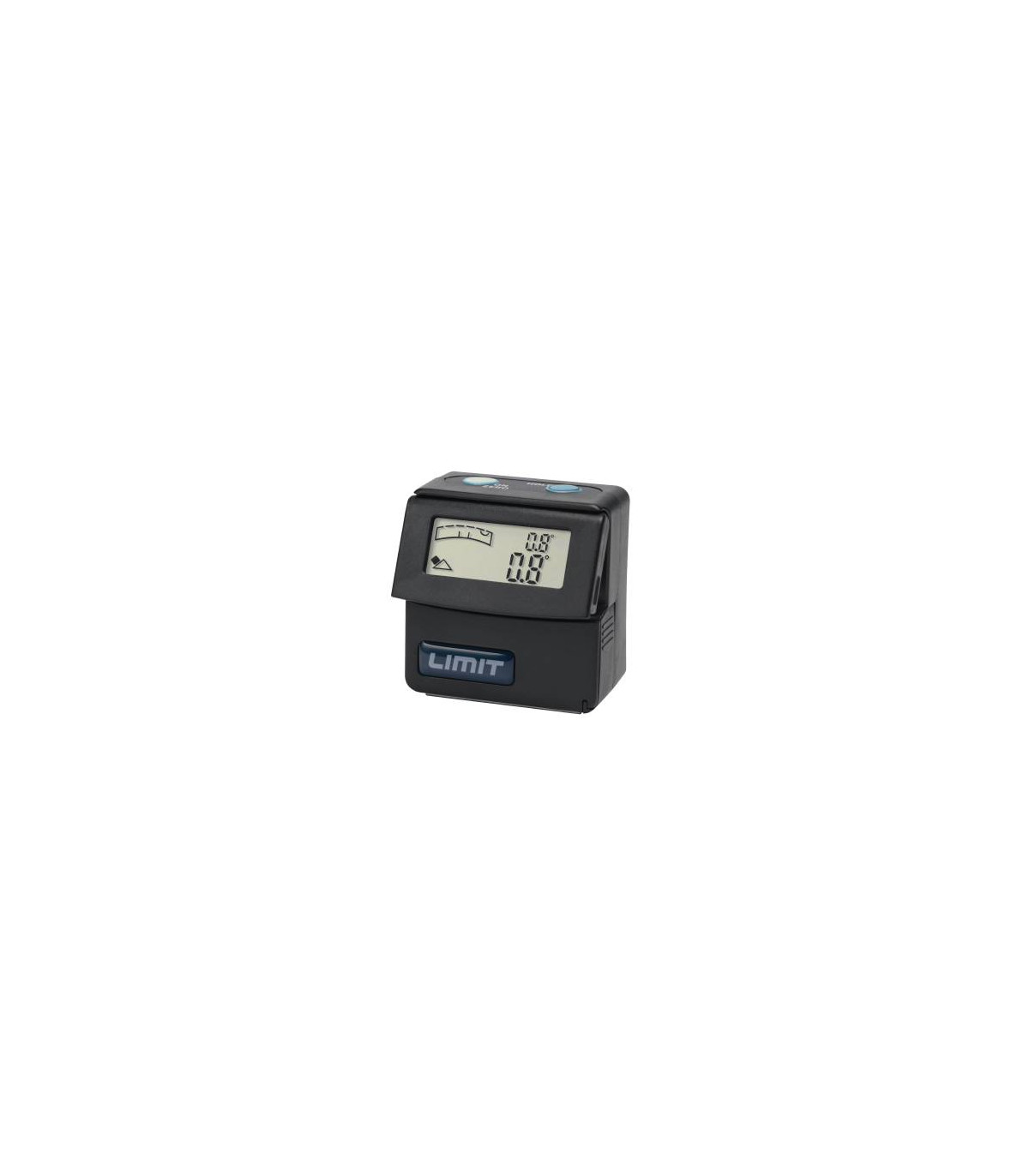

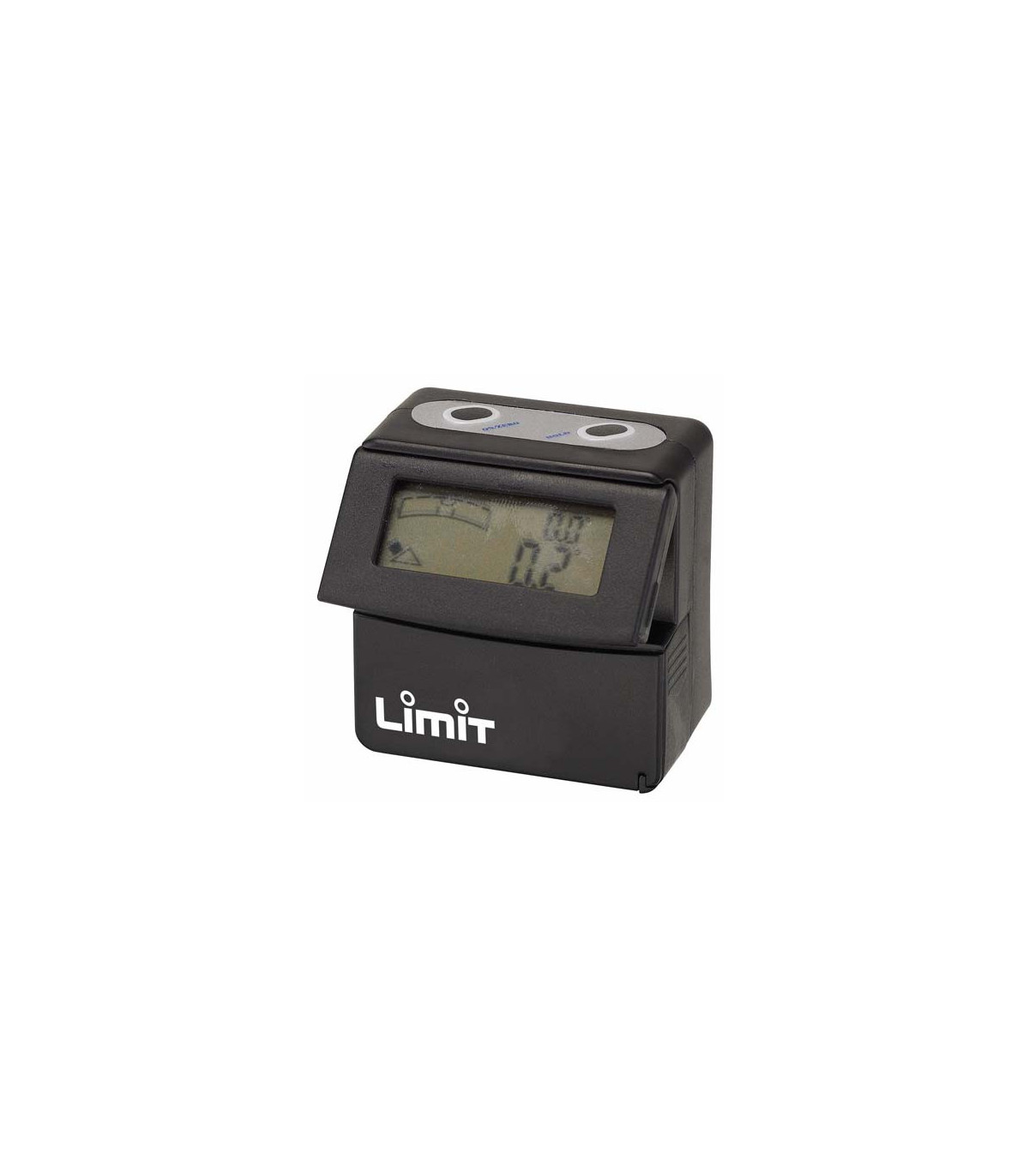

Mini digital level and protractor 250X250 LDB56 LIMIT

Mini digital level and protractor 250X250 LDB56 LIMIT. The LDB56 LIMIT mini digital level and protractor is a versatile tool with a rotatable display that shows absolute and relative angles. It includes a magnetic base, measurement freeze function, and automatic shut-off. With a range of 0-180° and an accuracy of ±0.3°, it is ideal for precise work.

FEATURES

• Digital bubble level and angle gauge.
• The display shows two angle values: one absolute and one relative.
• The display is rotatable for easier reading from above.
• Magnetic base.
• Ability to set to 0 in all positions.
• The measurement value can be frozen in the desired position.
• Automatic shut-off.
• AAA batteries (not included).

TECHNICAL DATA

Battery type ANSI: AAA

IP enclosure class: IP54

ETIM class code: EC000145

Reading: 0.1°

Measurement range: 0-180°

Inaccuracy: ±0.3°

Width: 32 mm

Height: 50 mm

Number of batteries: 2 units

Battery type: Alkaline

Length: 60 mm

STANDARDS

- IP54 Protection: a device with an IP54 rating is resistant to dust and water splashes.

WHAT TYPE OF WORK IS IT SUITABLE FOR

The Mini digital level and protractor 250X250 LDB56 LIMIT is suitable for:

• Furniture installation
• Carpentry
• Plumbing
• Construction
• Electricity
• DIY
