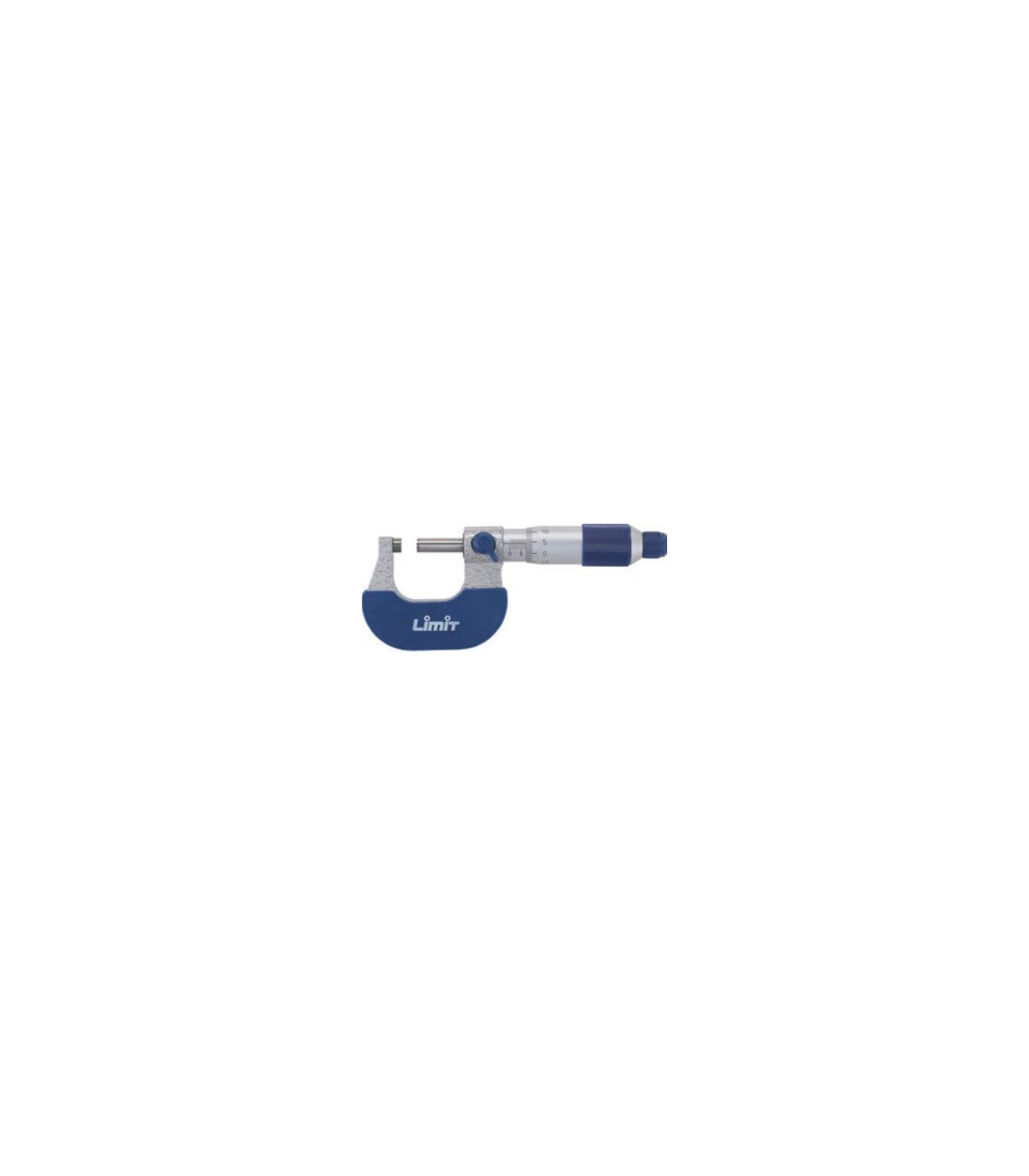

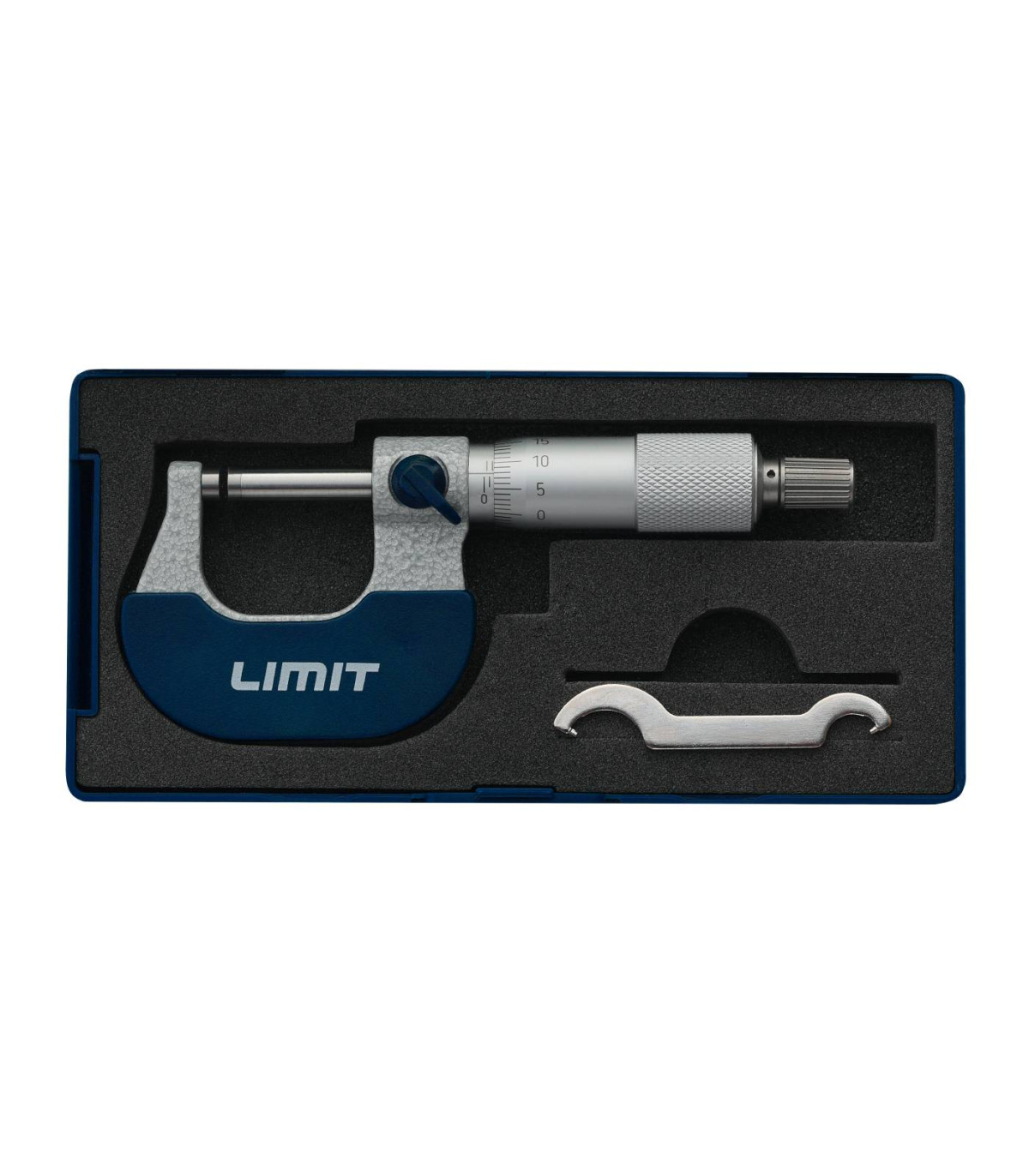

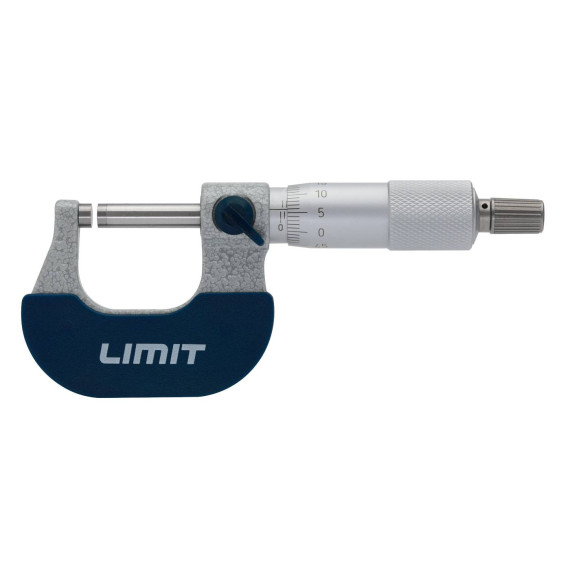

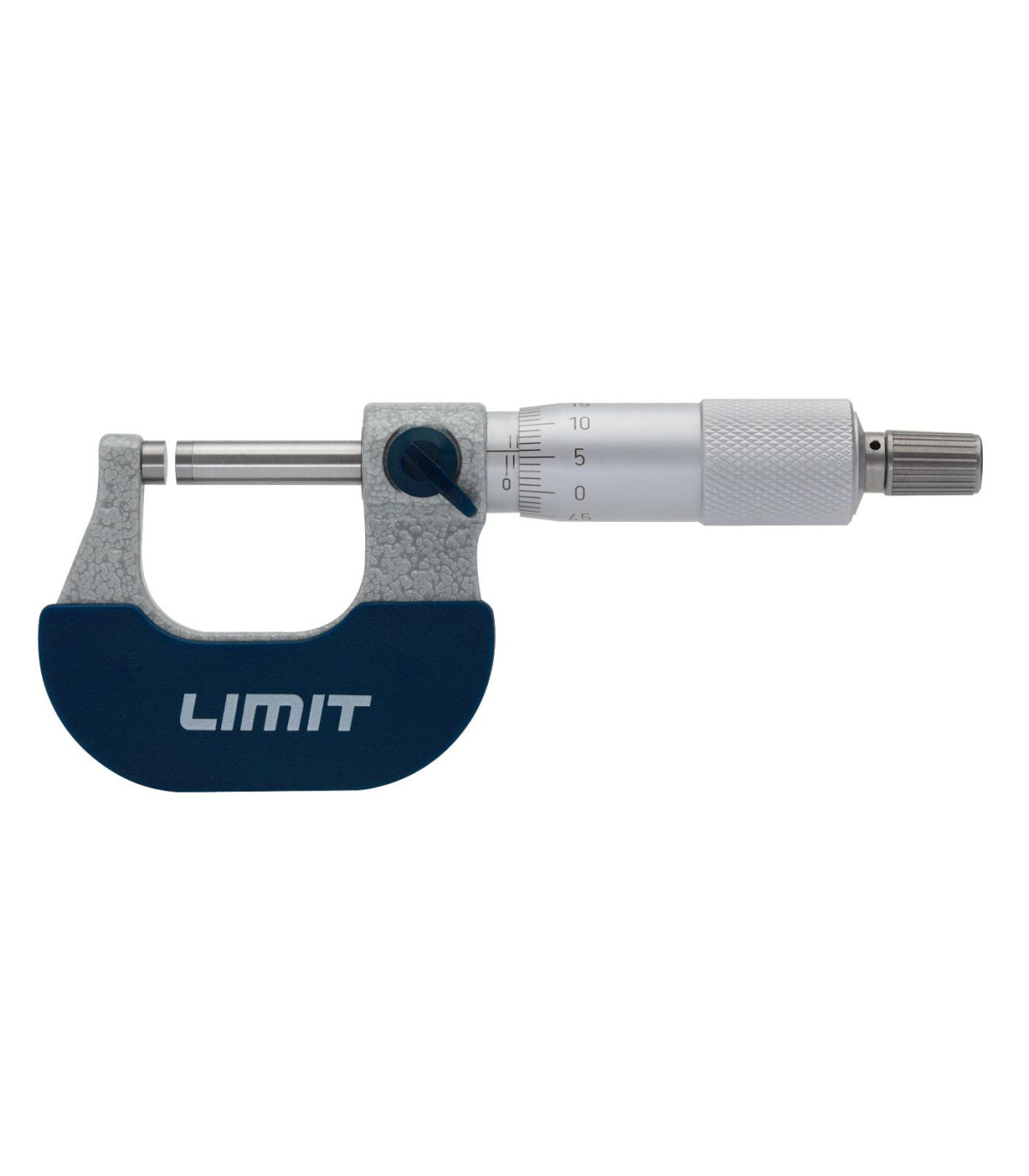

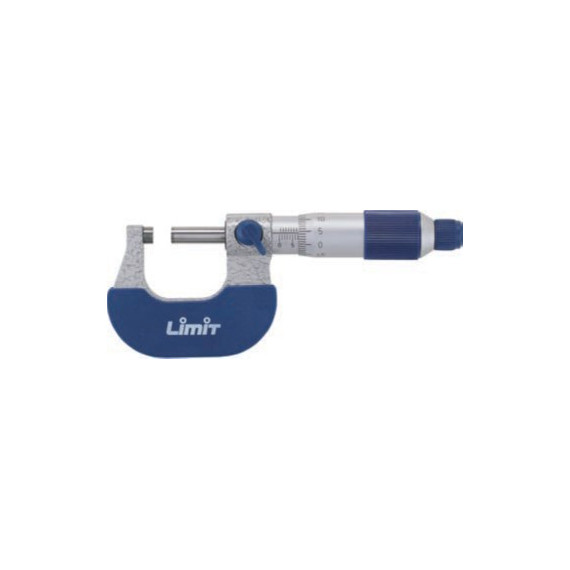

External micrometer MMA 25 LIMIT

External micrometer MMA 25 LIMIT. The external micrometer MMA 25 LIMIT is a precise measuring instrument, with a forged frame and matte chrome scale, ideal for measuring external dimensions. Its hardened spindle of 6.5 mm and tungsten carbide faces ensure an inaccuracy of only 0.004 mm.

With a measurement range of 0 to 25 mm and a resolution of 0.01 mm, it is perfect for engineering, manufacturing, and quality control, guaranteeing precise measurements in the design of machinery and tools. Manufactured according to DIN 863, it is an essential tool in demanding industrial environments.

FEATURES

• External micrometer with a forged frame and matte chrome scale, designed for external measurements.
• Hardened spindle of 6.5 mm with finely polished tungsten carbide measuring faces.
• Friction sleeve and lock nut.
• Manufactured according to DIN 863.

TECHNICAL DATA

Manufacturer's description: Limit MMA 25

ETIM class code: EC003590

Type of micrometer: Frame micrometer

Units of measurement: mm

Inaccuracy: 0.004 mm

Measurement range, min: 0 mm

Measurement range, max: 25 mm

Resolution: 0.01 mm

Design: Analog

STANDARDS

- DIN 863: This standard ensures that micrometers meet certain quality and precision standards, guaranteeing their reliability in measurements. It includes aspects such as construction, dimensions, tolerances, and verification methods, making the instruments suitable for industrial applications where accuracy is crucial.

WHAT TYPE OF WORK IS IT SUITABLE FOR

The external micrometer MMA 25 LIMIT is suitable for:

• Engineering
• Manufacturing
• Quality control
• Measuring parts and components with high precision
• Designing machinery and tools
