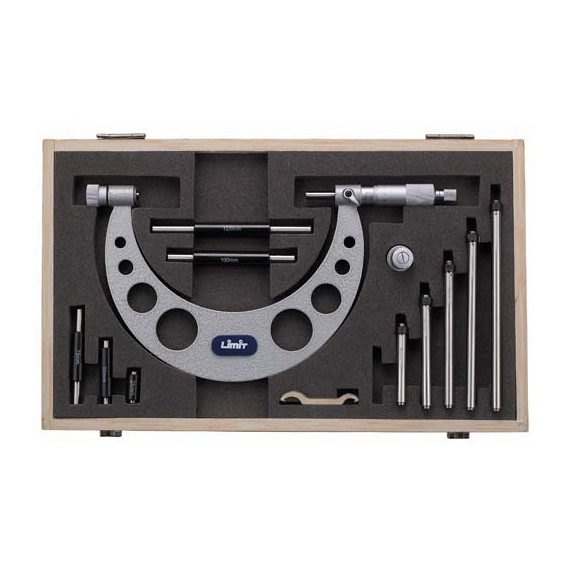

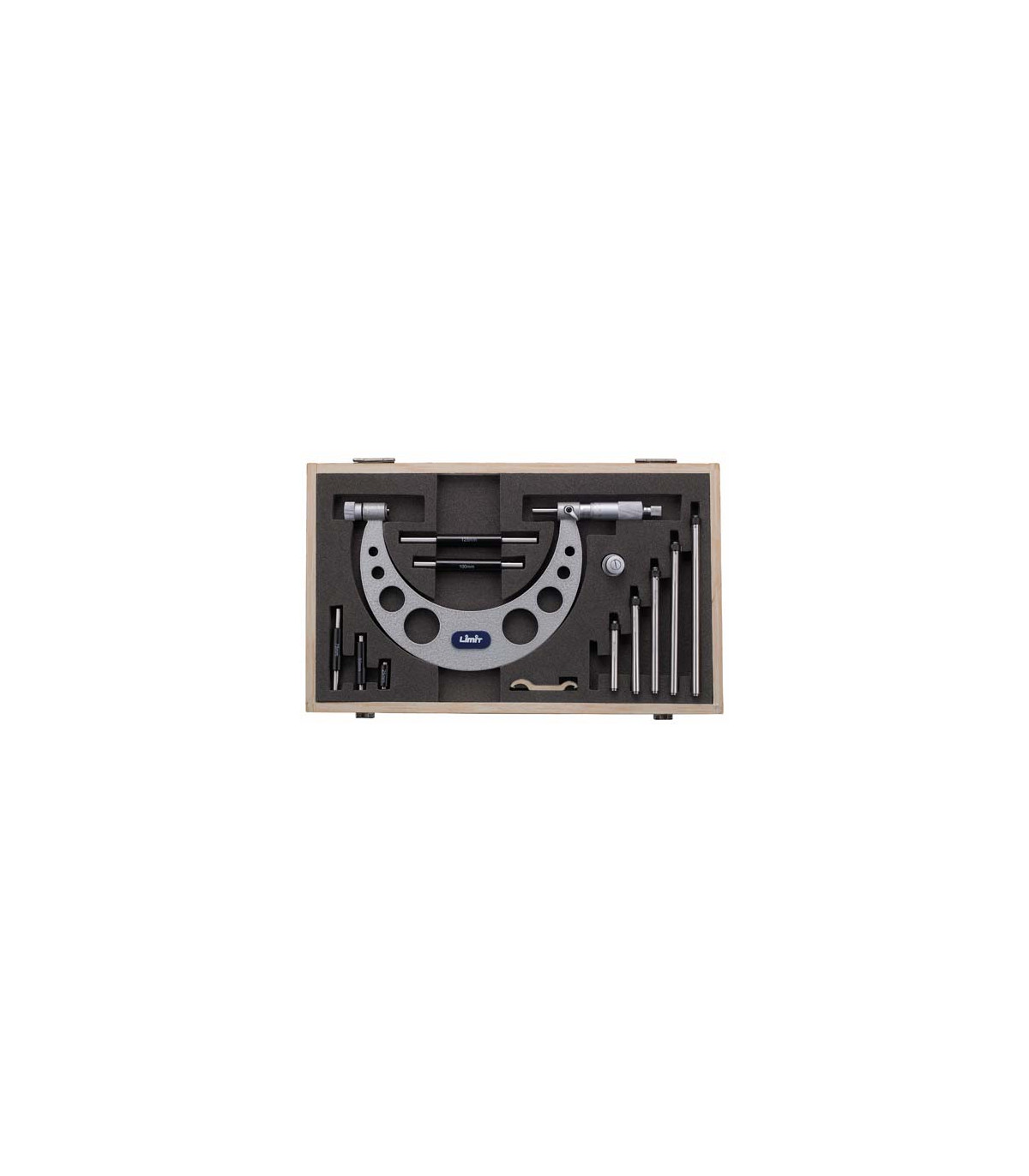

Micrometer Set for precise measurement DIN 863 LIMIT

Micrometer Set for precise measurement DIN 863 LIMIT. The DIN 863 LIMIT micrometer set features a painted steel frame, interchangeable rods, and a resolution of 0.01 mm. Ideal for precise measurements.

FEATURES

• Painted steel frame and matte chrome scale.
• With interchangeable insertion rods.
• Hardened spindle and insertion rods of 8.0 mm with carbide measuring faces with fine polishing.
• DIN 863.

TECHNICAL DATA

Resolution: 0.01 mm

Maximum measurement range: 150 mm / 300 mm

Minimum measurement range: 0 mm / 150 mm

Inaccuracy: ±0.006 mm / ±0.009 mm

ETIM class code: EC003590

STANDARDS

- DIN 863: This standard ensures that micrometers meet certain quality and precision standards, guaranteeing their reliability in measurements. It includes aspects such as construction, dimensions, tolerances, and verification methods, making the instruments suitable for industrial applications where accuracy is crucial.

WHAT TYPE OF WORK IS IT SUITABLE FOR

The DIN 863 LIMIT Micrometer Set is suitable for:

• Engineering
• Construction
• Manufacturing of mechanical parts
• Metallurgy
• Electronics
