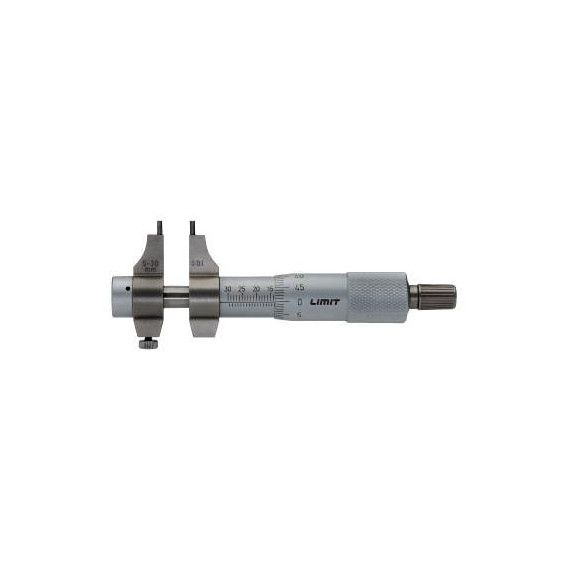

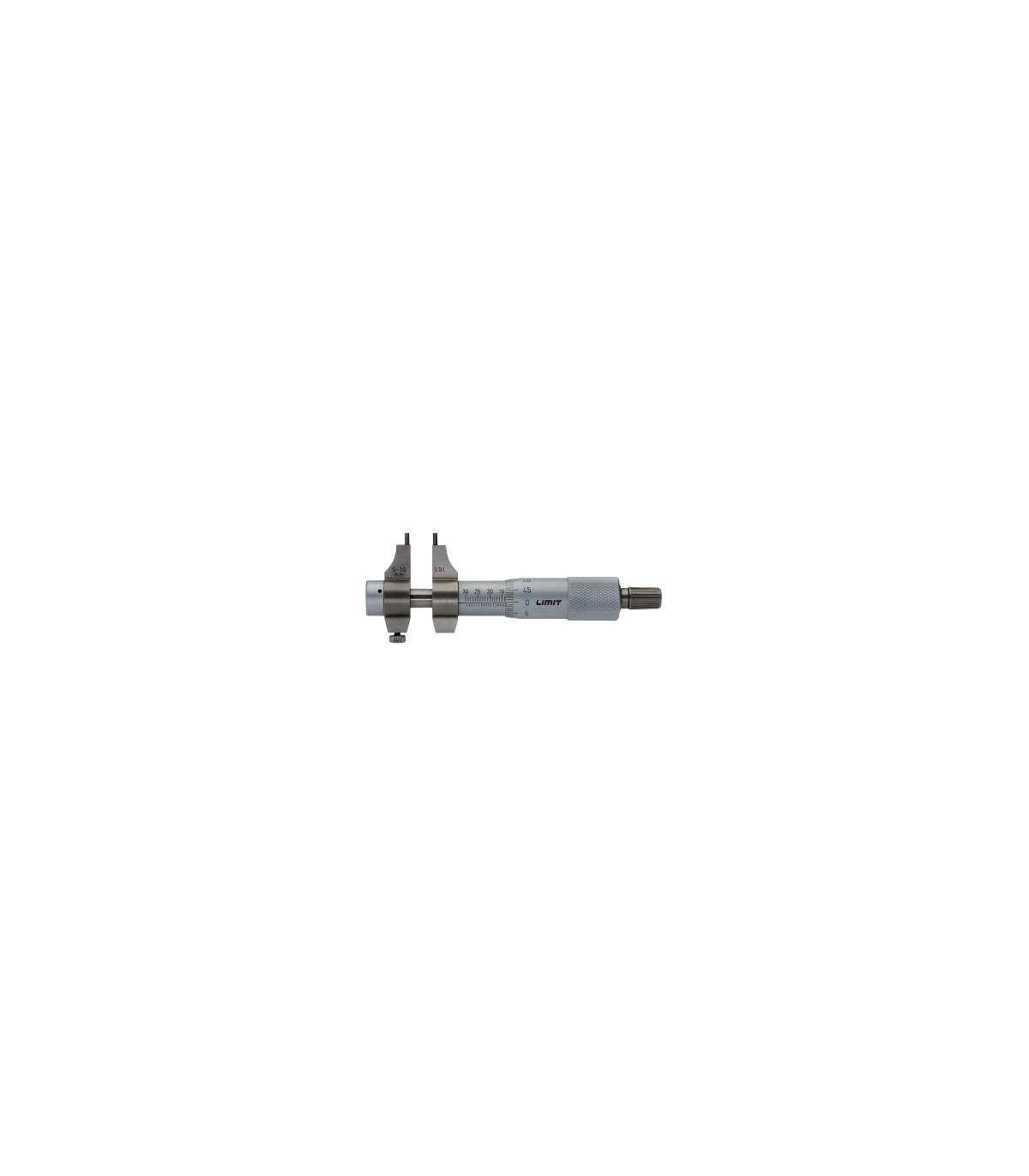

Internal Micrometer in various sizes LIMIT

Internal Micrometer in various sizes LIMIT. The LIMIT internal micrometer, manufactured according to DIN 863, offers a resolution of 0.01 mm and an inaccuracy of 0.005 mm. With hardened and polished measuring faces, it includes an adjustment ring and features a friction screw and locking screw. Ideal for precision in internal measurements, covering ranges from 5 mm to 50 mm.

FEATURES

• Forged internal micrometer with a matte chrome scale.
• Hardened and polished measuring faces.
• Friction screw and locking screw.
• Manufactured according to DIN 863.

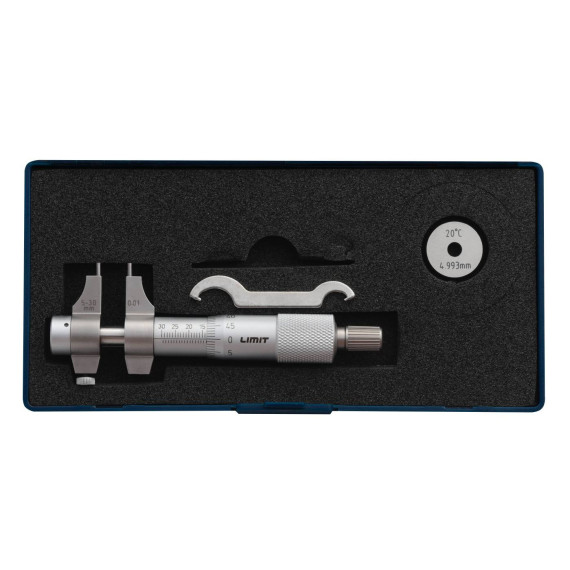

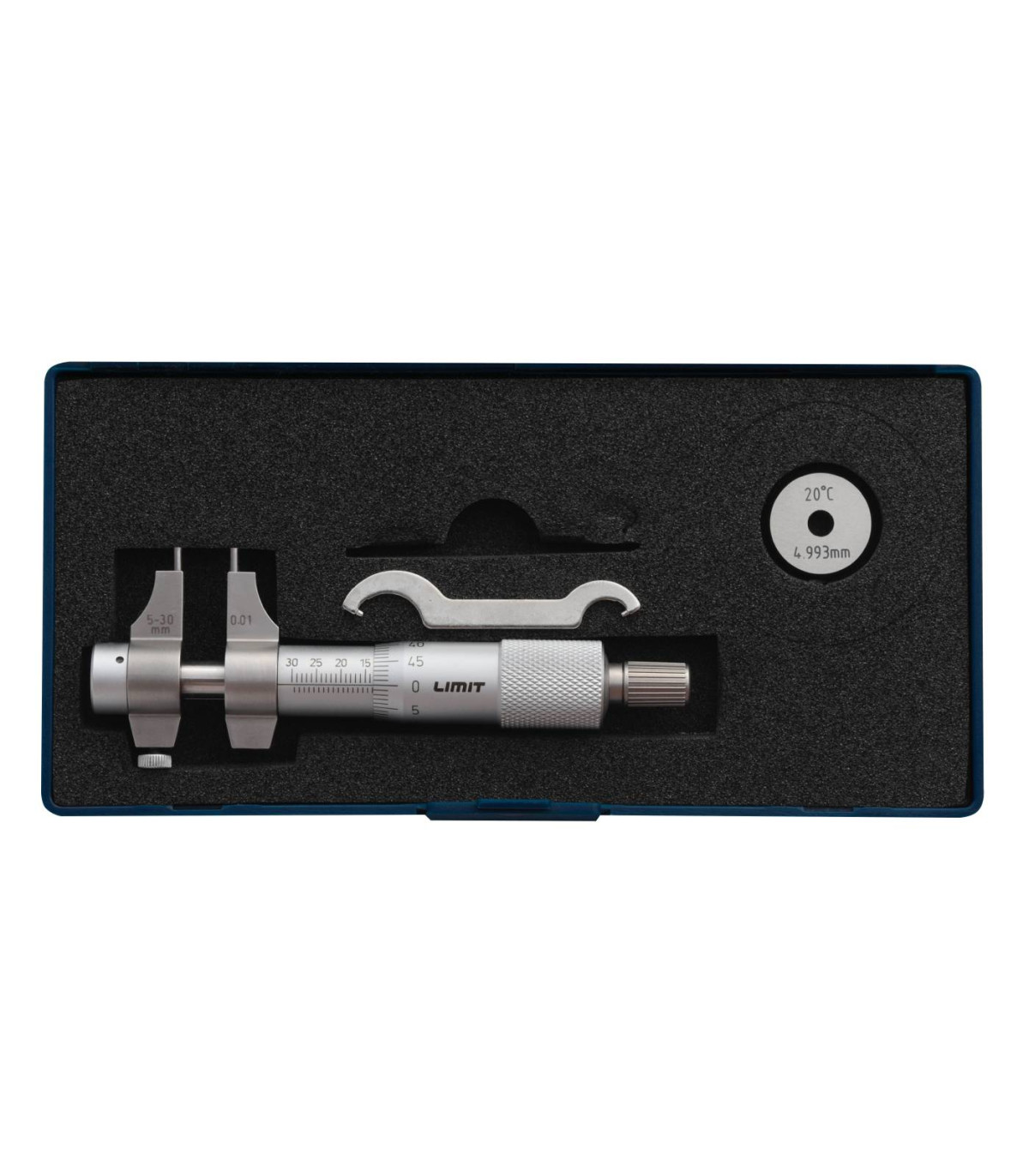

• Includes adjustment ring.

TECHNICAL DATA

Resolution: 0.01 mm

Manufacturer's description: Limit MIA 30

ETIM class code: EC003590

Type of micrometer: Internal micrometer

Units of measurement: mm

Inaccuracy: 0.005 mm

Measurement range, min.: 5 mm / 25 mm

Measurement range, max.: 30 mm / 50 mm

Design: Analog

STANDARDS

- DIN 863: This standard ensures that micrometers meet certain quality and precision standards, guaranteeing their reliability in measurements. It includes aspects such as construction, dimensions, tolerances, and verification methods, making the instruments suitable for industrial applications where accuracy is crucial.

FOR WHAT TYPE OF WORK IT IS SUITABLE

The Internal Micrometer in various sizes LIMIT is suitable for:

• Engineering
• Construction
• Manufacturing of mechanical parts
• Metallurgy
• Electronics
