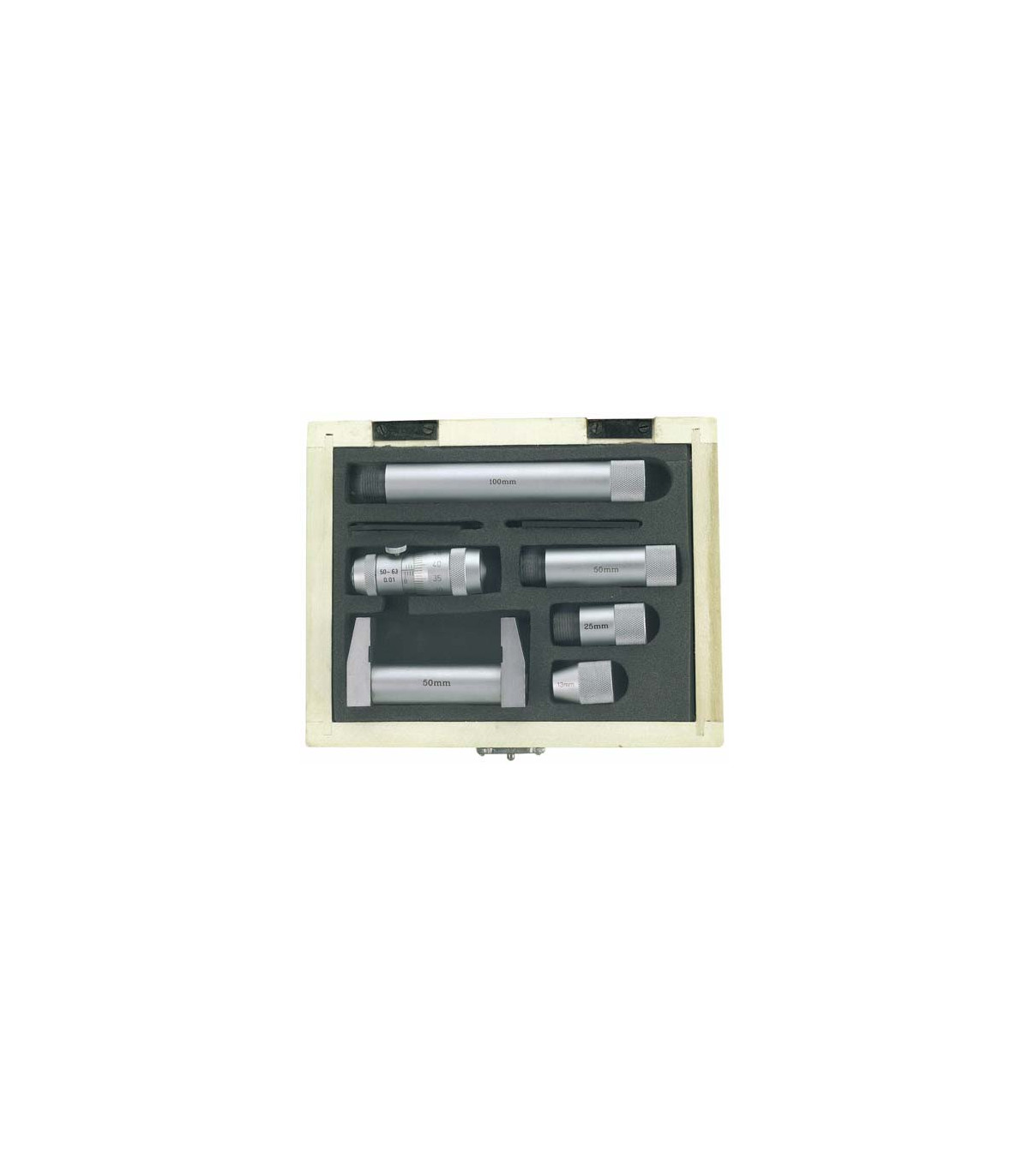

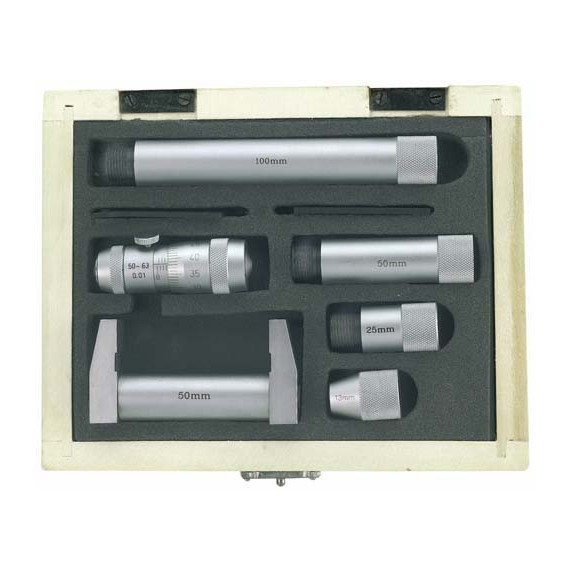

Internal Micrometer with various LIMIT pieces

Internal Micrometer with various LIMIT pieces. The LIMIT internal micrometer is a precision tool ideal for detailed measurements. With a matte chrome scale and a measurement range varying between 50 mm and 600 mm, it includes a measuring head and extension sleeves in various lengths.

It complies with DIN 863 and offers a resolution of 0.01 mm, ensuring accuracy with every use. With a total of seven to nine pieces, this micrometer is essential for any professional who requires precision in their work.

FEATURES

• Matte chrome scale.
• Includes measuring head and necessary extension sleeves.
• Includes adjustment frame.
• DIN 863.
• The extension sleeves have lengths for items 96230107: 13 mm, 25 mm, 50 mm, and 100 mm; 96230206: 13 mm, 25 mm, 50 mm, 100 mm, 150 mm, and 200 mm; 96230305: 25 mm, 50 mm (2 pieces), 100 mm, 200 mm, and 400 mm (2 pieces).

TECHNICAL DATA

Maximum measurement range: 600 mm / 1400 mm / 200 mm

Minimum measurement range: 50 mm / 150 mm

Resolution: 0.01 mm

Number of pieces: 7 units / 9 units / 5 units

ETIM class code: EC003590

STANDARDS

- DIN 863: This standard ensures that micrometers meet certain quality and precision standards, guaranteeing their reliability in measurements. It includes aspects such as construction, dimensions, tolerances, and verification methods, making the instruments suitable for industrial applications where accuracy is crucial.

FOR WHAT TYPE OF WORK IS IT APPROPRIATE

The Internal Micrometer with various LIMIT pieces is suitable for:

• Engineering
• Construction
• Manufacturing of mechanical parts
• Metallurgy
• Electronics
