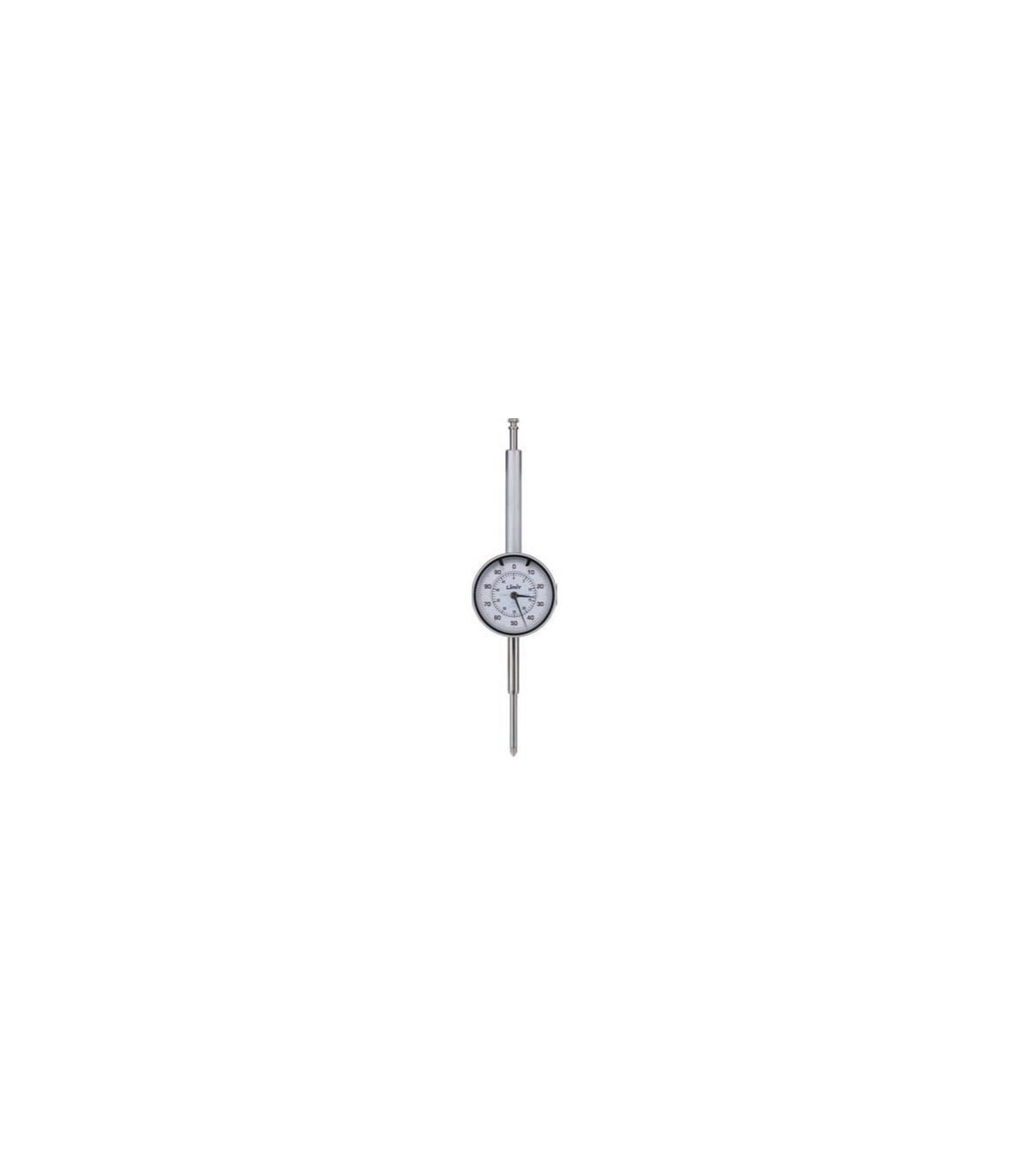

Professional LIMIT analog comparator clock

The professional LIMIT analog dial gauge. The professional LIMIT analog dial gauge is a robust and precise tool, ideal for various applications. Its impact-resistant design and aluminum body ensure durability. With a rotating scale and two adjustable tolerance indices, it offers a total measurement range of 50 mm or 80 mm.

Its dial diameter is 58 mm and features a graduation of 0.01 mm, facilitating reading. The measuring tip is replaceable, adding convenience. Without a mounting support, it is perfect for work in tight spaces and complies with tolerance standards according to DIN 878, making it essential for quality control in the industrial sector.

FEATURES

• Impact-resistant design.
• With rotating scale and two adjustable tolerance indices.
• Additional indicator that shows whole millimeters.
• Aluminum body.
• Replaceable measuring tip.
• No mounting support.
• Tolerance according to DIN 878.

TECHNICAL DATA

Total measurement range: 50 mm / 80 mm

Dial diameter: 58 mm

Safety pin diameter: 8 mm

Units of measurement: mm

Scale: 0-100

Dimension F: 40 mm / 52 mm

Dimension G: 58 mm / 88 mm

Dimension H: 54 mm

Dimension J: 8 mm

Graduation of the measurement scale: 0.01 mm

Dimension A: 108 mm / 139 mm

Dimension B: 127 mm

Dimension D: 20 mm

Graduation of the scale: 0-100

One turn of the pointer =: 1 mm

ETIM class code: EC003591

Design: Analog

STANDARDS

- DIN 878: The DIN 878 standard refers to a German standard that specifies the dimensions and tolerances of squares used in engineering and manufacturing. These squares are measuring tools that help ensure that angles are accurate, which is fundamental in many design and construction processes.

WHAT TYPE OF WORK IS IT SUITABLE FOR

The professional LIMIT analog dial gauge is suitable for:

• Measuring small variations in dimensions
• Industry
• Engineering
• Manufacturing
• Mechanical workshops
