1 mm LIMIT analog comparator clock

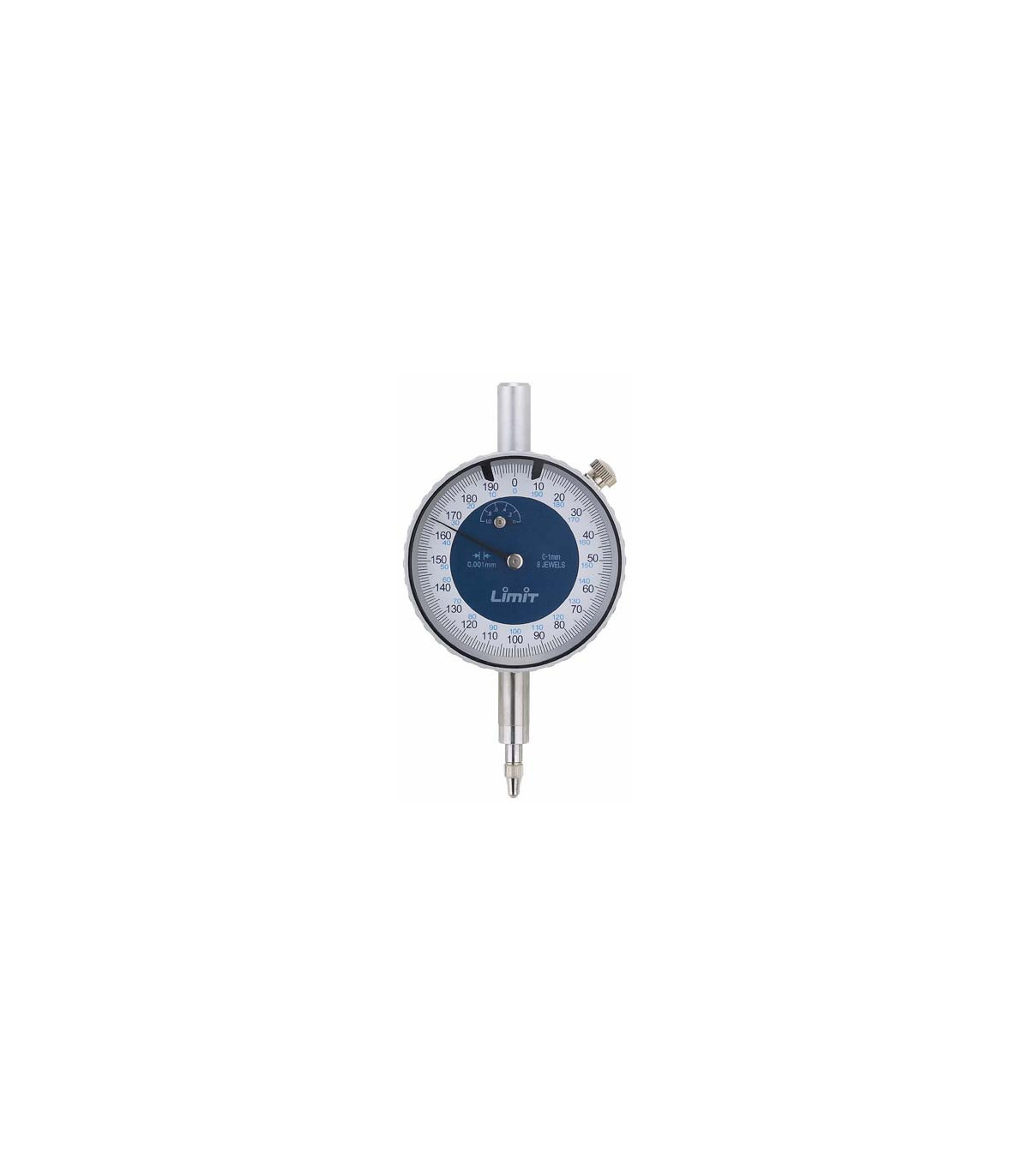

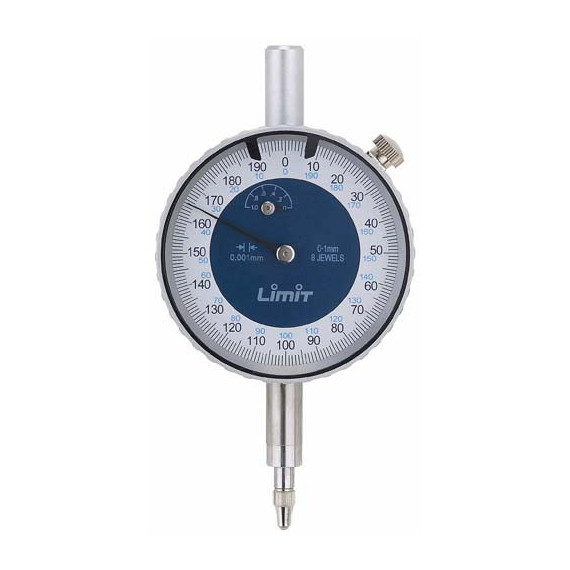

1 mm LIMIT analog dial gauge. The 1 mm LIMIT analog dial gauge is a precise and compact tool, ideal for detailed measurements. It features a rotating scale and two adjustable tolerance indicators, allowing for a total measurement range of 1 mm. Its aluminum body ensures durability, while the measuring tip is replaceable for added convenience.

With a dial diameter of 58 mm and a graduation of 0.001 mm, it facilitates reading. Without a mounting support, it is perfect for work in tight spaces and complies with tolerance standards according to DIN 878, making it essential for quality control in various applications.

FEATURES

• With a rotating scale and two adjustable tolerance indicators.
• Additional indicator, graduated from 0.2 mm to mm.
• Aluminum body.
• Replaceable measuring tip.
• No mounting support.
• Tolerance according to DIN 878.

TECHNICAL DATA

Total measurement range: 1 mm

Dial diameter: 58 mm

Safety pin diameter: 8 mm

Measurement units: mm

Dimension F: 18 mm

Dimension G: 34 mm

Dimension H: 54 mm

Dimension J: 8.5 mm

Graduation of the measuring scale: 0.001 mm

Dimension A: 45 mm

Dimension B: 69 mm

Dimension D: 17 mm

Scale graduation: 0-100, 100-0

One full turn of the pointer =: 0.2 mm

ETIM class code: EC003591

Design: Analog

STANDARDS

- DIN 878: The DIN 878 standard refers to a German standard that specifies the dimensions and tolerances of squares used in engineering and manufacturing. These squares are measuring tools that help ensure that angles are accurate, which is fundamental in many design and construction processes.

WHAT TYPE OF WORK IS IT SUITABLE FOR

The 1 mm LIMIT analog dial gauge is suitable for:

• Measuring small variations in dimensions
• Industry
• Engineering
• Manufacturing
• Mechanical workshops
