Magnetic Support Comparator Clock LIMIT

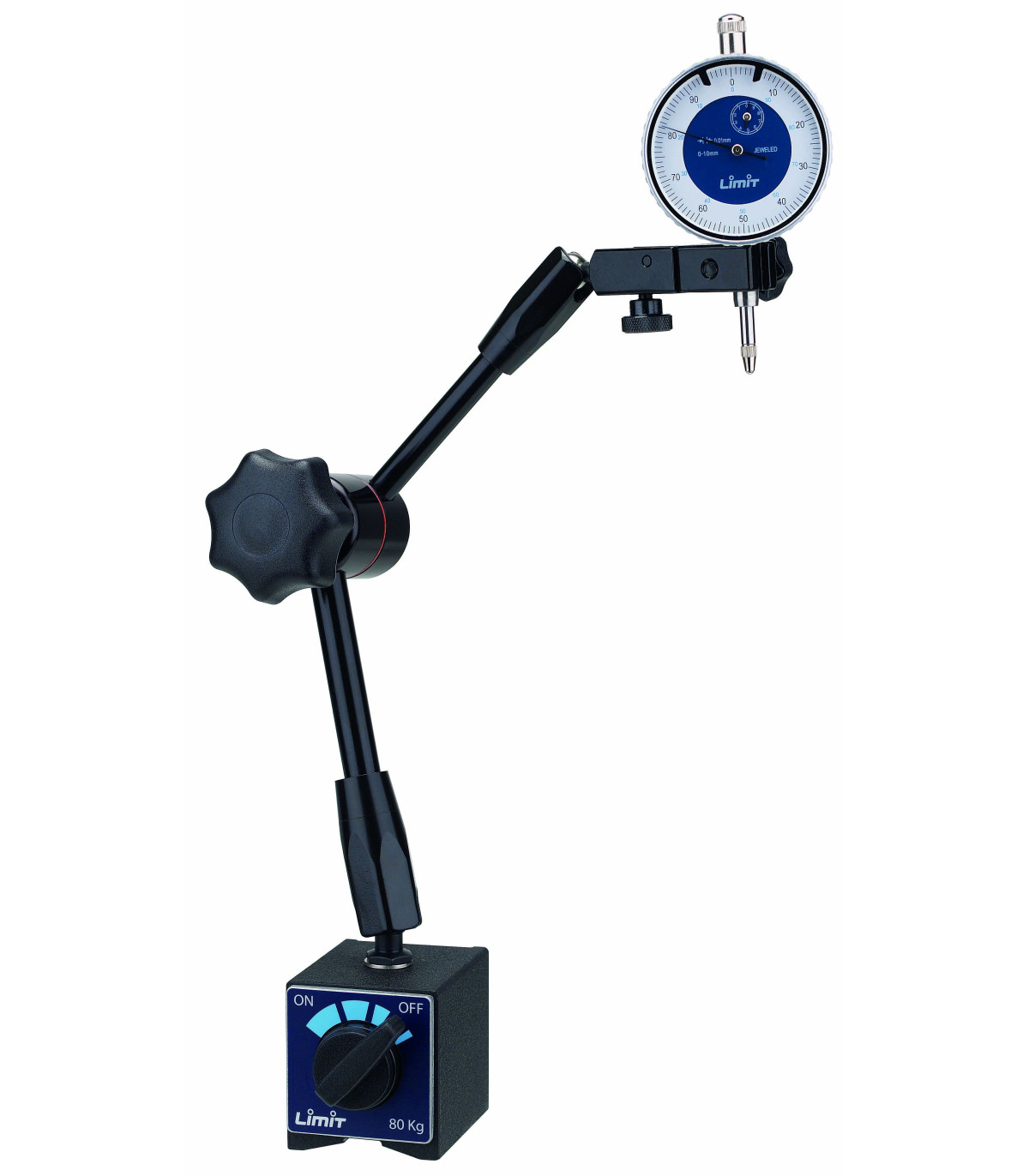

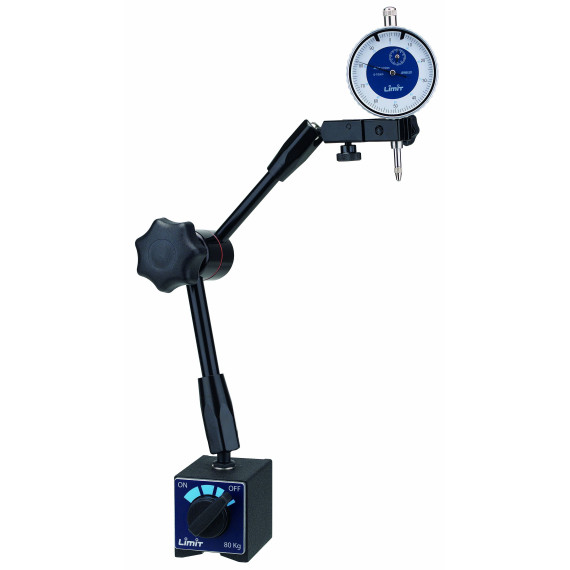

Comparator Clock with Magnetic Support LIMIT. The Comparator Clock with Magnetic Support LIMIT, with a graduation of 0.01 mm and a range of 10 mm, is ideal for checking sizes and positions of mechanical components, being useful in quality control and industrial maintenance.

FEATURES

Magnetic support 119080208 with dial indicator 119110104.

TECHNICAL DATA

Graduation of the measurement scale: 0.01 mm

Measurement range: 10 mm

Magnet pulling force: 80 kg

Maximum height: 330 mm

Scale graduation: 0-100, 100-0

Length of the magnetic base: 55 mm

Height of the magnetic base: 58 mm

Width of the magnetic base: 50 mm

One pointer turn =: 1 mm

Diameter of the dial: 58 mm

ETIM class code: EC001195

Diameter of the fixing hole: 8 mm

FOR WHAT TYPE OF WORK IS IT SUITABLE

The Comparator Clock with Magnetic Support LIMIT is suitable for:

• Checking sizes and positions of objects or mechanical components.
• Quality control
• Mechanical engineering
• Manufacturing
• Industrial maintenance
• Tool adjustment
