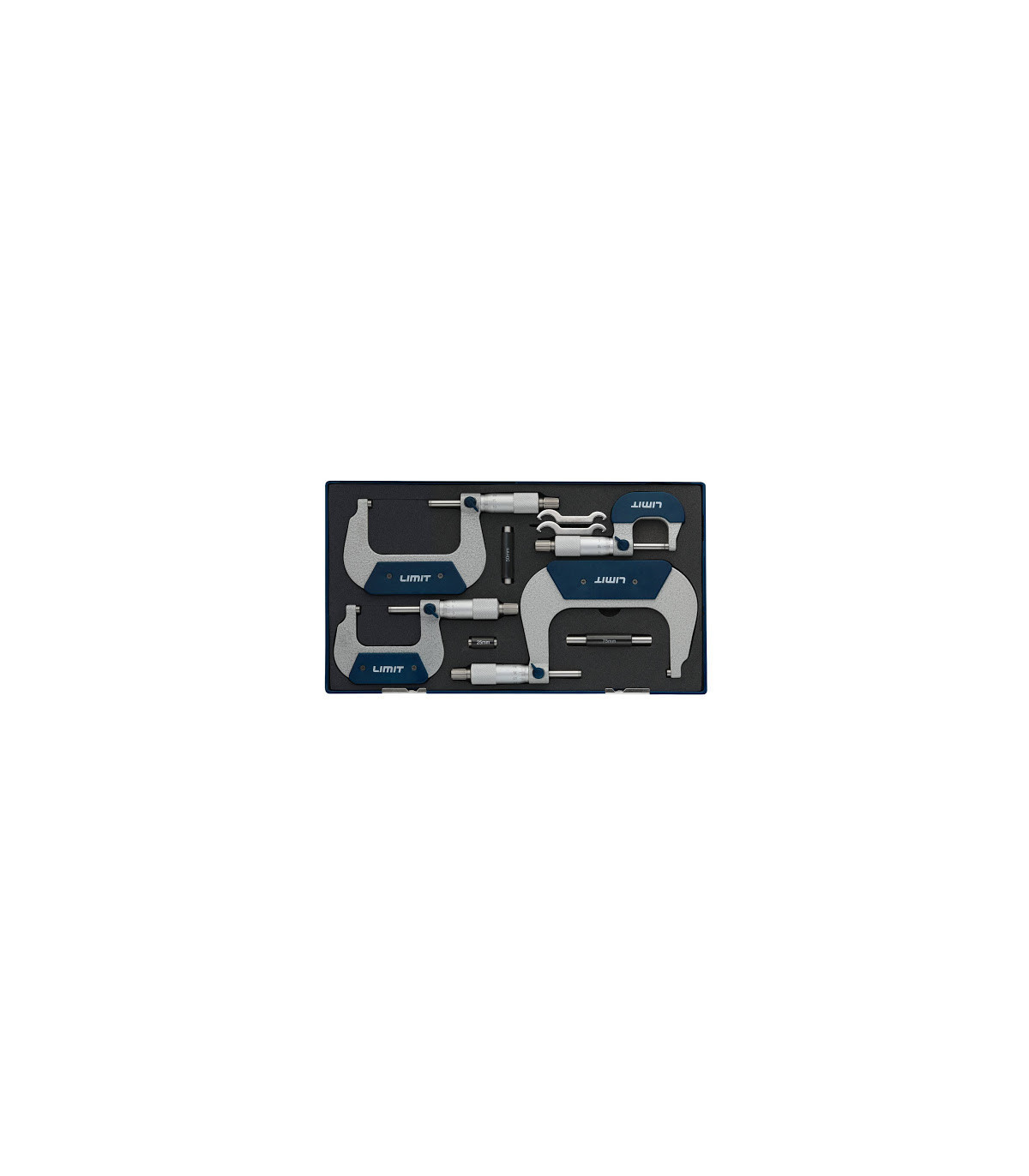

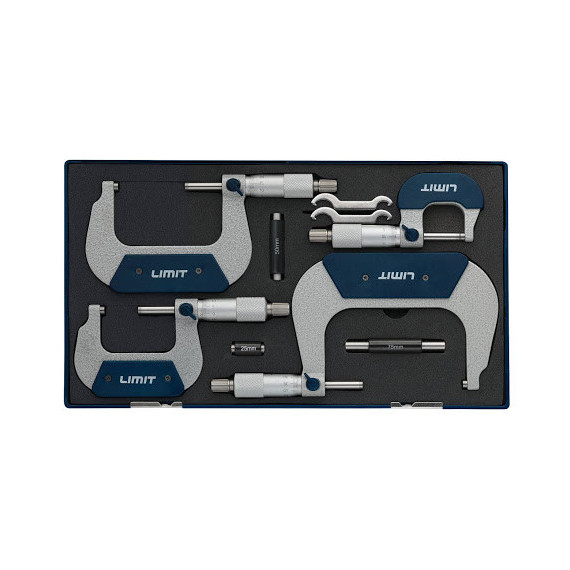

Set of 4 external micrometers 0-100 mm LIMIT

Set of 4 external micrometers 0-100 mm LIMIT. The Set of 4 External Micrometers 0-100 mm LIMIT allows for precise measurements with an inaccuracy of ±0.01 mm. Manufactured according to DIN 863, they feature a forged frame and tungsten carbide faces. It includes micrometers of 0-25 mm, 25-50 mm, 50-75 mm, and 75-100 mm, along with control measures. Ideal for outdoor applications, its analog design ensures durability and precision.

Measurement scale: 0 - 100 mm
Precision (± mm): 0.01

FEATURES

• Set of external micrometers with a forged frame and matte chrome scale, designed for outdoor measurements.
• Hardened spindle of 6.5 mm with tungsten carbide measuring faces with fine polishing.
• Friction sleeve and lock nut.
• Manufactured according to DIN 863.
• The set contains 4 micrometers in sizes of 0-25 mm, 25-50 mm, 50-75 mm, and 75-100 mm.
• Includes control measures of 25 mm, 50 mm, and 75 mm.

TECHNICAL DATA

Manufacturer description: Limit MMA Sats

ETIM class code: EC003590

Type of micrometer: Frame micrometer

Measurement units: mm

Inaccuracy: 0.004-0.005 mm

Measurement range, min.: 0 mm

Measurement range, max.: 100 mm

Resolution: 0.01 mm

Design: Analog

STANDARDS

- DIN 863: The DIN 863 standard refers to a German standard that specifies the dimensions and tolerances of depth gauges, which are instruments used to measure depths in various applications. This type of gauge is common in the manufacturing and engineering industry to ensure that parts meet the required specifications.

FOR WHAT TYPE OF WORK IS IT SUITABLE

The Set of 4 external micrometers 0-100 mm LIMIT is suitable for:

• Mechanical engineering
• Metallurgy
• Carpentry
• Parts manufacturing
• Quality control
• Prototype design
• Electronics
