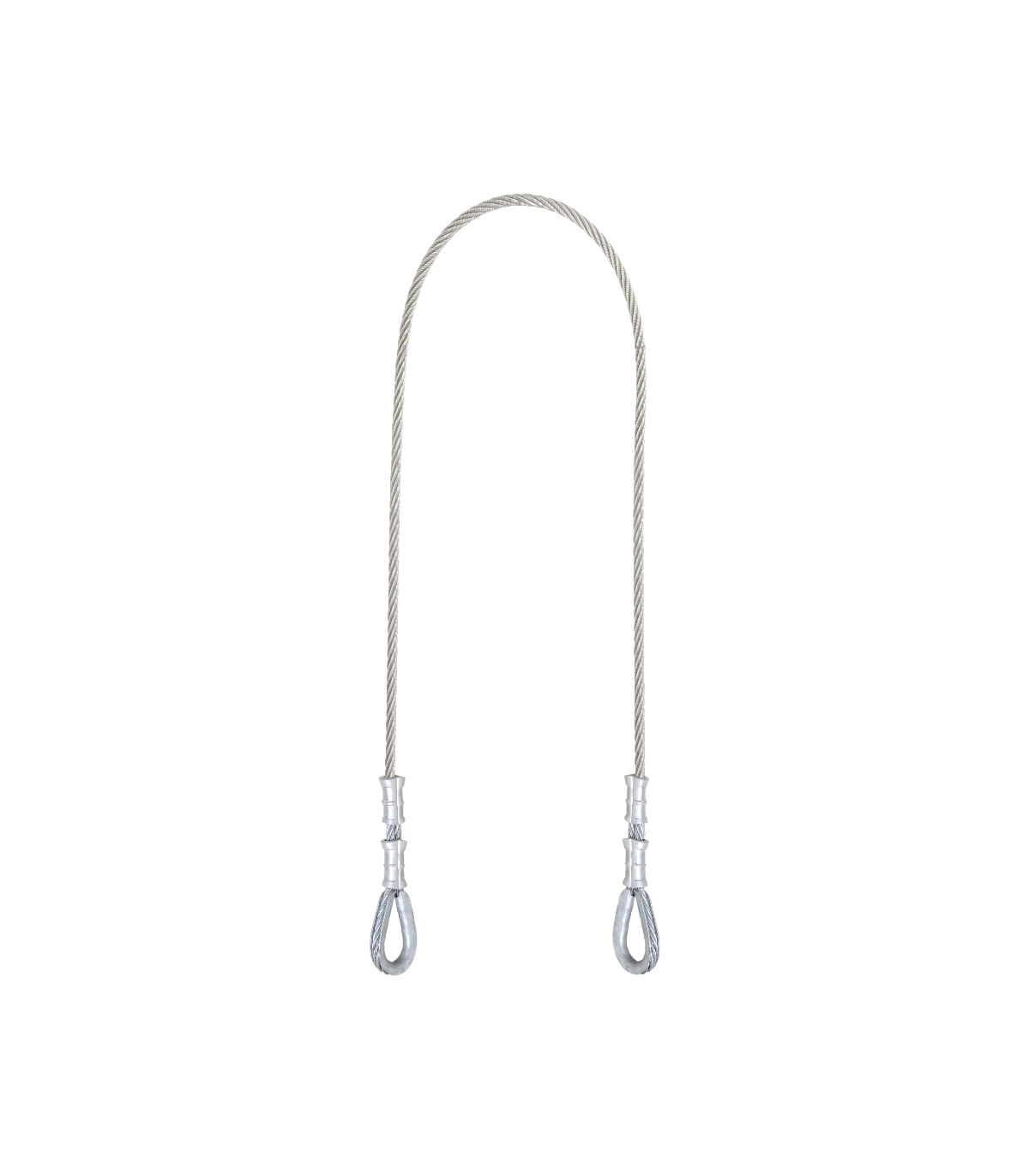

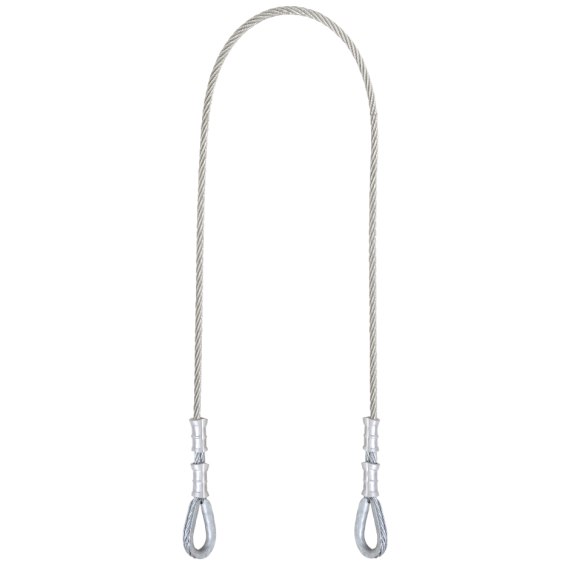

8mm diameter steel cable anchor with IRUDEK guardrails Cta 14

This anchorage cable is made from 8mm stainless steel cable.

Its lightness, versatility, and different sizes make it the most widely used and versatile anchorage.

The Anchorage Tape is a mobile anchorage point used for connection in a fall protection system. It is very suitable in work areas where there are beams and horizontal pipes or other structures where it can be installed as an anchorage point.

FEATURES

• IRUDEK CTA 14/1.5
• 8mm diameter steel cable anchorage
• End caps on the ends
• Length 1.5 meters
• WEIGHT: 625 grs.

TECHNICAL DATA

Static resistance: 22 kN

Measurements: 1.5m

Diameter: 8mm

PACKAGING DATA

• WEIGHT: 625 grs.
• Units/box: 1

MATERIALS

• Cable: Stainless steel
• End cap: Steel

TECHNICAL DATA

• EN 795B

SERVICE LIFE

The estimated service life of the equipment is 11 years from the date of manufacture (1 year of storage and 10 years of use). The following factors may reduce the product's service life: intensive use, contact with chemicals, particularly aggressive environments, exposure to extreme temperatures, exposure to ultraviolet rays, abrasion, cuts, strong impacts, or improper use and maintenance. The mandatory annual inspection will validate the correct functioning of the equipment.

It is mandatory for the equipment to be examined by the manufacturer or an authorized person at least once a year. In the event of a fall, the equipment must be removed from use.
