Iruladder: the certified ladder for maximum protection at height

The Iruladder ladder is an innovative and unique solution in the market to ensure the safety of workers. It stands out for being the only ladder on the market with EN795-B anchoring system certification.

It features a top anchoring point for fall protection and a lower one for rescue (optional), making it an indispensable tool in case of emergency. Additionally, the ladder is designed to be lightweight and durable, thanks to its manufacturing in polyester and fiberglass reinforcements.

With a maximum working height of 6 meters, this ladder is suitable for various environments and surfaces, making it an essential tool in any work at height environment.

The available accessories for the ladder allow for its adaptation to the specific needs of each worker, providing a personalized solution for each task to be performed. These accessories are sold separately.

The Iruladder has been designed with a top anchoring point for fall protection and another lower point for the rescue system (optional), which in case of a fall, allows a colleague to perform a quick and easy evacuation without the need to add any accessories for it.

The Iruladder anchoring system is made of polyester and reinforced with fiberglass, giving the ladder unique lightness and strength in the market. Its maximum working height is 6 meters.

FEATURES

IRULADDER is an EN795-B ladder anchoring system, made of polyester reinforced with fiberglass, providing the ladder with unique lightness and strength in the market.

Manual extendable ladder that has two PR07 anchoring rings, on the top and bottom rungs, allowing the user to work safely and perform rescues in case of a fall.

BENEFITS

The system comes equipped with a positioning rope to be positioned over a secure post.

The ladder is insulating against electrical and thermal agents, non-magnetic, and resistant to moisture, acids, corrosion, etc...

Iruladder has recently been certified for use without any external support by incorporating the 4 stabilization legs. This guarantees safety and effectiveness in working at height for operators.

APPLICATIONS (accessories sold separately)

Suitable for different usage environments and has various accessories to adapt it to different surfaces.

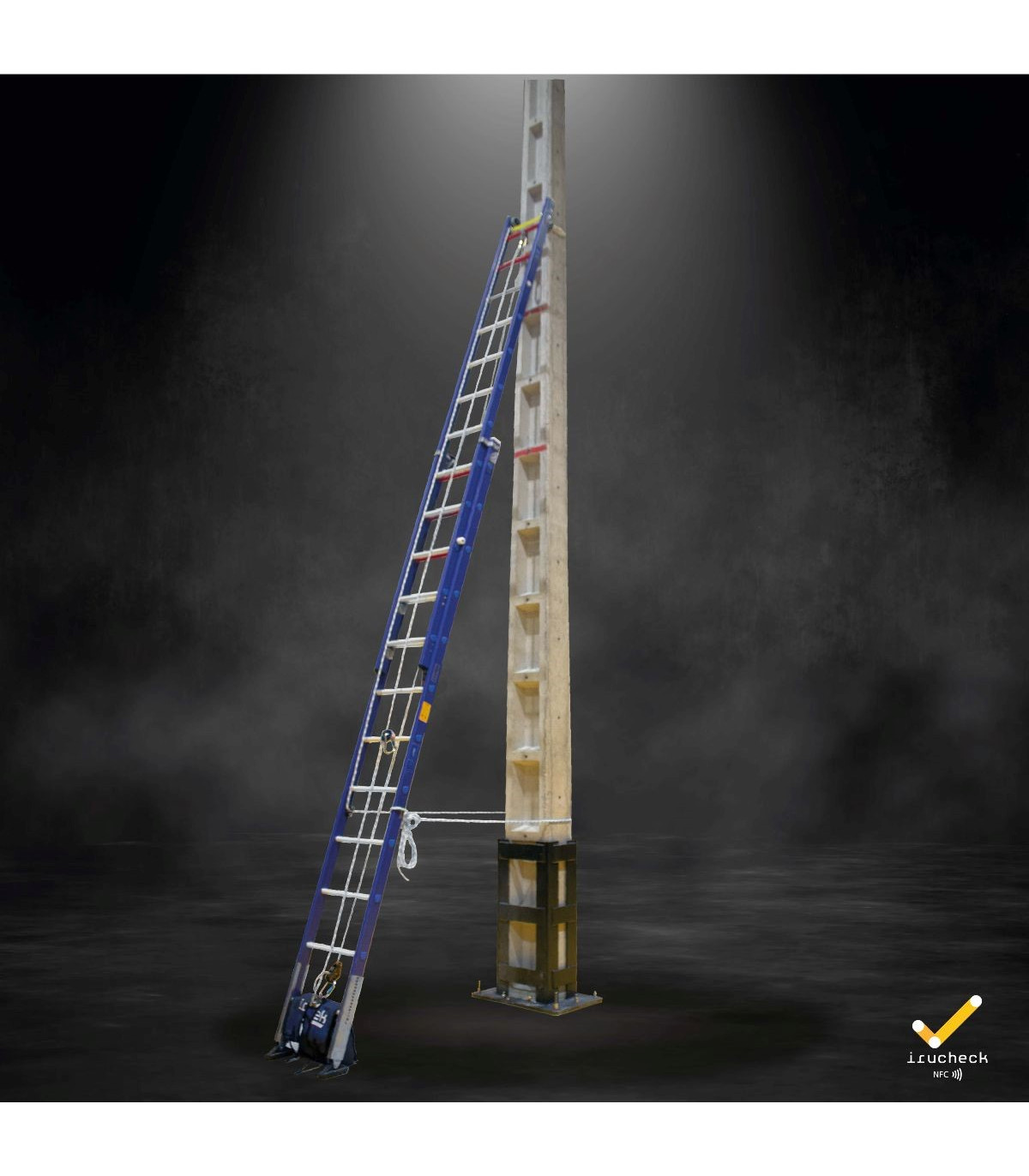

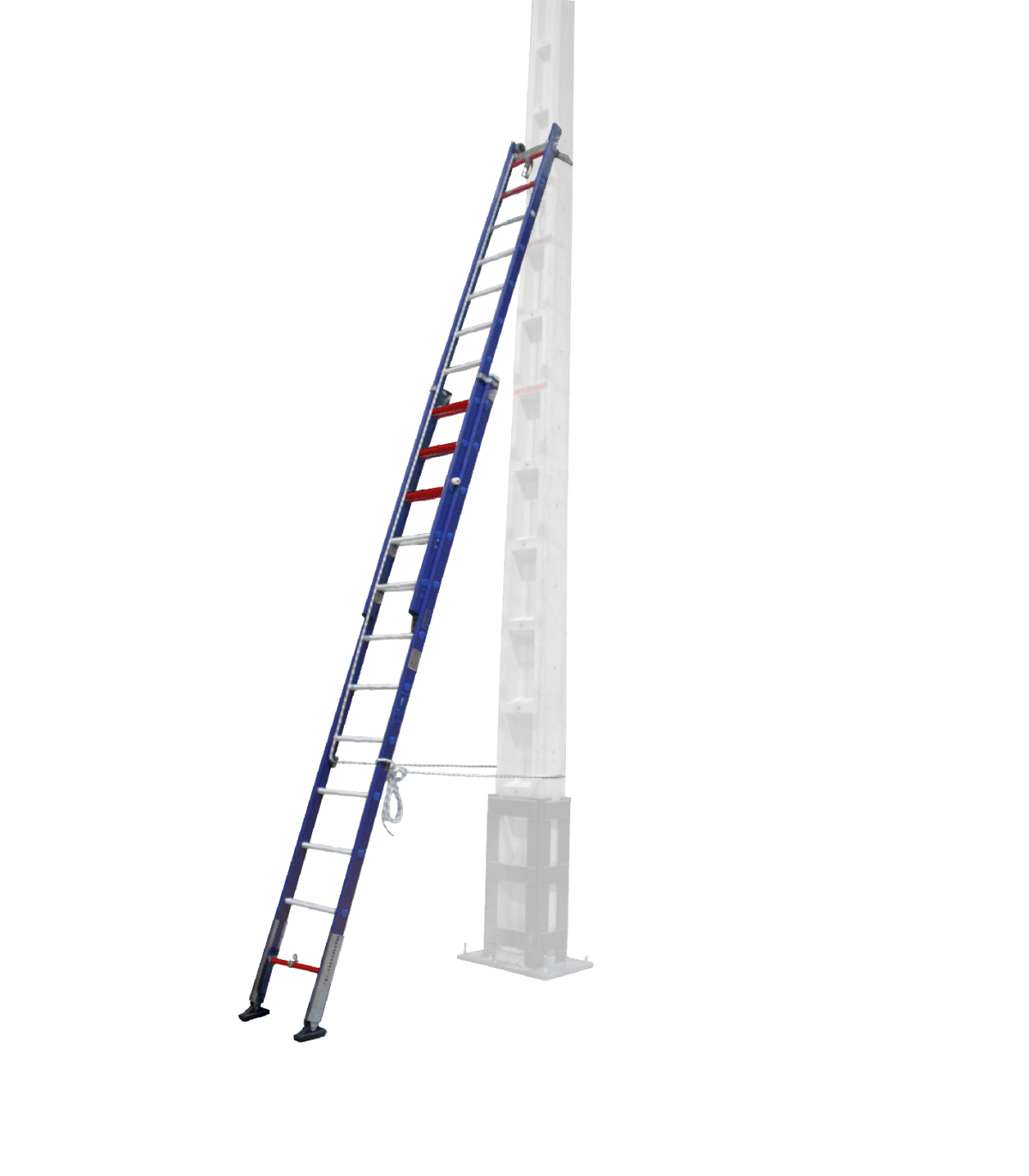

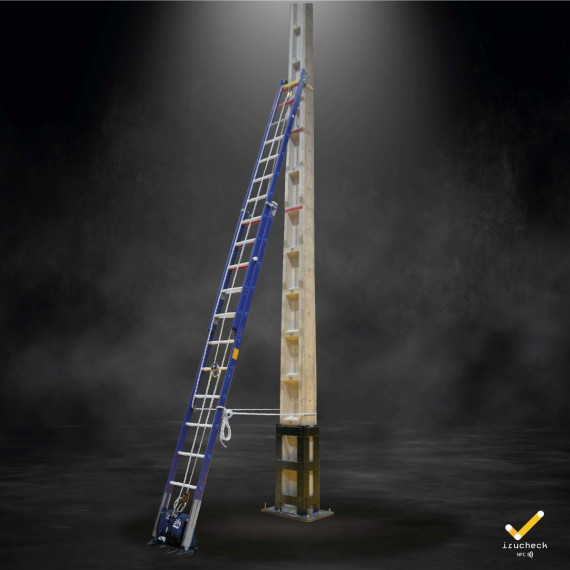

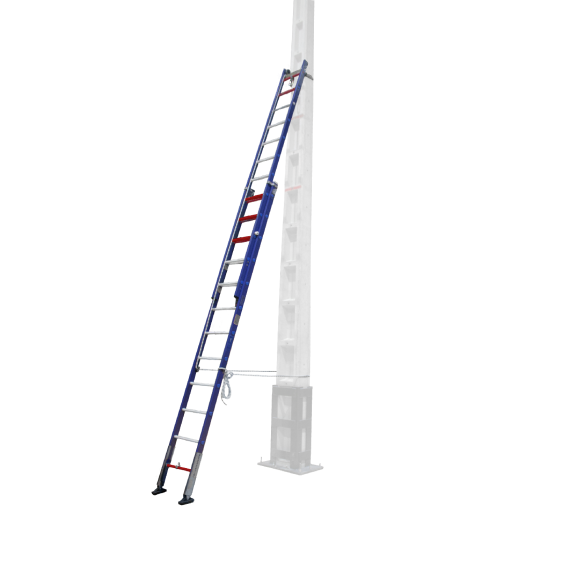

Secure posts or structures: Equipped with a rope for direct stabilization to the post. In case of a fall of the worker, the Iruladder will catch the fall (with EN353 or EN360 connection system).

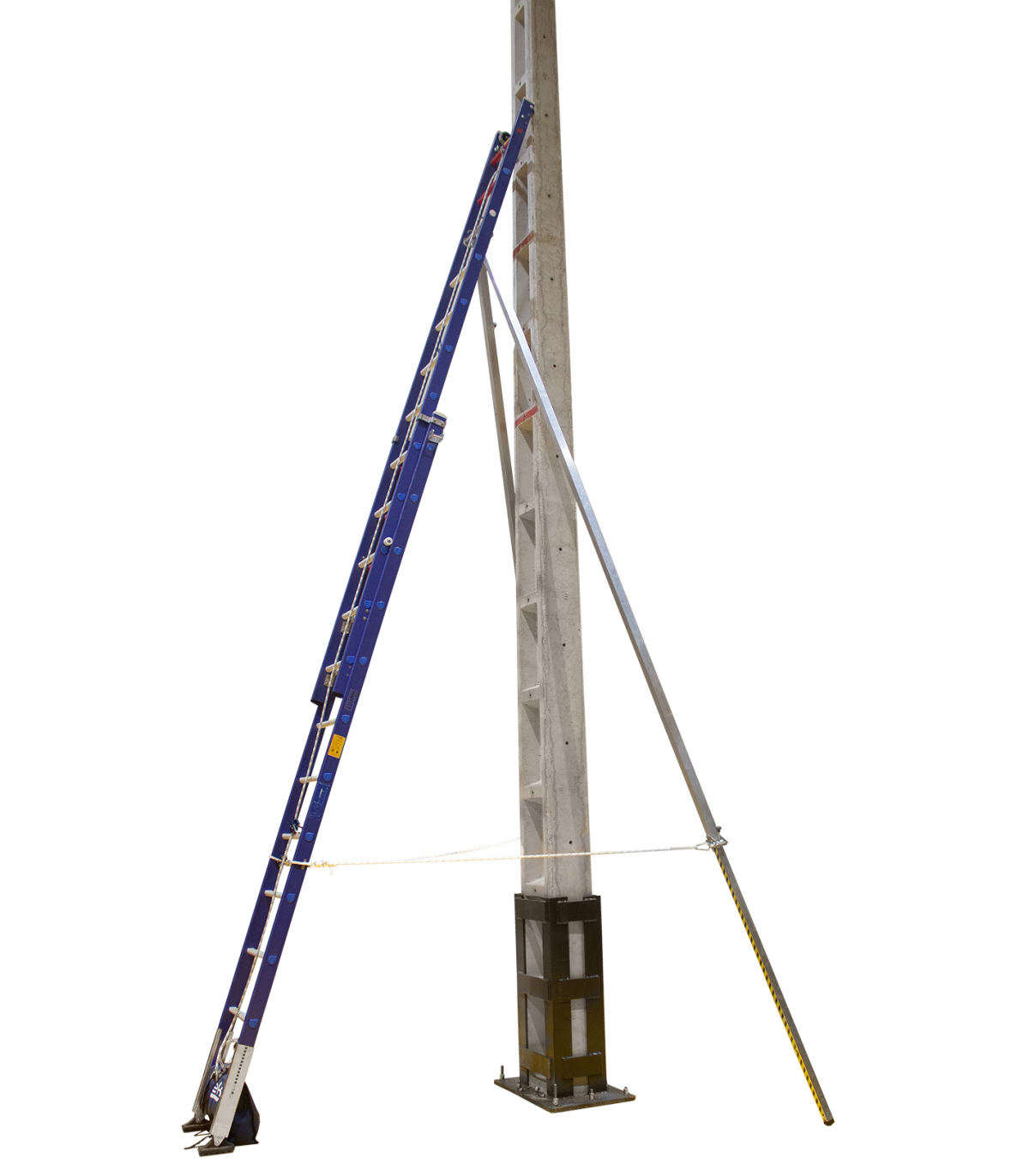

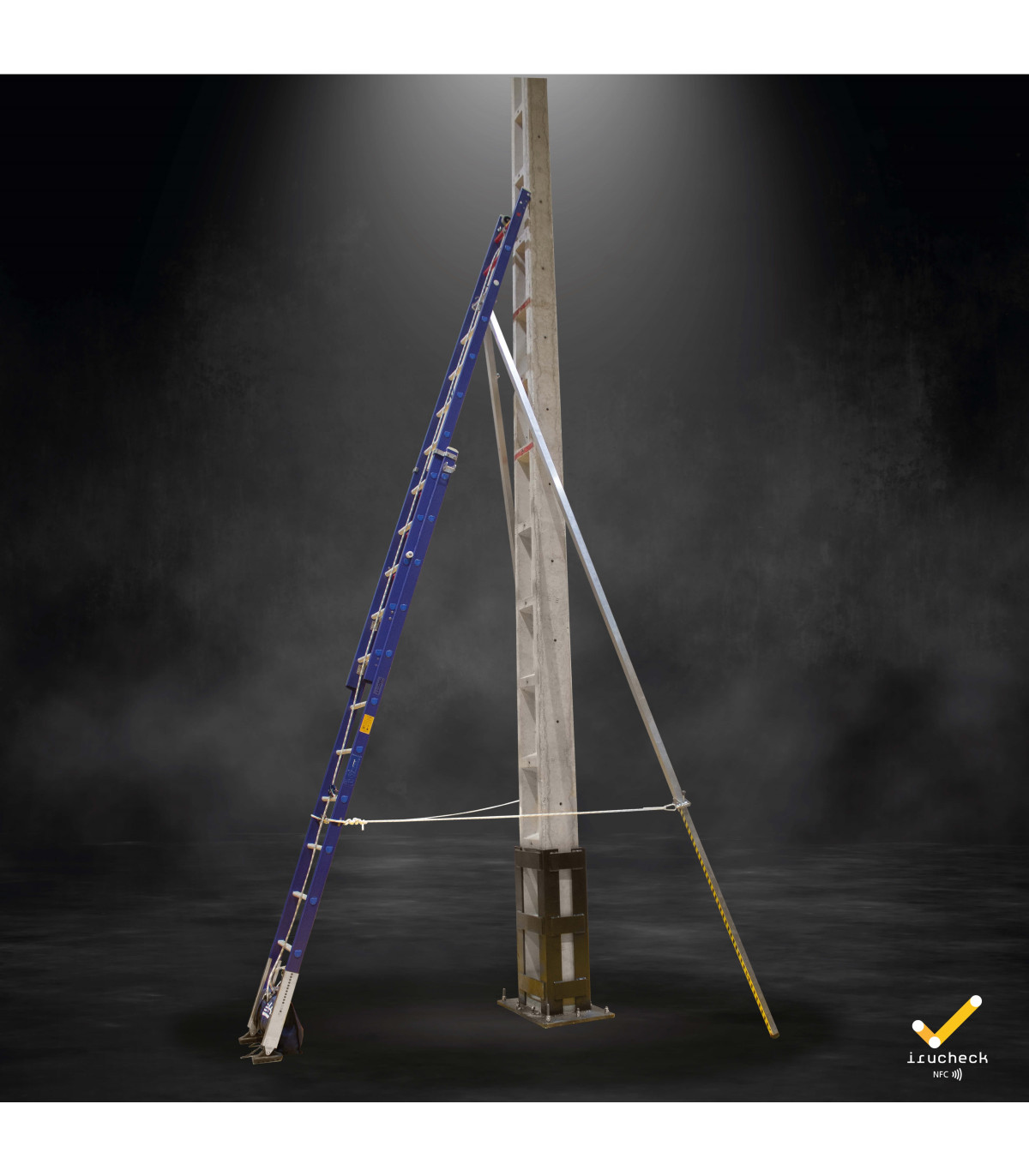

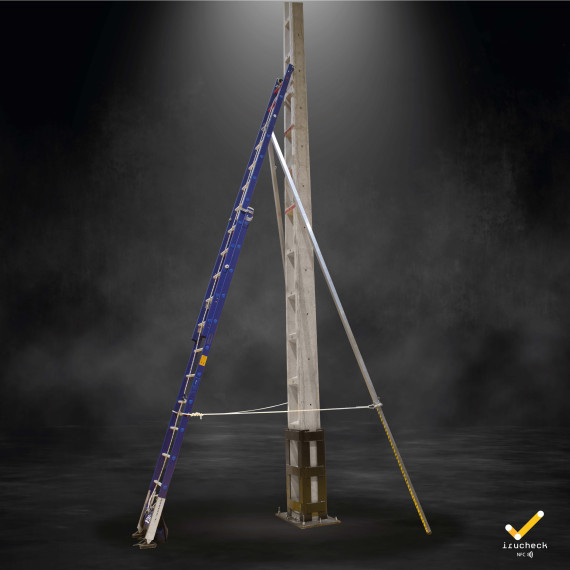

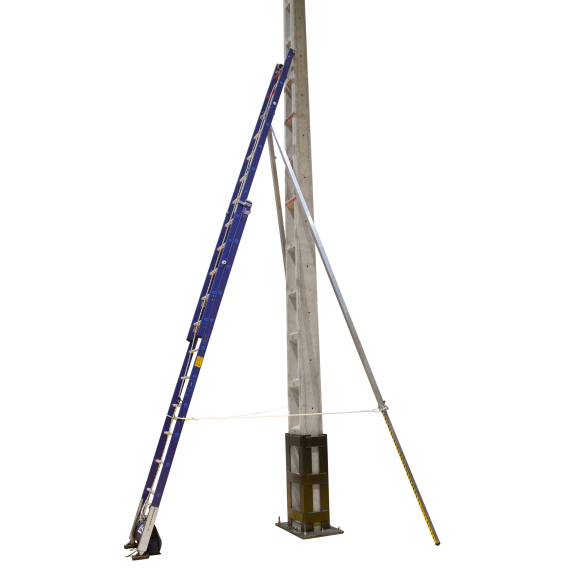

Unsafe posts or structures: Tripod legs: a system of two angled legs for use on unsafe posts or structures for work. In case of a fall of the worker or the post/structure, the Iruladder will catch the fall (with EN353 or EN360 connection system).

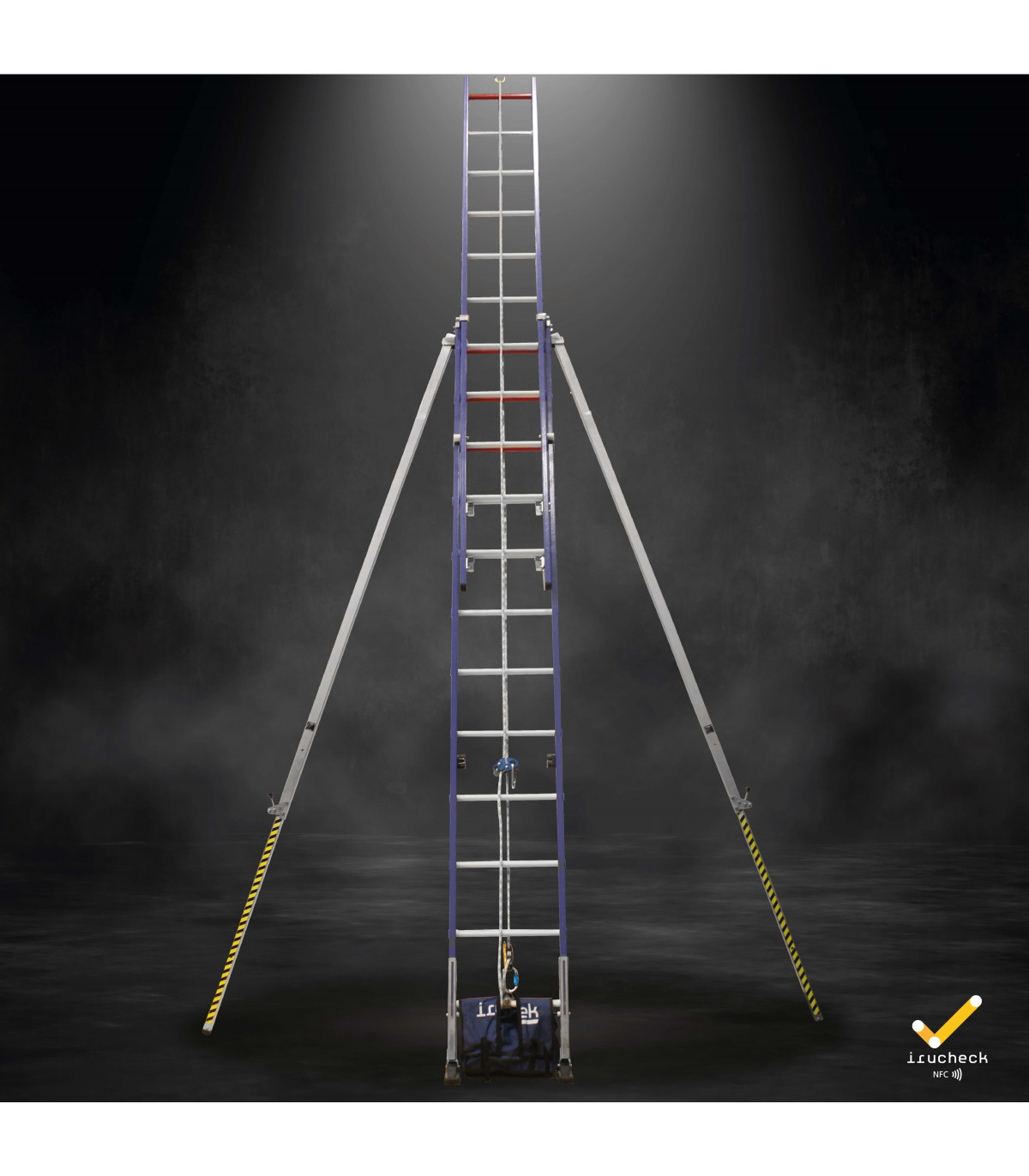

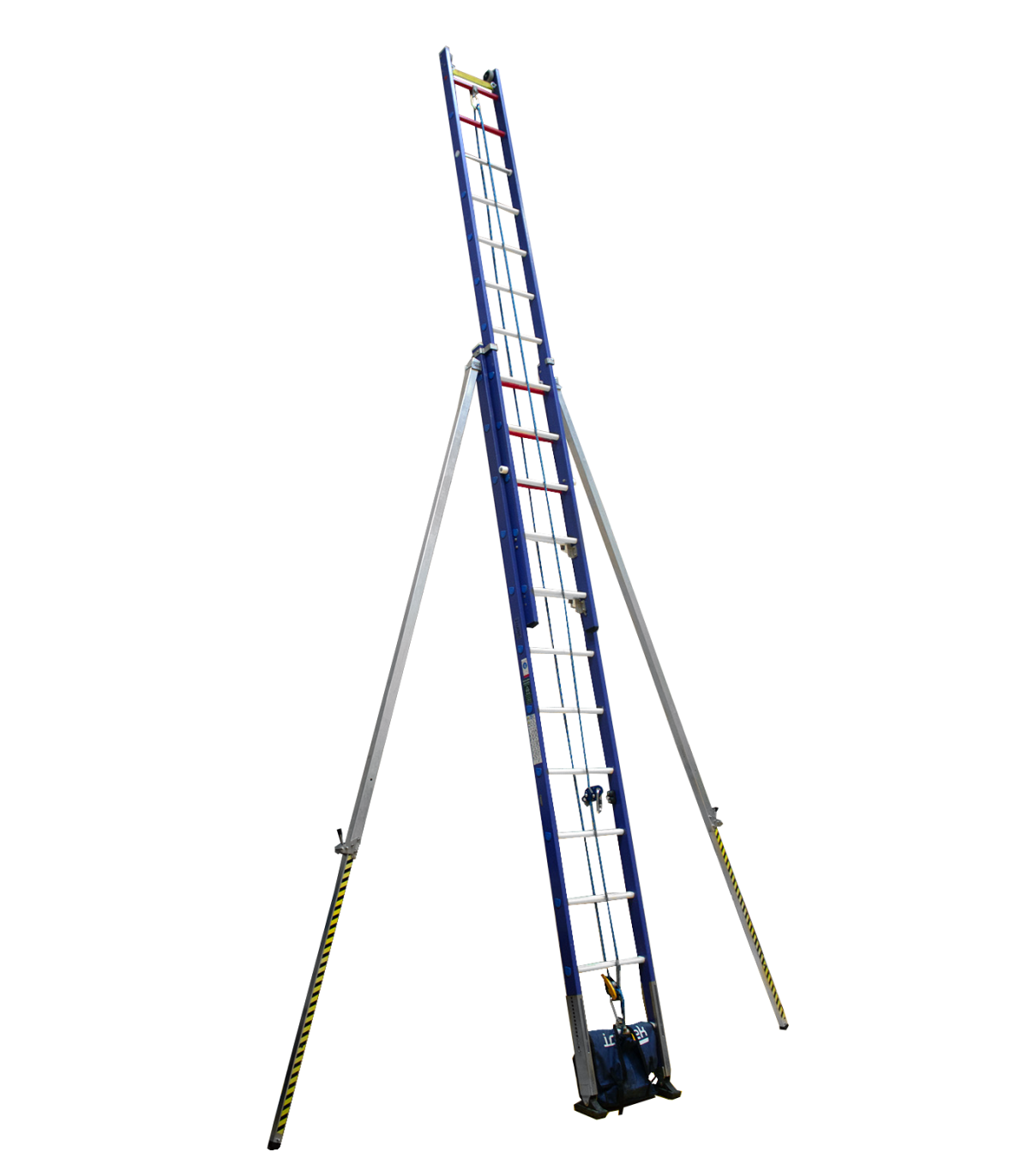

Wall or facade: Side legs: a system of two side legs for use on walls or facades. In case of a fall of the worker, the Iruladder will catch the fall (with EN353 or EN360 connection system).

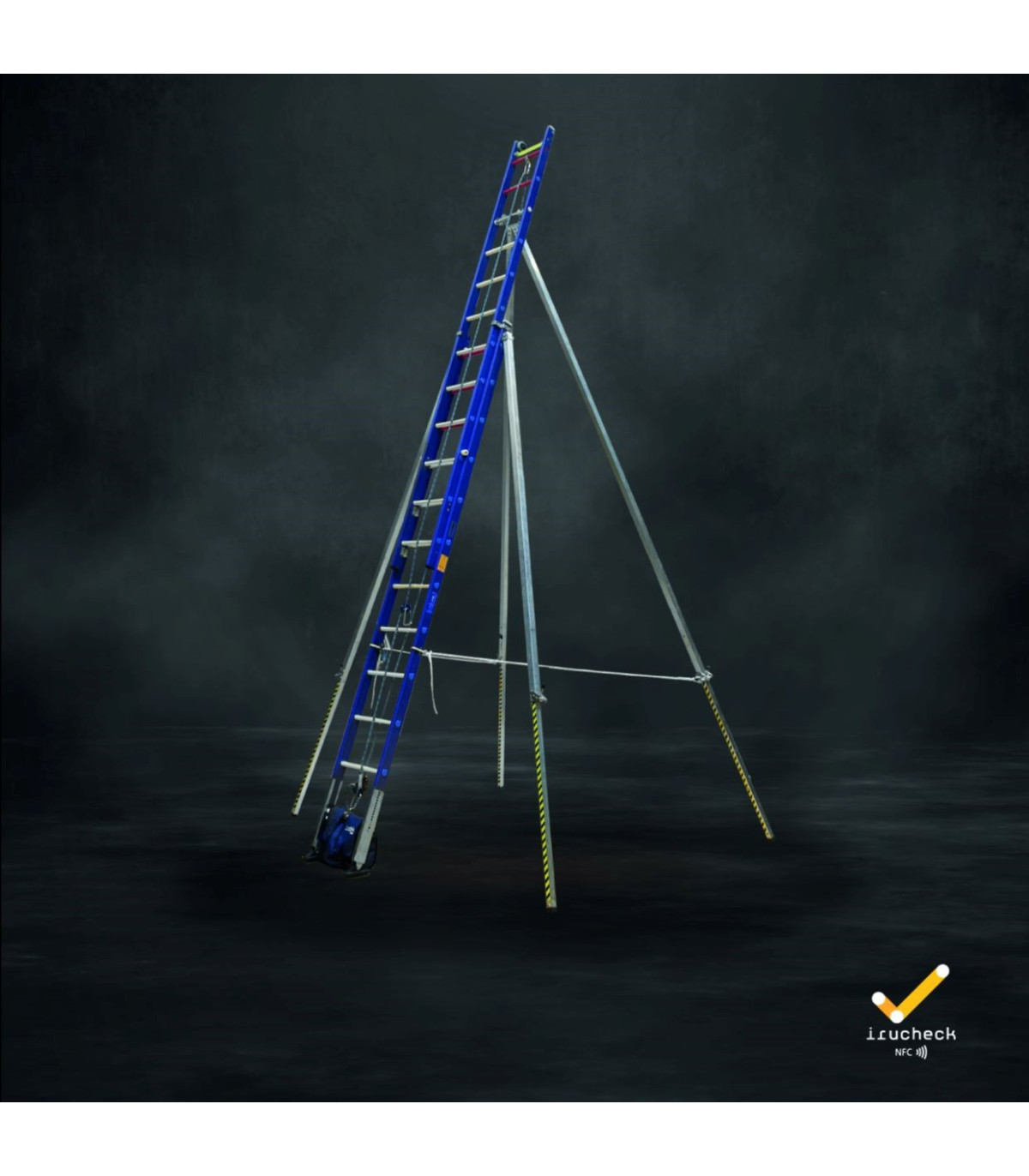

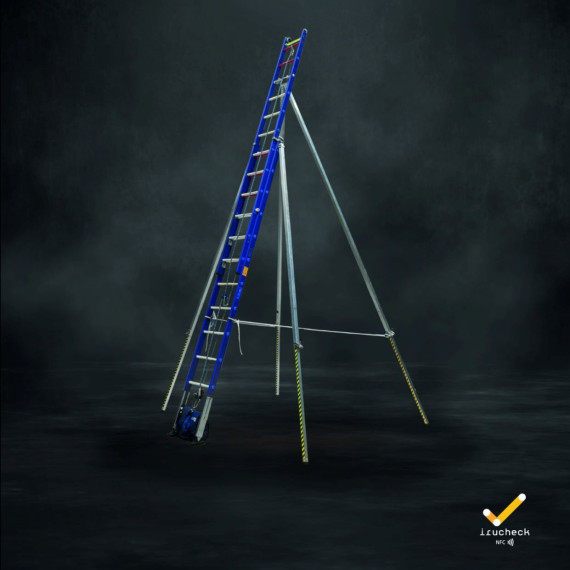

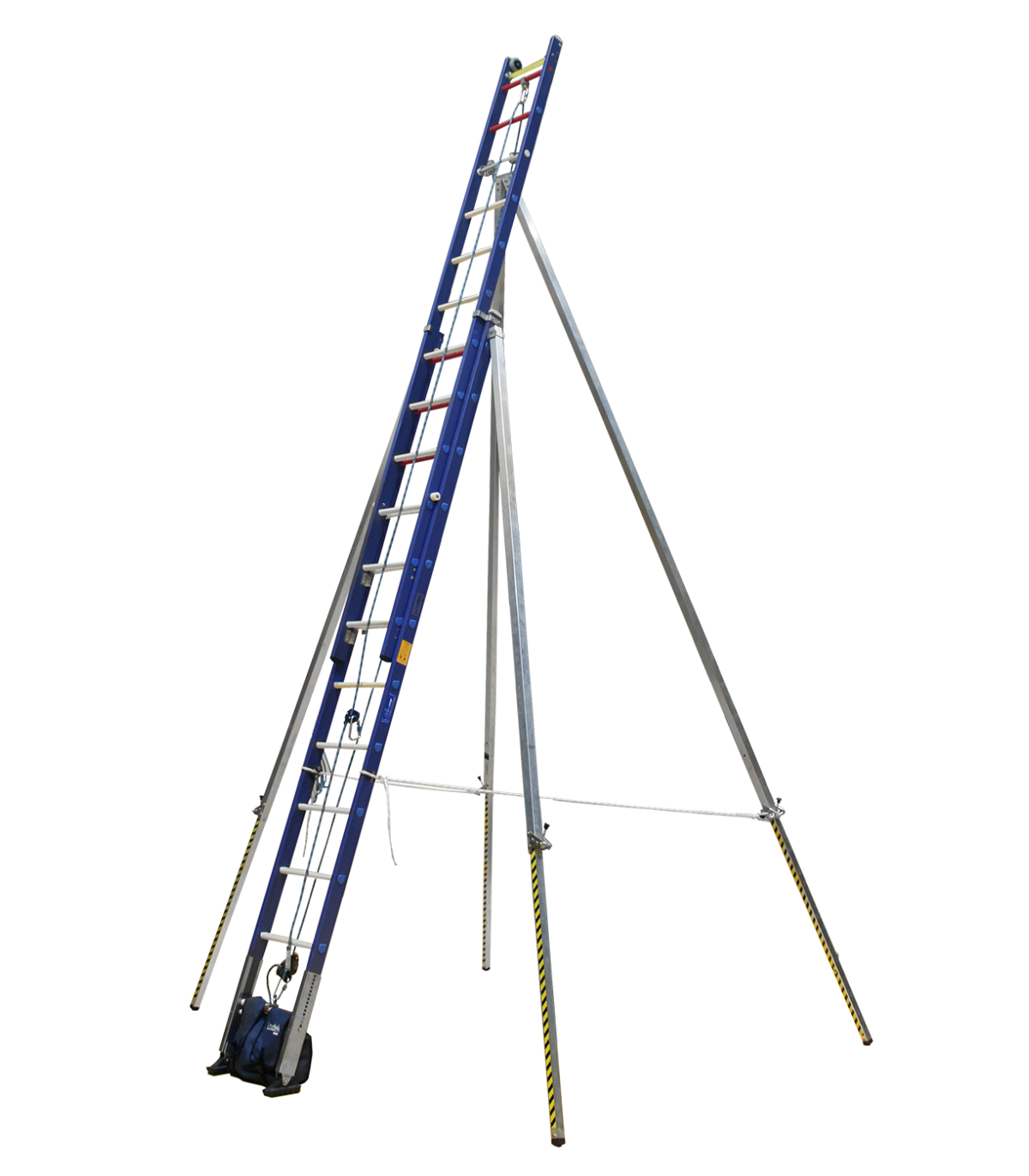

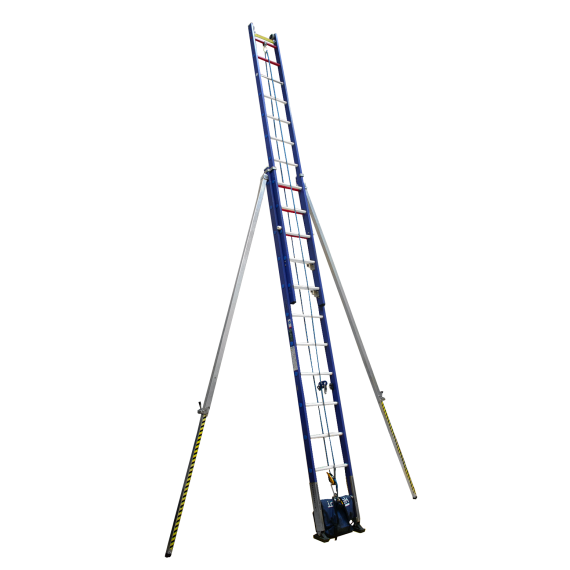

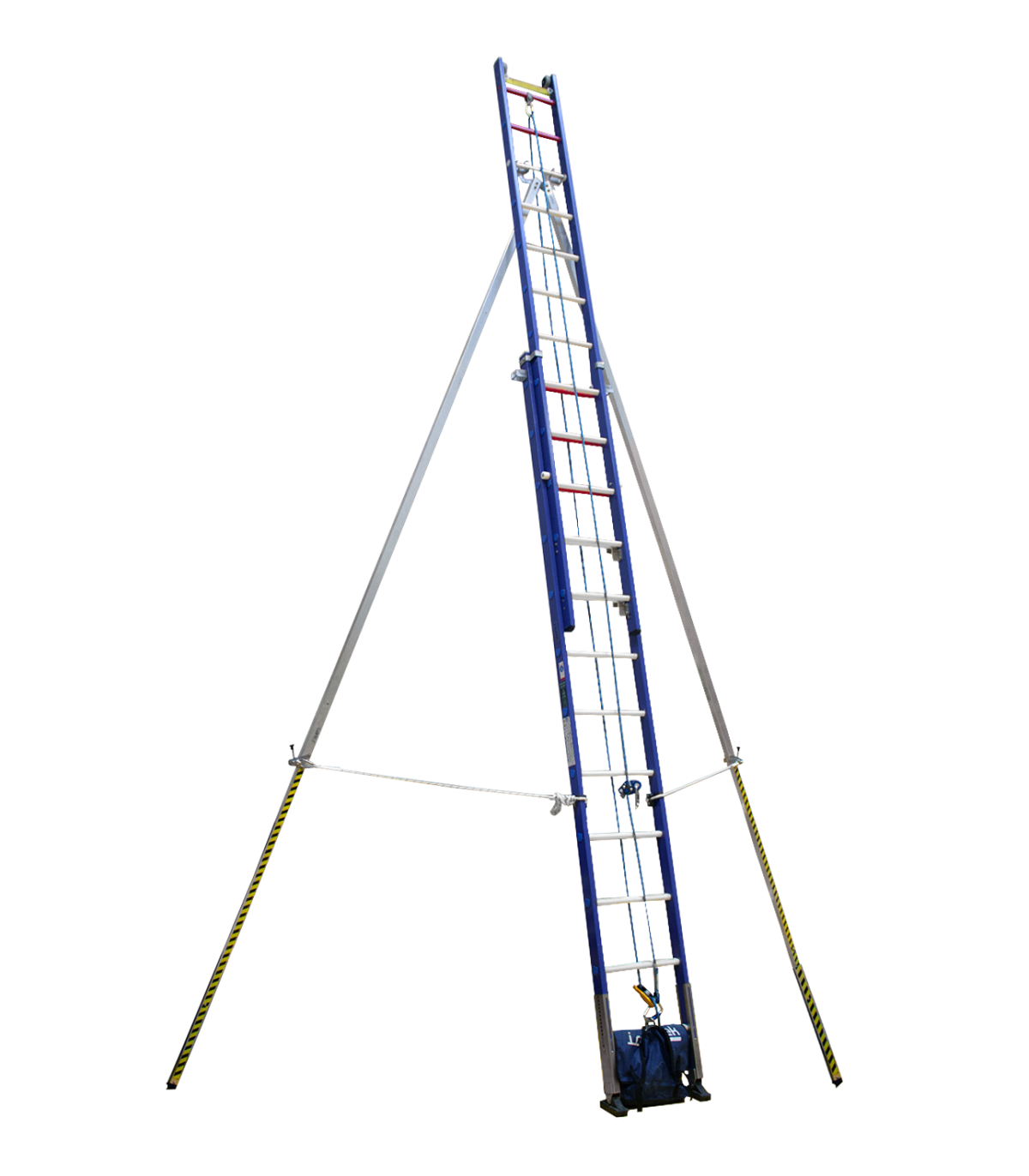

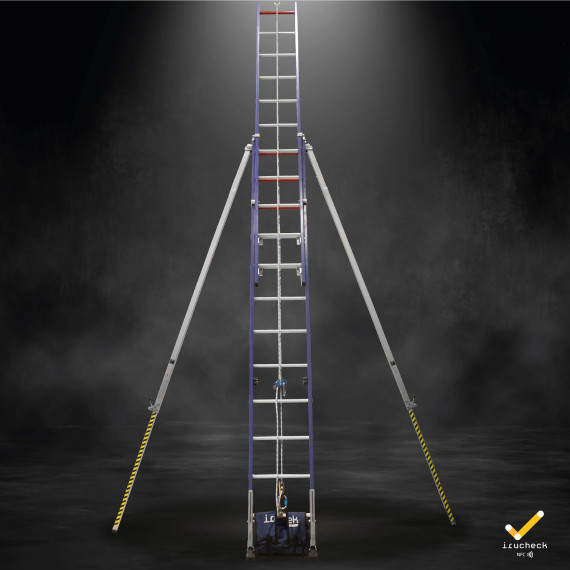

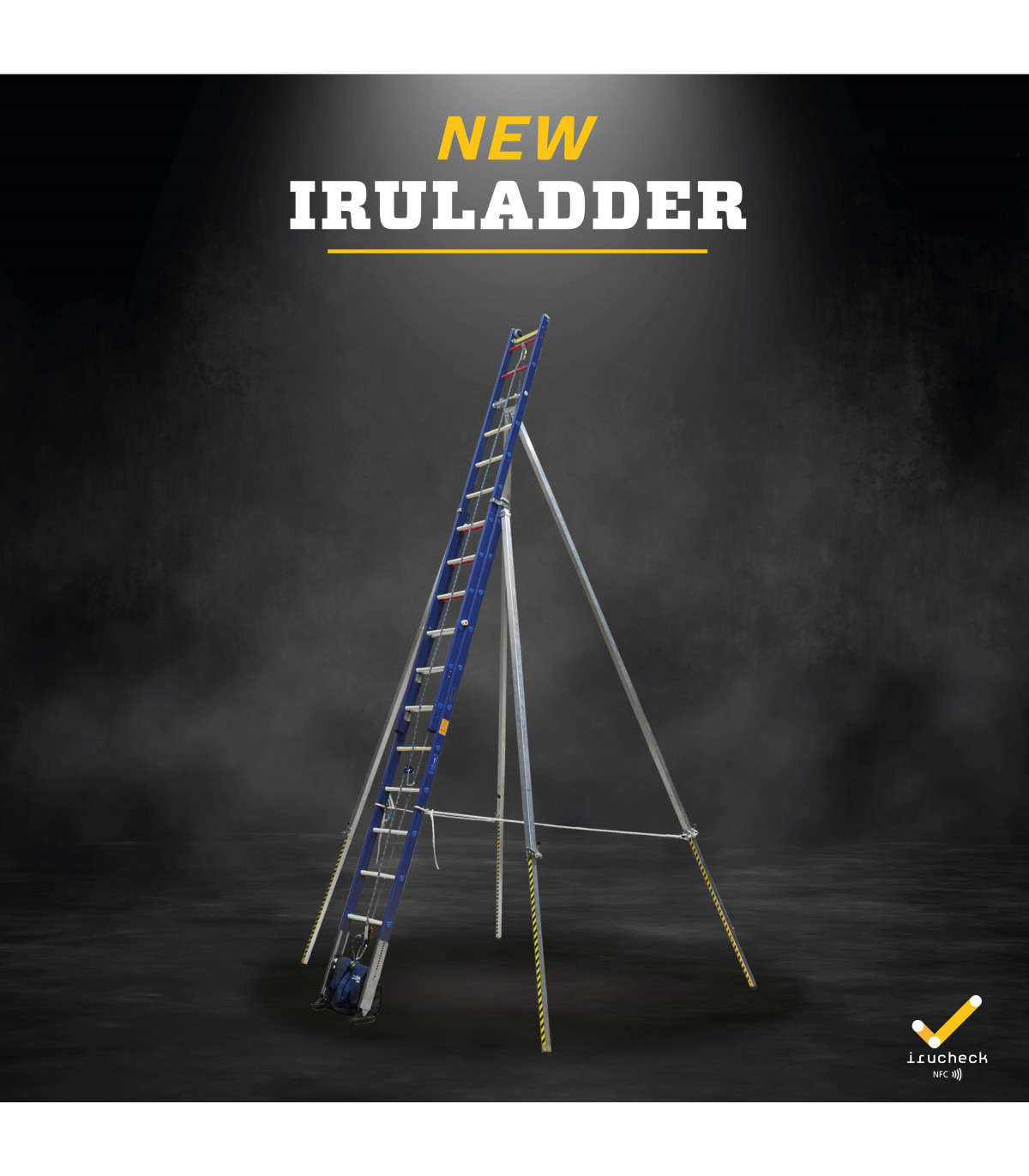

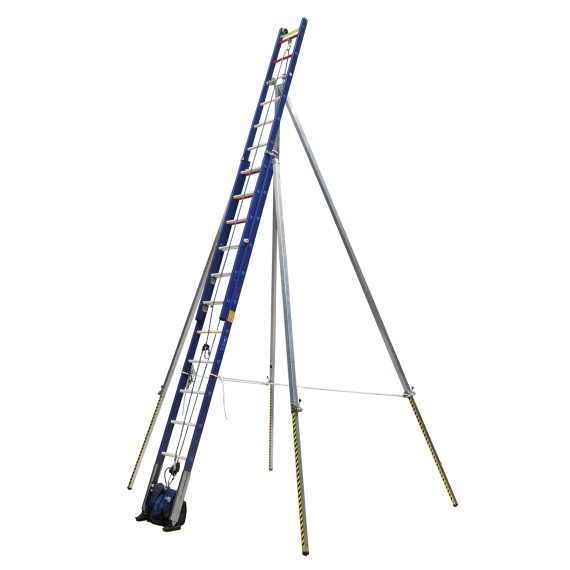

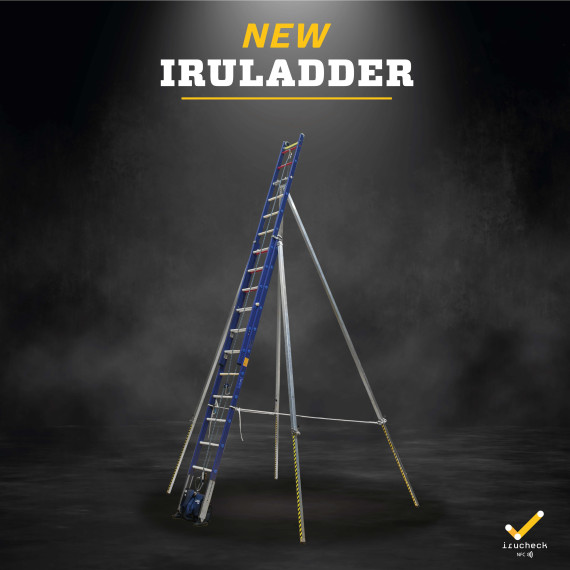

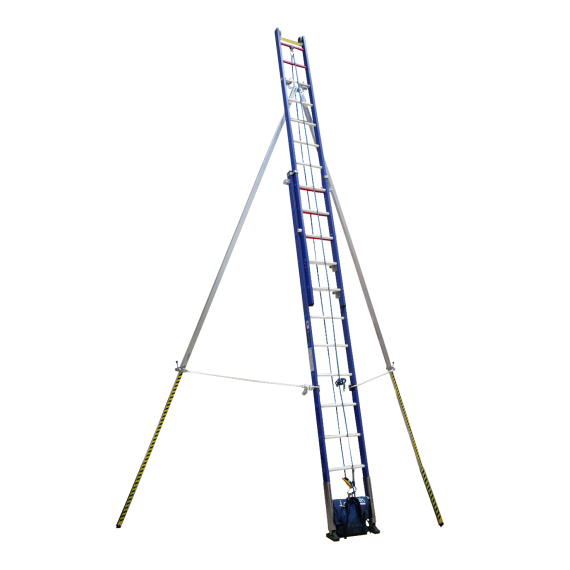

4 legs: This 4-leg system allows, using the 4 available legs for lateral use and insecure post, to create a safe anchoring system for use without any support and certified as a complete EN795-B system. The 2 pairs of legs for posts + wall are used.

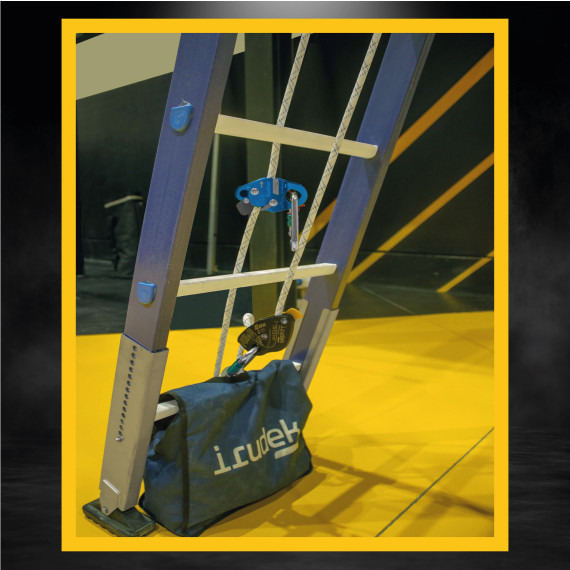

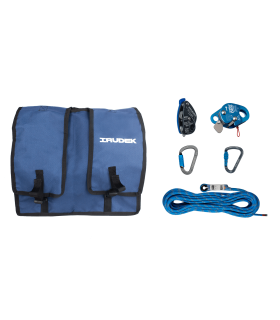

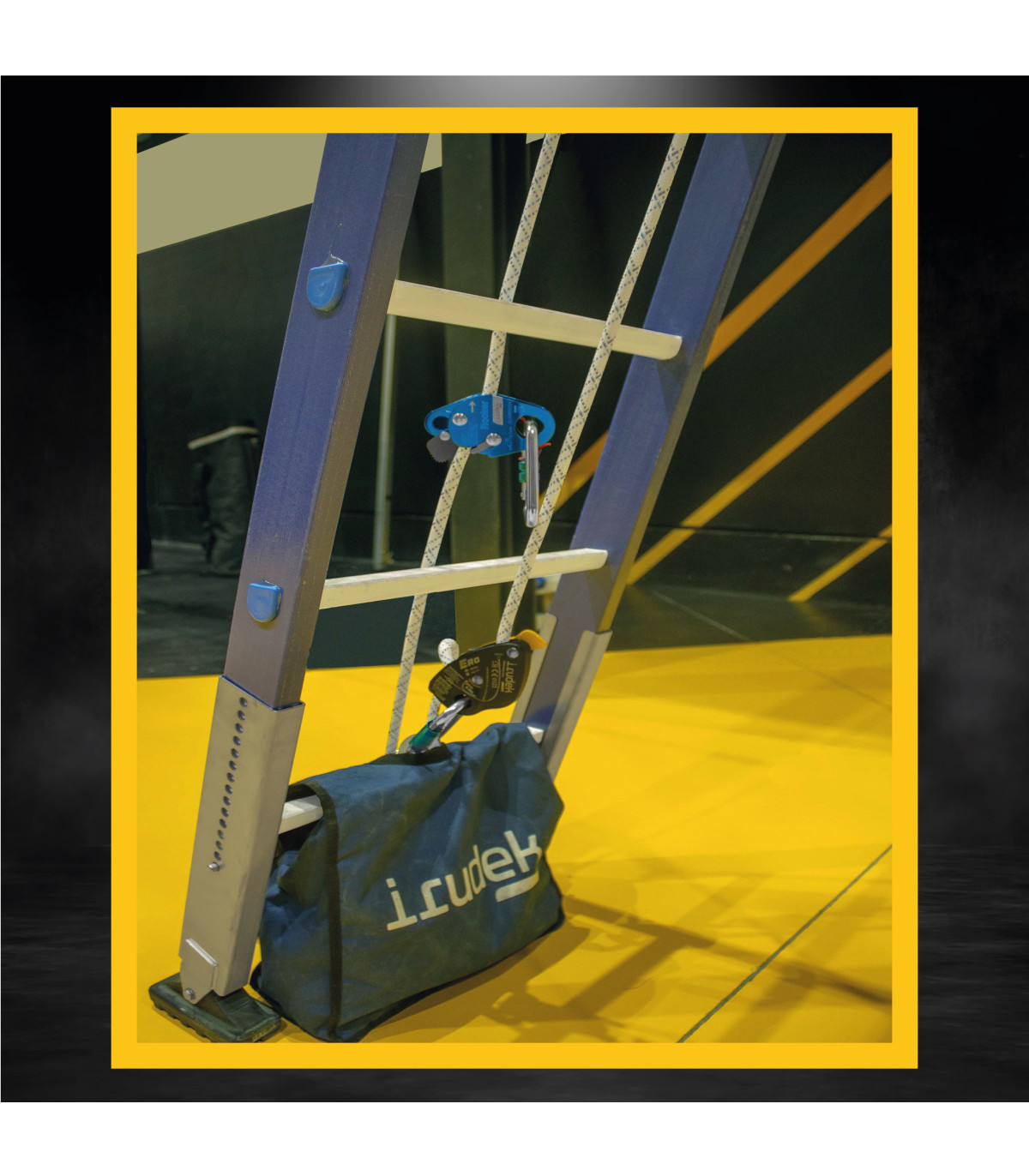

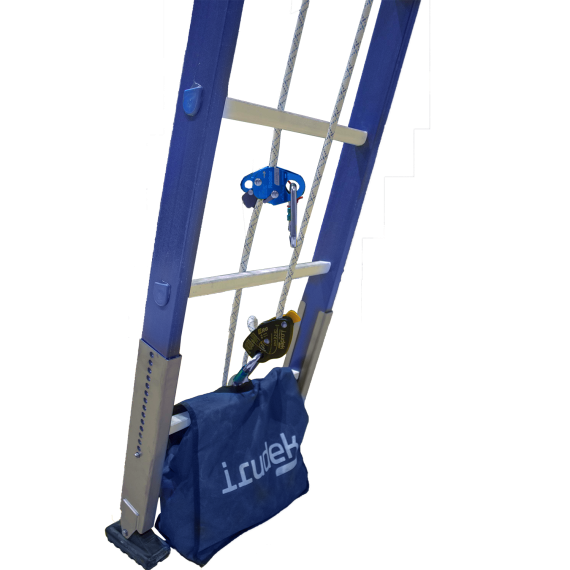

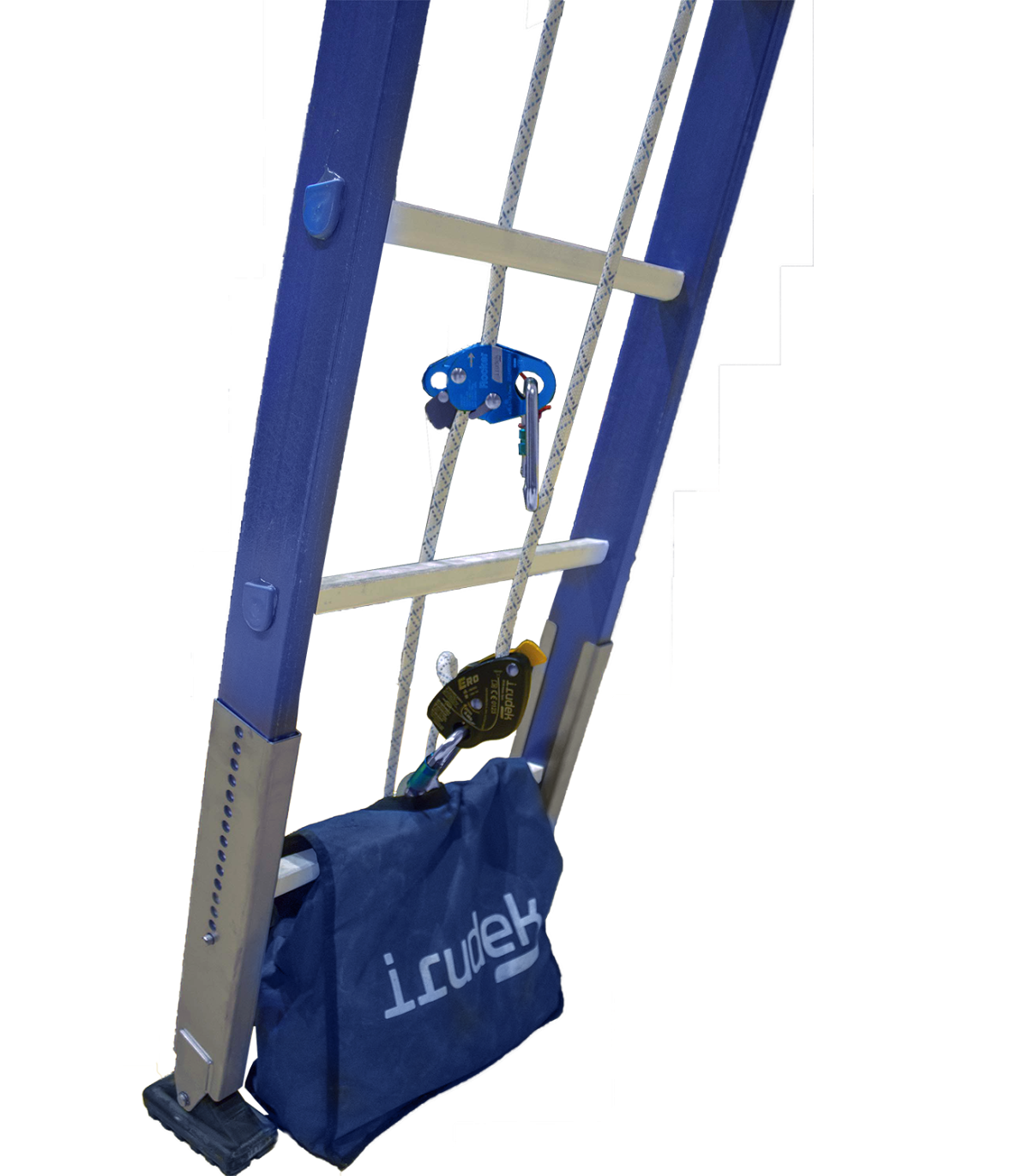

Rescue: Rescue kit: the kit consists of a Boa rope, Rocker fall arrest device, and Ero descender. In case of a fall of the worker, their colleague will only need to pull the lever of the descender to evacuate them quickly and effectively. Designed exclusively for use in the Iruladder system.

TECHNICAL DATA

• Standard: EN 795-B, EN 131, EN 50528, EN 61478
• Insulation: 100Kv
• Distance between rungs: 28cm
• Rung: 30mm
• Rope length: 10m
• Rung material: Fiberglass
• Material of screws and fittings: Stainless steel
• Width: 45cm
• Weight: 26 Kg
