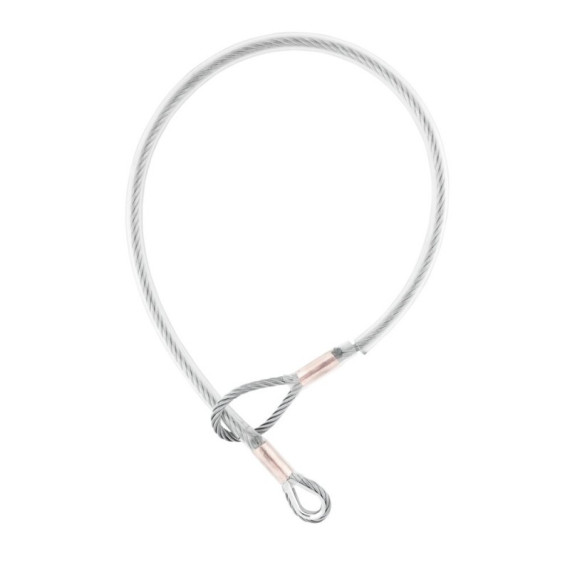

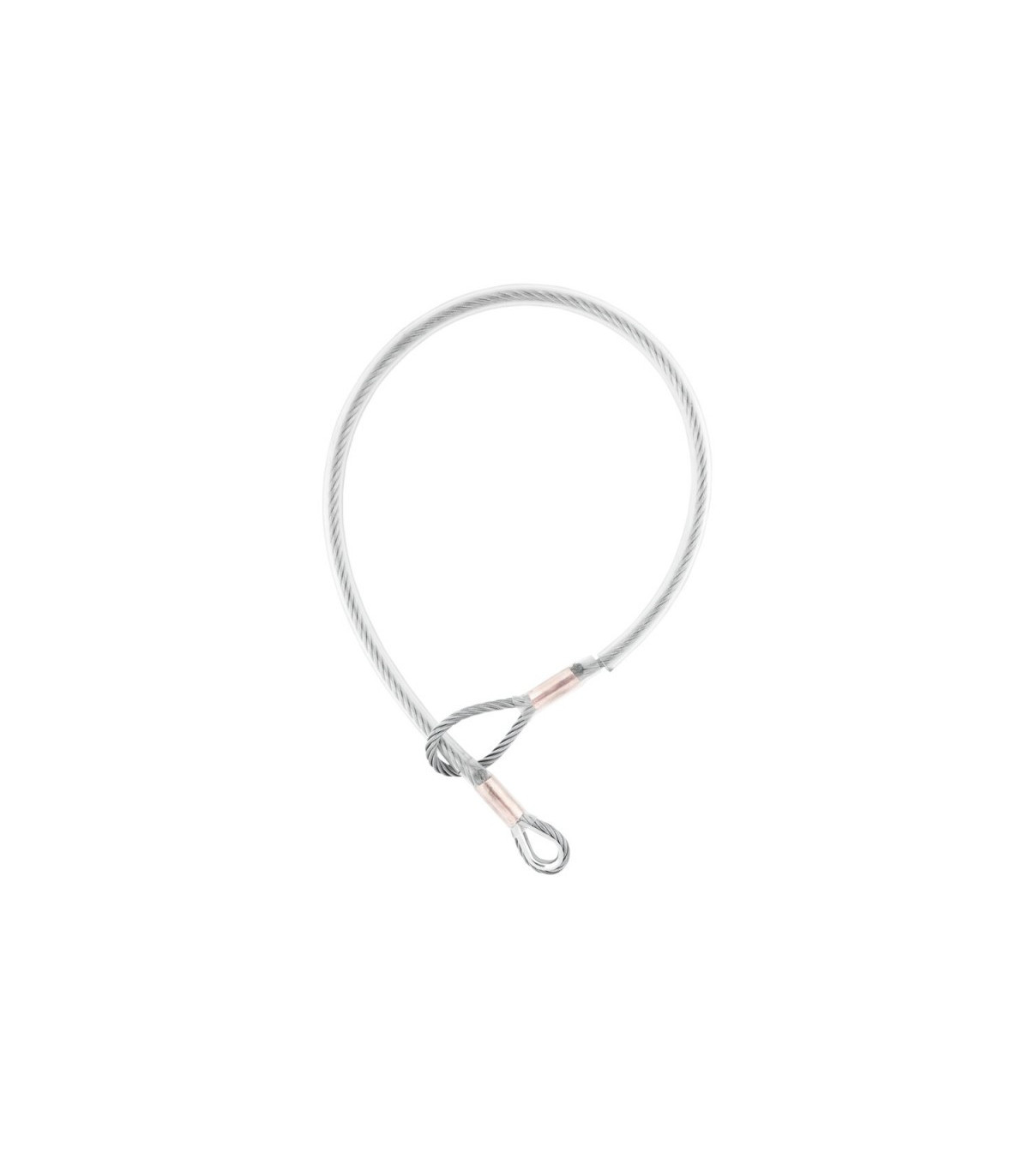

Portable steel cable tie-down anchor point SAFETOP

Portable steel cable anchor point type tie SAFETOP. The portable and temporary tie anchor device SAFETOP provides optimal safety against falls from height, being a type B anchor device that allows the damping component of the rod to be fixed to a fixed point in the structure.

With a section of stainless steel cable of 8 mm in diameter and 1 m in length, this device is finished with loops of various diameters that facilitate its use without the need for additional fasteners. Designed for a single user, it supports a static force of 30 kN and features large loops of 50 mm for secure and efficient holding.

FEATURES

• Provides optimal safety against falls from height.
• Portable and temporary type B anchor device that allows the fixed damping component of the rod to be secured to a fixed structure point.
• Stainless steel cable section with a diameter of 8 mm and a length of 1 m.
• Finished with loops of various diameters, allowing the loop to be made without the use of additional fasteners.
• Rope diameter: 8 mm
• Maximum number of users: 1
• Static force: 30 kN
• Large loops of 50mm

BENEFITS

Provides optimal safety against falls from height.

APPLICATIONS

The portable and temporary tie anchor device SAFETOP is suitable for:

• Construction
• Maintenance
• Industry
• Repair

TECHNICAL DATA

• MATERIALS: Stainless steel (ANSI 316)
• EN 795 / Type B (Fall protection - Anchor devices)

STANDARDS

- EN 795 Class B: The EN 795 Class B standard establishes safety requirements for anchor systems used in work at height, ensuring their strength and reliability to protect workers.

SERVICE LIFE

The anchor device can be used for 5 years. The rope must be removed from use immediately and destroyed when it has been used to stop a fall.
