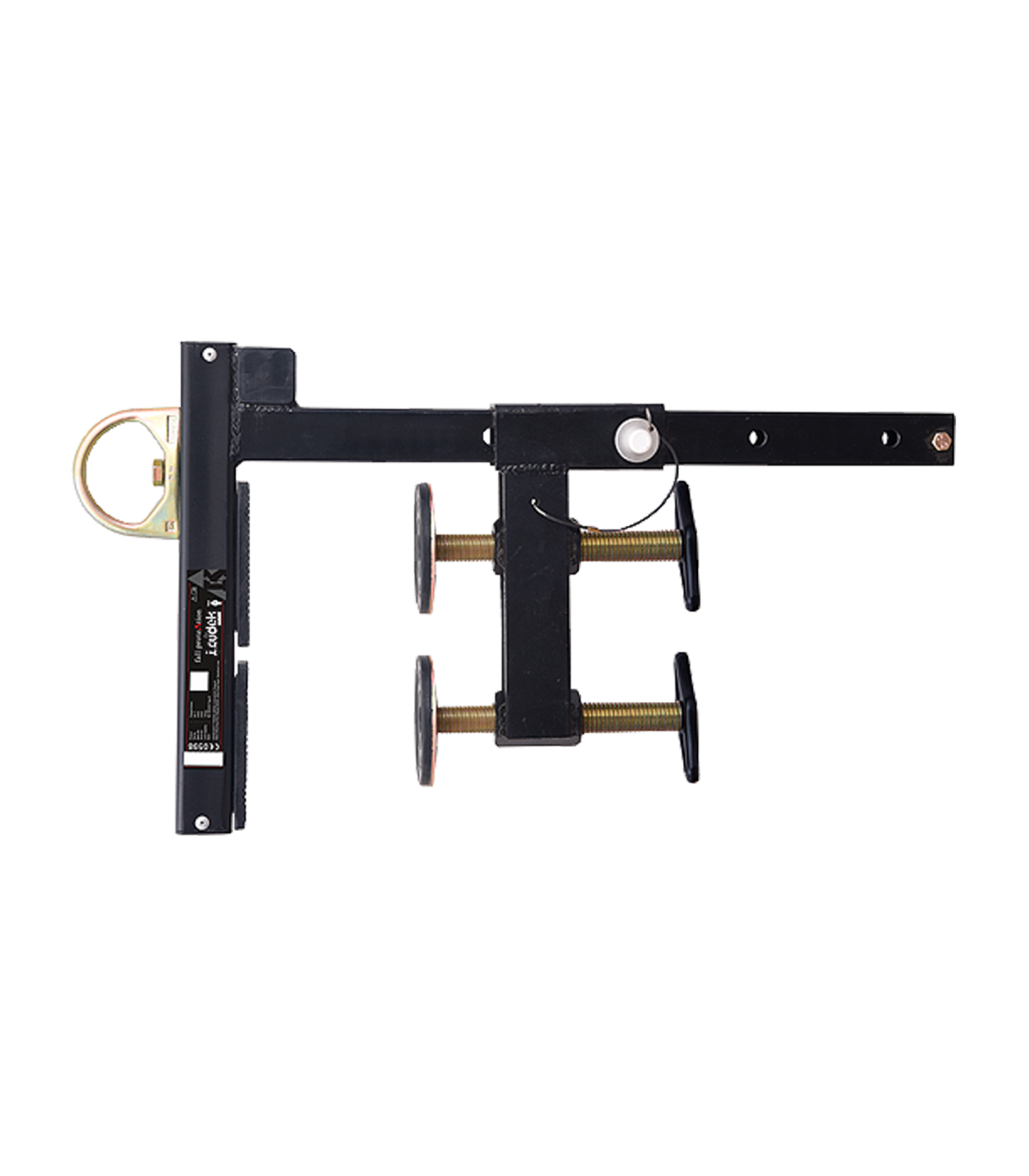

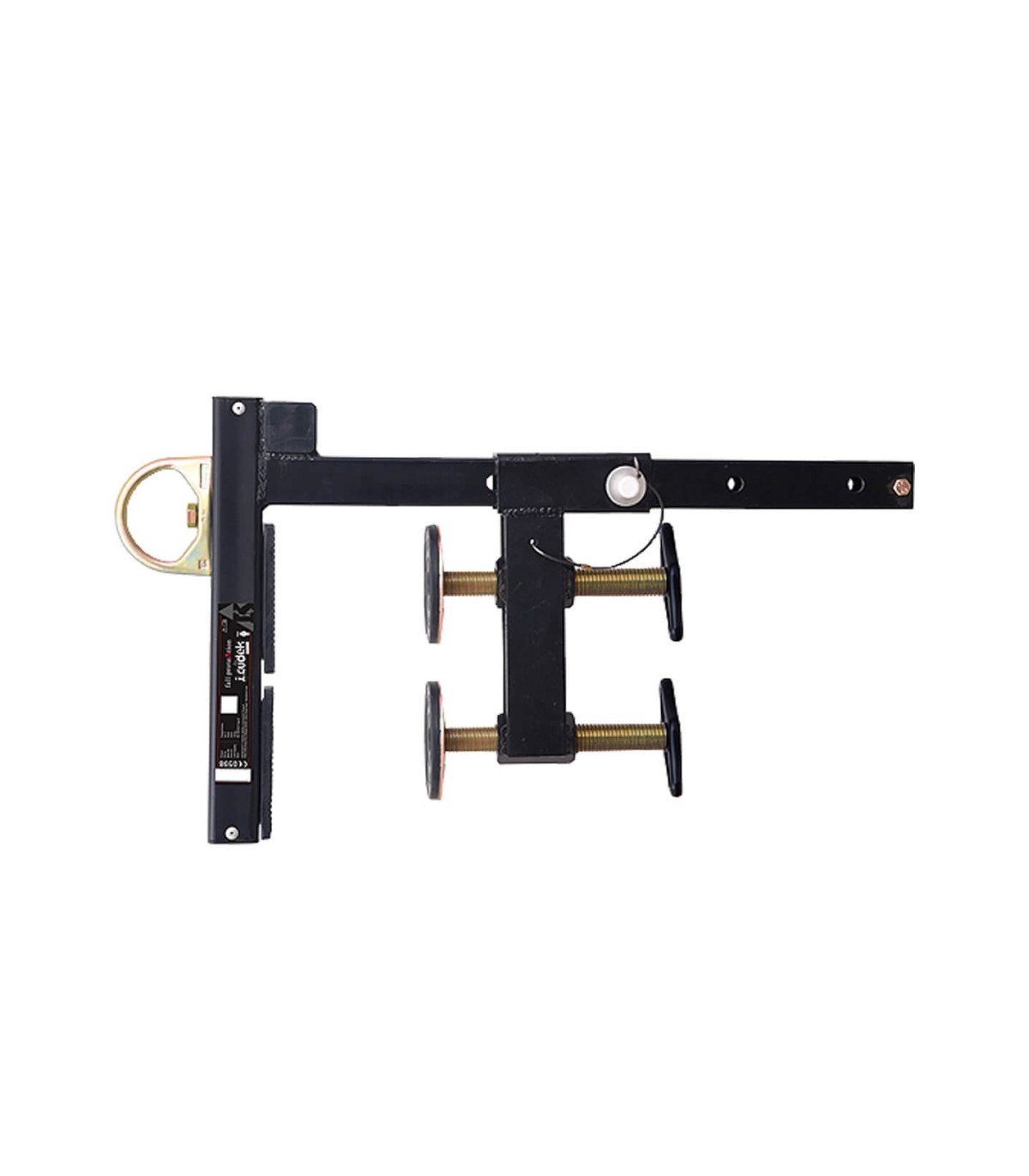

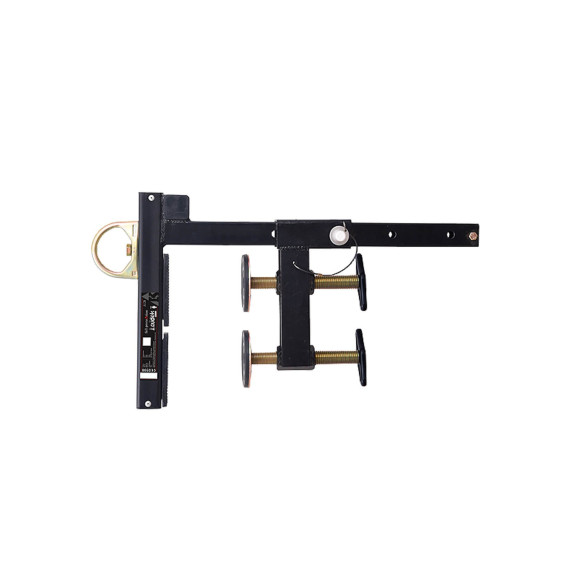

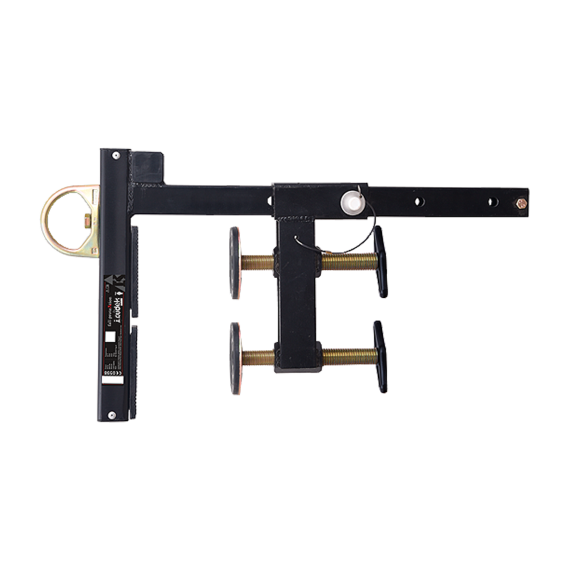

Anchor point for installation on parapet 15kN IRUDEK PRO6

Suitable anchor point for installation on building parapets, so that the anchor point is located at the top and outside of the building facade.

Suitable for installation on parapets with a minimum width of 60mm and a maximum of 360mm. It is secured to the parapet using rubber discs.

Made of high-strength galvanized steel to provide protection against corrosion.

FEATURES

• Anchor for installation on parapets of 60mm-360mm.
• Secures to the parapet using rubber discs.
• Strength: 15 kN

BENEFITS

• Easy to install
• Certified for use

TECHNICAL DATA

• Weight: 8.6 kg
• Strength: 15 kN
• Service life years: Unlimited

MATERIALS

• Device: Steel
• Anchor ring: Steel
• Fasteners: Aluminum
• Plastic devices: Rubber

APPLICATIONS

• For installation on building parapets

PACKAGING DATA

• Weight: 8.6 KG
• Units/box: 1

STANDARDS/REGULATIONS

• EN 795 B

SERVICE LIFE

The estimated service life of the equipment is unlimited. The following factors may reduce the product's service life: intensive use, contact with chemicals, especially aggressive environments, exposure to extreme temperatures, exposure to ultraviolet rays, abrasion, cuts, strong impacts, or improper use and maintenance. The mandatory annual inspection will validate the correct functioning of the equipment. It is mandatory for the equipment to be examined by the manufacturer or an authorized person at least once a year. In the event of a fall, the equipment must be removed from use.
