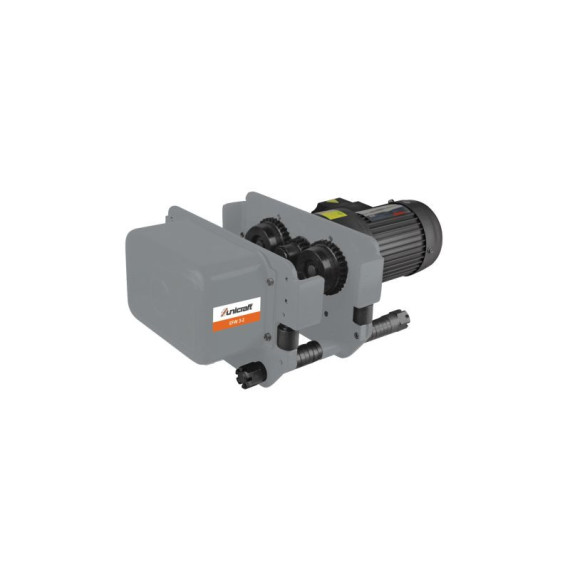

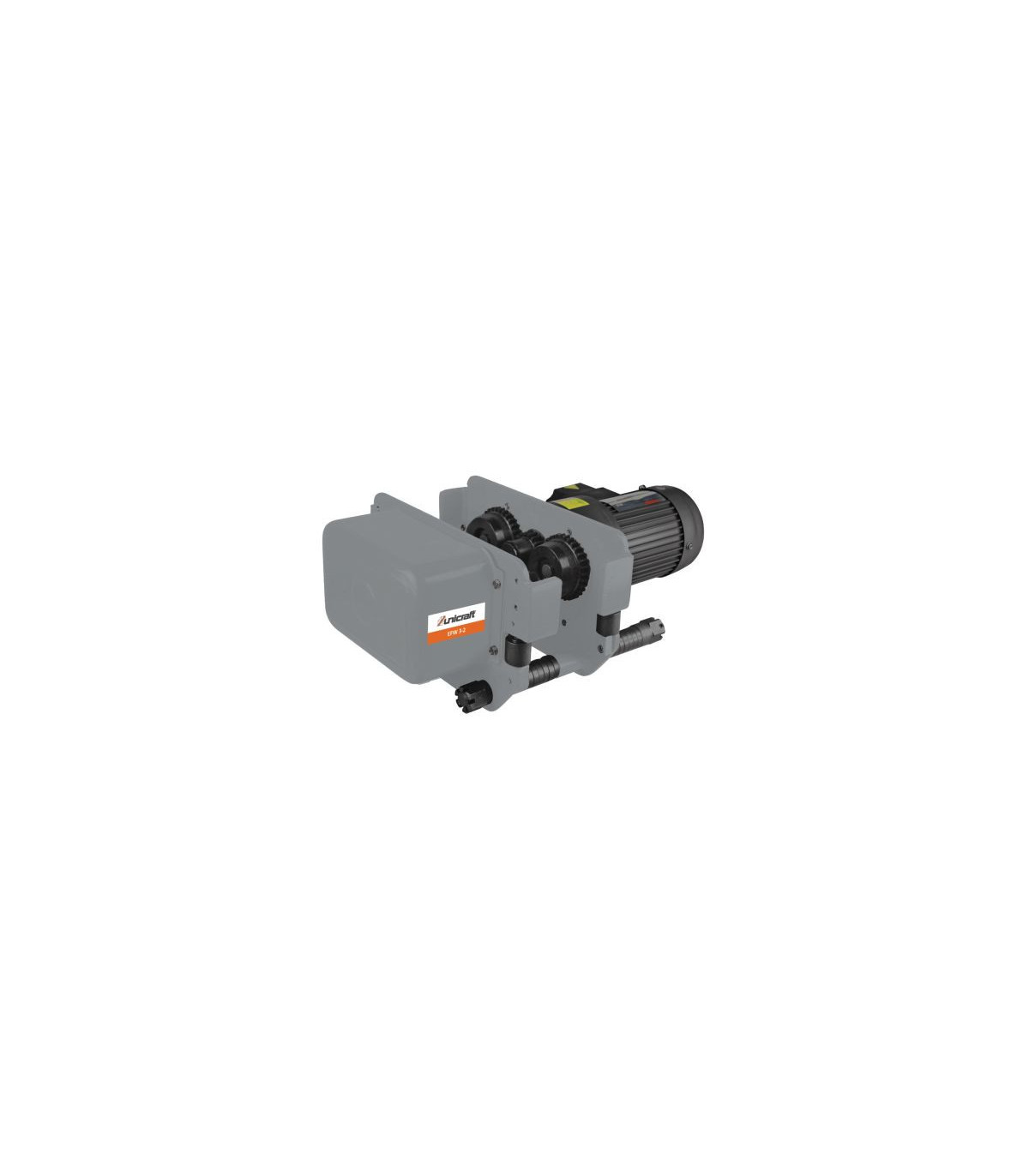

Electric Hoist Trolley EFW 3-2 - 3T UNICRAFT

The Electric Hoist Trolley EFW 3-2 - 3T by Unicraft, code 6194430, with sturdy design, variable travel speed and a weight of 56 Kg, is capable of loading up to 3 tonnes.

This electric hoist trolley by Unicraft is powered by a 230 W electric motor and features a remote control that allows safe control of operating conditions, making it a very useful device when it comes to load handling.

The Electric Trolley EFW 3-2 works with the hoist EKZT 20-2, furthermore, it is suitable for beams with profile types I, IPB, IPBl, IPBv and IPE and specified flange width.

FEATURES

• Beam flange width: 100 – 170 mm
• Attachment eye width: 36 mm
• Maximum capacity: 3 T
• Dimensions (l x w x h): 750 x 370 x 340 mm
• Distance between attachment eye and support surface: 210 mm
• Wheel diameter: 96 mm
• Control cabinet extension: 138 mm
• Mains frequency: 50 Hz
• Protection class: IP 54
• Mounting plate thickness: 16 mm
• Max. curve radius: 5.000 mm
• Net weight: 56 kg
• Maximum power: 0,6 / 0,23 kW
• Motor extension: 340 mm
• Voltage: 400 V
• VPE: 1
