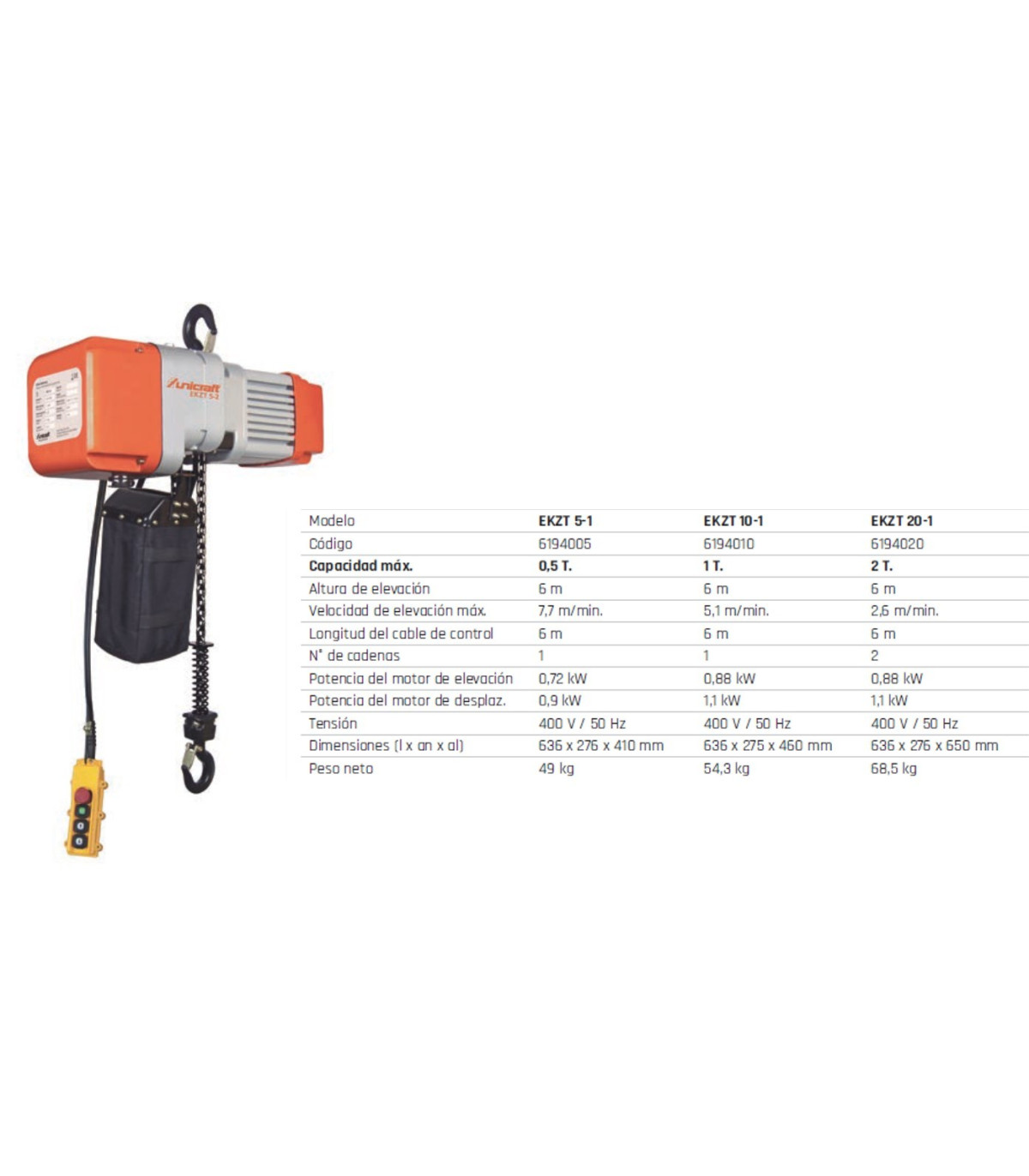

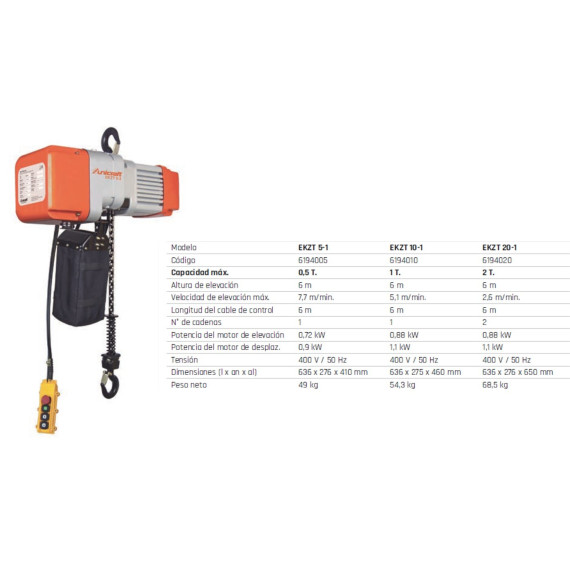

Electric chain hoist EKZT 10-1 with a load capacity of 1 ton UNICRAFT

Electric chain hoist EKZT 10-1 with a load of 1 ton UNICRAFT. The EKZT 10-1 electric chain hoist from UNICRAFT has a load capacity of 1 ton and a lift height of 6 meters. It features transport hooks, overload protection, a limit switch, and a lifting speed of 5.1 m/min.

FEATURES

• Suspension of the chain hoist using transport hooks
• Overload protection via friction clutch
• Integrated operating limit switch
• Safe chain storage using standard chain memory

BENEFITS

The FEM/ISO 2m/M5 motor group corresponds to 1,600 hours of life at full load

Load chains type G80 according to DIN EN-818-7

Siemens Electrics

One lifting speed

TECHNICAL SPECIFICATIONS

Load capacity 1 ton

Lift height 6 meters

Lifting speed(s) 5.1 m/min

Length of control unit cable 6 meters

Number of chain strands 1

VPE 1

Dimensions and weights

Approximate length 636 millimeters

Approximate width/depth 275 millimeters

Approximate height 460 millimeters

Approximate weight. 54.3 kilos

Electrical data

Protection class IP54

Drive motor absorbed power 1.4 kW

Supply voltage 400 volts

Network frequency 50 Hz

COMPONENTS/PACKAGING

Unit: piece(s).

Packaging unit: 1

FOR WHAT TYPE OF WORK IS IT SUITABLE

The EKZT 10-1 electric chain hoist with a load of 1 ton UNICRAFT is suitable for:

• Handling heavy loads
• Industrial maintenance
• Mechanical workshops
• Warehouses
