Electric chain hoist EKZT 20-1 maximum load 2 tons UNICRAFT

Electric chain hoist EKZT 20-1 maximum load 2 tons UNICRAFT. The electric chain hoist EKZT 20-1 UNICRAFT, with a load capacity of 2 tons and a lift height of 6 meters, is ideal for handling heavy loads in industrial maintenance, mechanical workshops, and warehouses. It features overload protection, a limit switch, and safe chain storage. Its lifting speed is 2.6 m/min and it has a 6-meter control cable with 2 strands.

FEATURES

• Suspension of the chain hoist using transport hooks
• Overload protection through friction clutch
• Integrated operating limit switch
• Safe chain storage using standard chain memory

BENEFITS

• The FEM/ISO 2m/M5 motor group corresponds to 1,600 hours of life at full load
• Load chains type G80 according to DIN EN-818-7
• Siemens Electrics
• One lifting speed

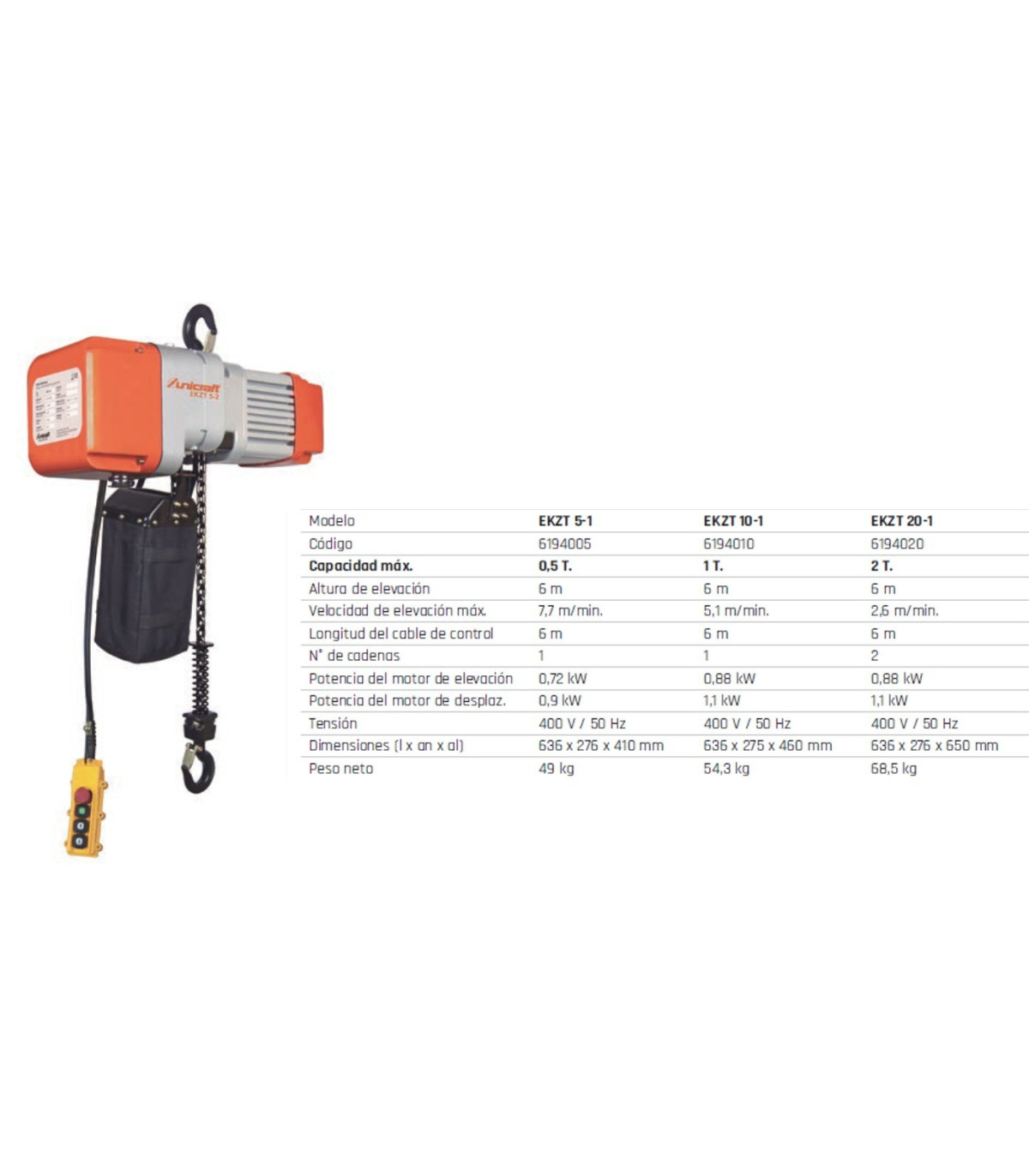

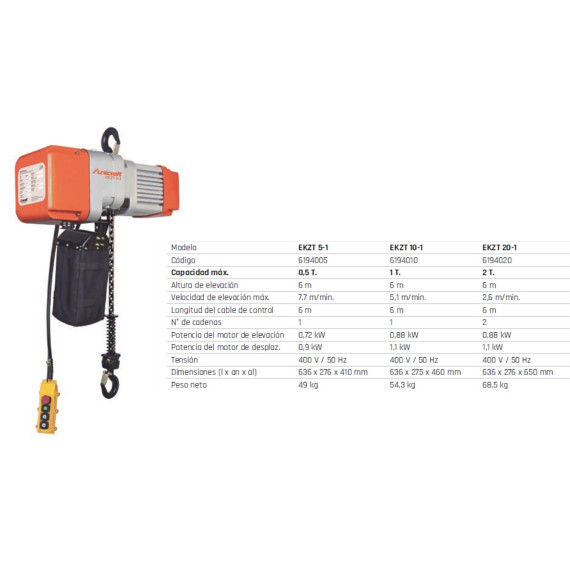

TECHNICAL SPECIFICATIONS

Load capacity 2 tons

Lift height 6 meters

Lifting speed(s) 2.6 m/min

Length of control unit cable 6 meters

Number of strands of the chain 2

VPE 1

Dimensions and weights

Approximate length 636 millimeters

Approximate width/depth 276 millimeters

Approximate height 650 millimeters

Approximate weight. 68.5 kilos

Electrical data

Protection class IP54

Drive motor absorbed power 1.4 kW

Supply voltage 400 volts

Network frequency 50 Hz

COMPONENTS/PACKAGING

Unit: pce(s).

Packaging unit: 1

FOR WHAT TYPE OF WORK IS IT SUITABLE

The electric chain hoist EKZT 20-1 maximum load 2 tons UNICRAFT is suitable for:

• Handling heavy loads
• Industrial maintenance
• Mechanical workshops
• Warehouses

CERTIFICATION

Quality Management System of the Stürmer Group certified according to ISO 9001:2015

ISO 9001 is a globally recognized standard for quality management. It helps organizations of all sizes and sectors improve their performance, meet customer expectations, and demonstrate their commitment to quality.

Its evaluation basis includes:

Customer requirement orientation

Compliance with standards and guidelines

Knowledge management

Clearly defined process flows

Corporate responsibility

Sustainability, development, and innovation

Risk management
