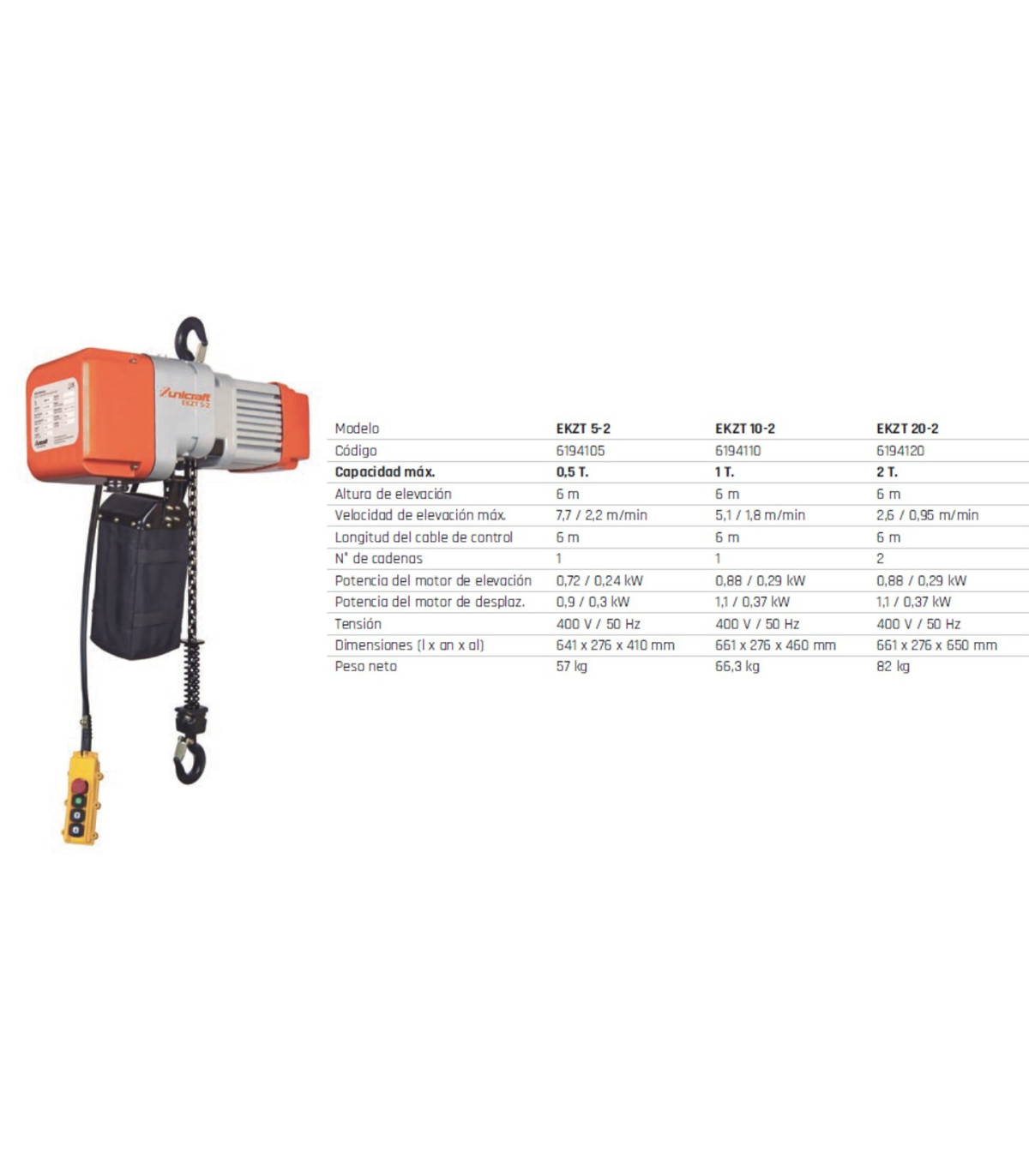

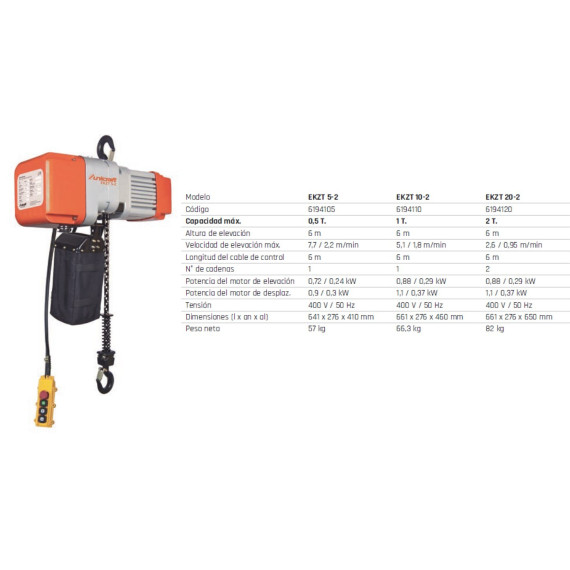

Electric chain hoist EKZR 20-2 maximum load of 2 tons UNICRAFT

Electric chain hoist EKZR 20-2 maximum load of 2 tons UNICRAFT. The EKZR 20-2 electric chain hoist from UNICRAFT supports up to 2 tons, perfect for handling heavy loads in industrial maintenance, mechanical workshops, and warehouses. With transport hooks, overload protection, and lifting speeds of 2.6/0.95 m/min, it ensures safe and efficient operation.

FEATURES

• Suspension of the chain hoist using transport hooks
• Overload protection via friction clutch
• Integrated limit switch
• Safe chain storage using standard chain memory

BENEFITS

The FEM/ISO 2m/M5 motor group corresponds to 1,600 hours of life at full load

G80 load chains according to DIN EN-818-7

Siemens Electrics

Two lifting speeds

TECHNICAL SPECIFICATIONS

Load capacity 2 tons

Lift height 6 meters

Lifting speed(s) 2.6 / 0.95 m/min

Control unit cable length 6 meters

Number of chain strands 2

VPE 1

Dimensions and weights

Approximate length 661 millimeters

Approximate width/depth 276 millimeters

Approximate height 650 millimeters

Approximate weight. 82 kilos

Electrical data

Protection class IP54

Drive motor absorbed power 1.4 / 0.46 kW

Supply voltage 400 volts

Network frequency 50 Hz

COMPONENTS/PACKAGING

Unit: pce(s).

Packaging unit: 1

FOR WHAT TYPE OF WORK IT IS SUITABLE

The EKZR 20-2 electric chain hoist maximum load of 2 tons UNICRAFT is suitable for:

• Handling heavy loads
• Industrial maintenance
• Mechanical workshops
• Warehouses
