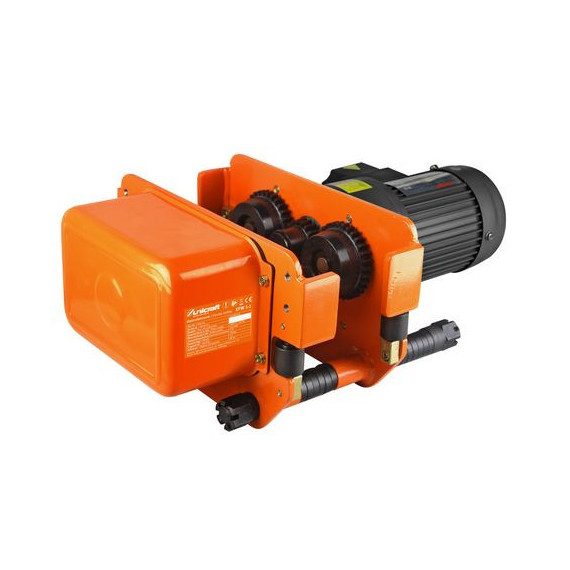

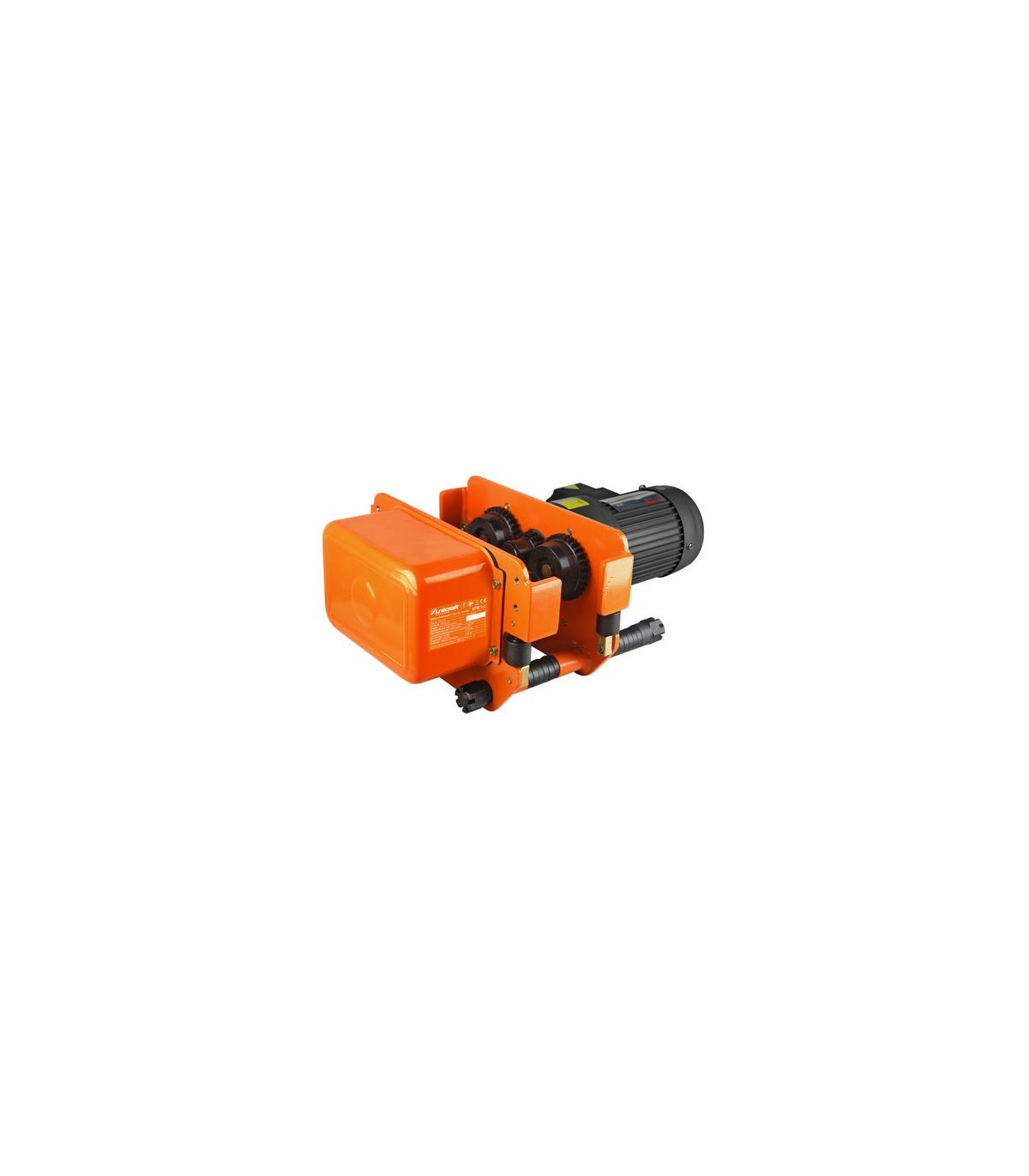

Electric car EFW 2-2 with two speeds of movement UNICRAFT

Electric cart EFW 2-2 with two travel speeds UNICRAFT. The EFW 2-2 electric cart from UNICRAFT, with a load capacity of 2 tons and two speeds (6.7 / 20 m/min), is ideal for storage, logistics, construction, manufacturing industry, agriculture, and events. Compatible with I-beams and IPE.

FEATURES

• Electrical connection and chassis control through the control bottle of the associated electric chain hoist
• Suitable for beams with I, IPB, IPBl, IPBv, and IPE profile types and specified support flange width
• Accessory for electric chain hoist EKZT 20-2 (Art. No.: 6194120)

TECHNICAL SPECIFICATIONS

Load capacity 2 tons

Travel speed 6.7 / 20 m/min

Carrier flange width 74 – 140 millimeters

Max. curve radius 4500 millimeters

VPE 1

Dimensions and weights

Maintaining eye width 30 millimeters

Mounting plate thickness 14 millimeters

Distance between the eye of the clamp and the support surface 140 millimeters

Wheel diameter 75 millimeters

Motor extension 338 millimeters

Control cabinet extension 135 millimeters

Approx. length 748 millimeters

Approx. width/depth 340 millimeters

Approx. height 280 millimeters

Approx. weight 40 kilograms

Electrical data

Drive motor absorbed power 0.6/0.23 kW

Protection class IP54

Power supply voltage 400 volts

Network frequency 50 Hz

COMPONENTS/PACKAGING

Unit: piece(s).

Packaging unit: 1

FOR WHAT TYPE OF WORK IS IT SUITABLE

The EFW 2-2 electric cart with two travel speeds UNICRAFT is suitable for:

• Storage
• Logistics
• Construction
• Manufacturing industry
• Agriculture
• Events
