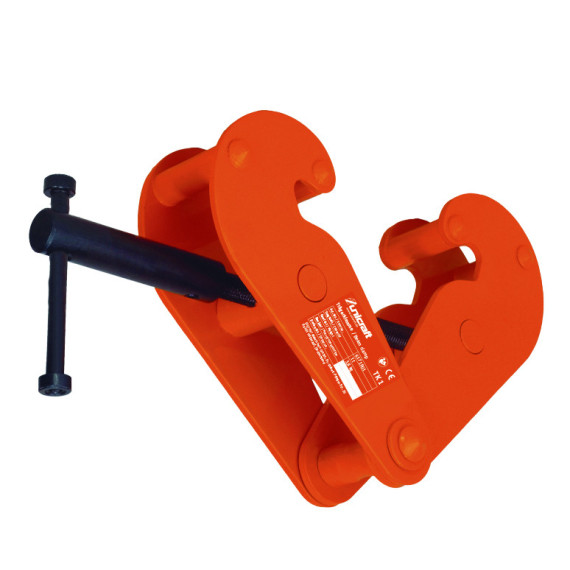

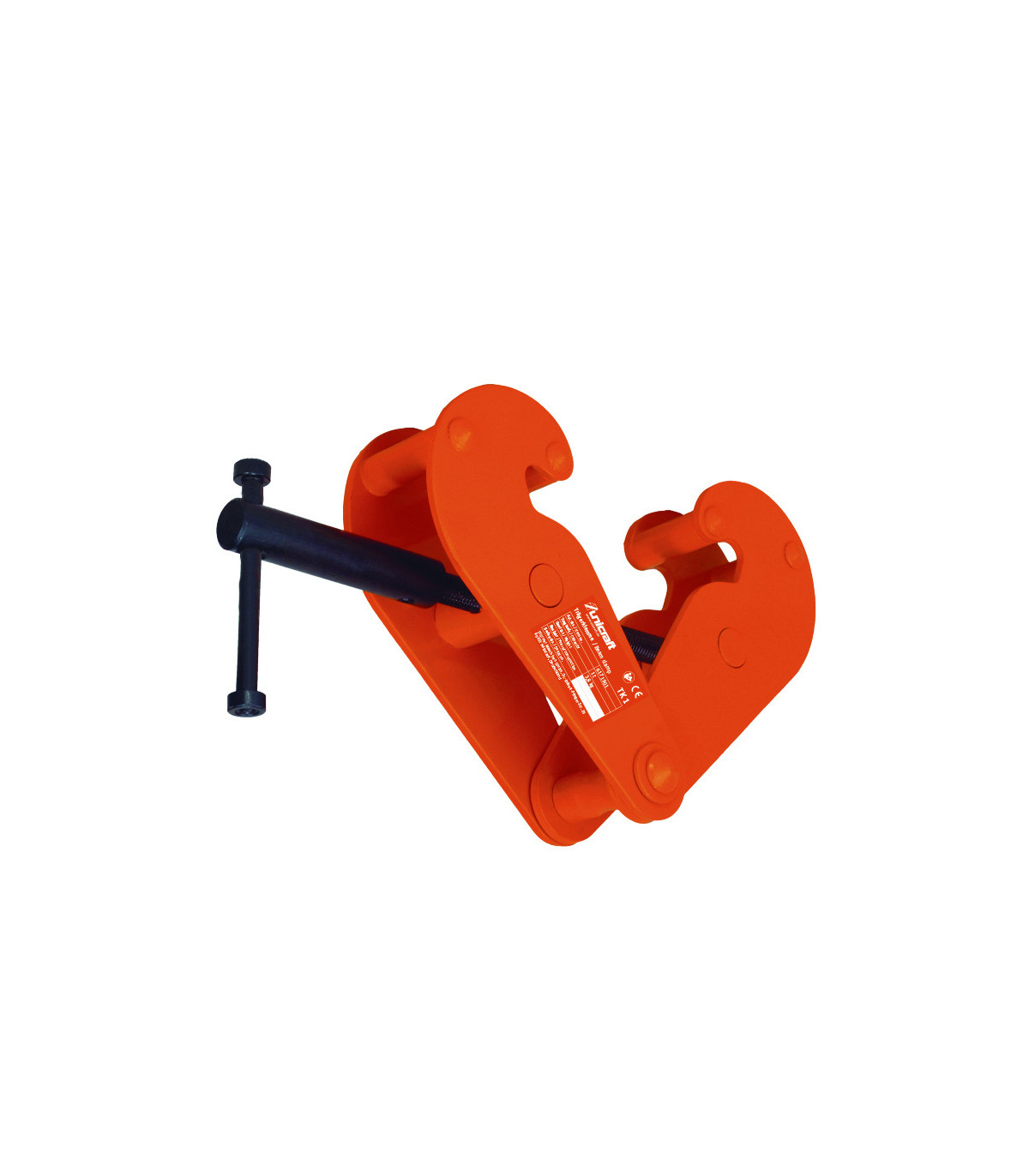

Anchor clamps for beams TK 2 load capacity 2 T UNICRAFT

TK 2 beam anchor clamps with a load capacity of 2 T UNICRAFT. The TK 1 beam anchor clamps from UNICRAFT have a load capacity of 2 tons and feature a central screw mechanism that ensures quick and secure attachment to the carrier. They are ideal for lifting gears and pulleys, thanks to their flexibility and wide adjustment range. With a flange width of 75 to 220 mm, a thickness of 20 mm, and an approximate length of 175 mm, these clamps are perfect for securing work, construction, maintenance, and installation of structures. Their weight is 4.6 kg, making them easy to handle.

FEATURES

• Central screw mechanism that facilitates secure attachment to the carrier
• For quick tying.
• Suitable for lifting gears, pulleys.
• Very flexible due to its wide adjustment range.

TECHNICAL SPECIFICATIONS

Load capacity 2 tons

Carrier flange width 75 – 220 millimeters

Flange thickness 20 millimeters

VPE 1

Dimensions and weights

Approx. length 175 millimeters

Approx. width/depth 64 millimeters

Approx. height 230 millimeters

Approx. weight 4.6 kilos

COMPONENTS/PACKAGING

Unit: piece(s).

Packaging unit: 1

WHAT TYPE OF WORK IS IT SUITABLE FOR

The TK 2 beam anchor clamps with a load capacity of 2 T UNICRAFT are suitable for:

• Securing work
• Construction
• Maintenance
• Installation of structures

CERTIFICATION

Quality Management System of the Stürmer Group certified according to ISO 9001:2015

ISO 9001 is a globally recognized standard for quality management. It helps organizations of all sizes and sectors improve their performance, meet customer expectations, and demonstrate their commitment to quality.

Its evaluation basis includes:

Customer requirement orientation

Compliance with standards and guidelines

Knowledge management

Clearly defined process flows

Corporate responsibility

Sustainability, development, and innovation

Risk management
