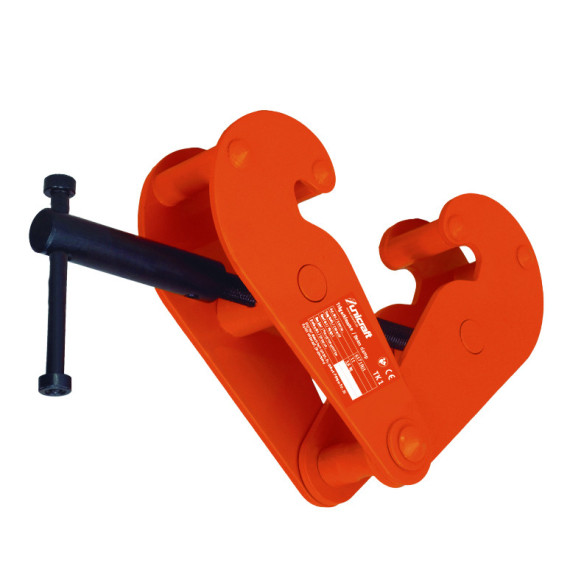

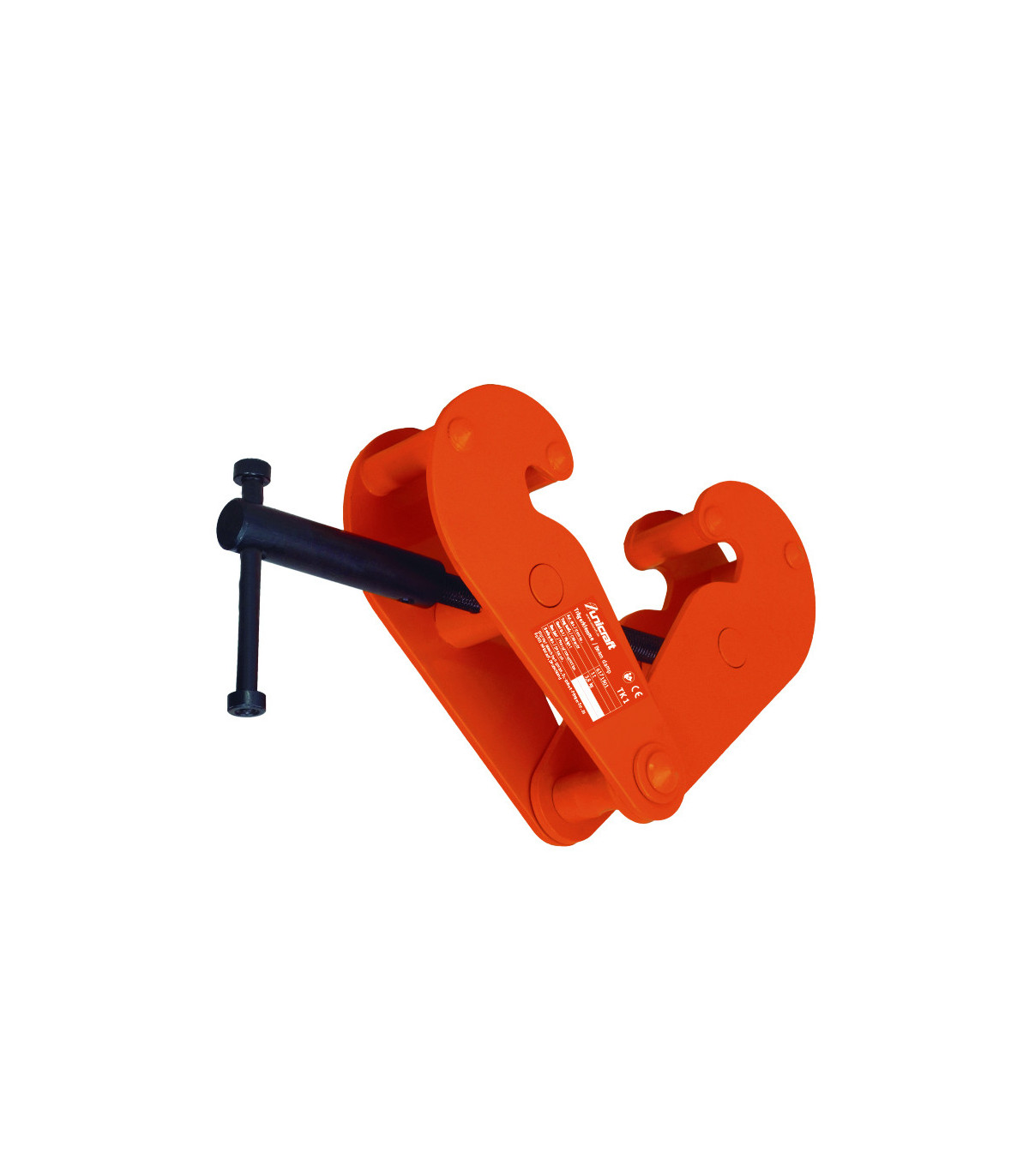

Anchor clamps for beams TK 5 load capacity 5 T UNICRAFT

Beam anchoring clamps TK 5 load capacity 5 T UNICRAFT. The TK 5 beam anchoring clamps from UNICRAFT, with a load capacity of 5 tons, are perfect for securing, construction, and maintenance work. Their central screw mechanism allows for a secure attachment to the carrier, facilitating quick tying. Thanks to their wide adjustment range, they are ideal for lifting gears and pulleys. With a carrier flange width of 80 to 320 millimeters and a thickness of 30 millimeters, they offer flexibility and safety in the installation of structures. An essential tool for professionals!

FEATURES

• Central screw mechanism that facilitates secure attachment to the carrier
• For quick tying.
• Suitable for lifting gears, pulleys.
• Very flexible thanks to its wide adjustment range.

TECHNICAL SPECIFICATIONS

Load capacity 5 tons

Carrier flange width 80 – 320 millimeters

Flange thickness 30 millimeters

VPE 1

Dimensions and weights

Approximate length 225 millimeters

Approximate width/depth 110 millimeters

Approximate height 325 millimeters

Approximate weight. 11 kilograms

COMPONENTS/PACKAGING

Unit: piece(s).

Packaging unit: 1

FOR WHAT TYPE OF WORK IS IT SUITABLE

The TK 5 beam anchoring clamps with a load capacity of 5 T UNICRAFT are suitable for:

• Securing work
• Construction
• Maintenance
• Installation of structures

CERTIFICATION

Quality Management System of the Stürmer Group certified according to ISO 9001:2015

ISO 9001 is a globally recognized standard for quality management. It helps organizations of all sizes and sectors improve their performance, meet customer expectations, and demonstrate their commitment to quality.

Its evaluation basis includes:

Customer requirement orientation

Compliance with standards and guidelines

Knowledge management

Clearly defined process flows

Corporate responsibility

Sustainability, development, and innovation

Risk management
