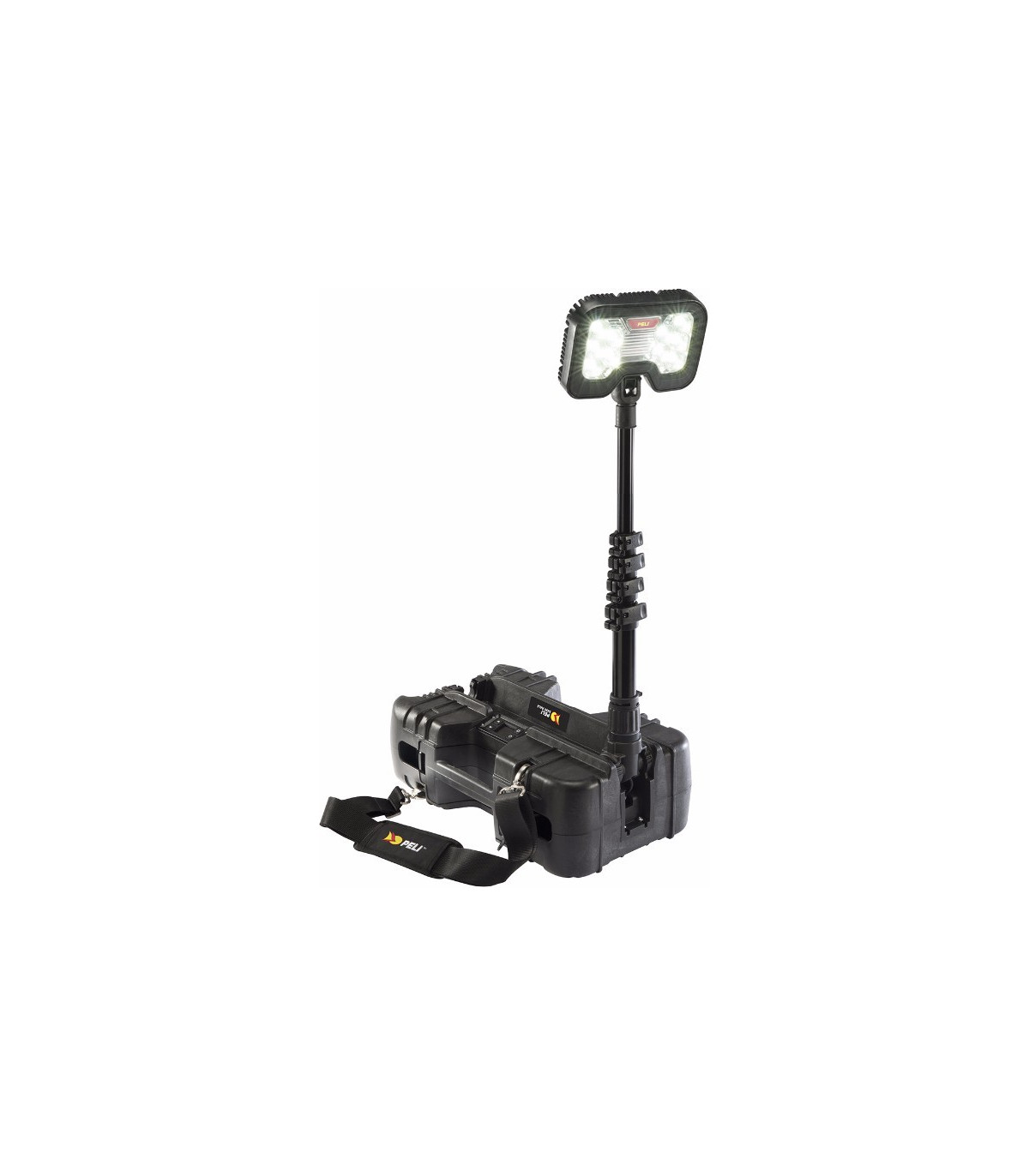

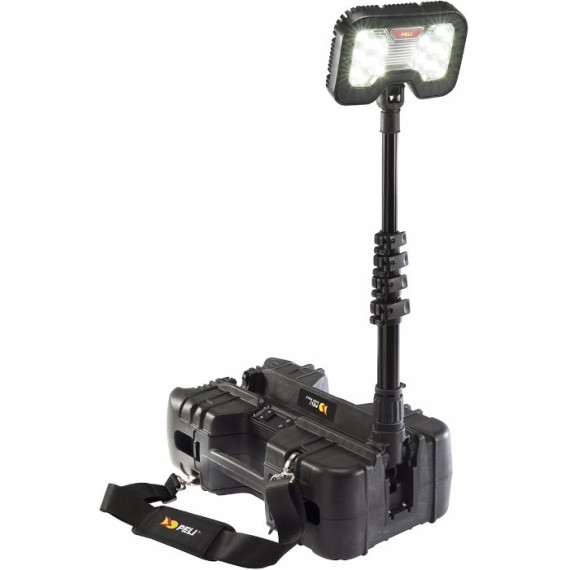

Lighting system for remote areas RALS 9490 12v PELI

The remote area lighting systems (RALS) from Peli are the complete lighting solution for immediate response teams and industrial and aerospace applications. The RALS systems, equipped with different heads, can illuminate the scene of an accident or a football field.

Model 9490.

FEATURES OF THE RALS 9490

• Up to 6,000 lumens (calculated)
• Free Bluetooth iPhone application allows control of multiple units
• Quick disassembly/Modern 12v battery design that is easy to change
• Comfortable carrying strap
• Various possible positions
• Extendable mast with 340-degree rotation
• Battery level indicator that will start flashing when it is low
• Peli durability
• The maintenance-free LED array offers an estimated lifespan of 50,000 hours
• Intelligent control system (allows or varies light output levels)
• Up to 24 hours of autonomy

HEAD (L X W X D)

8.25" x 5.75" x 2.25" (21 x 14.6 x 5.7 cm)

CLOSED (L X W X D)

20.00" x 6.50" x 11.25" (50.8 x 16.5 x 28.6 cm)



SPECIFICATIONS

body:

Polypropylene

HEAD:

Aluminum

MAST:

Aluminum

lens:

Polycarbonate (PC)

mast length:

  72.00" (182.9 cm)

weight:

  32.00 lbs (14.5 kg)

high lumens:

  6000

lamp heads:

  1

type of lighting system:

  LED

number of LEDs:

  10

lamp lifespan:

  50000 hrs

beam distribution:

  125 °

IP RATING:

  54

high autonomy:

  3.50 hrs

medium autonomy:

  12.00 hrs

low autonomy:

  24.00 hrs

battery type:

  Sealed Lead Acid (SLA)

battery lifespan:

  500 cycles

charging time:

  480 mins

BATTERY LEVEL INDICATOR:

  Full-time battery level display and low battery warning (visible flashing)

main outlets:

  1

volts:

  12.0 v

switch type:

  Silicone Rubber Keypad

lighting modes:

  High / Medium / Low / Flashing

CONFIGURATIONS

9490 - Standard

FOR WHAT TYPE OF WORK IS IT APPROPRIATE

Construction and Infrastructure Maintenance: At construction sites far from urban areas, in road maintenance work, bridges, tunnels, or power lines in isolated areas.

Mining and Exploration: In underground or open-pit mines, and in geological or oil exploration sites where electrical infrastructure is limited or non-existent.

Emergency Services: In search and rescue operations in mountainous areas, forests, deserts, or remote coastal areas. Also in field hospitals or temporary command centers established in isolated locations.

Outdoor Events: At concerts, festivals, film shoots, or any other event taking place in open spaces away from urban infrastructure.

Military Operations and Humanitarian Aid: In remote operation bases, temporary camps, or in areas affected by natural disasters where electrical power has been interrupted.

Telecommunications and Energy Maintenance: At communication towers, wind farms, or solar plants located in rural or hard-to-reach areas.

Temporary Camps and Settlements: In worker camps on remote projects, scientific research bases, or temporary settlements in rural areas.

Mobile Workshops and Road Repairs: To illuminate the work area during repairs of heavy vehicles or machinery on remote roads or paths.

Agriculture and Livestock: For night work in large areas of land or in rural areas without adequate lighting.

Inspections in Isolated Areas: To inspect bridges, dams, pipelines, or gas pipelines that cross remote areas.

ABOUT PELI

Since 1976, Peli has been manufacturing portable coolers, flashlights, and accessories under the highest standards of quality and innovation. Peli provides solutions for businesses by protecting the most valuable items with the mission of driving profitable growth and creating a sustainable and leadership-oriented work environment.
