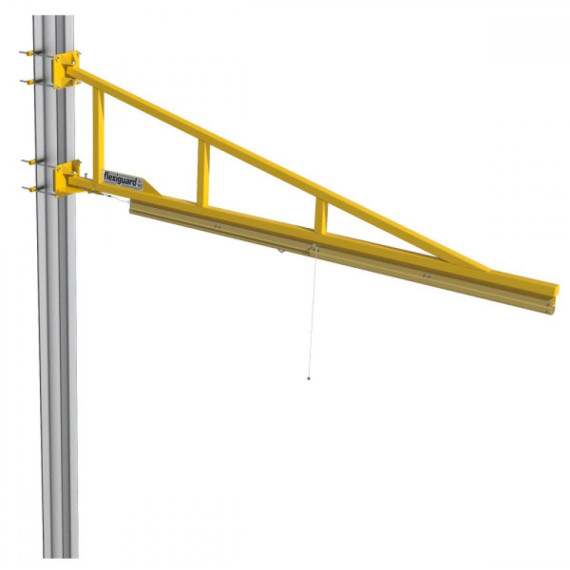

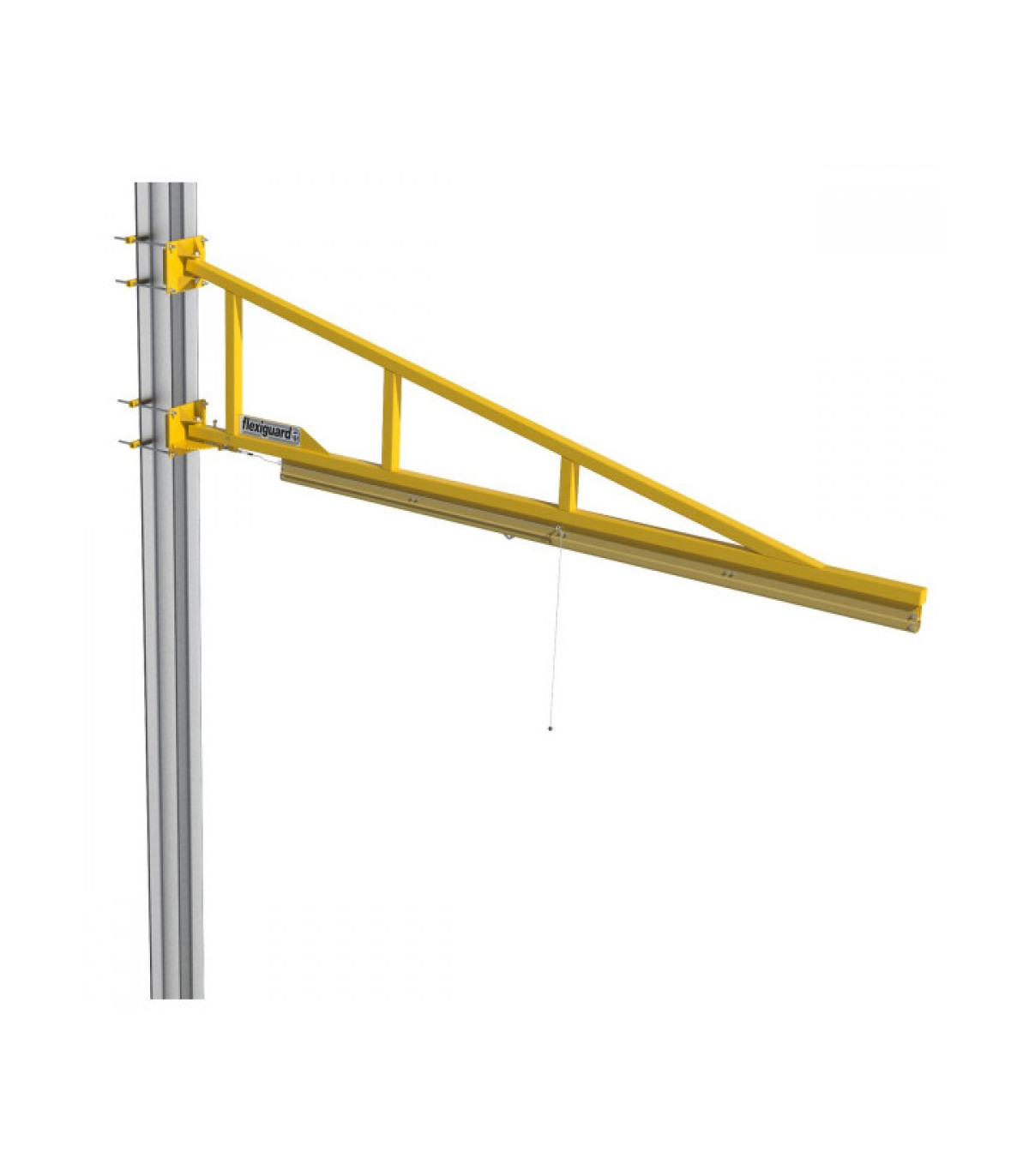

FlexiGuard arm system with a reach of 6.1 m and a 180° rotation.

FlexiGuard arm system with a reach of 6.1 m. The system rotates 180° and locks every 7.5°. 360 guide rail installed with a sliding mechanism. Clamps, plates, and mounting hardware included with the systems.

All connection systems (retractable lifelines, winches, and energy-absorbing ropes) used with the offset locking boom fall arrest system will compensate for average arrest forces at 6 kN (1350 lbf).

The arm system is a solution for internal and external maintenance when worker mobility and safety are key. These systems incorporate a 180° rotating arm with the ability to provide fall protection for one person. This base also contains four heavy-duty lifting rings for transport by crane. This system complies with CE standards.

Confirm in advance with Sekureco.eu approximate supply date.

FEATURES

• Attachment to a fixed support structure (e.g., on an I-beam) at the work site.
• Clamps, plates, and mounting hardware included with the systems.
• The system rotates 180° and locks every 7.5°
• 360 guide rail installed with a sliding mechanism.
• Jib Boom fall arrest system with offset locking 8650433.
• The Jib Boom is mounted on an existing vertical support structure.

TECHNICAL DATA

• Outer attachment area 1.73 m.
• Inner attachment area 0.92 m.
• Locking cable displacement 3.53 m.
• Rail length 5.08 m.
• Rail displacement 6.1 m.
• Total height 1.80 m.
• Total width 0.44 m.
• Attachment plate height 0.41 m.

APPLICATIONS

For securing structures in various work areas.
