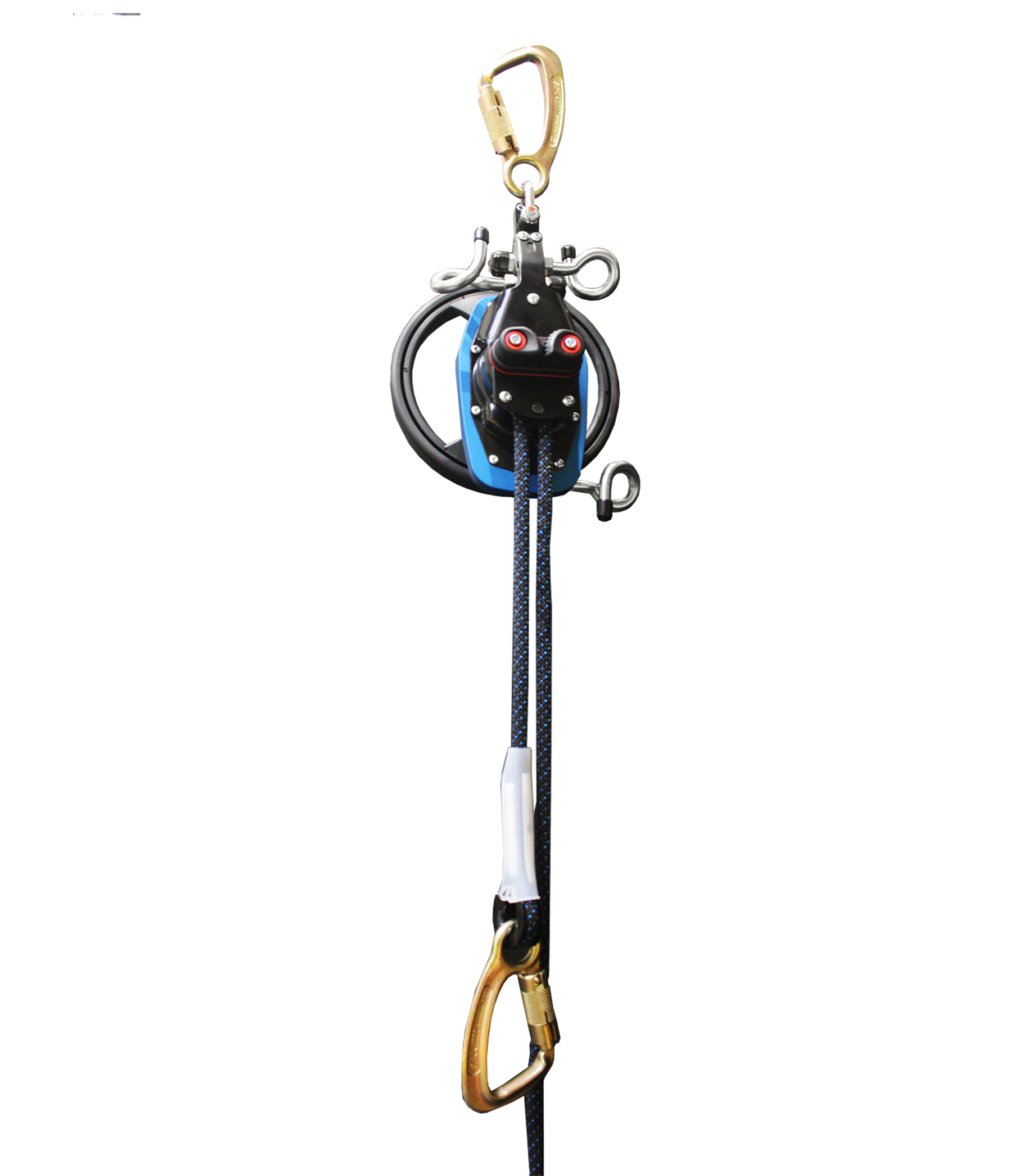

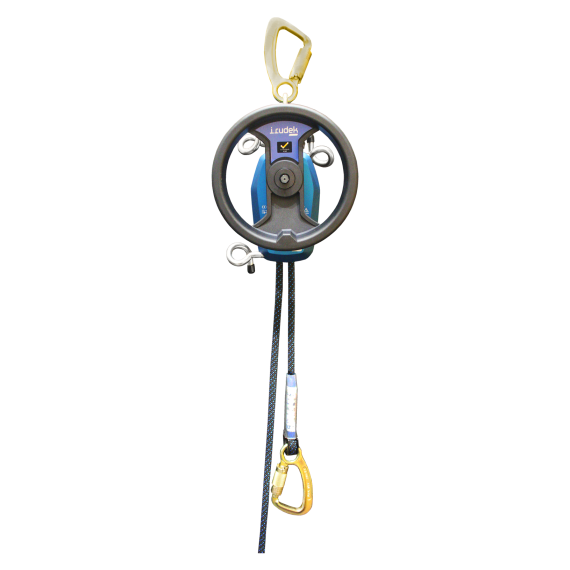

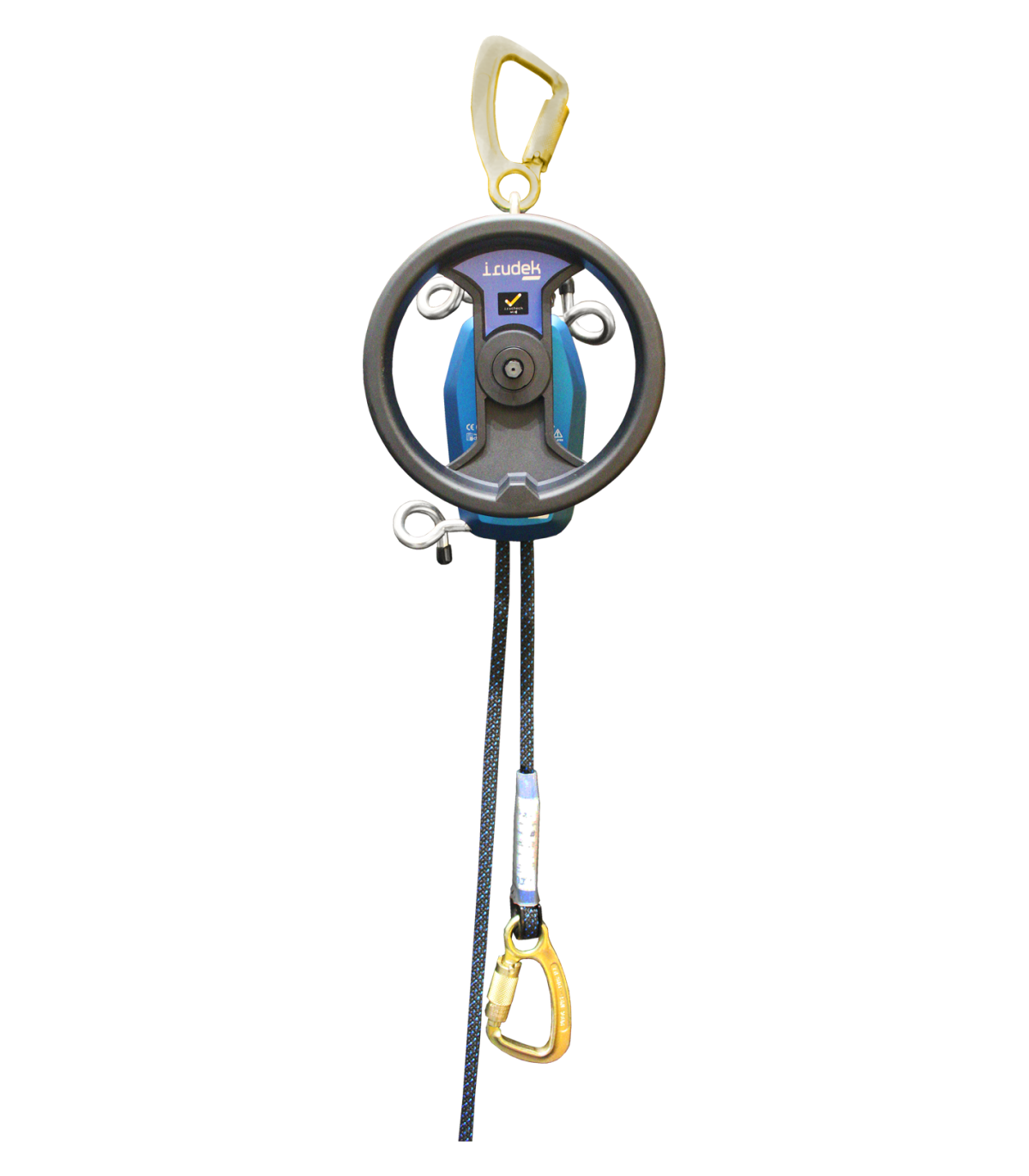

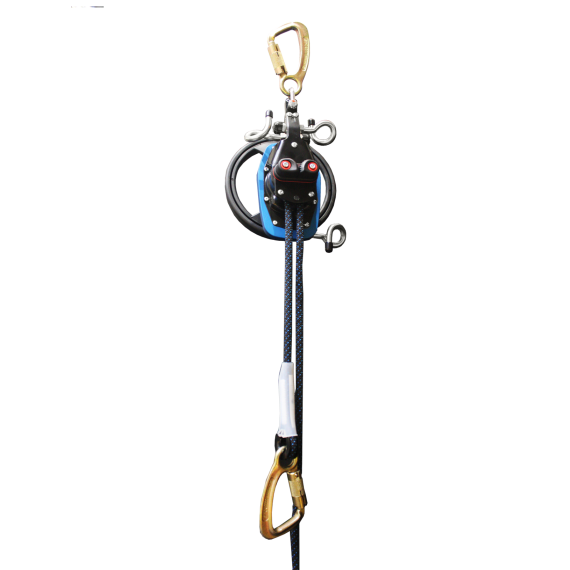

Descender and evacuator BOREAS HUB

Automatic evacuation equipment with ascent wheel, allows controlled descent without the need for operator intervention.

For a different rope length, you can contact info@sekureco.eu

Technical Specifications – Automatic Evacuation Equipment with Ascent Wheel

• Main function: Automatic evacuation system that allows controlled descent without operator intervention.
• Usage configuration: Both ends of the rope are used alternately.
• Maximum capacity:

1. Descent length: Up to 500 meters.
2. Maximum load: 225 kg (suitable for 2 people).

• Braking system: Features a complementary brake with two independent drums, extending the inspection interval to 10,000 meters of descent.
• Inspection frequency: Thanks to the Irubox packaging, the annual inspection can be spaced out to every 10 years.
• Compatibility: Equipment compatible with manual drill.
• Equipment contents:

1. Main device Boreas.
2. 10 mm semi-static rope.
3. 3 automatic steel carabiners.

• Safe use: Certified for descents of up to 2 people simultaneously.

FEATURES

Its redundant brake system with two independent drums extends its inspection period to 10,000 meters of descent, and with the Irubox packaging, the annual inspection would be conducted every 10 years.

This device is compatible with manual drill.

Includes Boreas device, 10mm semi-static rope, and 3 automatic steel carabiners.

APPLICATIONS

Both ends of the rope are used alternately, for descents of up to 500m and 225 kg (2 people).

Descents of up to 2 people can be performed.

TECHNICAL DATA

• Standard: EN 341-A, EN 1496, EN 12841-C
• Weight: 1.5 Kg
• Descent speed: 0.8 m/s
• Max rope length: 500 m
• Max load: 225 Kg (2 people)
• Inspection interval: 10,000 m
