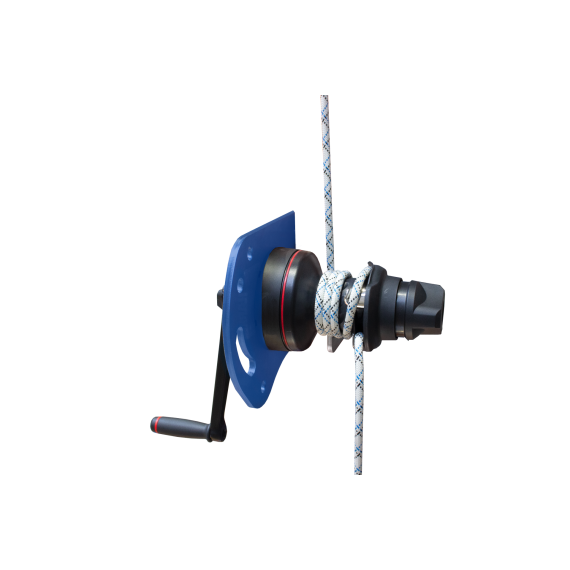

TRN5 ROPE anchoring device for TRIP4 and DAVIT

Irudek it introduces the new TRN5 Rope descent and rescue device, a new rope turn that provides a mechanical advantage of 13.5:1 and up to 40:1 depending on the direction of turn.

For a different rope length you can communicate with [email protected]

CHARACTERISTICS

The Self-Tailing ergonomic design reduces fatigue and optimizes operator endurance, while safety features such as locking gags allow controlled descent of the load by unlocking the lever, braking automatically when the maneuver is interrupted.

The lathe may be operated manually with the crank provided or with a compatible mechanical drill available (for product/equipment lifting only).

BENEFITS

Its lightweight design and use of an unlimited length of fiber rope make this lathe an ideal choice, whether portable or permanently mounted.

This rescue device is already fitted to all confined space anchorage devices of the Irudek and it's already available.

APPLICATIONS

The device has been designed for lifting materials (500Kg) and people (240Kg) without limitation in the length of the rope, offering endless utilities.

The device can be used anywhere a load is to be lifted or lowered. Attached to a tripod, it can be used for rescue operations in confined spaces, for moving and transporting cargo and for lifting personnel.

TECHNICAL DATA

This Regulation shall be binding in its entirety and directly applicable in all Member States

Weight: 7,7 kg

Length of cable: Infinite

Maximum weight: 240 kg

Diameters: 10 to 12,7 mm

Materials

ASA: Plastic
Cable: Galvanized steel
Manufacture from materials of any heading
Body made of steel

ABOUT IRUDEK

Irudek Group works on safety, specializing in fall protection and lifelines. Innovation and product development have been constant since its creation, with an R & D & I department providing a wide range of products that stand out for their design, quality, ergonomics, comfort and adaptation to customer needs, exceeding the most stringent European Standards.
