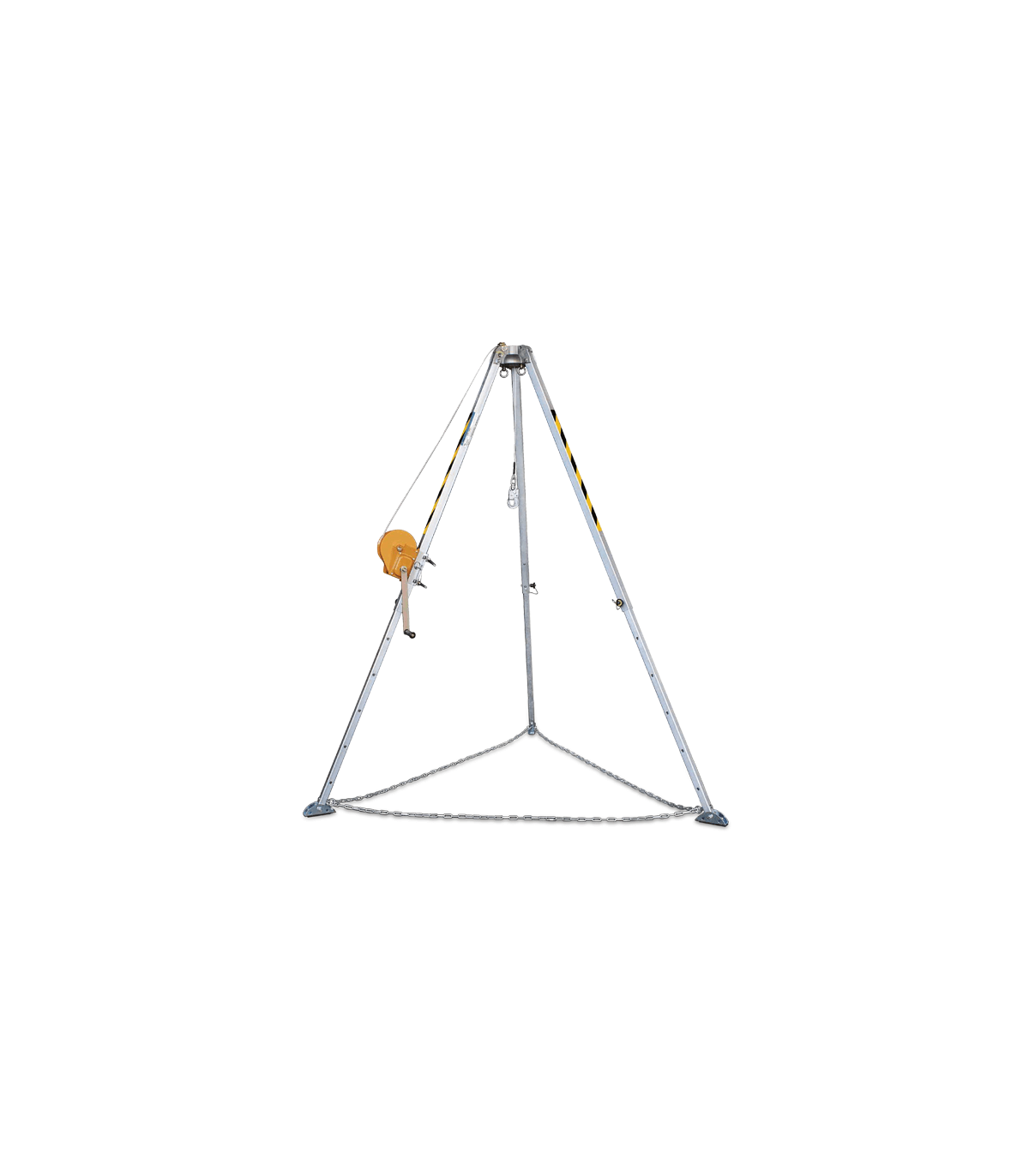

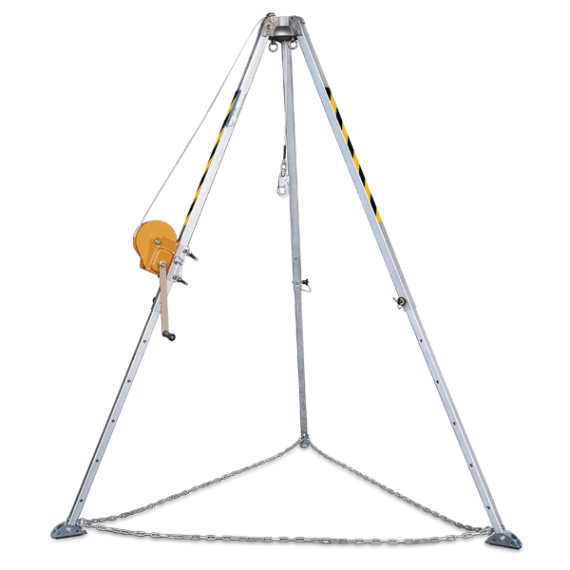

Complete portable tripod PCX-020 Climax

Mobile tripod designed for safe access of personnel in confined spaces, wells, tanks, hatches and other underground work, providing fall protection. Manufactured from anodised aluminium, it features three adjustable telescopic legs offering great strength and versatility. Its removable base allows quick and easy assembly and disassembly without tools, facilitating transport and installation in any work environment.

FEATURES

• Anchor points tested with a load up to 100 kg.
• Three adjustable telescopic legs of anodised aluminium.
• Quick assembly/disassembly without tools.
• Galvanised steel cable 5 mm.
• Includes rescue winch with manual locking system and maximum lifting height of 20 m.

TECHNICAL DATA

• Material : anodised aluminium
• Manufacture : Spain
• Weight : 35 kg
• Working height : 135–240 cm
• Deployment diameter : 114–214 cm
• Maximum lifting distance : 20 m
• Service life : Metal components with unlimited service life
• Standards : EN 795: 2012 CLASS B | EN 1496:2017 CLASS A

STANDARDS

Regulation (EU) : 2016/425

Standards : EN 795:2012 ; EN 1496 : Class A

Notified body no. 0598
