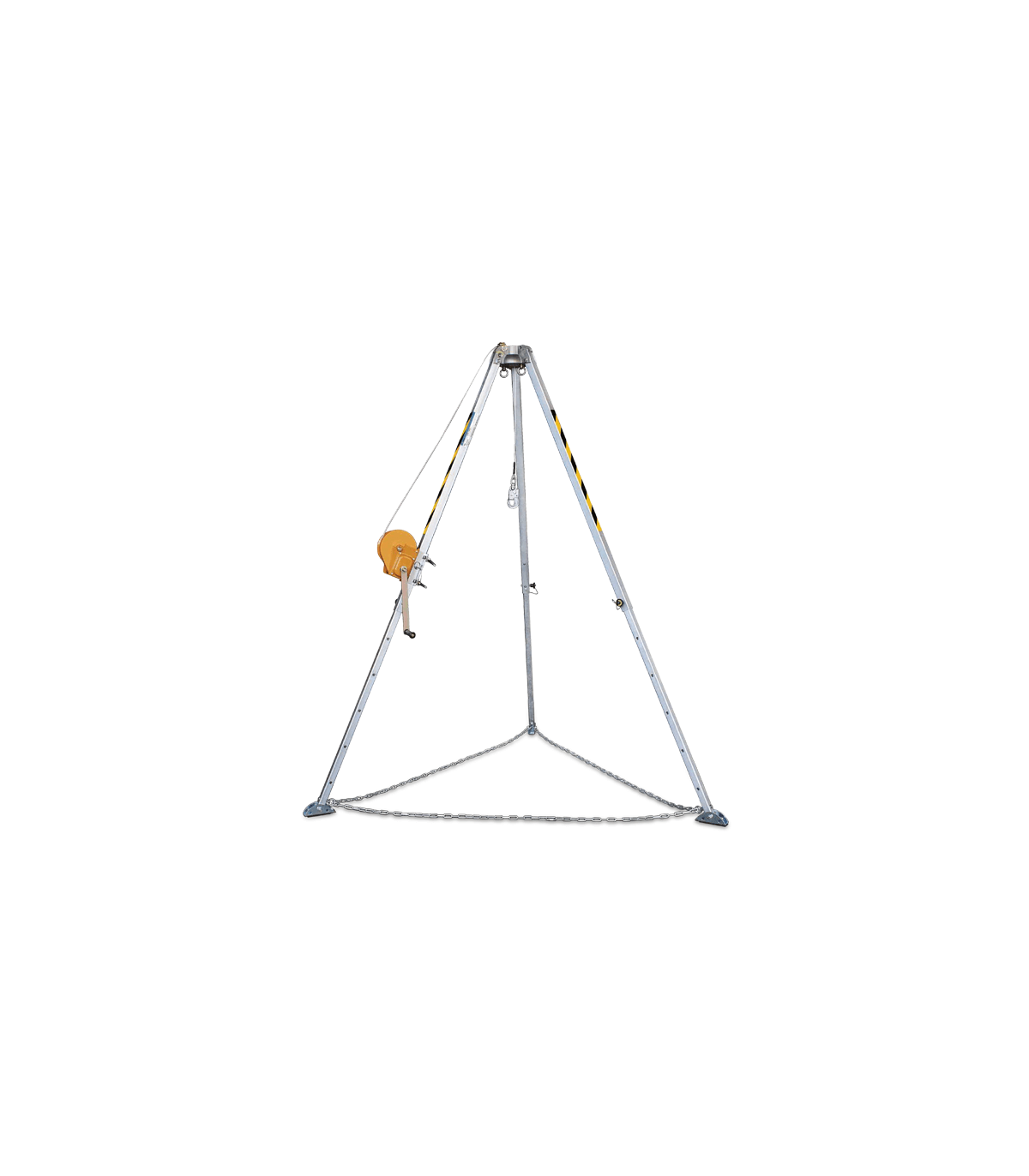

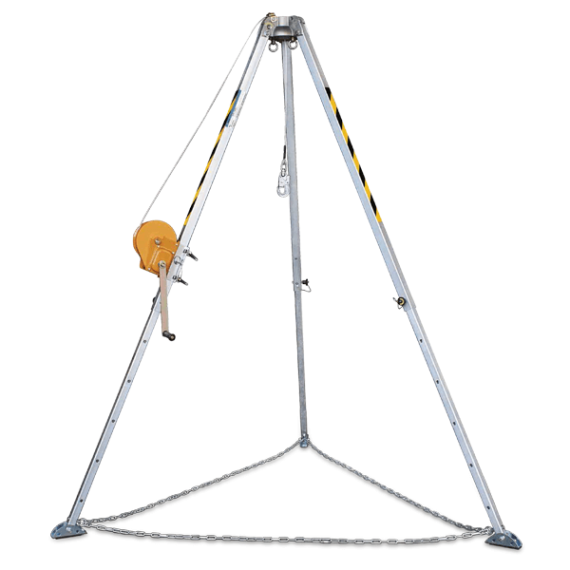

Complete portable tripod PCX-020 150 kg CLIMAX

Safety tripod designed for access and rescue of persons in confined spaces, wells, tanks, hatches and other underground works, providing effective protection against falls. Manufactured in anodised aluminium, it incorporates three adjustable telescopic legs and a removable base allowing quick and simple assembly and disassembly, with no need for tools. Its anchor points have been successfully tested for a load of 150 kg, guaranteeing a high level of safety and reliability in work and rescue operations.

FEATURES

• Anchor points tested with a load of 150 kg.
• Three adjustable telescopic legs in anodised aluminium.
• Quick assembly/disassembly without tools.
• Galvanised steel cable 5 mm.
• Includes rescue winch with manual locking system and maximum lifting height of 20 m.

TECHNICAL DATA

• Material: anodised aluminium
• Manufacture: Spain
• Weight: 35 kg
• Working height: 135–240 cm
• Deployment diameter: 114–214 cm
• Maximum lifting distance: 20 m
• Service life: Metal components with indefinite service life
• Standards: EN 795: 2012 CLASS B | EN 1496:2006 CLASS A

STANDARDS

Regulation (EU) 2016/425

Standards: EN 795:2012 Class B; EN 1496:2006 Class A

Notified body No. 0598
